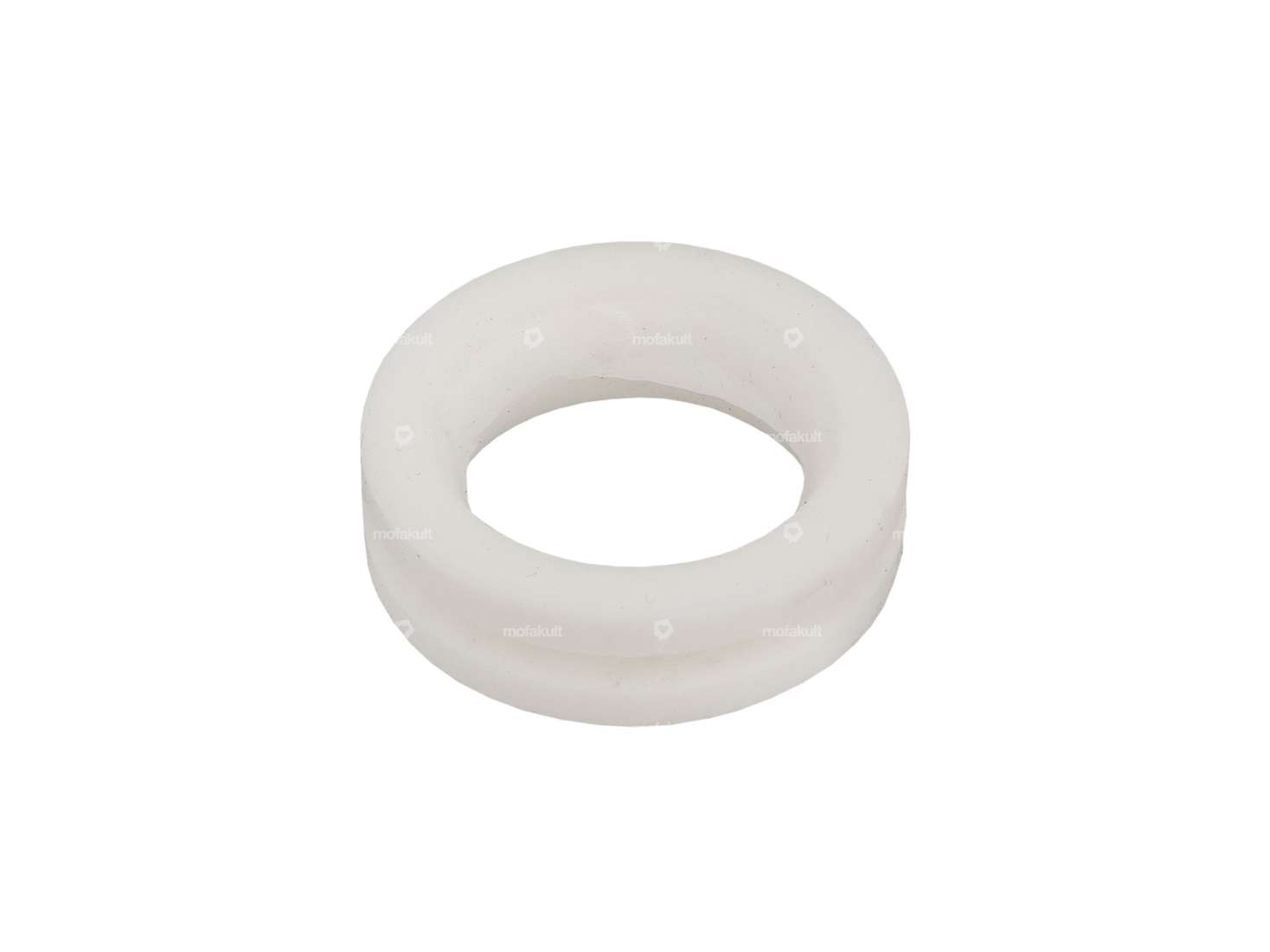

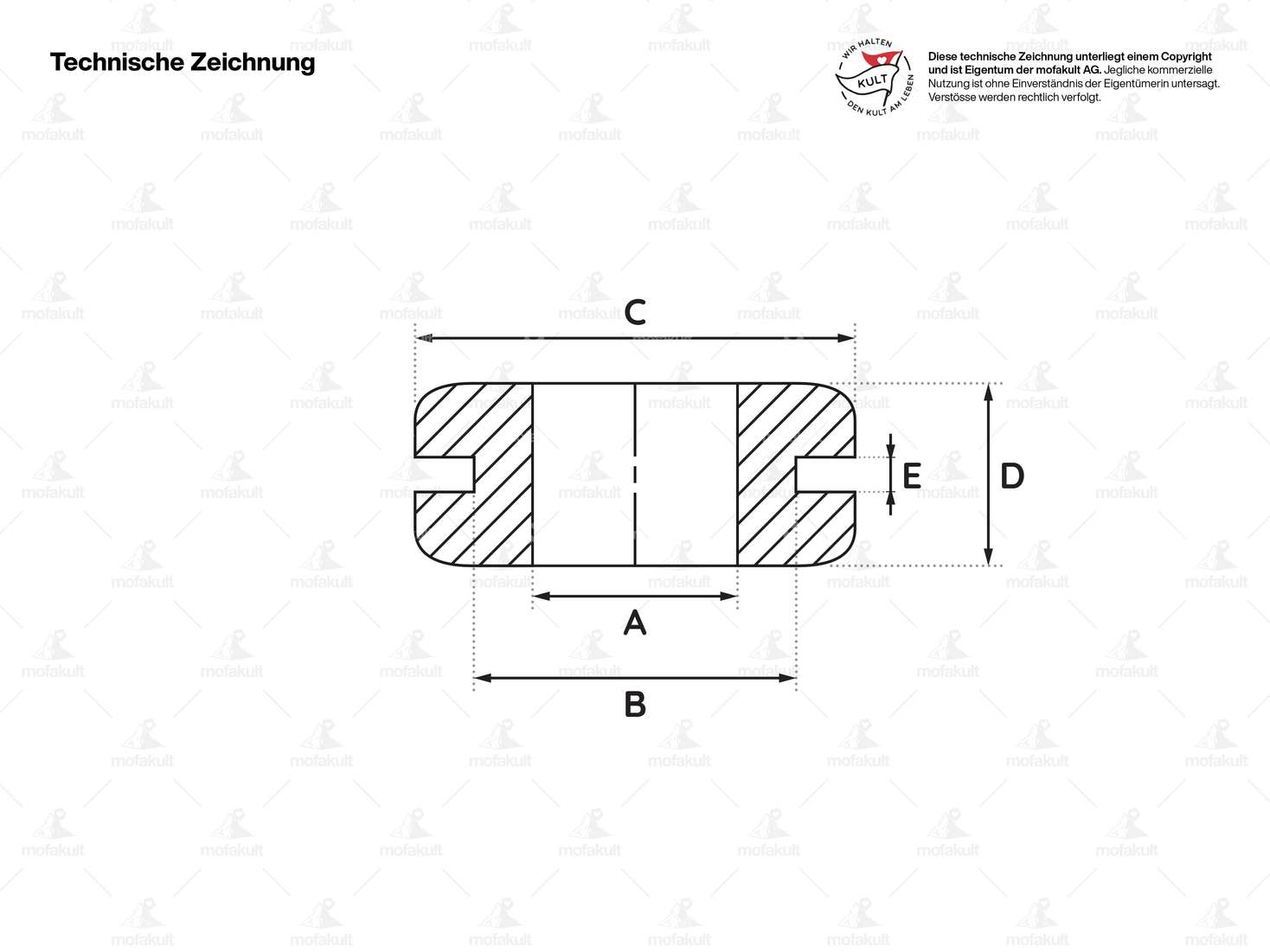

Cable grommet headlight bracket | Puch DS50, VZ50, VS50, MV50

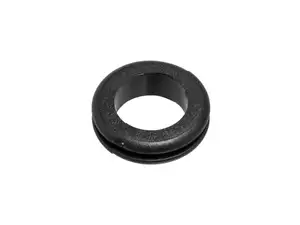

Cable grommet Ø 16 / 20 mm (2 mm) PVC

Manufacturer: Made in Germany · Material: Polyvinyl chloride (PVC-U_hard) · Ø Cable bushing: 16 mm · Ø mounting hole: 20 mm · Ø outside: 25 mm · Color: black · Material thickness: 2 mm · Height: 7 mm

Cable grommet Ø 23 / 28 mm PVC

Manufacturer: Made in Germany · Material: Polyvinyl chloride (PVC-U_hard) · Ø Cable bushing: 23 mm · Ø mounting hole: 28 mm · Ø outside: 33 mm · Color: black · Material thickness: 3 mm · Height: 8 mm

Guide times | Steyr - Daimler - Puch AG

Material: Paper · DIN format: A5 · Number of pages: 23 pcs

Gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Thrust washer 12.5/25/1.5 NOS | Puch M50, DSV, VZV

Ø inside: 12.5 mm · Ø outside: 25 mm · Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm

Crankshaft full cheek Puch MV, VS, MS, DS | Monza | X50 (3 & 4 speed)

Area of application: Tuning · Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs

40 mm cylinder kit aluminum | Puch Monza, X50

Nominal diameter: 40 mm · Material: Cast aluminum · Area of application: Tuning · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Silentblock 10/22/33 mm

Ø inside: 10 mm · Ø outside: 22 mm · Material: Rubber · Material: Steel · Total length: 33 mm

Magura set screw M6x34 mm lock nut SW8

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: blue galvanized · Surface: nickel-plated · Ø cable holder: 3.05 mm · Slotted: No · Ø Receptacle: 7.05 mm · Width across flats Screw: 8 mm · Total length: 34 mm · Width across flats nut: 8 mm · Thread length: 24 mm · Thread type: M6x1 (standard thread)

Bumm mirror oval left short plug-in version chrome

Manufacturer: Bumm · Material: Steel · Surface: chrome-plated · Mirror surface length: 114 mm · Wide mirror surface: 68 mm · Mirror rod length: 80 mm · Clamping diameter: 17 mm · Color: Chrome · Thread size: M6 · Test mark: none

Repair instructions | Puch X30 Velux

Material: Paper · Number of pages: 52 pcs

swiing® revival cable end sleeve 6 mm

Ø inside: 3.2 mm · Ø inside: 6 mm · Ø outside: 6.2 mm · Ø outside: 8 mm · Manufacturer: swiing® revival parts · Surface: nickel-plated · Total length: 16 mm

Magura set screw M7x40 mm lock nut SW10

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Slotted: No · Width across flats Screw: 8 mm · Total length: 40 mm · Width across flats nut: 10 mm · Thread length: 29 mm · Thread type: M7x1 (standard thread)
