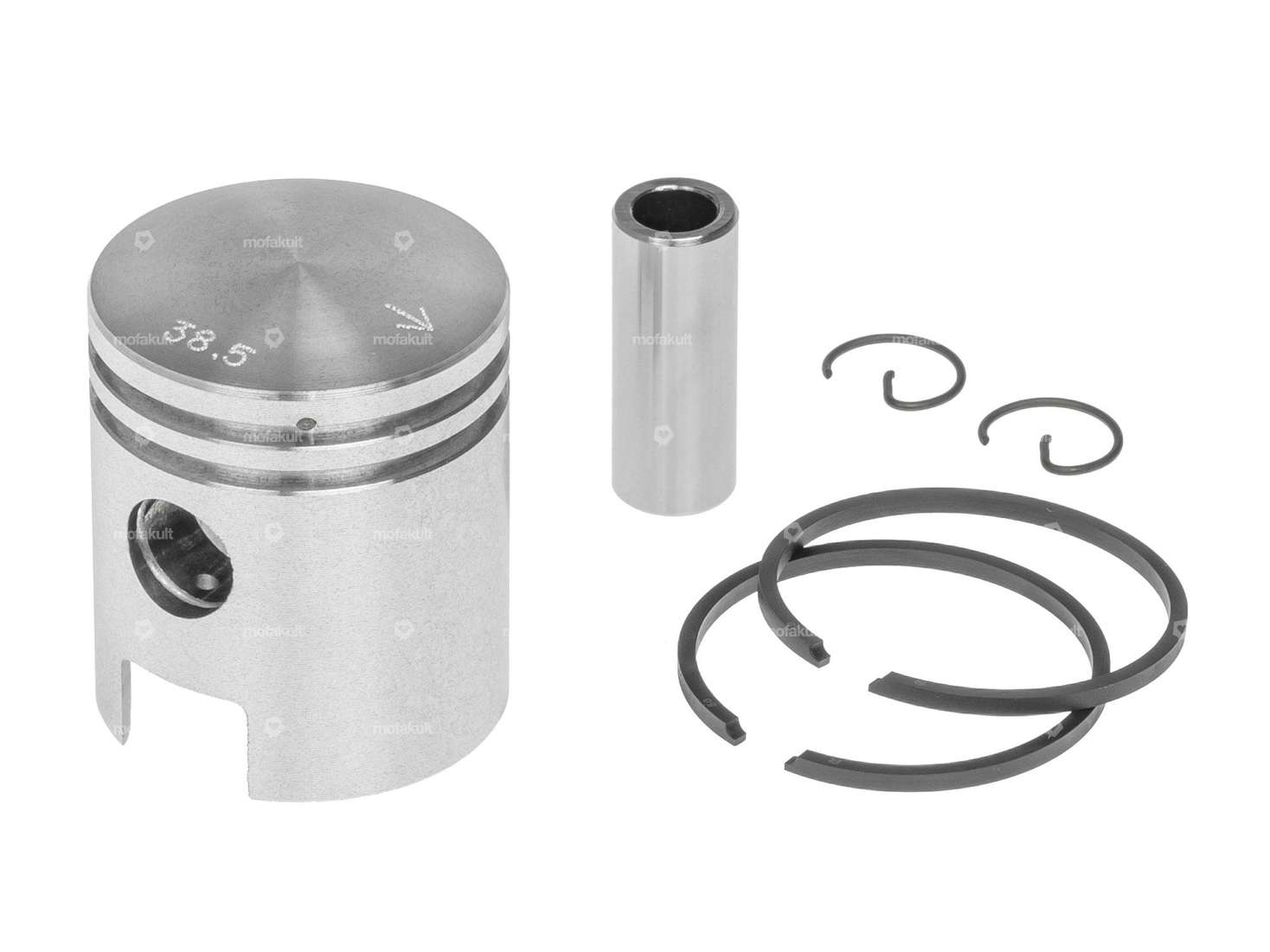

Piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Victoria MS50 / MS51 small engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if applicable, the corresponding cylinder in the accessories section.
Details
Nominal diameter | 38 mm |
Ø outside piston (A) | 37.95 mm |
Compression height (C) | 19.95 mm |
Curvature (D) | 2.1 mm |
Total piston height (E) | 46.05 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Ø piston pin (B) | 12 mm |
Suitable for the following models
Victoria |
