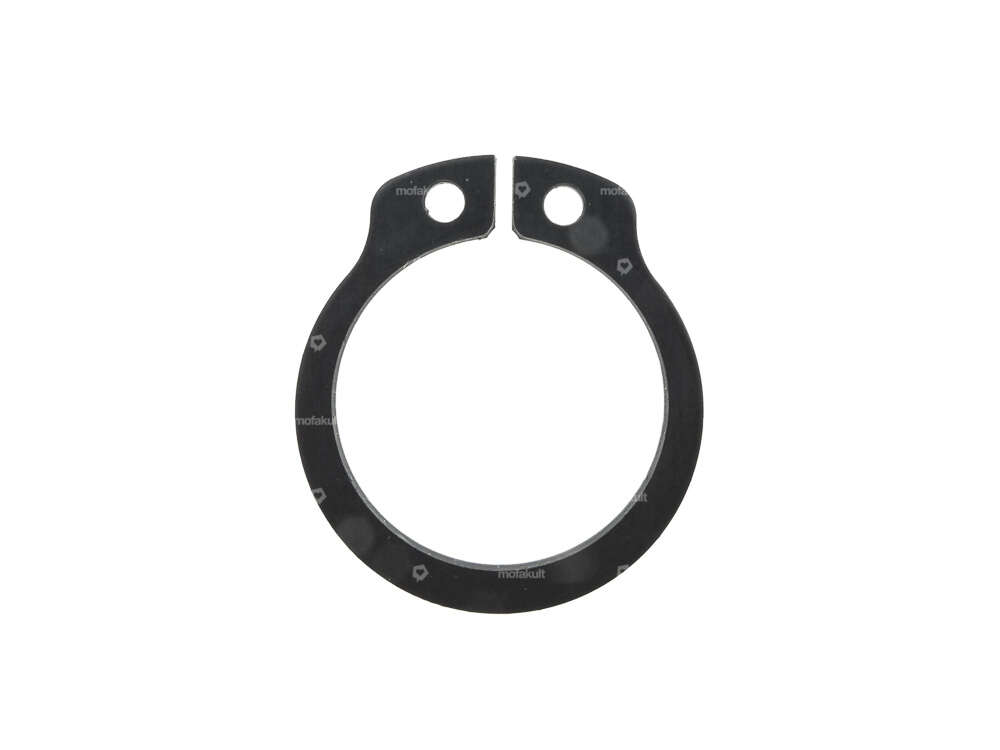

Name: 17 mm circlip E50 & ZA50 motor
Brand: Puch
SKU: 16550
Price: 1.75 EUR
Availability: InStock

Puch 1-speed E50 engines require two pieces. On the one hand, this circlip is fitted to the gear wheel as a stop for the pinion-side ball bearing. On the other hand, the circlip is also fitted to the clutch-side ball bearing on the crankshaft.

In the 2-speed automatic ZA50 engine, this circlip is required to secure the clutch unit to the crankshaft.

Original Puch spare part number: 900.4617

Details

Fuse type	Outside
Nominal diameter	17 mm
Manufacturer	Puch
Place of use	Clutch
Material	Spring steel
Surface	gas nitrided
Thickness	0.9 mm
Ø inside	15.6 mm
Ø outside	19.2 mm

Suitable for the following models

Universal

Puch

E50

ZA50 (Fahrtwindgekühlt)

ZA50 (Gebläsegekühlt)
