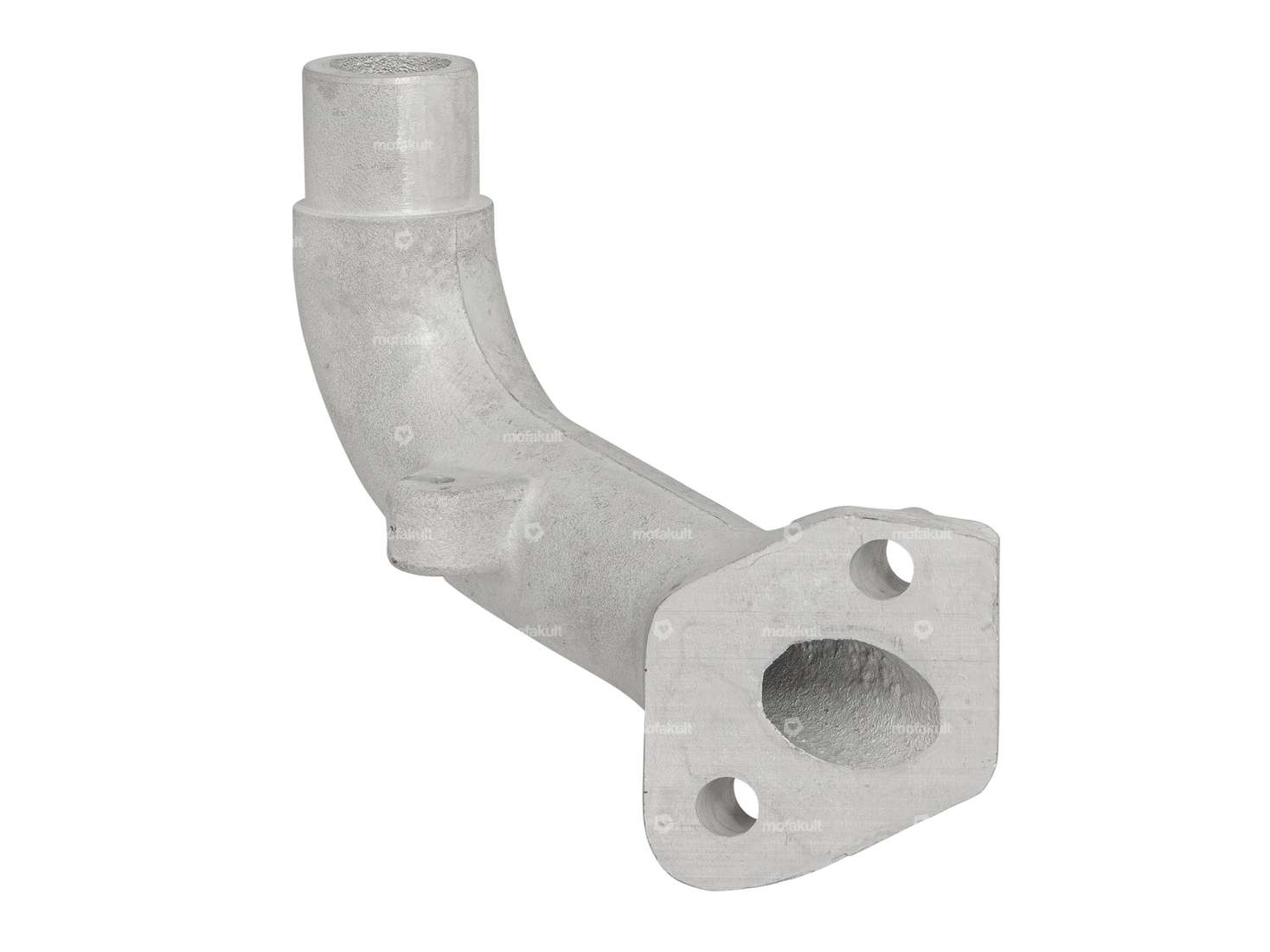

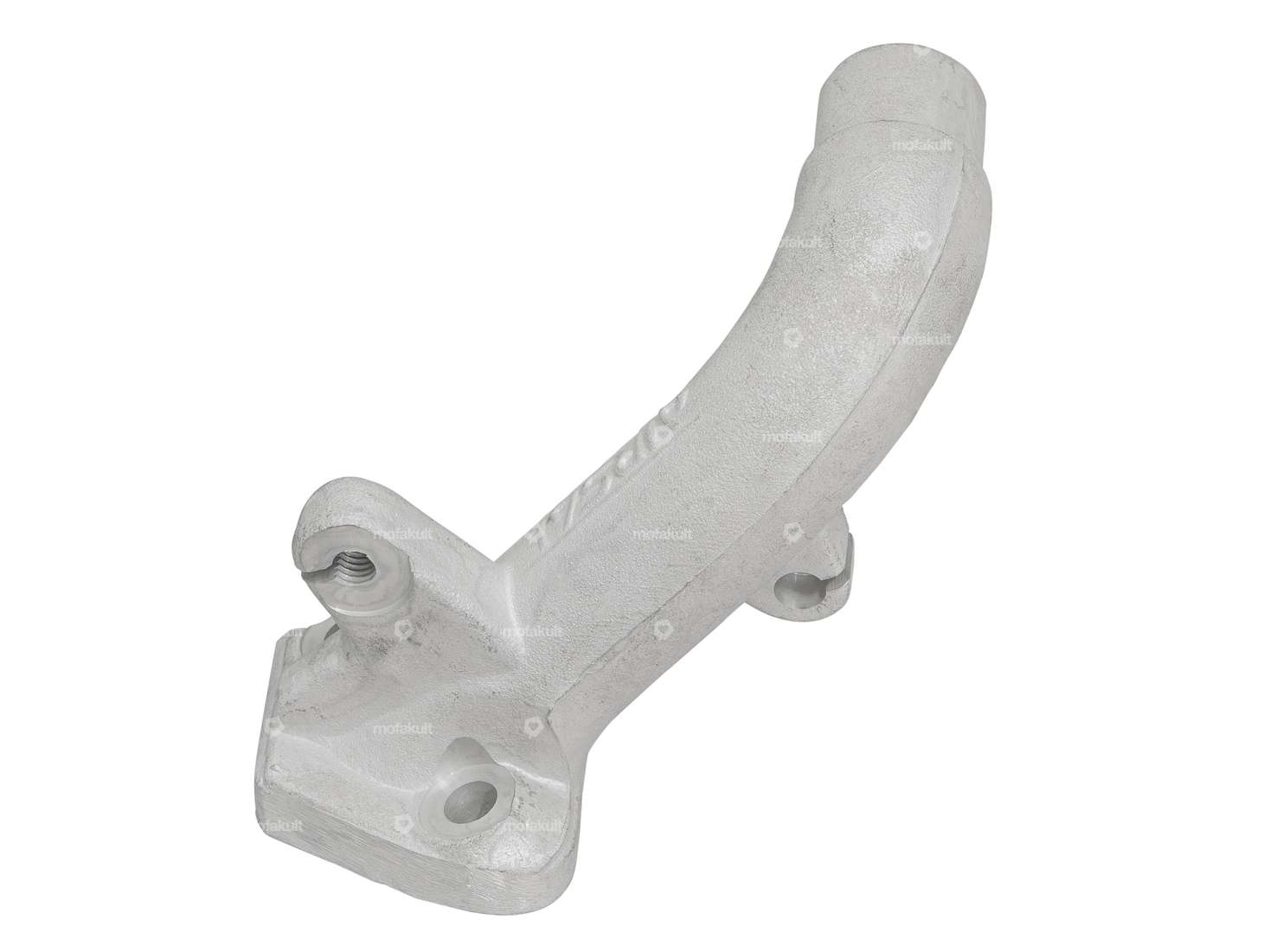

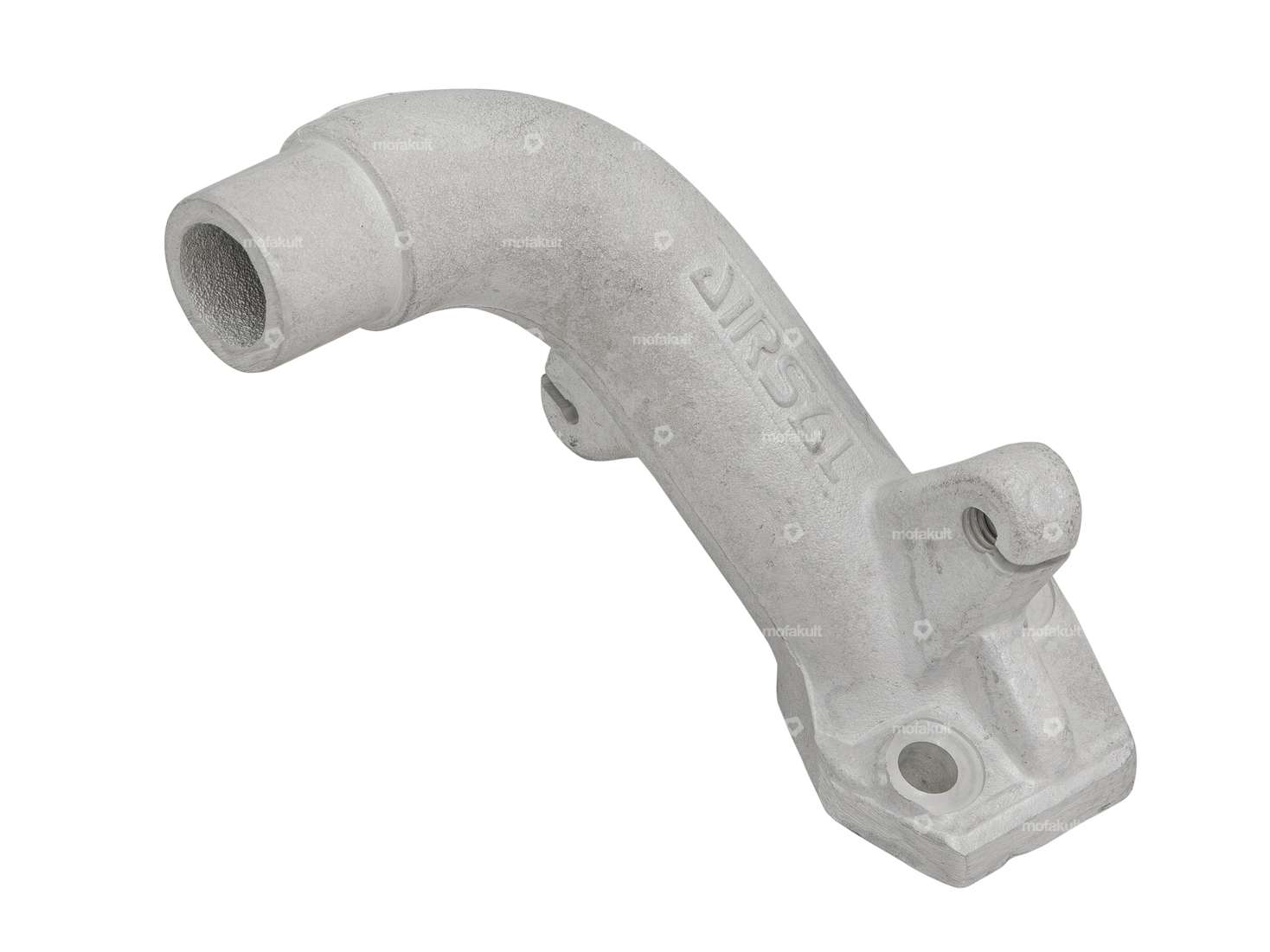

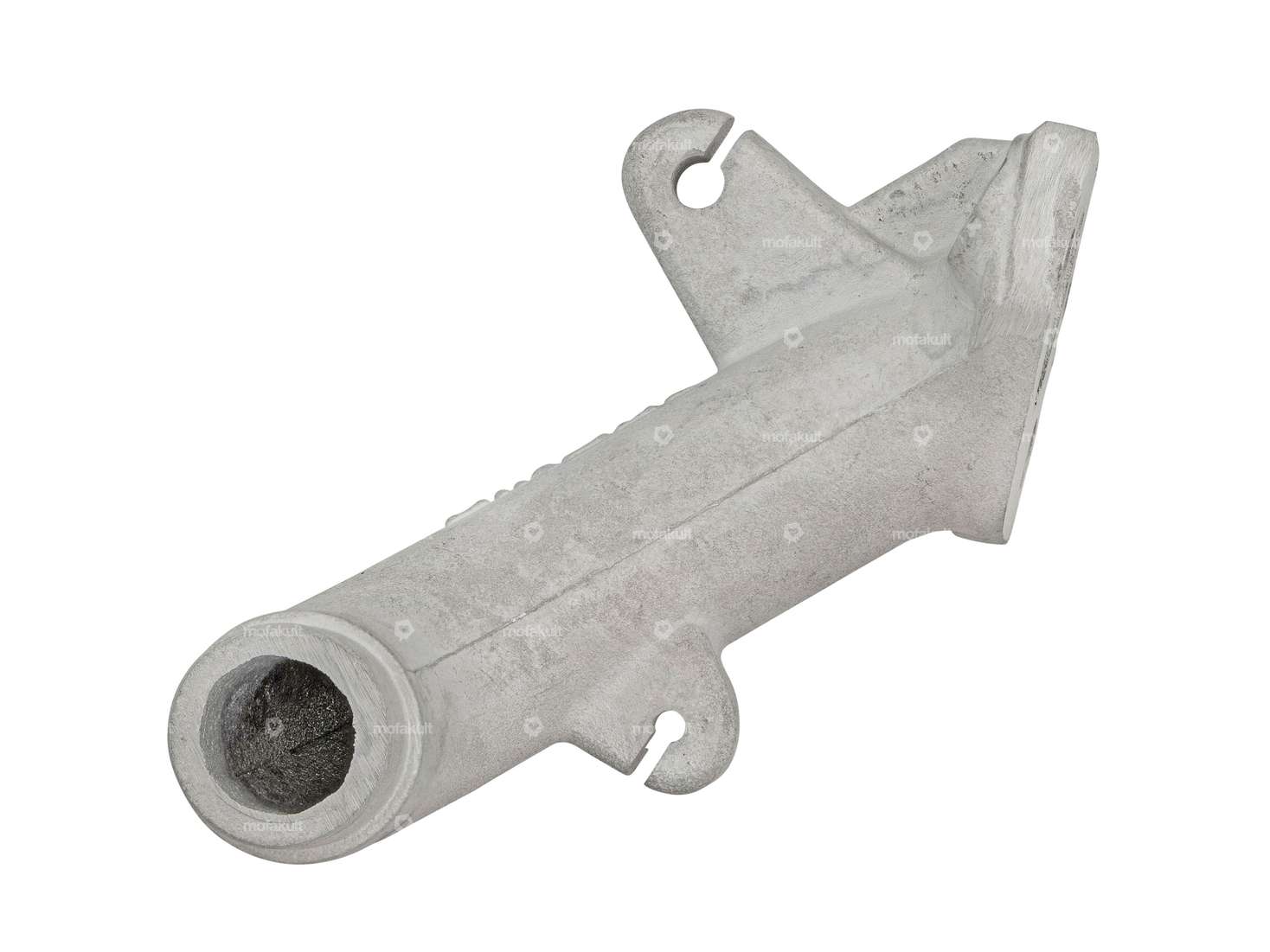

Inlet manifold for the 43.5 mm Airsal cylinder kit suitable for your moped / moped with Sachs 504 and 505 engine.
This intake manifold can be used for Hercules Prima M, 2, 3, 4, 5 and Optima models, among others, provided you have fitted the racing cylinder mentioned above.
You can find the matching tuning cylinder and other intake manifolds in the accessories section.
Quality product from the Spanish manufacturer Airsal.
Details
Manufacturer | Airsal |
Material | Aluminum |
Ø External connection | 20 mm |
Number of fixing points | 2 pcs |
Mounting type | Screws |
Ø inside | 13.6 mm |
Height flange center hole | 56 mm |
Area of application | Tuning |
Hole spacing inlet | 31 mm |
Suitable for the following models
Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG) |
Hercules | Great - 2, 3, 4, 5, Optima |
