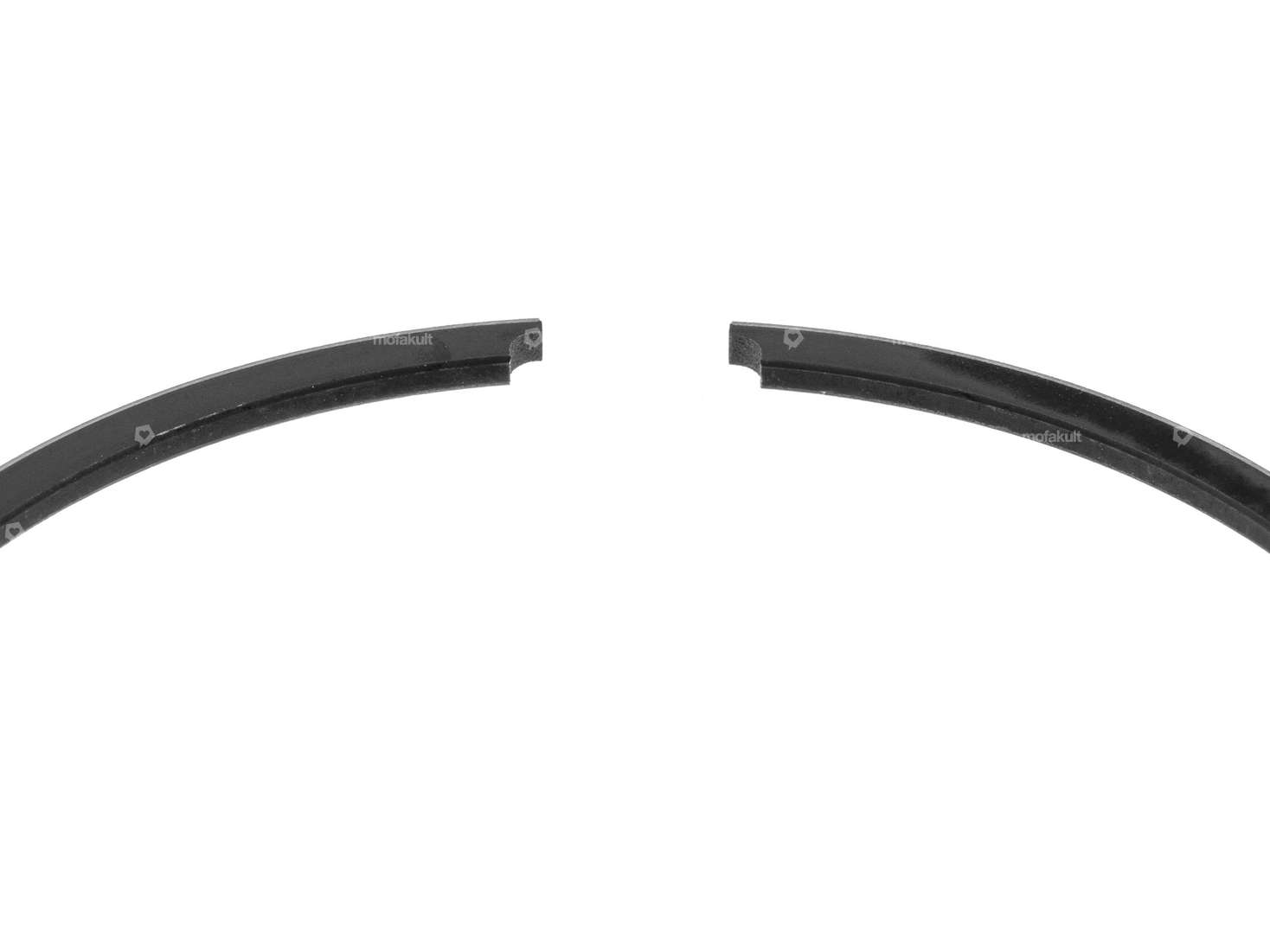

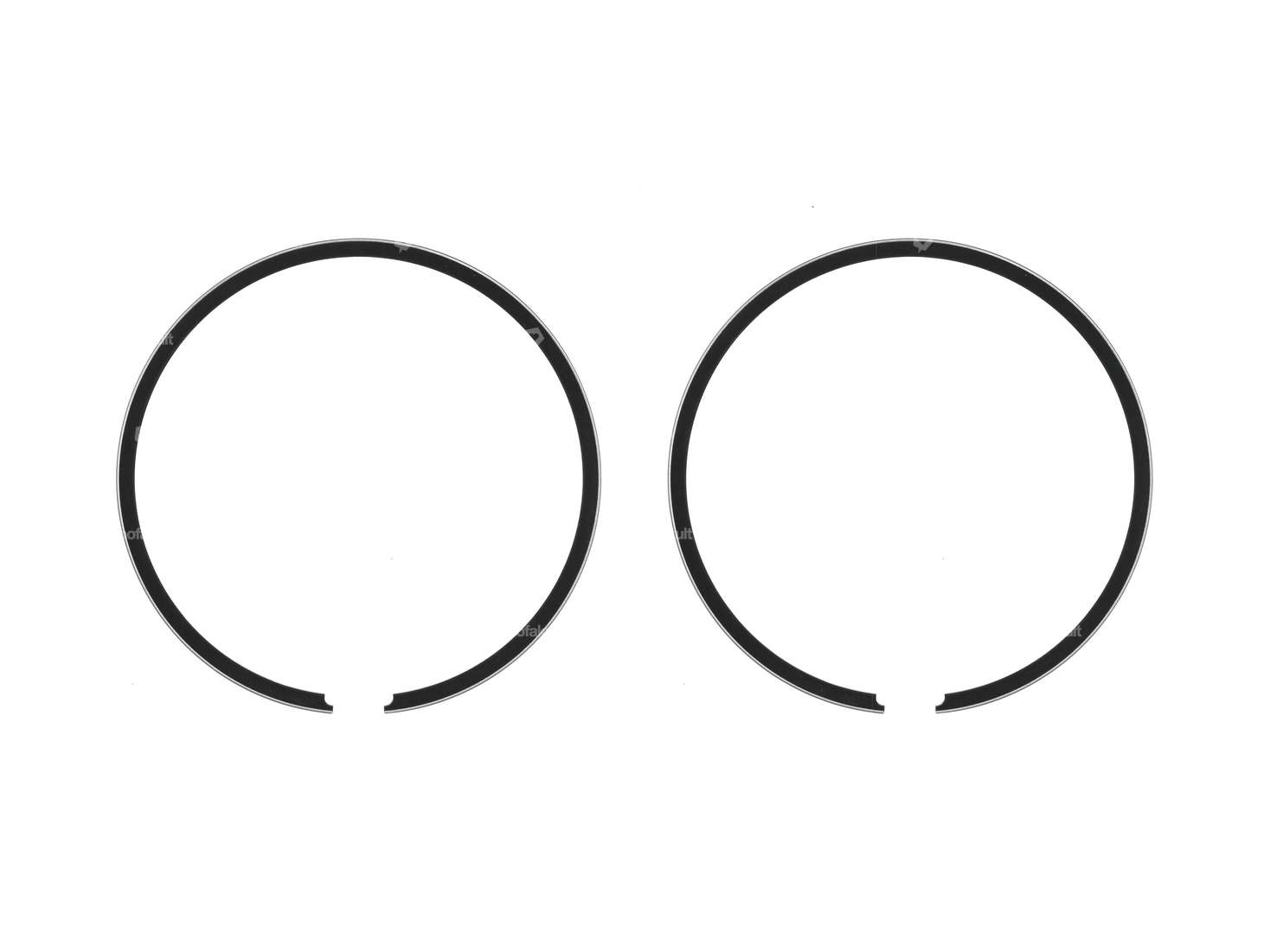

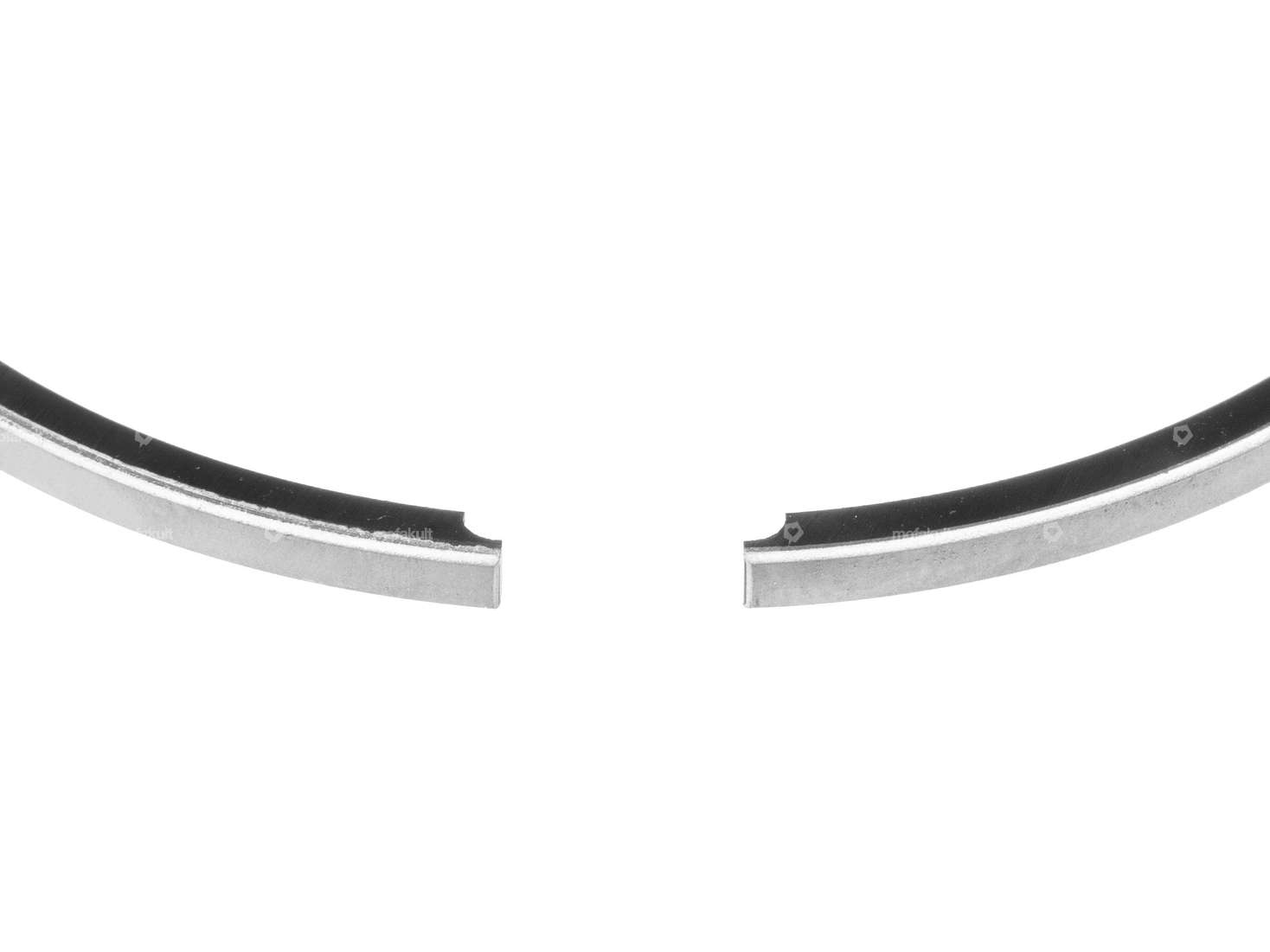

Airsal piston rings 43.5 mm (pair) | Sachs 504, 505, 535

Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 535, 508

Nominal diameter: 43.5 mm · Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Hole spacing inlet: 31 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Number of fixing points: 4 pcs · Decompressor: M10x1.5 · Ø piston pin (B): 12 mm · Outlet type: clamped · Camouflaged: No

Airsal piston 43.5 mm | Sachs 504 / 505

Manufacturer: Airsal · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.5 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.8 mm · Curvature (D): 4.25 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Area of application: Standard · Cable length: 2200 mm · Nipple length: 5 mm

Magura cable end sleeve 5 mm (1A quality)

Manufacturer: Magura · Ø Cable bushing: 2.5 mm · Material: Brass · Surface: nickel-plated · Total length: 12 mm · Color: silver · Ø inside: 5 mm · Ø outside: 5.5 mm · Area of application: Standard

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 " · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve

GPO grips manual Magura look gray

Ø inside: 24 mm · Manufacturer: GPO · Material: Rubber · Color: gray · Total length: 106 mm

Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall

Manufacturer: Mitas · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Wheel size [inch]: 17 " · Color: black · Color: white · Old designation: 21 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: MC11 · Tire type: Semi-slick · White wall: Yes · Tubeless (yes/no): Tubetype TT (requires hose)

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Wheel size [inch]: 17 " · Total length: 1280 mm · Color: blue · Width: 23 mm

Nut M12x1 x 5 SW19 Wheel nut galvanized

Drive: External hexagon · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.5D · Thread type: MF12x1 (fine pitch thread) · Height: 5.8 mm · Width across flats SW: 19 mm · Strength class: 8 · Area of application: Standard · Pony OEM number: A4249 · Sachs OEM number: 0242 124 000

Clutch cable / brake cable Ø 1.5 mm x 225 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Steel · Ø Stranded wire: 1.5 mm · Surface: galvanized (blue) · Nipple shape: Pears · Cable length: 2250 mm · Nipple length: 10 mm · Number of components: 1 pcs · Area of application: Standard · Piaggio OEM number: 270460
