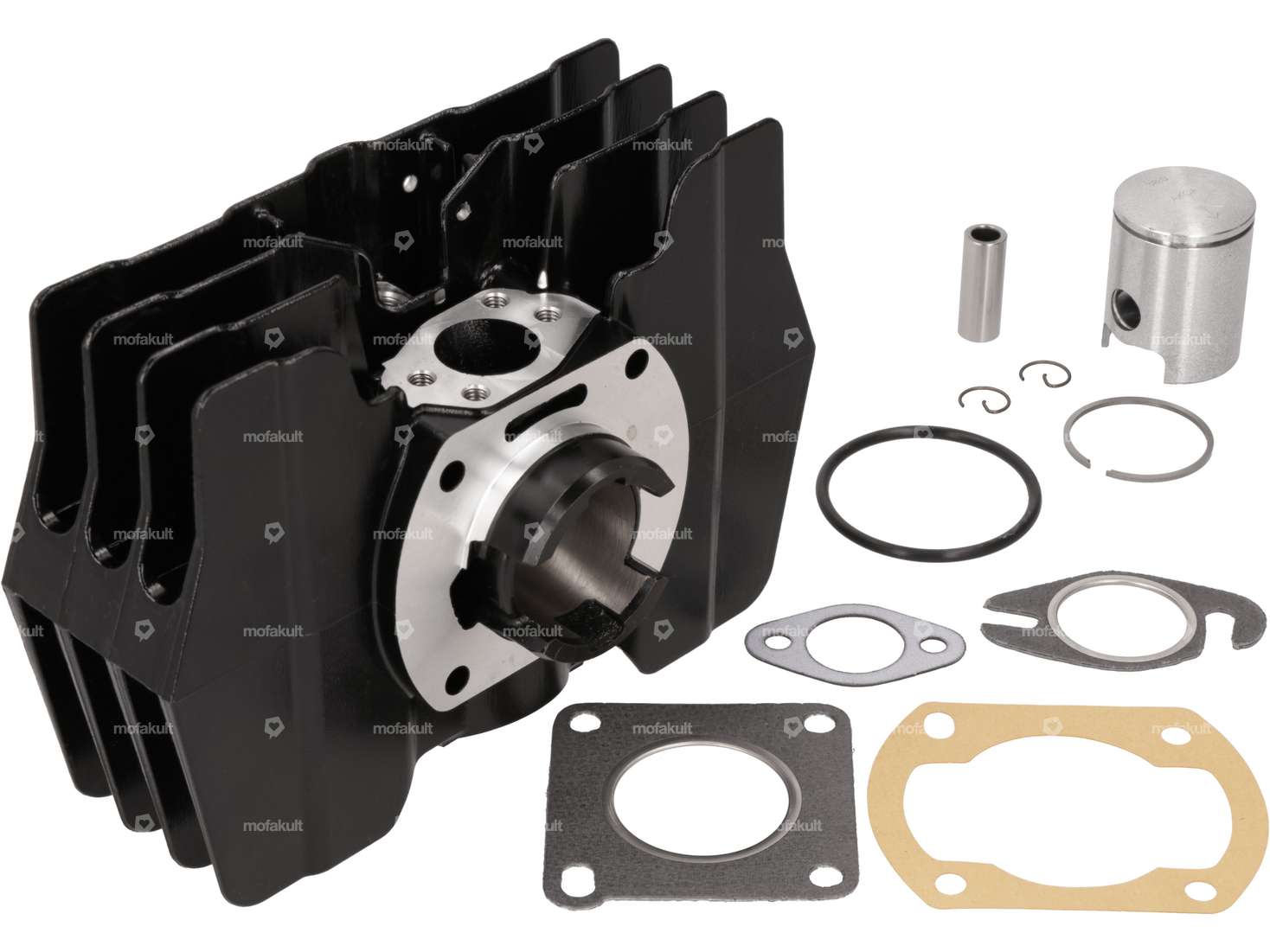

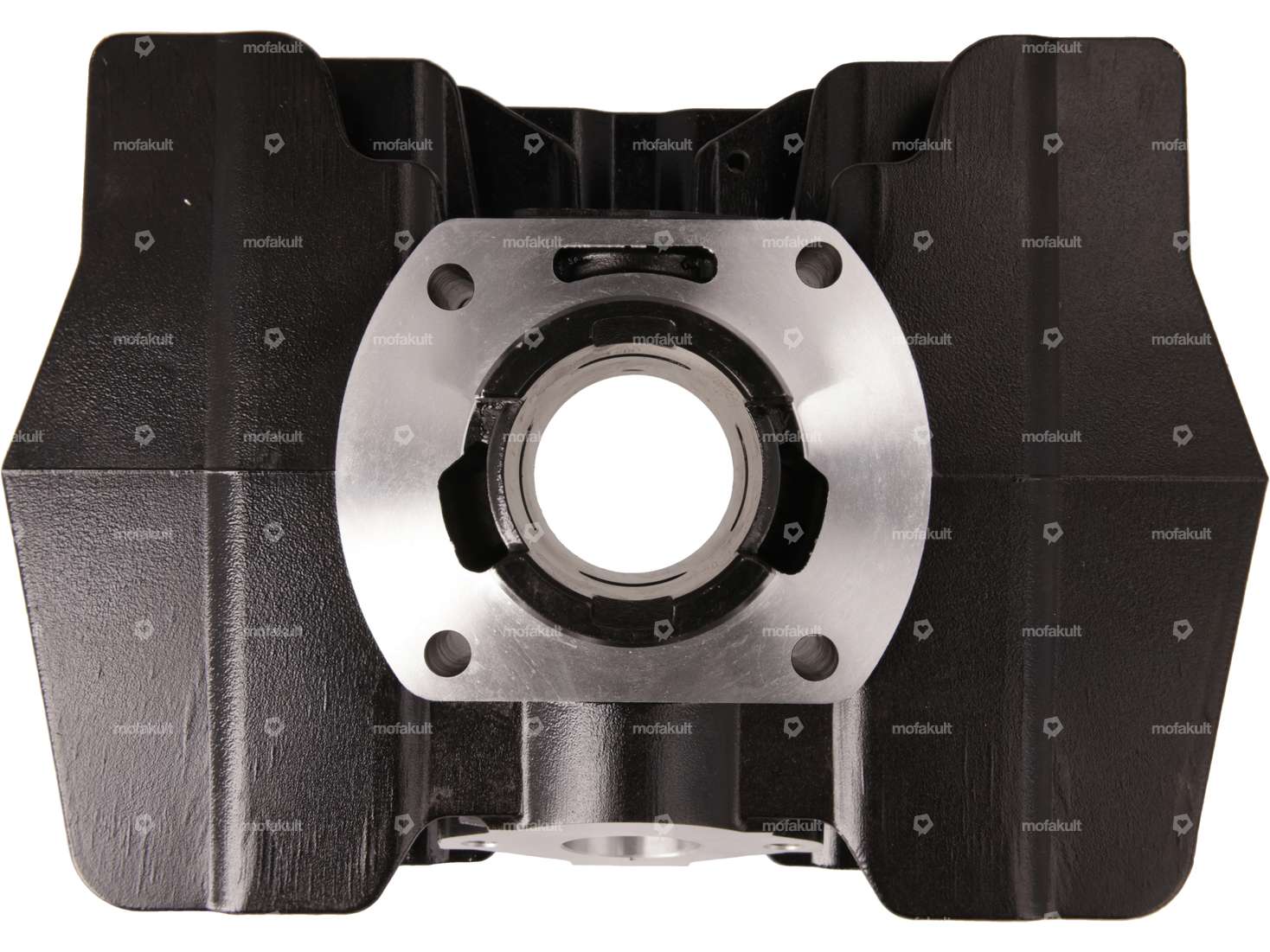

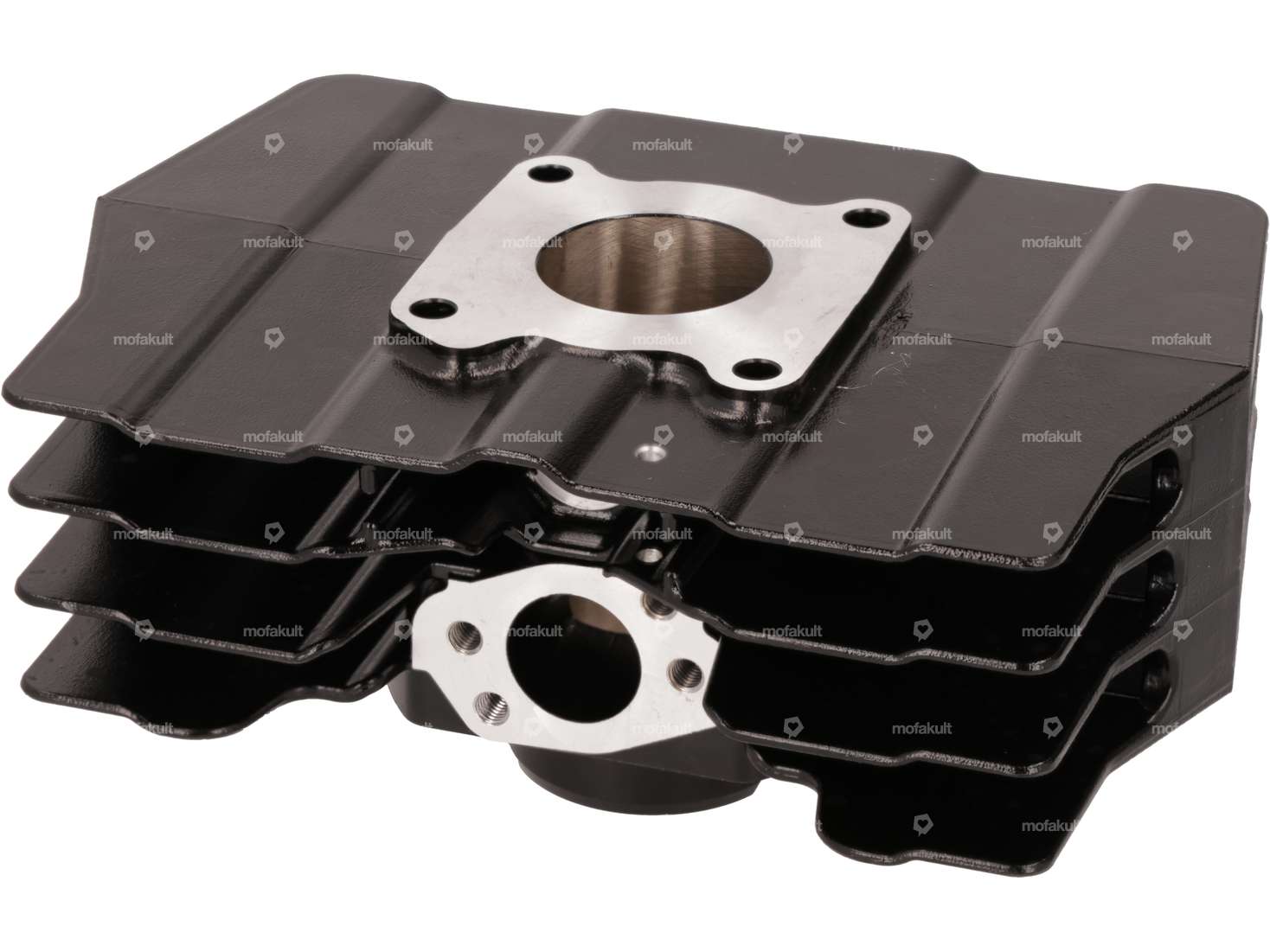

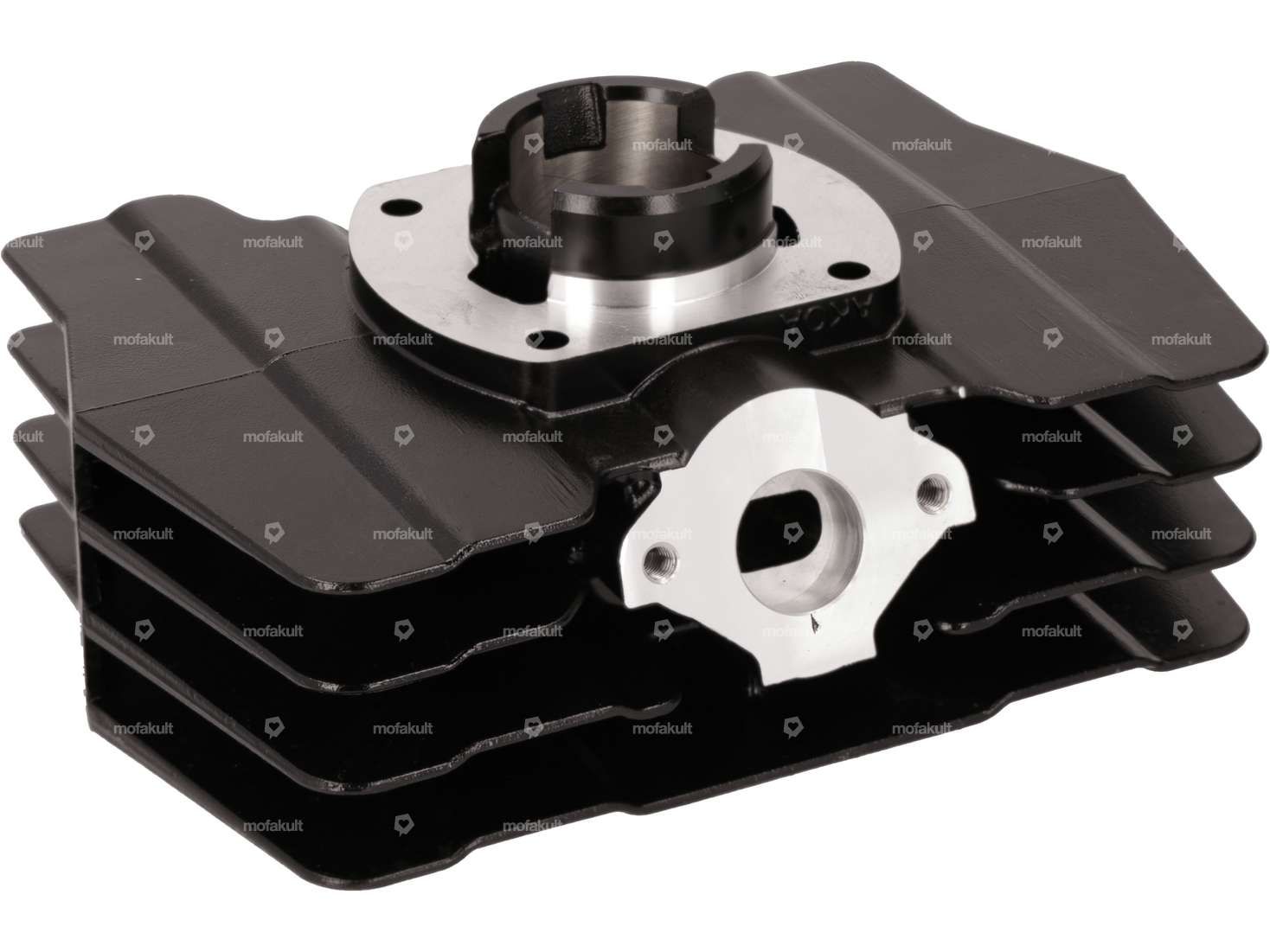

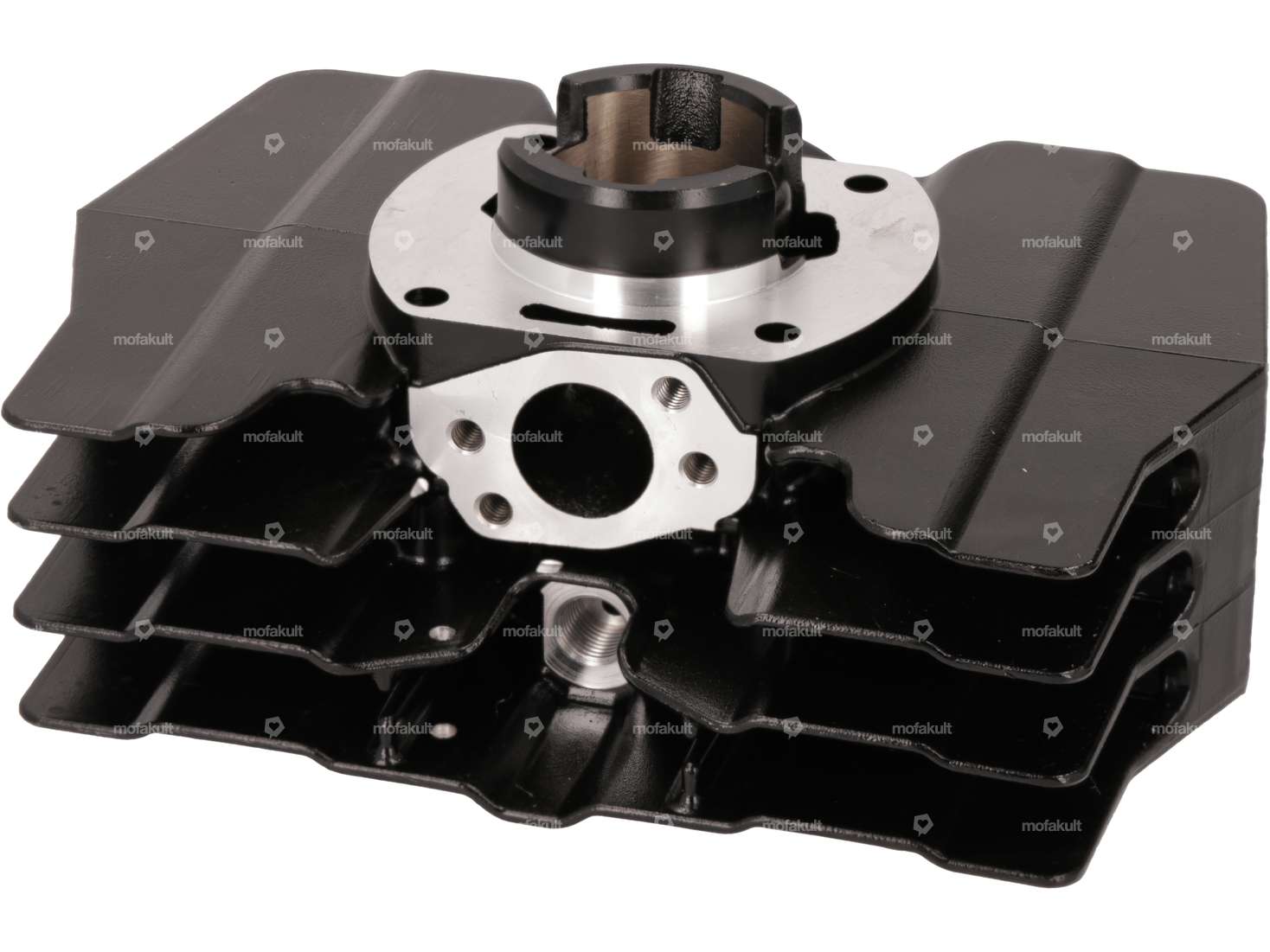

Reproduction of the wide wall cylinder with 50 cc displacement and narrow exhaust for your Pony moped / moped with Sachs 503 AB, AC or ADV engine.
The ports, timing and appearance are almost identical to the original. The replacement cylinder also has a bore for the deco valve.
In addition to the piston, piston ring, clips and bolts, the scope of delivery also includes the required gaskets for the base, intake and exhaust. In addition, an O-ring and a reinforced graphite gasket for the cylinder cover are included, which can be used as required. It is still possible to use the original cylinder head.
Cylinder material: Cast aluminum
Piston material: Cast aluminum
Bore: 38 mm
Capacity: 49.90 cm³
Ø Cylinder neck: 52 / 50.5 mm
Inside outlet: 19.5 x 11 mm
Ø Outside outlet: 23 mm
Outlet thread: M6 x 1
Hole spacing outlet: 50.5 mm
Inlet hole spacing: 36 mm
Inlet thread: M6 x 1
Inlet window inside: 18 x 7 mm
Hole pattern: 56 x 56 mm
Ø Stud bolt hole: 6.9 mm
Piston bolt: 12 mm
Decompressor hole: yes, MF12x1.25 mm
Note: The inlet of the cylinder has a double hole pattern, so that sockets for both the AB / AC and the ADV engine can be fitted.
The narrow outlet is designed for AB / AC exhausts. A flame tube from the AB / AC engine must therefore be fitted to the ADV engine.
Matching attachments for the cylinder set can be found under accessories.
Original Pony spare part number: A2868
Branded product from the manufacturer AKOA.
Details
| Material | Aluminum |
| Surface | varnished, nikasil-coated |
| Manufacturer | AKOA |
| Area of application | Standard |
| Displacement | 50 ccm |
| Crankshaft stroke | 44 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 52 mm, 50.5 mm |
| Ø Outlet outside | 23 mm |
| Ø outlet inside | 19.5 mm, 11 mm |
| Inlet window | 18x7 mm |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing outlet | 50.5 mm |
| Hole spacing inlet | 36 mm |
| Outlet type | slanted |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | MF12x1.25 |
| Pony spare part no. | A2868 |
Suitable for the following models
| Sachs | 503 - AB, AC, ADV |
Accessories & related products
Flame tube 28 mm | Sachs 503 AB, AC without catalytic converter
Material: Steel · Surface: chrome-plated · Ø inside: 26 mm · Ø outside: 28 mm · Total length: 450 mm · Number of fixing points: 2 pcs · Hole spacing outlet: 50 mm · Mounting type: Stud bolts & nuts · Color: Chrome
55,80 EUR
Not in stock
swiing® revival gasket set | Sachs 503 AB, AC wide wall
Manufacturer: swiing® revival parts · Material: Aluminum · Material: Copper · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Number of components: 21 pcs · Ø outlet inside: 24 mm · Hole spacing outlet: 38.5 mm · Hole pattern [mm]: 56 x 56
50,20 EUR
swiing® revival gasket set | Sachs 503 ADV wide wall Cat.
Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Number of components: 15 pcs · Ø outlet inside: 23.3 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No
50,20 EUR
AKOA intake manifold 15 mm SRE | Sachs 503 AB, ADV (A5669, A2180)
Manufacturer: AKOA · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Hole spacing inlet: 36 mm · Mounting type: Screws · Alternative version of the Pony Spare part no.: A2180 · Alternative version of the Pony Spare part no.: A5669
55,80 EUR
AKOA intake manifold 20 mm PHBG / CP | Sachs 503 AB, ADV (A5669, A2180)
Manufacturer: AKOA · Material: Aluminum · Ø inside: 20 mm · Ø External connection: 24 mm · Hole spacing inlet: 36 mm · Mounting type: Screws · Alternative version of the Pony Spare part no.: A2180 · Alternative version of the Pony Spare part no.: A5669
55,80 EUR
AKOA wide wall 45 mm cylinder kit | Sachs 503 AB, AC, ADV
Manufacturer: AKOA · Material: Aluminum · Surface: nikasil-coated · Surface: varnished · Displacement: 70 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 50.5 mm · Ø cylinder neck: 52 mm · Nominal diameter: 45 mm · Ø outlet inside: 29 mm · Ø Inlet inside: 23.5 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 36 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 50.5 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 56 x 56 · Decompressor: MF12x1.25 · Area of application: Tuning · Alternative version of the Pony Spare part no.: A2868
335,20 EUR
AKOA wide wall 38 mm cylinder kit Sport | Sachs 503 AB, AC, ADV (A2868)
Manufacturer: AKOA · Material: Aluminum · Surface: nikasil-coated · Surface: varnished · Area of application: Performance · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Nominal diameter: 38 mm · Ø cylinder neck: 50.5 mm · Ø cylinder neck: 52 mm · Ø Inlet inside: 23.5 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 29 mm · Hole spacing outlet: 50.5 mm · Outlet type: slanted · Hole spacing inlet: 36 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 56 x 56 · Decompressor: MF12x1.25 · Alternative version of the Pony Spare part no.: A2868
335,20 EUR
Not in stock
AKOA decompressor M12x1.25 wide wall | Sachs 503 AB, AC, ADV (A2942)
Manufacturer: AKOA · Material: Steel · Surface: blue galvanized · Thread type: MF12x1.25 (fine pitch thread) · Width across flats SW: 15 mm · Total length: 66 mm · Thread length: 8 mm · Area of application: Standard · Pony spare part no.: A2942
89,30 EUR
swiing® ingenious gasket outlet Ø 23 mm graphite | Sachs 503 AB, AC
Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Material: Steel · Place of use: Outlet · Ø inside: 23 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 48.5 - 51.5 mm · Color: gray
9,95 EUR
