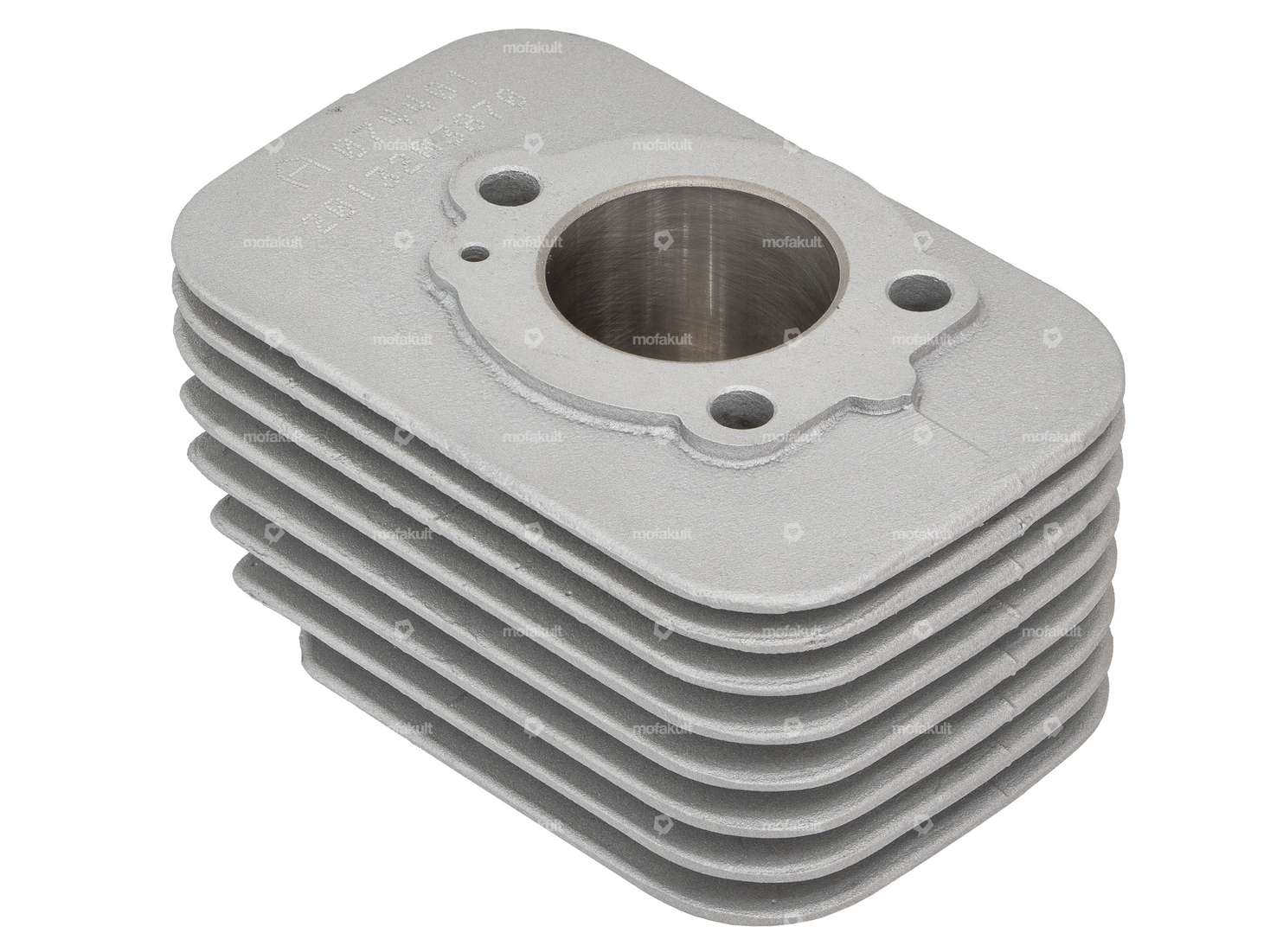

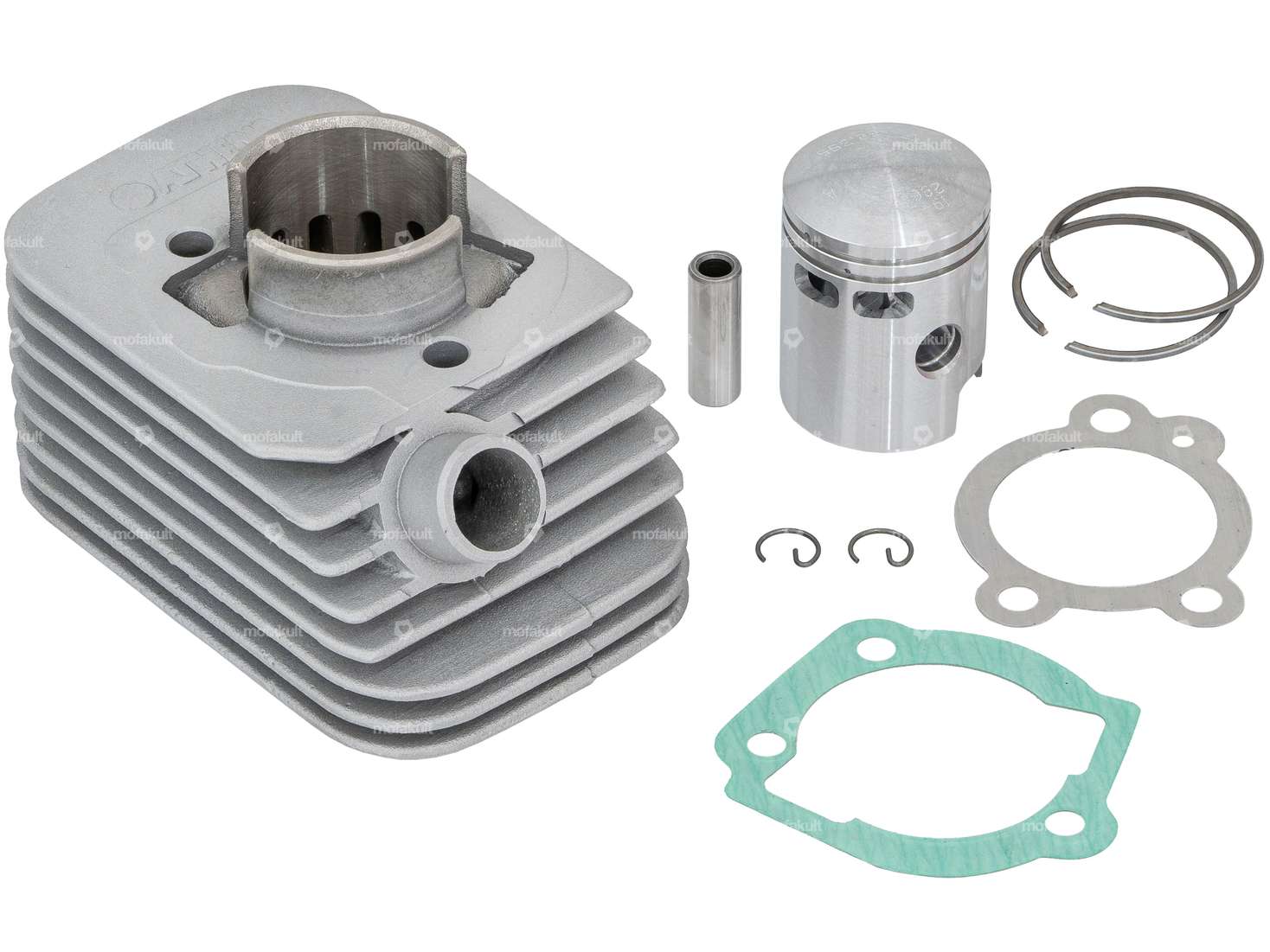

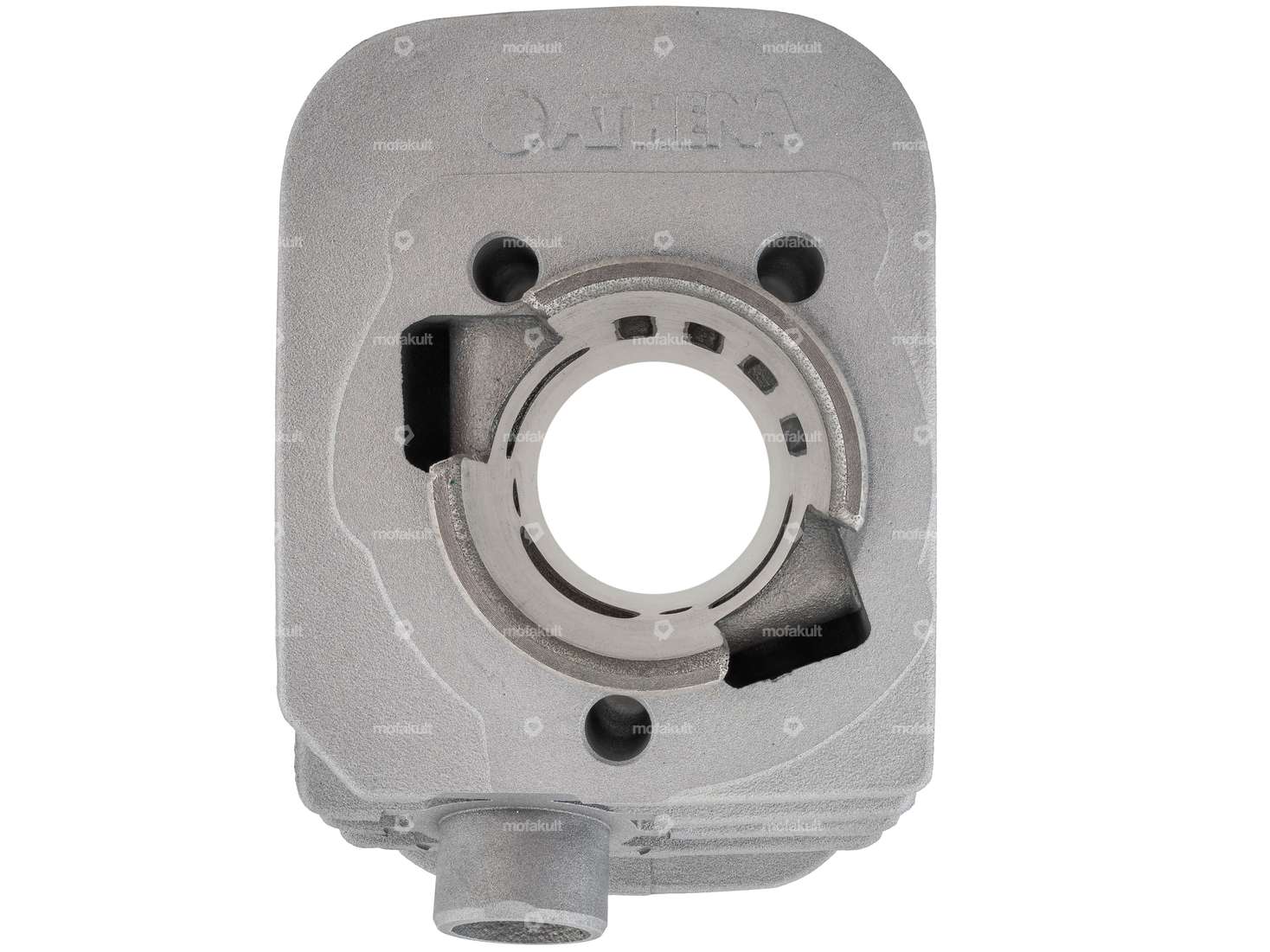

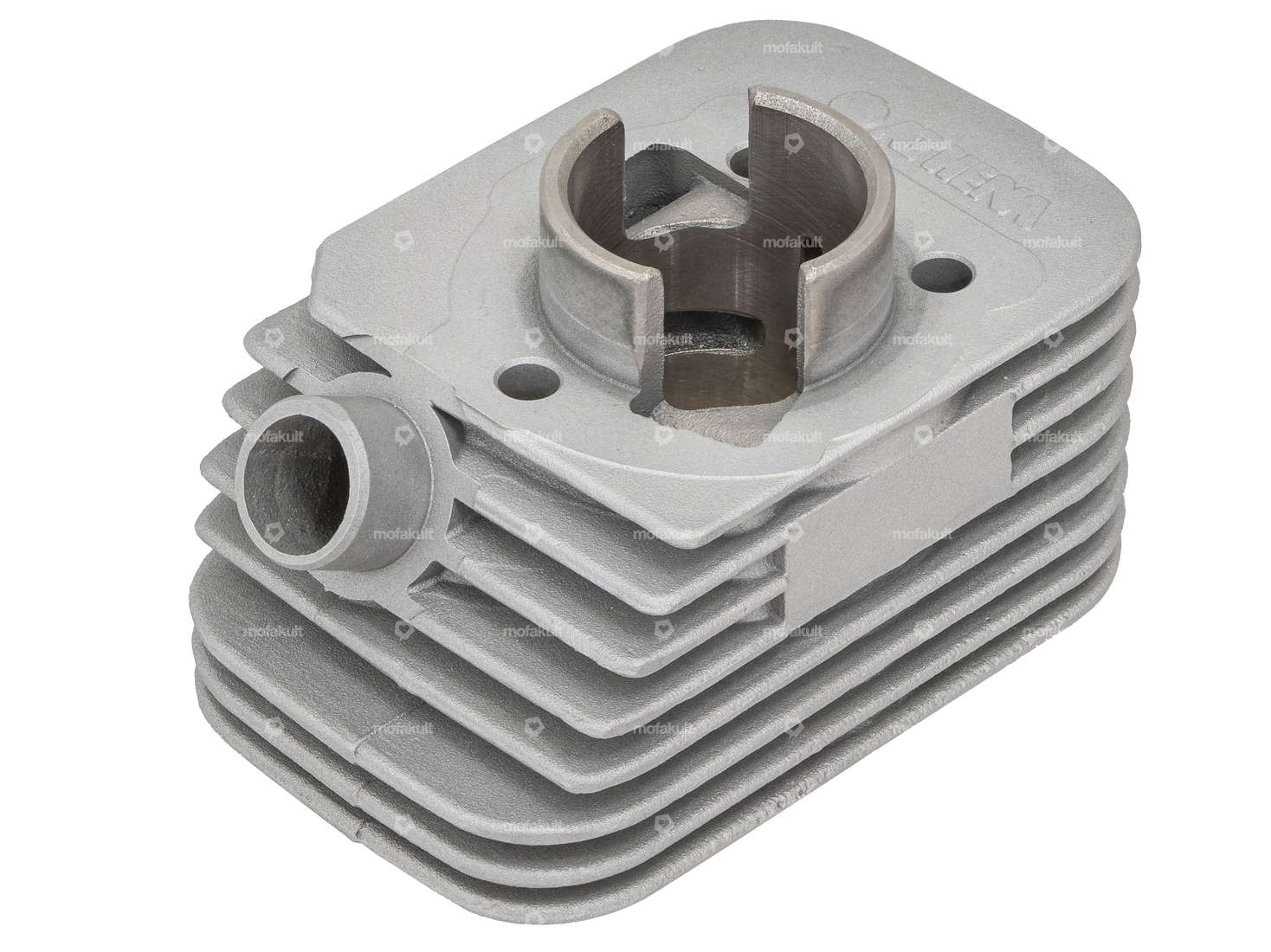

This cast cylinder from the Italian brand manufacturer Athena is suitable for all Piaggio mopeds.
Athena is known for carrying out strict quality controls. This results in high quality cylinders.
The cylinder is made from a special aluminum alloy. The barrel surface has a Nikasil coating.
This allows the piston to slide smoothly and increases the durability of the cylinder kit.
We also offer the cylinder kit with a 12 mm piston pin diameter.
Quality product from the Italian manufacturer Athena.
Details
Nominal diameter | 38.4 mm |
Manufacturer | Athena |
Material | Cast aluminum |
Area of application | Tuning |
Surface | sandblasted |
Displacement | 50 ccm |
Crankshaft stroke | 43 mm |
Ø cylinder neck | 45.7 mm |
Ø Outlet outside | 22.5 mm |
Ø outlet inside | 18 mm |
Number of fixing points | 3 pcs |
Ø piston pin (B) | 10 mm |
Outlet type | clamped |
Hole pattern [mm] | 35 x 55 |
Decompressor | Yes |
Camouflaged | No |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
Accessories & related products

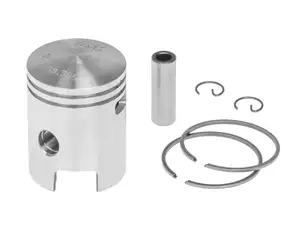

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 38.4 mm · Manufacturer: Athena · Ø outside piston (A): 38.355 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm
63,60 EUR

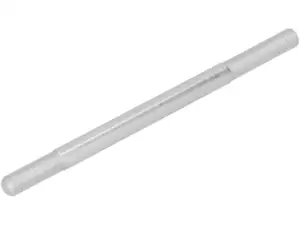

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank - 10.9 strength
Diameter: 7.3 mm · Total length: 120 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blue galvanized · Thread type: M7x1 (standard thread) · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9
5,45 EUR
Moped fans like you also bought:
swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA (type 3) · Carburetor type: SHA (type 4) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70
23,40 EUR

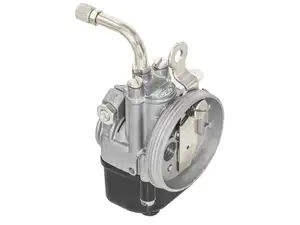

Dell'Orto 12/10 SHA carburetor hand choke
