46 mm piston with one 2 mm and one 1.5 mm rectangular piston ring and internal circlip (IS) for Piaggio mopeds / mopeds with Athena cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

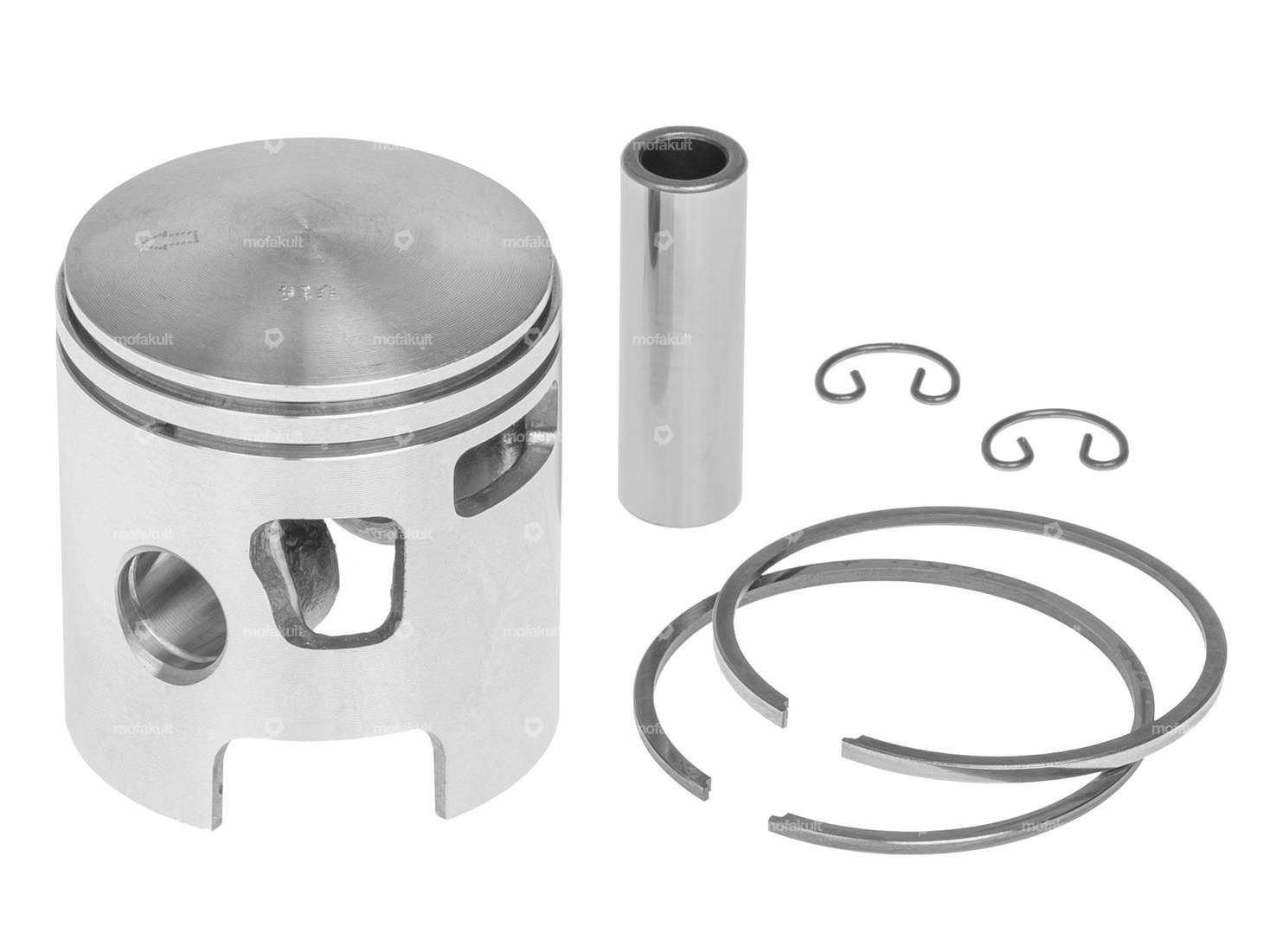

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin retainers and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Ø outside piston (A) | 45.93 mm |
| Compression height (C) | 26.05 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51.05 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 46 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 2 mm, 1.5 mm |
| Tolerance group | A |
| Piston weight | 96 g |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Number of components: 7 pcs
22,20 EUR
Athena piston 46 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Ø outside piston (A): 45.93 mm · Compression height (C): 26 mm · Curvature (D): 2.92 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 46 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 94 g
78,10 EUR
Athena piston 46 mm (12 mm KoBo) #B | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Ø outside piston (A): 46.03 mm · Compression height (C): 26.05 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 46 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Piston weight: 95 g
83,70 EUR
