45 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for various Puch mopeds / mopeds with Athena AJH cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance type: B

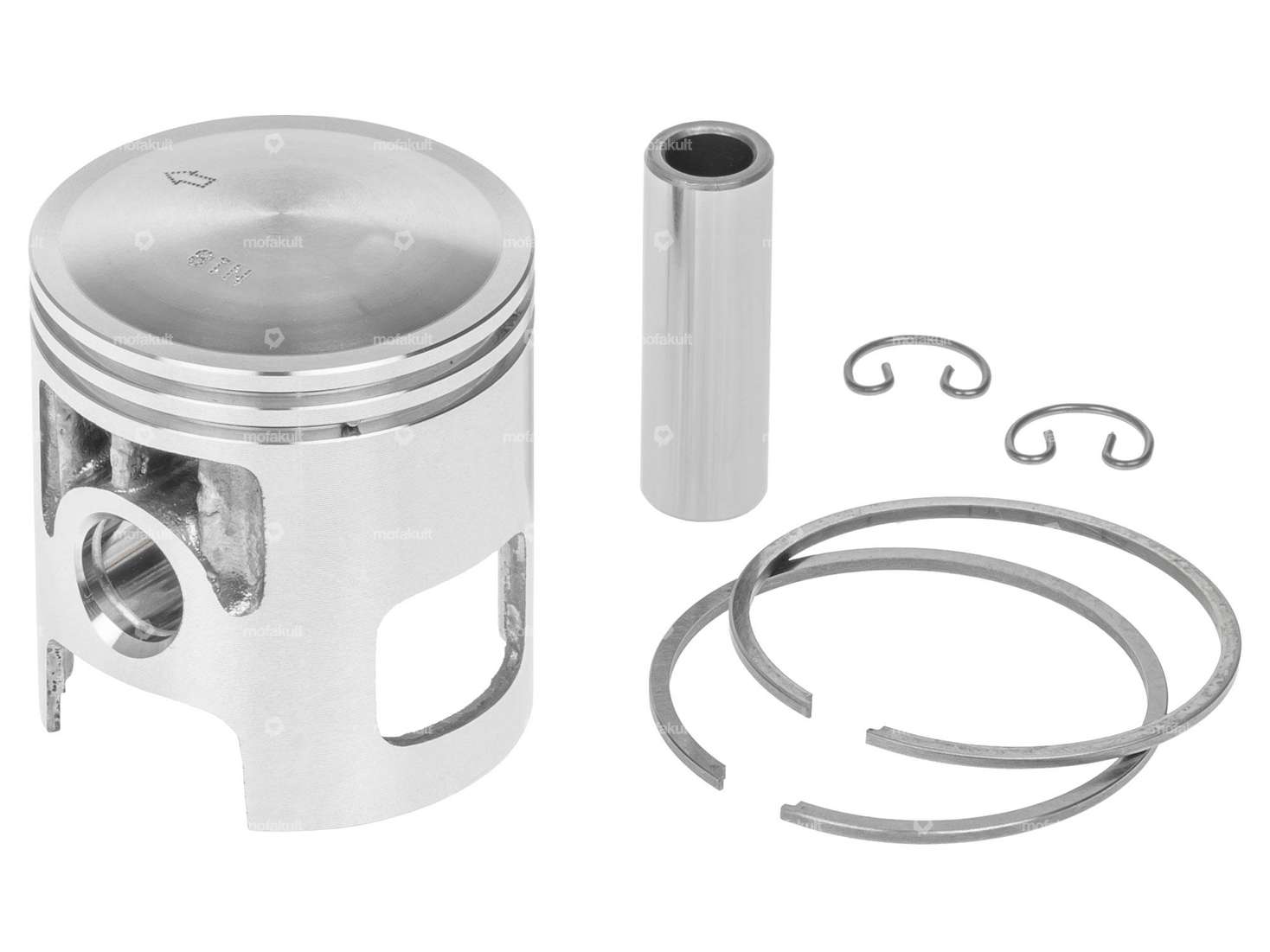

The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Ø outside piston (A) | 44.93 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 24.9 mm |
| Curvature (D) | 2.82 mm |
| Total piston height (E) | 50.8 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 45 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Tolerance group | B |
| Piston weight | 94 g |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
