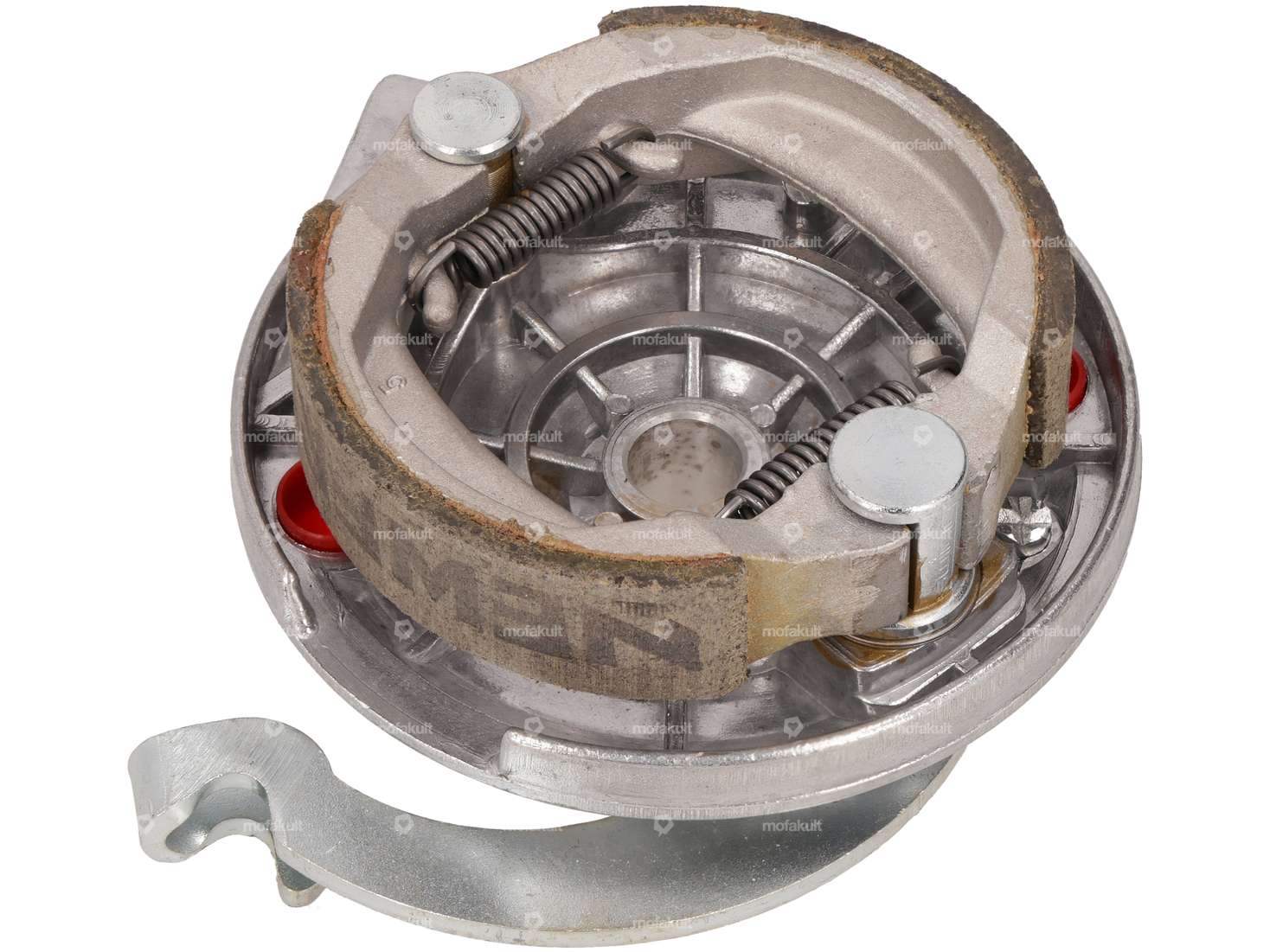

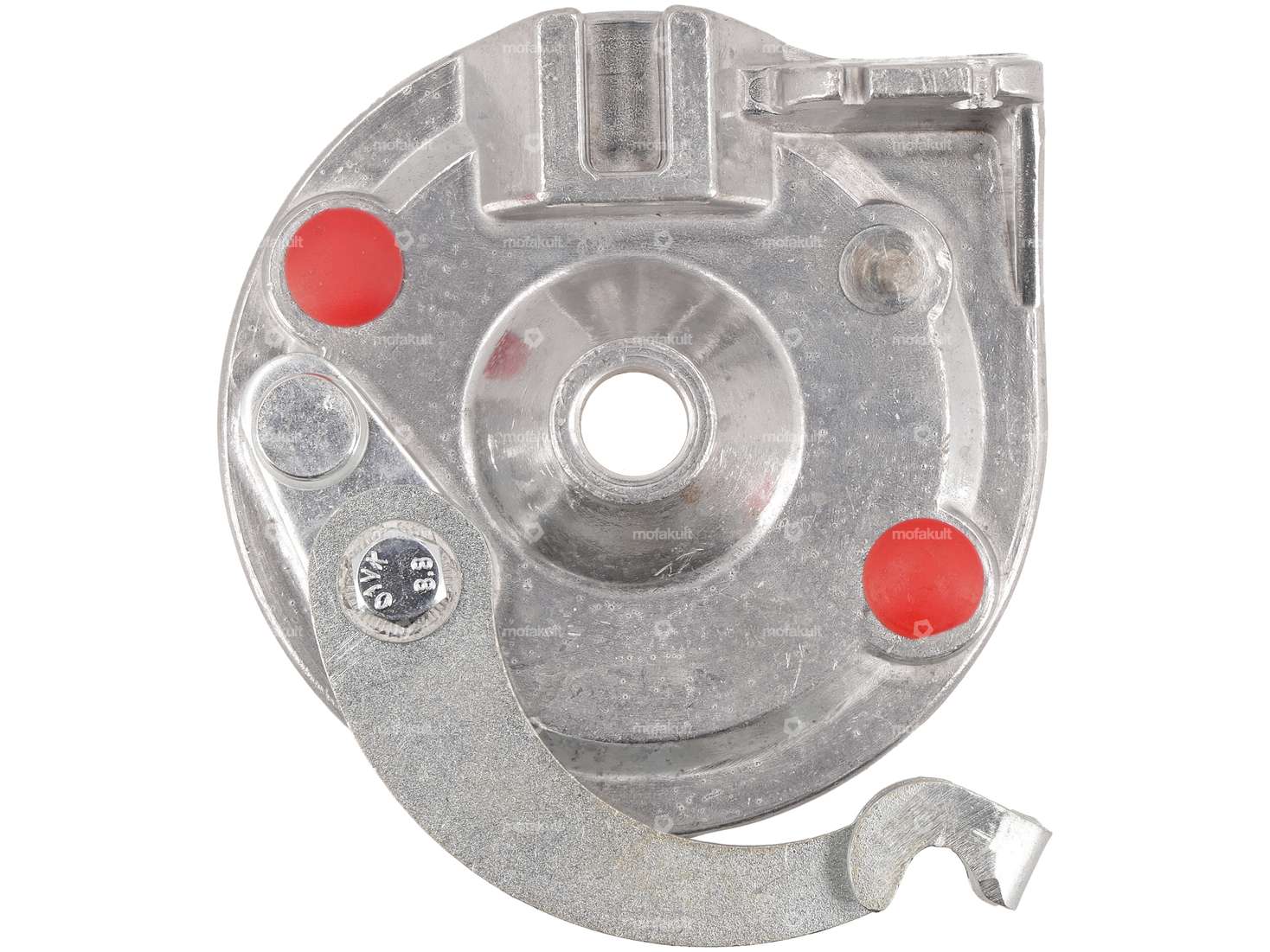

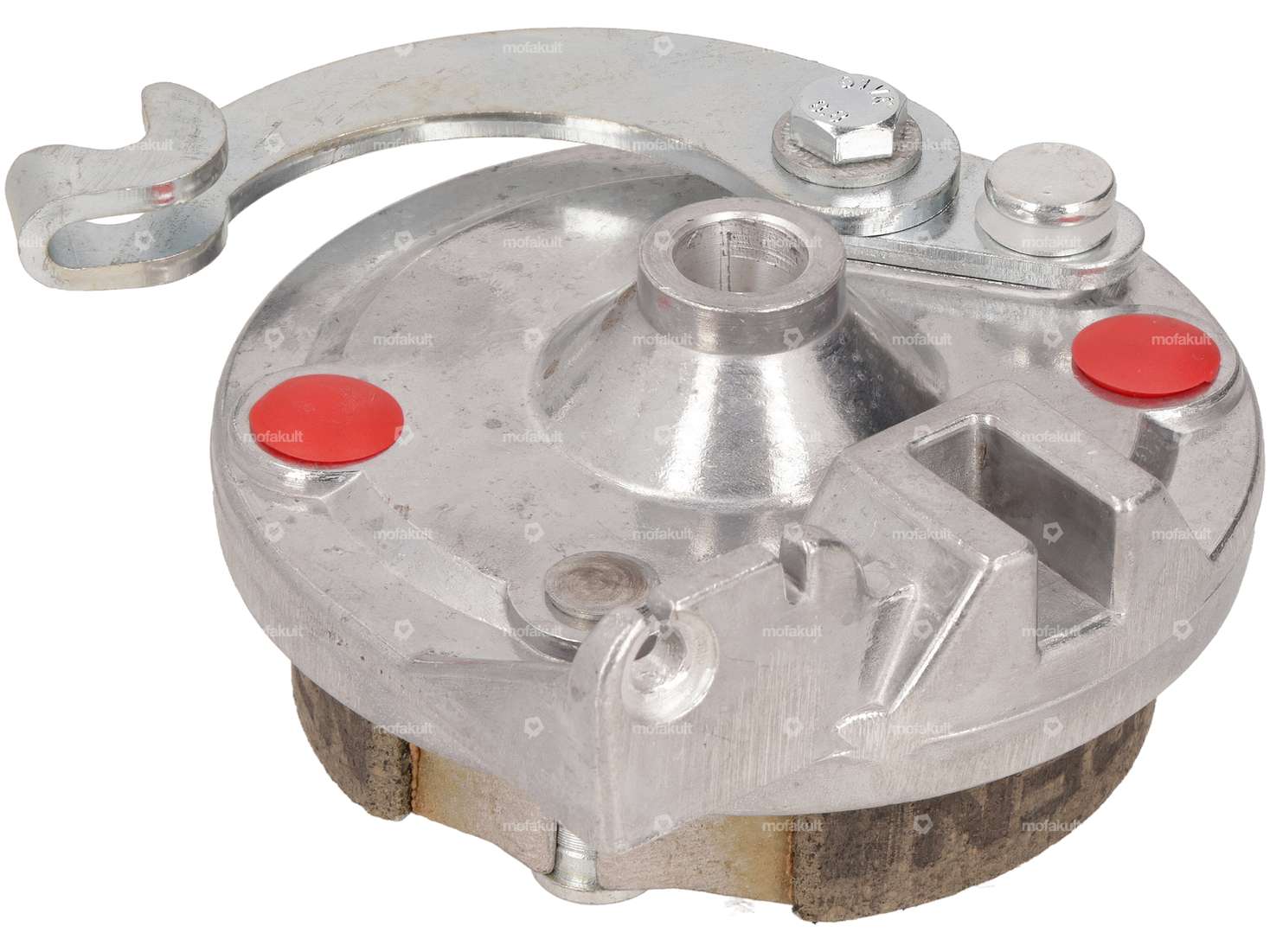

Complete brake plate suitable for the front wheel on Puch Maxi S & N, X30 Sport NS, NL & NG and Velux X30 with 11 mm wheel axle.
The backing plate is suitable for cast (Leleu) and wire-spoke wheels.
The anchor plate has been equipped with a high-quality swiing® brake cam and brake lever. We also use NewFren brake pads and high-quality shims to ensure smooth and safe brake operation.
If your moped / moped has a 12 mm axle, you will find the corresponding brake plate in the accessories section.
Original Puch spare part number: 349.1.40.007.2 / 349.1.40.807.9
Details
| Ø axle | 11 mm |
| Material | Aluminum |
| Thread size | M6 |
| Ø External brake pads | 80 mm |
| Ø bore | 11.3 mm |
| Ø outside | 95 mm |
| Wide cam holder | 12 mm |
| Brake lever length (lever length) | 78 mm |
Suitable for the following models
| Puch |
