For: Puch · Sachs

35988

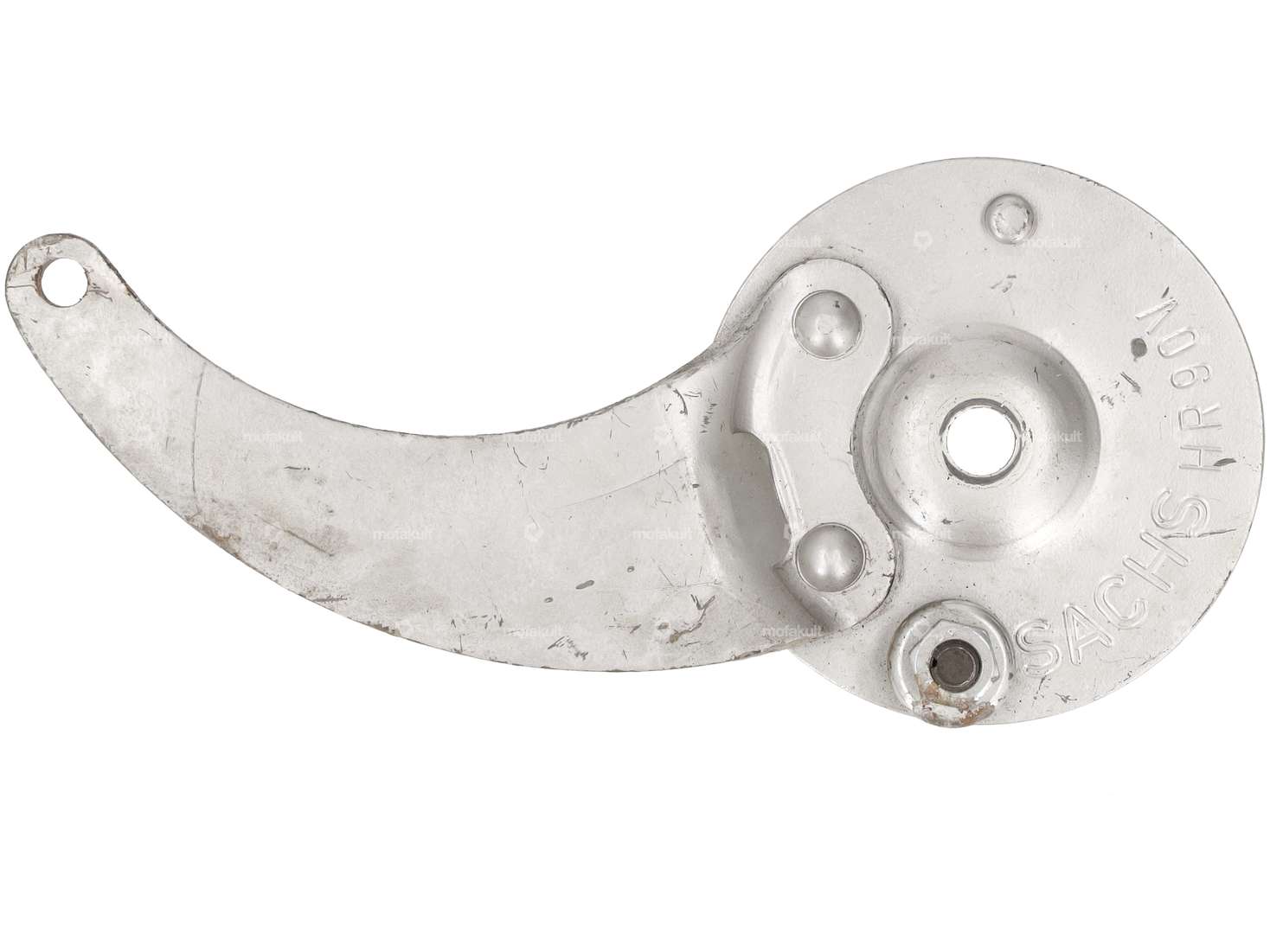

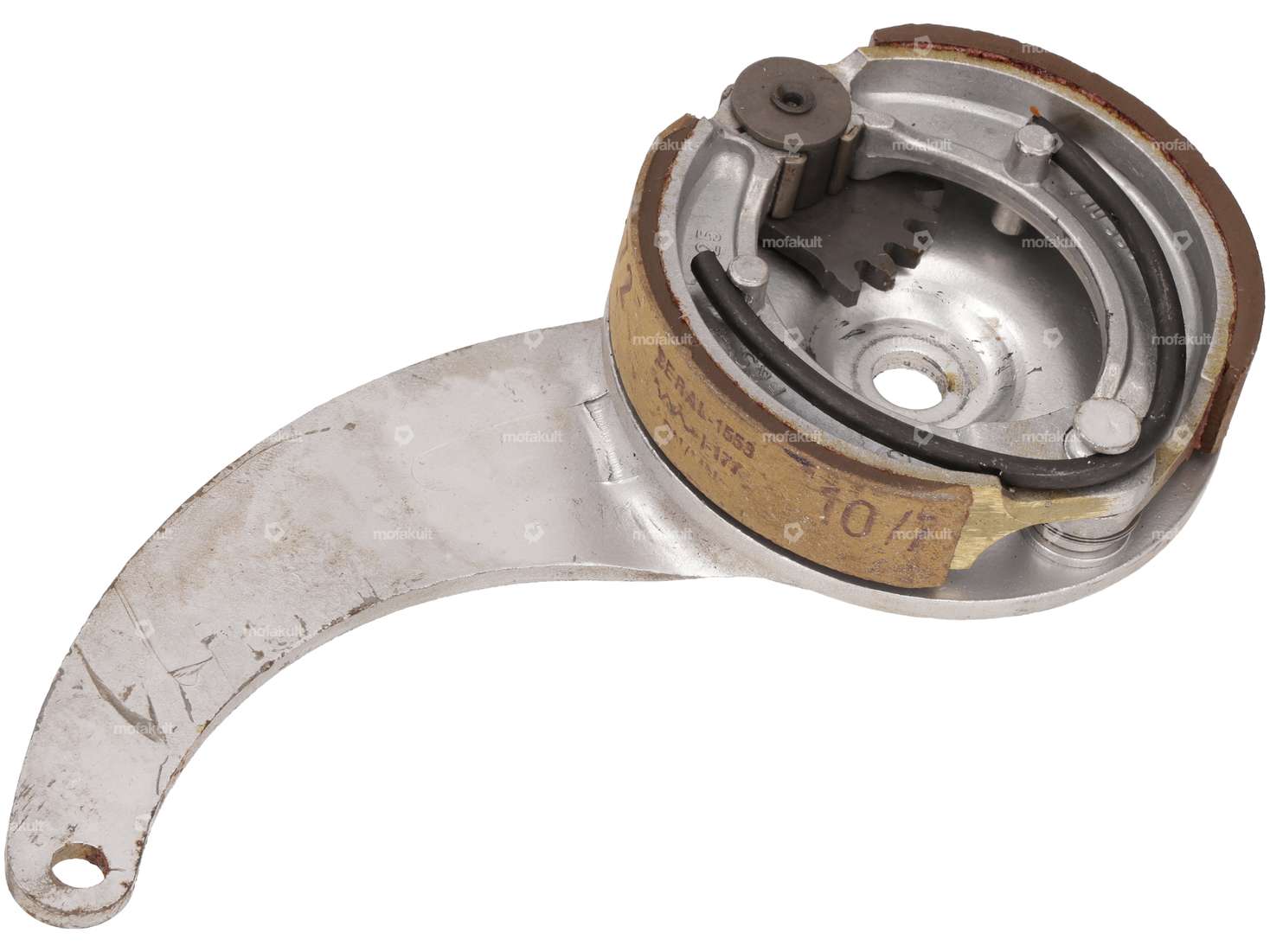

Brake anchor plate HR 90V not cranked Ø 90 mm rear NOS | Puch X30 Velux / Sachs

Home
| Frame
| Wheel & tires
| Drum brake
173,80 EUR

Incl. 19% VAT.

Original Sachs HR90V brake plate, suitable for various mopeds / mopeds with rear hub, such as Puch X30 Velux, various Pony models with Sachs engine (e.g. Pony City 503 Automat or City 502 1A with 17-inch rear wheel), as well as Zündapp, Alpa, DKW and various Rixe models. In addition, the anchor plate is also compatible with the Sachs 503 Caravelle model with 19-inch rims

Details

ManufacturerSachs
Ø drum90 mm
MaterialSteel
Surfacevarnished
Ø outside89.3 mm
Ø External brake pads98.3 mm
Ø axle10.5 mm
Ø bore10.7 mm
Puch OEM number320.4.41.007.2

Suitable for the following models

Puch

Z50 (X30 Velux)

Sachs

503

502 1A / 1B (Torpedo)
