Pedal axle & bearing

swiing® revival Ø 9.5 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Color: silver · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Total length: 43 mm · Angle crank wedge: 4.5° · Ø outside: 9.5 mm

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Total length: 43 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9 mm · Thread type: M7x1 (standard thread) · Angle crank wedge: 3.5°

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Total length: 1.7 mm · Ø inside: 17 mm · Ø outside: 29 mm · Material thickness: 0.6 mm

Ø 9.5 mm Wedge 4.5° Pedal crank galvanized

Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9.5 mm · Angle crank wedge: 4.5° · Total length: 43 mm

Ø 9 mm wedge 3.5° pedal crank galvanized

Ø outside: 9 mm · Total length: 43 mm · Material: Steel · Surface: galvanized (blue) · Color: silver · Angle crank wedge: 3.5° · Thread type: M6x1 (standard thread)

swiing® revival bottom bracket bushing Ø 16 / 21 mm nylon

Ø outside: 21 mm · Total length: 19 mm · Manufacturer: swiing® revival parts · Material: Nylon · Bearing type: Plain bearing · Color: black · Ø inside: 16 mm

swiing® revival Ø 9.5 mm wedge 3.5° crank handle Inox

Manufacturer: swiing® revival parts · Thread type: M7x1 (standard thread) · Material: Chrome steel (stainless steel) · Ø outside: 9.5 mm · Angle crank wedge: 3.5° · Total length: 44 mm

Bottom bracket washer 16x28x0.5 mm

Thickness: 0.5 mm · Nominal diameter (thread): 16 mm · Ø inside: 16.1 mm · Ø outside: 28 mm

swiing® revival spacer bushing 10 mm pedal axle PVC

Ø inside: 16.3 mm · Nominal diameter inside: 16.5 mm · Ø outside: 24 mm · Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Total length: 10 mm

swiing® revival Ø 9 mm wedge 4.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M7x1 (standard thread) · Ø outside: 9 mm · Total length: 43 mm · Angle crank wedge: 4.5°

GPO axle footrest mounting chrome

Ø outside: 16 mm · Total length: 168 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome

swiing® revival Ø 9 mm wedge 3.5° crank handle Inox

Ø outside: 9 mm · Total length: 44 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Angle crank wedge: 3.5° · Thread type: M7x1 (standard thread)

swiing® ingenious bottom bracket bushing Ø 16 / 21 mm brass

Ø Bundle: 24 mm · Manufacturer: swiing® ingenious parts · Total length: 19 mm · Material: Brass · Bearing type: Plain bearing · Ø outside: 21 mm · Ø inside: 16 mm

Seeger ring 18 mm pedal axle Sachs 50/2 Caravelle

Fuse type: Outside · Manufacturer: Sachs · Material: Spring steel · Nominal diameter: 18 mm

swiing® revival plain bearing 18/23/18 pedal axle | Sachs 50/2 Caravelle

Ø inside: 18 mm · Nominal diameter inside: 18 mm · Ø outside: 23 mm · Total height: 18 mm · Manufacturer: swiing® revival parts · Material: Brass

swiing® revival Ø 9 mm wedge 4.5° crank handle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Thread type: M7x1 (standard thread) · Ø outside: 9 mm · Total length: 43 mm · Angle crank wedge: 4.5°

Spacer washer 17/28/2.5 Pedal axle Inox

Ø inside: 17 mm · Nominal diameter inside: 17 mm · Thickness: 2.5 mm · Material: Chrome steel (stainless steel) · Ø outside: 28 mm · Puch OEM number: 900.3993

Spring washer pedal axle (thick)

Spring design: Special spring · Ø inside: 17.2 mm · Ø outside: 29.5 mm · Material: Spring steel · Surface: galvanized (blue) · Material thickness: 1.6 mm

swiing® revival spacer bushing 40 mm pedal axle PVC

Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Ø outside: 25 mm · Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Total length: 40 mm

swiing® revival bearing ring Ø 22 / 35 mm pedal set (large)

Manufacturer: swiing® revival parts · Bearing type: Bearing ring · Ø inside: 22 mm · Ø outside: 35 mm · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

Thrust washer 1 mm pedal axle | Sachs 50/2 Caravelle

Ø inside: 18 mm · Ø outside: 25 mm · Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Thickness: 1 mm

Thrust washer 0.5 mm pedal axle | Sachs 50/2 Caravelle

Ø inside: 18 mm · Ø outside: 25 mm · Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Thickness: 0.5 mm

swiing® ingenious extension pedal axle + 48 mm Inox

Ø outside: 32 mm · Total length: 78 mm · Manufacturer: swiing® ingenious parts · Material: Chrome steel (stainless steel) · Ø bore: 16.1 mm · Ø Pedal arm holder: 15.8 mm · Depth: 35 mm

swiing® revival spacer bushing 20 mm pedal axle (PVC)

Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Ø outside: 25 mm · Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Total length: 20 mm

Thrust washer 0.3 mm pedal axle | Sachs 50/2 Caravelle

Ø inside: 18 mm · Ø outside: 25 mm · Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Thickness: 0.3 mm

swiing® revival spacer bushing 15 mm pedal axle PVC

Ø outside: 25 mm · Total length: 15 mm · Nominal diameter inside: 16 mm · Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm

swiing® revival spacer bushing 5 mm pedal axle PVC

Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Ø outside: 25 mm · Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Total length: 5 mm

Spacer washer 16/22/0.1 pinion shaft / pedal shaft | Sachs

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.1 mm

Spacer washer 16/22/0.2 pinion shaft / pedal shaft | Sachs

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.2 mm

swiing® revival bottom bracket bushing 16x23x20 mm | Sachs 503 Pony Junior, Cross

Ø inside: 16 mm · Ø outside: 23.35 mm · Manufacturer: swiing® revival parts · Material: Plastic · Bearing type: Plain bearing · Color: black · Total length: 20.3 mm

Spacer washer 17/33.5/4 pedal axle original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 17 mm · Nominal diameter inside: 17 mm · Ø outside: 33.5 mm · Material: Steel · Surface: galvanized (blue) · Thickness: 4 mm

swiing® revival plain bearing 18/20/20 pedal axle | Sachs 50/2 Caravelle

Ø inside: 18 mm · Nominal diameter inside: 18 mm · Ø outside: 20 mm · Total height: 20 mm · Manufacturer: swiing® revival parts · Material: Brass

Spacer washer 16/22/0.3 pinion shaft / pedal shaft | Sachs

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.3 mm · Pony OEM number: A1572 · Sachs OEM number: 0244 081 000

swiing® revival pedal axle set (bushing Ø 23 mm) | Sachs / Tigra Caravelle

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Total length: 182 mm · Ø outside: 18 mm · Ø Pedal arm holder: 15.9 mm

Spacer washer 17/30/1.6 Pedal axle

Ø inside: 17.1 mm · Nominal diameter inside: 17 mm · Ø outside: 29.6 mm · Material: Steel · Surface: galvanized (blue) · Thickness: 1.6 mm

Pedal axle extension + 48 mm Inox

Material: Chrome steel (stainless steel) · Total length: 78 mm · Ø outside: 32 mm · Ø Pedal arm holder: 15.8 mm · Ø bore: 16.1 mm · Depth: 35 mm

GPO pedal axle 28 teeth chrome | Sachs Alpa

Ø outside: 15.8 mm · Total length: 250 mm · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 28 pcs · Wavelength from wreath: 75 mm · Wavelength from wreath: 173 mm · Ø Outer sprocket: 120 mm · Crank (wreath): 2.5 mm

swiing® revival bearing ring pedal set (small)

Ø inside: 16.8 mm · Ø outside: 29.5 mm · Manufacturer: swiing® revival parts · Bearing type: Bearing ring · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

swiing® revival lock nut 18 - 24G LH pedal axle Inox

Drive: External hexagon · Width across flats SW: 27 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Nut type: Hexagon nut · Surface: electropolished · Thread type: 18x24G LH · Height: 4.2 mm

66HEROES Spacer tube pedal axle 50 mm Inox

Manufacturer: 66HEROES · Material: Chrome steel (stainless steel) · Surface: polished · Surface: shiny · Ø inside: 16.3 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Total length: 50 mm

Spring washer Pedal axle (thick) Inox

Spring design: Special spring · Ø inside: 16.9 mm · Ø outside: 30 mm · Material: Chrome steel (stainless steel) · Material thickness: 1.6 mm

swiing® revival pedal axle 28 teeth chrome | Tigra Pionier P30-74, P30-R, Caravelle

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Pedal shaft type: with thread · Chain pitch: 1/2" x 3/16" · Number of teeth: 28 pcs · Total length: 210 mm · Wavelength from wreath: 60 mm · Wavelength from wreath: 150 mm · Ø Pedal arm holder: 15.8 mm · Ø Bearing support: 17.8 mm · Thread type: 18x24G LH

swiing® revival pedal axle set (bushing Ø 20 mm) | Sachs

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Total length: 182 mm · Ø outside: 18 mm · Ø Pedal arm holder: 15.9 mm

swiing® revival bearing cone pedal axle | Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Color: black · Ø inside: 18 mm · Ø outside: 33 mm · Total length: 13.7 mm

Nut M18x1 LH chrome

Material: Steel · Surface: chrome-plated · Nut type: Octagonal nut · Thread type: MF18x1 LH (fine/left-hand thread) · Height: 5 mm · Width across flats SW: 27 mm · Strength class: 8

swiing® revival pedal axle short Inox | Sachs 50/2

Ø outside: 22 mm · Total length: 182 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Ø Pedal arm holder: 16 mm

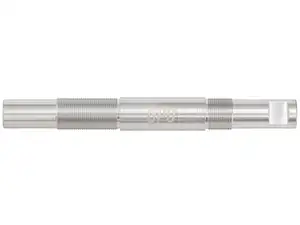

GPO pedal axle Inox | Pony 502 Junior (P1211)

Manufacturer: GPO · Material: Chrome steel (stainless steel) · Surface: blank · Color: silver · Pedal shaft type: with thread · Ø outside: 18.3 mm · Total length: 160 mm · Ø Pedal arm holder: 15.9 mm · Thread type: 18x24G LH

swiing® revival lock nut 18x24G x 5 SW27 tread axle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: electropolished · Area of application: Standard · Nut type: Octagonal nut · Thread type: 18x24G · Drive: Outer eighth edge · Height: 5 mm · Width across flats SW: 27 mm

Grease nipple pedal axle | Puch /

Manufacturer: Puch · Material: Plastic · Color: red

swiing® revival spacer bushing pedal axle 30 mm PVC

Ø outside: 25 mm · Nominal diameter inside: 16 mm · Total length: 30 mm · Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm

swiing® revival bottom bracket shell 23/40.5/13.5 gas nitrided

Ø inside: 23 mm · Ø outside: 40 mm · Ø Bundle: 43.5 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Color: black-matt · Bearing type: Bearing ring · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

Grease nipple pedal axle | Beta 521 (P8064)

Ø outside: 6.05 mm · Ø outside: 6.3 mm · Manufacturer: Pony · Material: Metal · Color: silver · Total length: 15.3 mm

swiing® revival nose disk M18 pedal axle chrome

Ø inside: 18.3 mm · Ø outside: 25.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Nominal diameter (thread): 18 mm · Thickness: 2.5 mm

ergotec pedal axle extension set 18 mm left & right 9/16" Inox

Manufacturer: ergotec · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Total length: 30.1 mm · Thread type: FG14.3 (9/16" 20G)

swiing® revival pedal axle long Inox | Sachs 50/2

Ø outside: 22 mm · Total length: 250 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Ø Pedal arm holder: 16 mm

swiing® revival cone pedal axle FG18x24G LH

Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Area of application: Standard · Nut type: K-mother · Thread type: 18x24G LH · Ø outside: 33 mm · Height: 11.8 mm · Width across flats SW: 32 mm

O-ring pedal axle 19 x 2 mm | Sachs 505

Ø inside: 19 mm · Ø outside: 23 mm · Cord thickness: 2 mm · Hardness [Shore]: 70 Shore · Material: NBR · Sachs OEM number: 0250 165 000

Bearing shell bearing races set for crankset

Ø inside: 23 mm · Ø outside: 40 mm · Ø Bundle: 43.5 mm · Material: Steel · Bearing type: Bearing ring · Color: silver · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

O-ring pedal axle 13 x 1.5 mm | Sachs 505

Ø inside: 13 mm · Ø outside: 16 mm · Cord thickness: 1.5 mm · Hardness [Shore]: 70 Shore · Material: NBR · Sachs OEM number: 0250 164 000

IceToolz 9-piece thread cutting set (especially for pedal cranks)

Manufacturer: IceToolz · Number of components: 9 pcs · Area of application: Workshop accessories
