Complete cable set with Teflon inner coating suitable for Puch Maxi S & N mopeds / mopeds with E50 input automatic engine.
Can also be used universally for various other mopeds, please note the cables and cable nipples.
The inside of the cable reel consists of a steel spiral with an inserted POM tube and is provided with a special PTFE coating for lubrication. This guarantees the best braking performance with minimal friction.

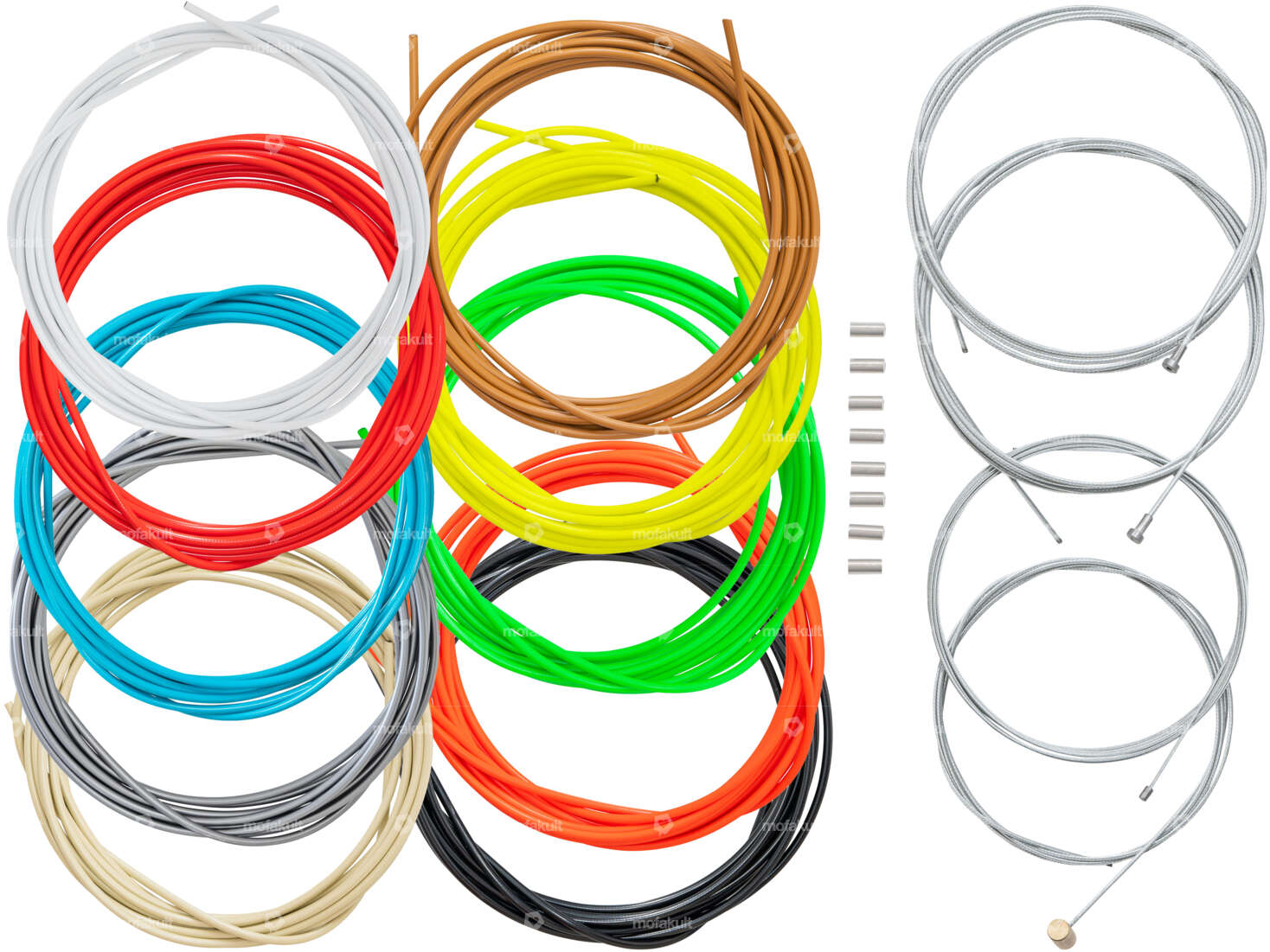

The cable set consists of the following components:
6m cable core (Ø outer 5 mm) PTFE greased (see drop-down menu for color selection)
2 pcs. Brake cable (220 cm, Ø 1.80 mm)
1 pc. Throttle cable (220 cm, Ø 1.25 mm)
1 starter cable (160 cm, Ø 1.50 mm)
8 pcs. Nickel-plated brass end sleeves (12 mm, Ø inside 5 mm)
A selection of colored end sleeves (color variations possible) can be found under accessories.
The set includes the following fixed parts:
Details
| Ø Stranded wire | 1.25 mm, 1.5 mm, 1.8 mm |
| Nipple shape | Cylinder, Pears, Barrel (transverse) |
| Material | Steel, Teflon |
| Quantity | 4 pcs |
| Total length | 1600 mm, 2200 mm |
| Color | white, red, blue, anthracite, cream, brown, neon yellow, neon green, neon orange, black |
| Outer shell length | 6000 mm |
Suitable for the following models
| Puch | E50 |
