Revision kit / repair kit for the Dell'Orto SHA carburetor, which is installed on Piaggio and Beta 521 / 512, among others.

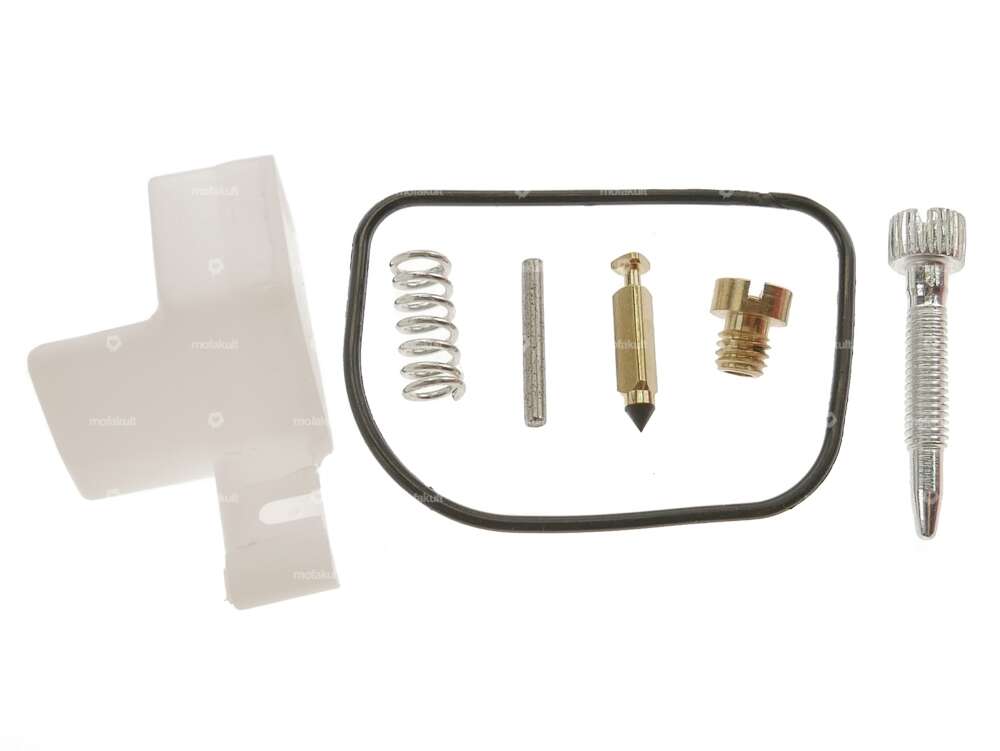

The revision kit consists of the following individual parts:

Float
Float axle
Float needle
Spring for idle screw
Idle screw
Float chamber gasket
Main jet (size 58)

Details

Component group Carburetor	Sealing, revising
Carburetor type	SHA (Piaggio)

Suitable for the following models

Pony / Cilo (Beta 521 & 512)

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao

Bravo/Superbravo

Boxer

Grillo
