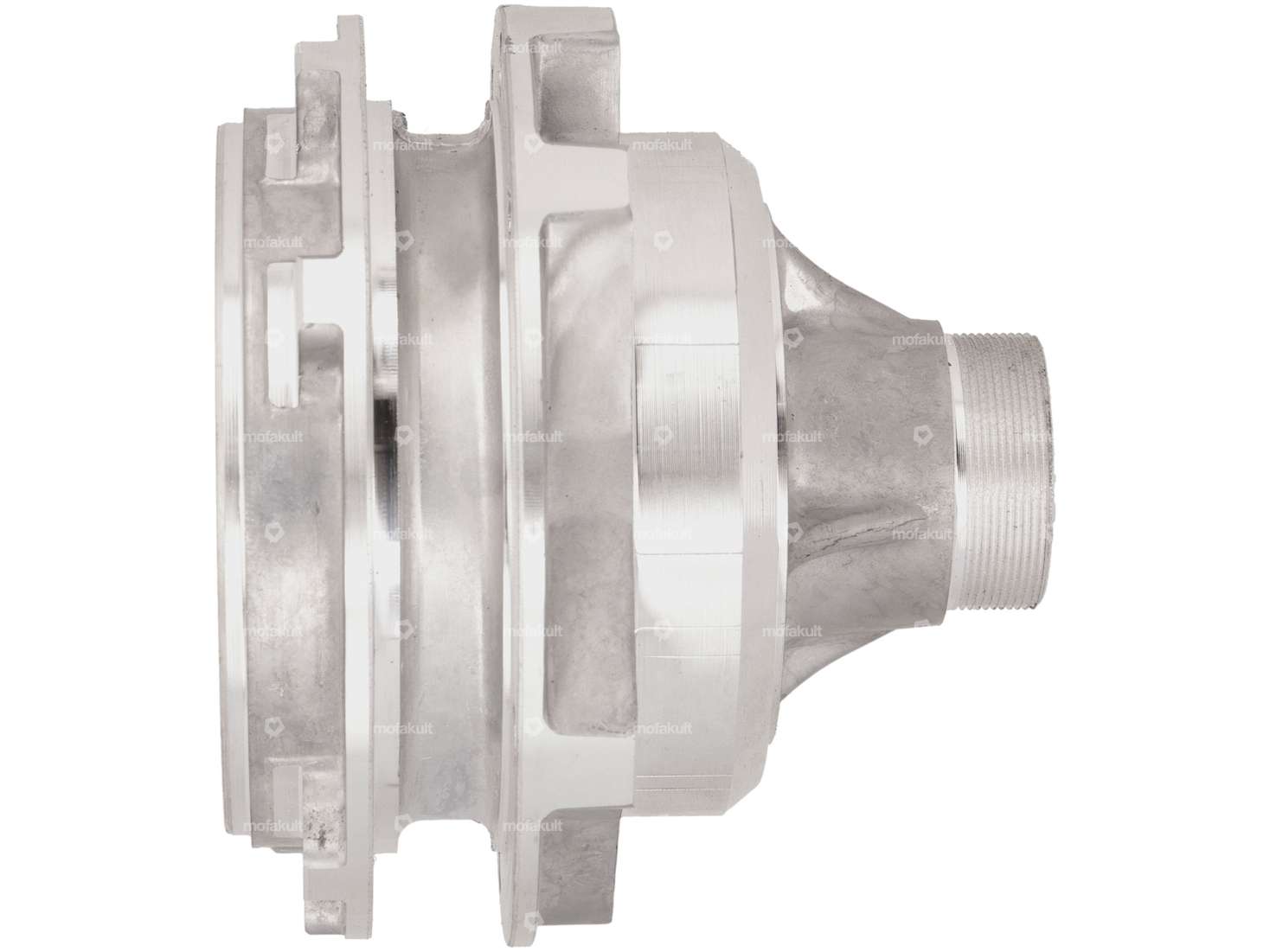

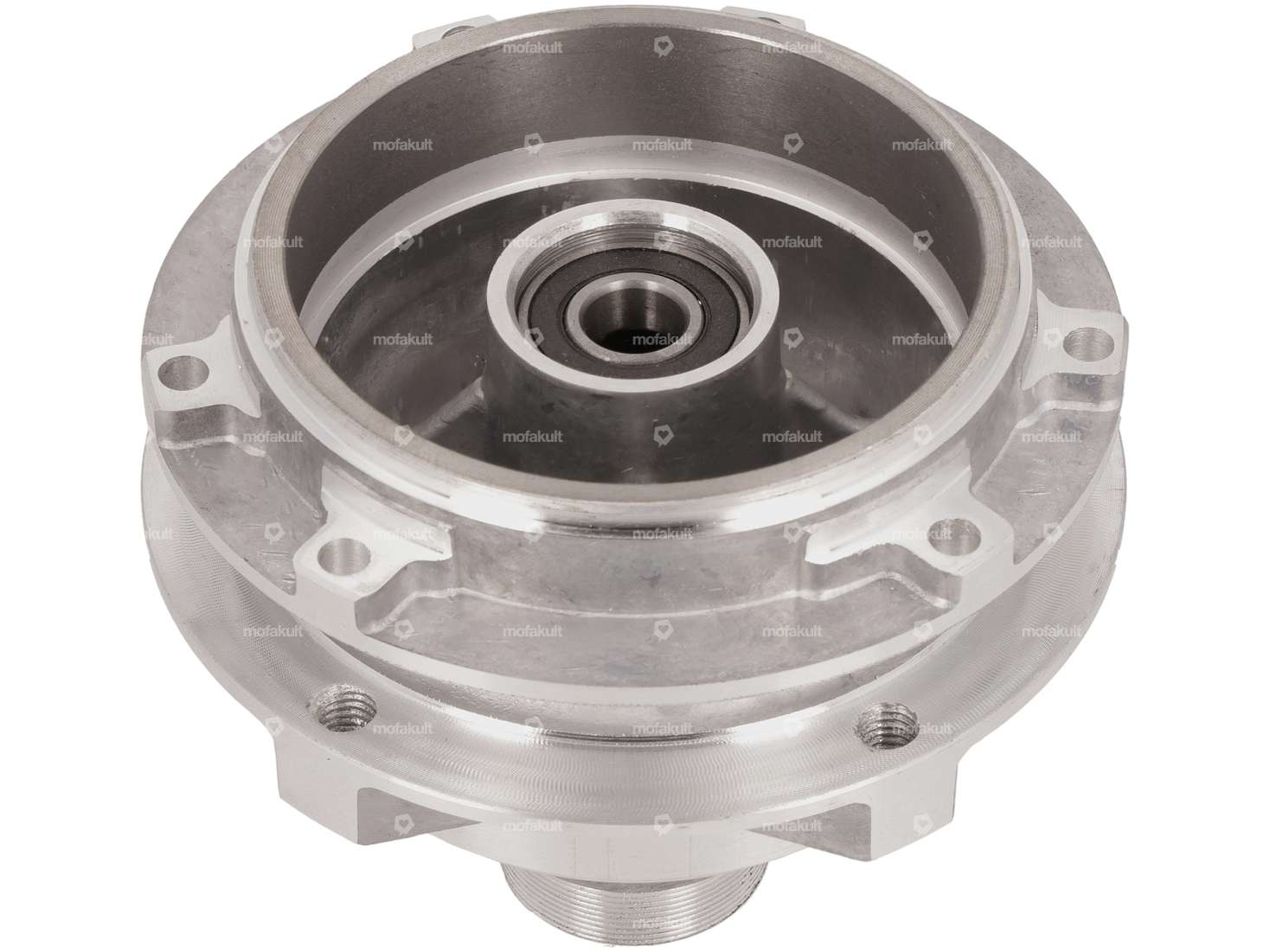

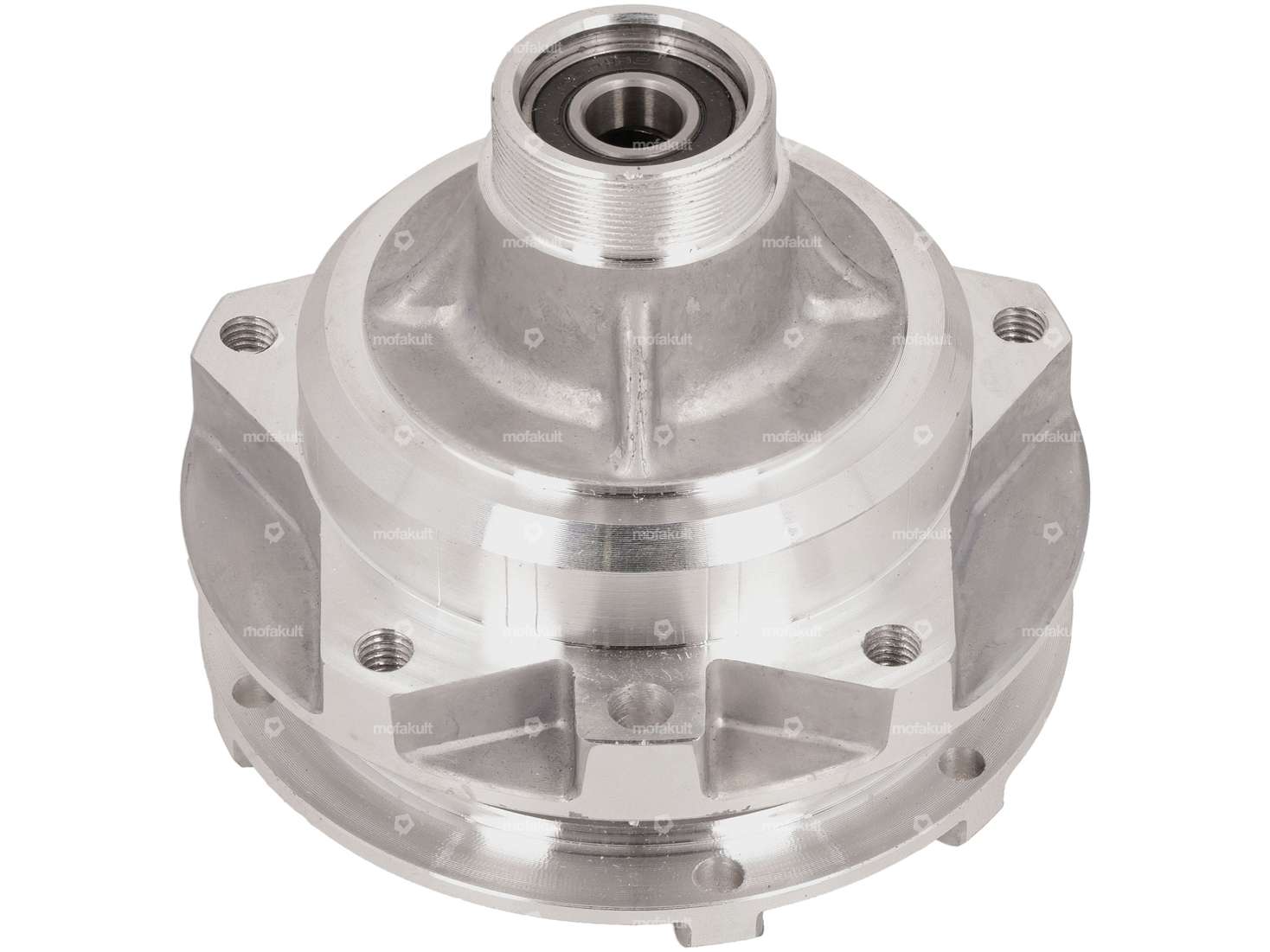

Rear wheel hub suitable for the cast rim which was originally installed on Puch Maxi S / N, Puch Supermaxi LG1 / LG2 and Puch X30 NG-2AH mopeds / mopeds.
The CNC machined aluminum wheel hub impresses with its good quality. Both wheel bearings are already pressed in, and the matching spacer is also installed between the two bearings.
Ø Axle: 12 mm
Number of mounting points rim: 5 pieces
Thread: M8
Number of mounting points spider: 6 pieces
Ø Bore: 6.1 mm
Alternative hubs and the matching axle can be found in the accessories section.
Details
| Ø inside | 27.9 mm |
| Ø outside | 114.7 mm |
| Thread length | 12 mm |
| Material | Cast aluminum |
| Area of application | Tuning |
| Ø drum | 80 mm |
| Surface | blank, raw |
| Color | silver |
| Ø axle | 12 mm |
| Number of fixing points | 12 pcs |
| Ø bolt circle | 105 mm |
| Ø mounting hole | 6.1 mm |
| Thread type | FG34.8 (1.37" 24G) |
| Total length | 105 mm |
Suitable for the following models
