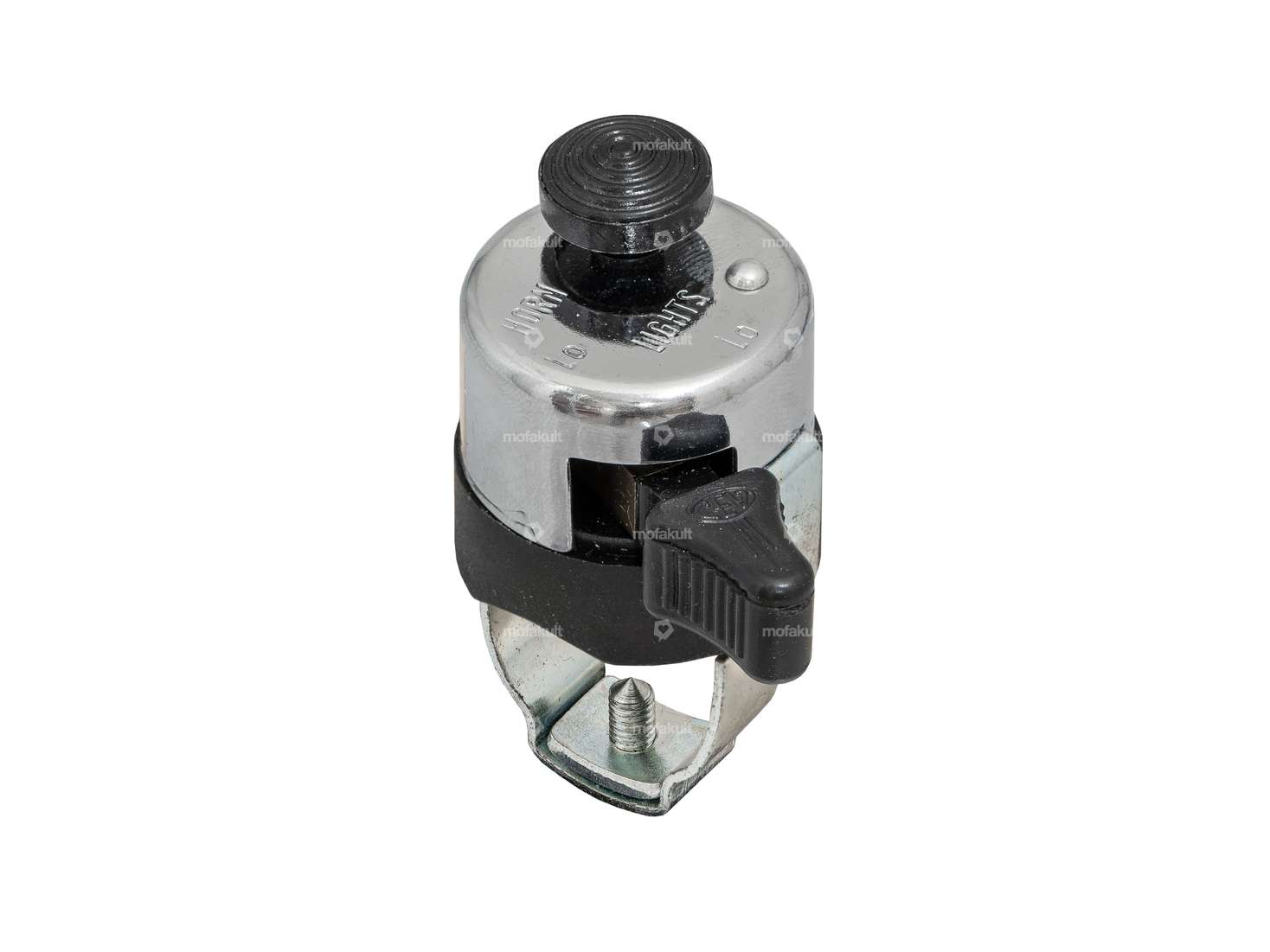

Original light switch from the cult brand CEV with button for activating a horn on your moped, moped and small motorcycle.
The switch can be used to assume the following positions:
- Light off
- Main beam & Rücklicht on
- Dipped beam & Rücklicht on
- Horn / short circuit (button)

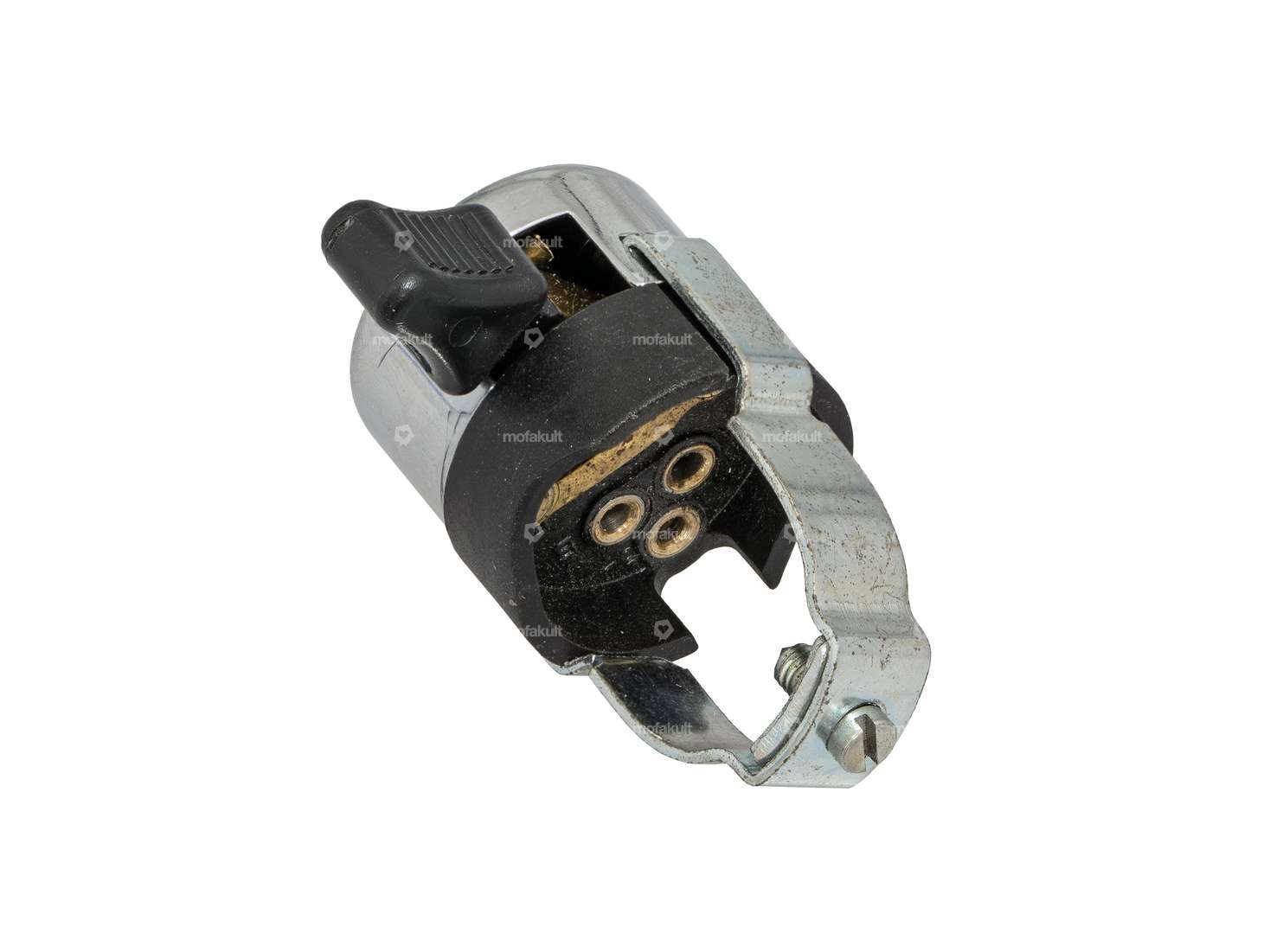

The pins are assigned as follows:
- 51: Power cable from the engine (supply)
- 58: Rücklicht
- A: High beam
- B: Low beam
- 54: Horn or short circuit cable
Qualitätsprodukt from old stock of the Italian manufacturer CEV.
Details
| Manufacturer | CEV |
| Material | Plastic |
| Housing material | Steel |
| Substructure material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Functions | High beam (headlights), Low beam, Light off, Horn, Motor stop |
| Number of positions | 3 pcs |
| Ø Handlebars | 22 mm |
