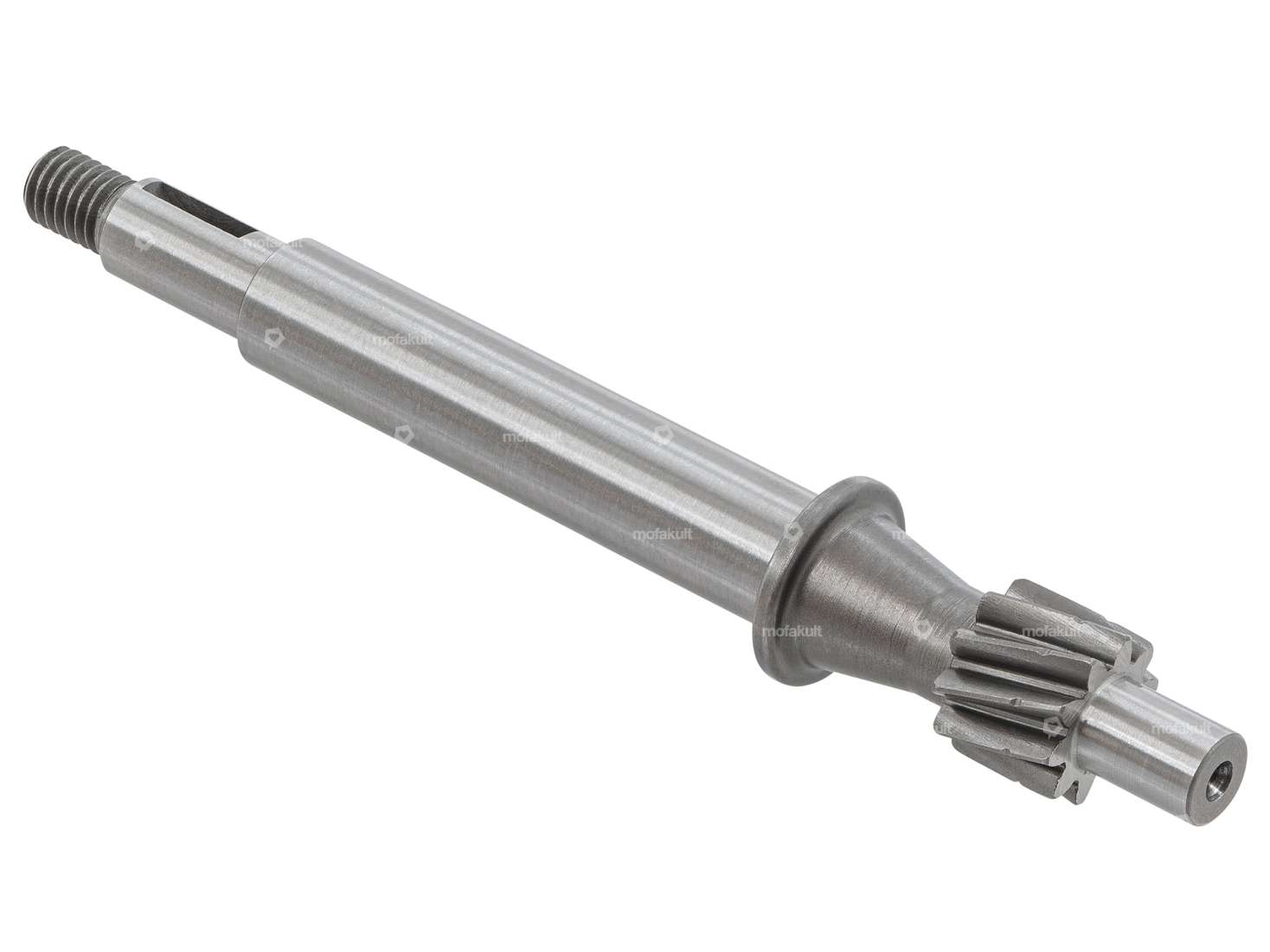

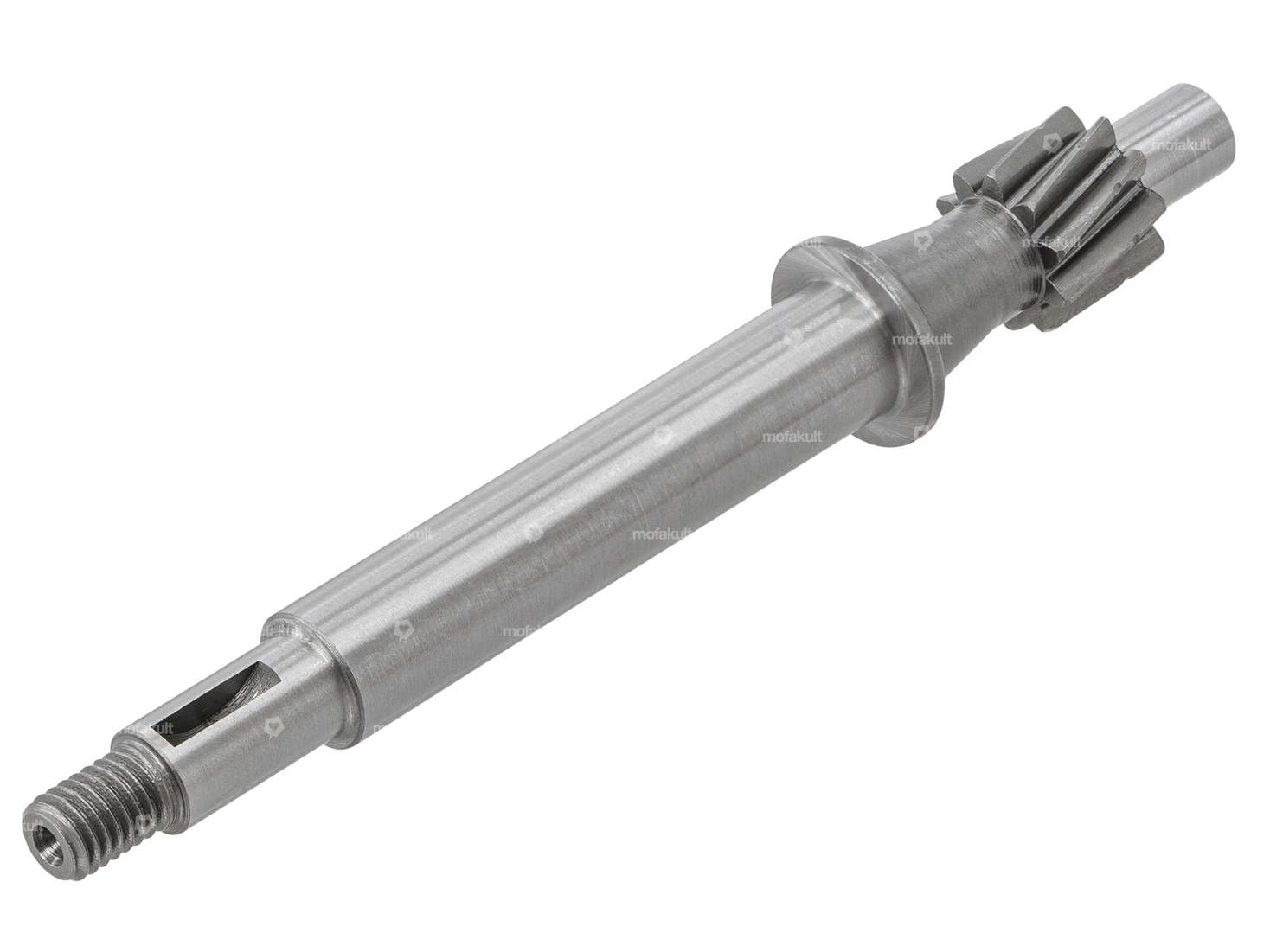

Converter shaft suitable for Piaggio models with variomatic transmission (Ciao, Si, Bravo, Boxer, Grillo).
This input shaft is used for the following transmission ratios:
Original Piaggio:
- 9.49 / 1
- 10.63 / 1
- 10.73 / 1
CIF transmission:
- 9.49 / 1
- 10.73 / 1
Shaft dimensions:
Total length: 137 mm
Number of teeth: 10
Ø shaft: 13 mm
Toothing: helical
Original Piaggio spare part number: 007/176447
Made by the Italian brand CIF.
Details
| Total length | 137 mm |
| Manufacturer | CIF |
| Ø shaft | 13 mm |
| Number of teeth | 10 pcs |
| Toothing type | helical toothed |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
