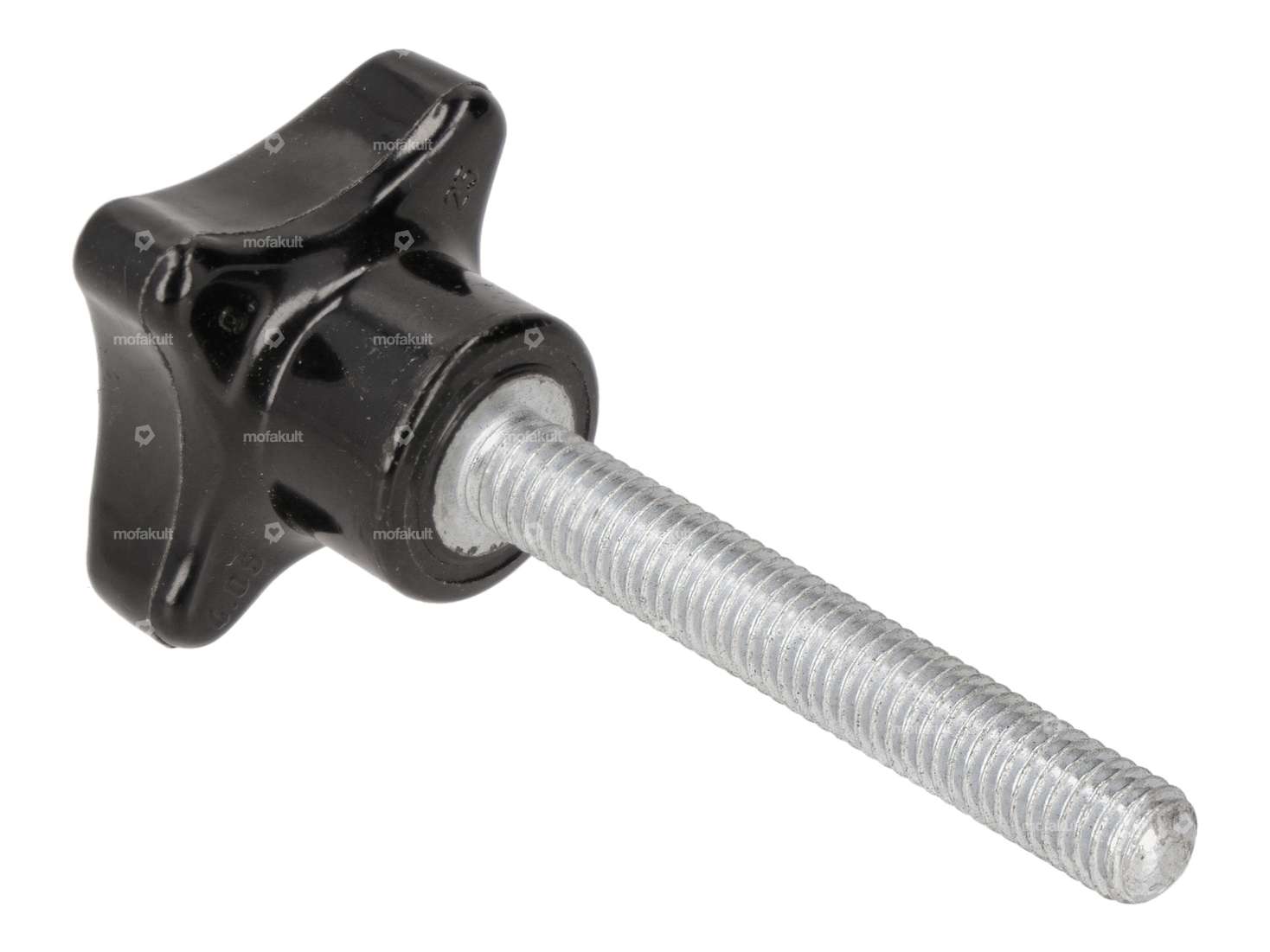

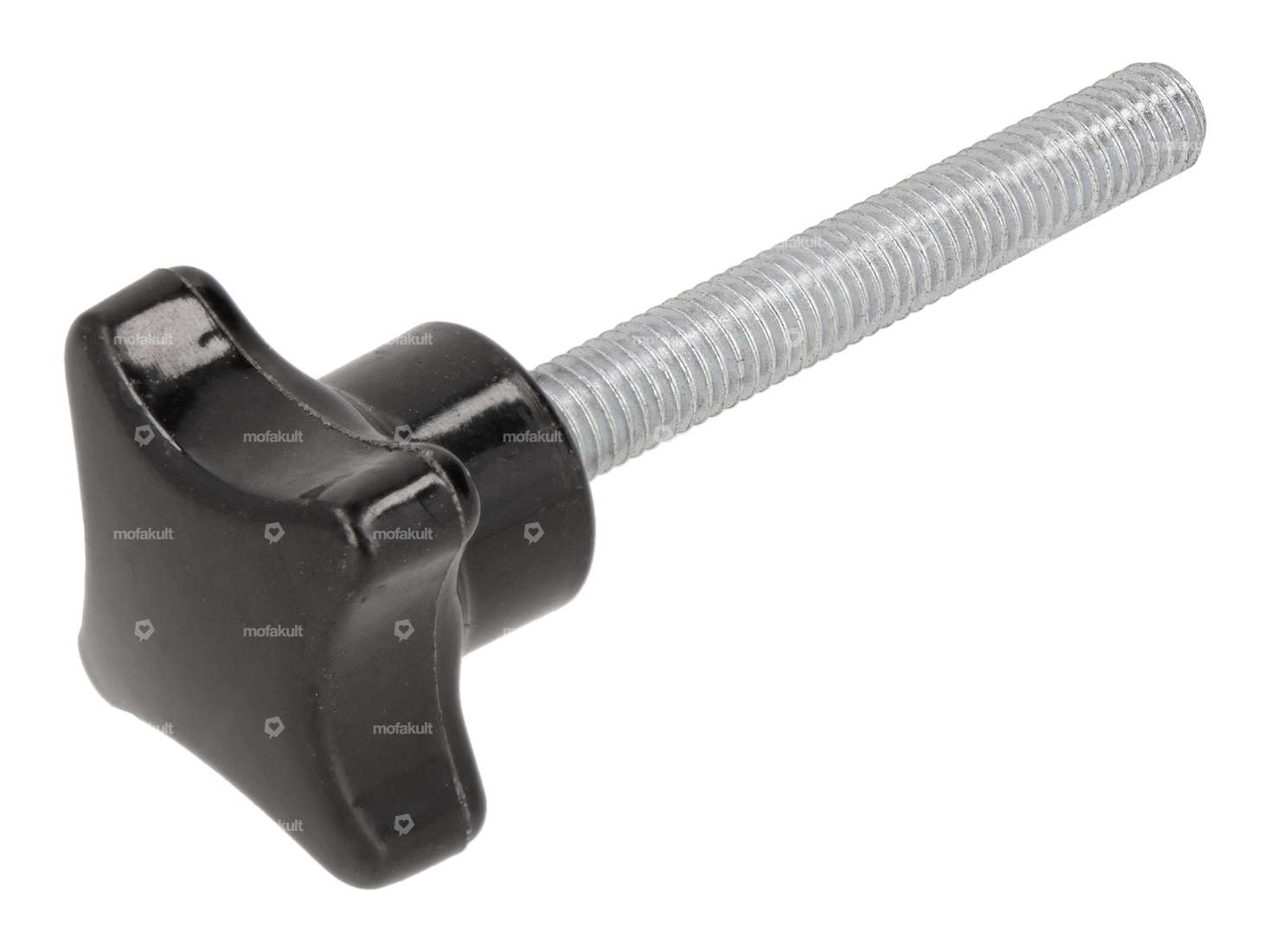

Cladding screw M5x35 cross grip

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30

Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Inlet window: 23.5 / 20 x 14.5 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes · Area of application: Tuning

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Number of components: 1 pcs · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

Champion spark plug connector / 5 kΩ interference suppressed

Manufacturer: Champion · Material: Rubber · Color: red · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 5000 Ω · Component group Carburetor: Spraying

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Place of use: Outlet · Ø mounting hole: 6.7 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Thickness: 2 mm

45° racing air filter foam Ø 27 / 34 mm

Camouflaged: No · Color: black · Filter type: Foam · Total length: 110 mm · Angle: 45 ° · Ø Internal connection: 27 mm · Ø Internal connection: 34 mm · Ø outside: 75 mm · Mounting type: Plug connection clamped · Area of application: Tuning

Gasket outlet set Ø 27 mm large

Ø inside: 27 mm · Total length: 44 mm · Width: 67 mm · Thickness: 2 mm · Hole spacing: 44 - 50 mm · Ø mounting hole: 8.5 mm

Road Master 2.25 x 16" (white lettering)

Manufacturer: Road Master · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Wheel size [inch]: 16 " · Old designation: 20 x 2.25 · Speed index: B = 50 km/h · Load capacity index: 38 = 132 kg · Profile type: Racing XC · Tire type: Allround · Color: black · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Cladding screw M6x40 cross grip

Manufacturer: Made in Germany · Thread type: M6x1 (standard thread) · Thread length: 40 mm

Cladding screw M5x30 mm knurled handle

Manufacturer: Made in Germany · Thread type: M5x0.8 (standard thread) · Drive: Knurled screw · Thread length: 30 mm

BING SSB NOS idle throttle screw

Manufacturer: BING · Thread type: M5x0.8 (standard thread) · Drive: Slot · Total length: 19.4 mm · Pony OEM number: A4592 · Sachs OEM no.: 0962 065 000
