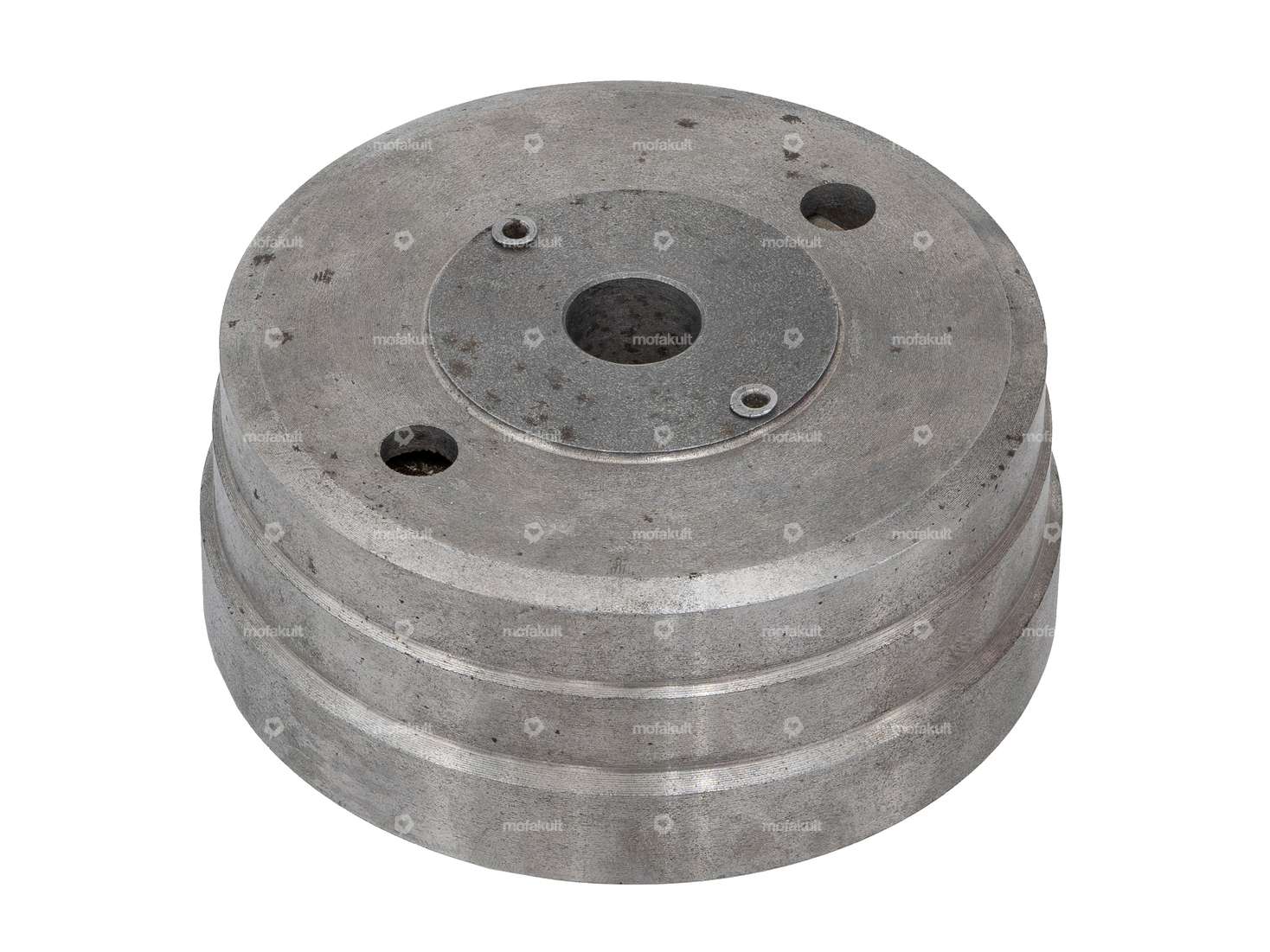

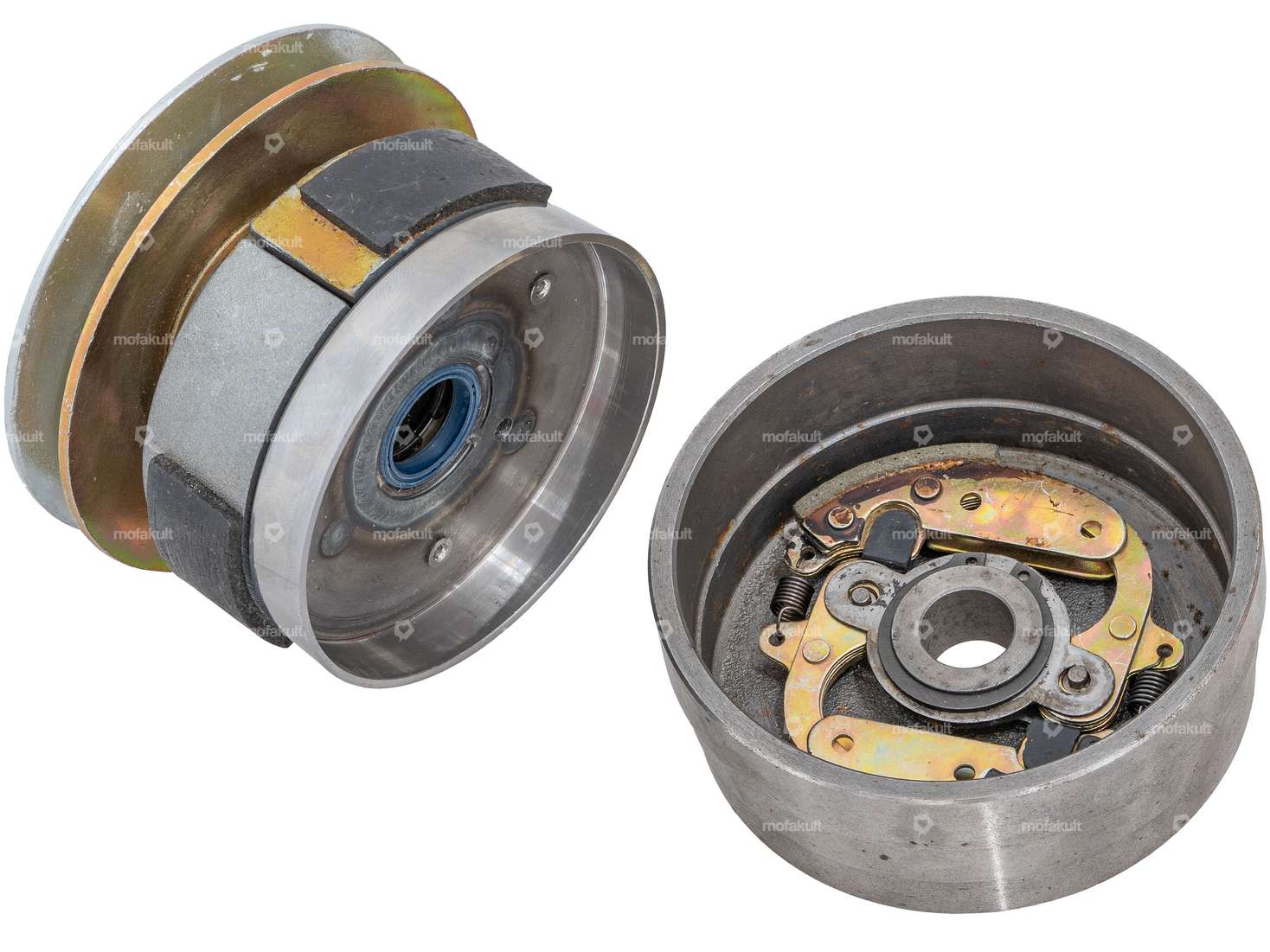

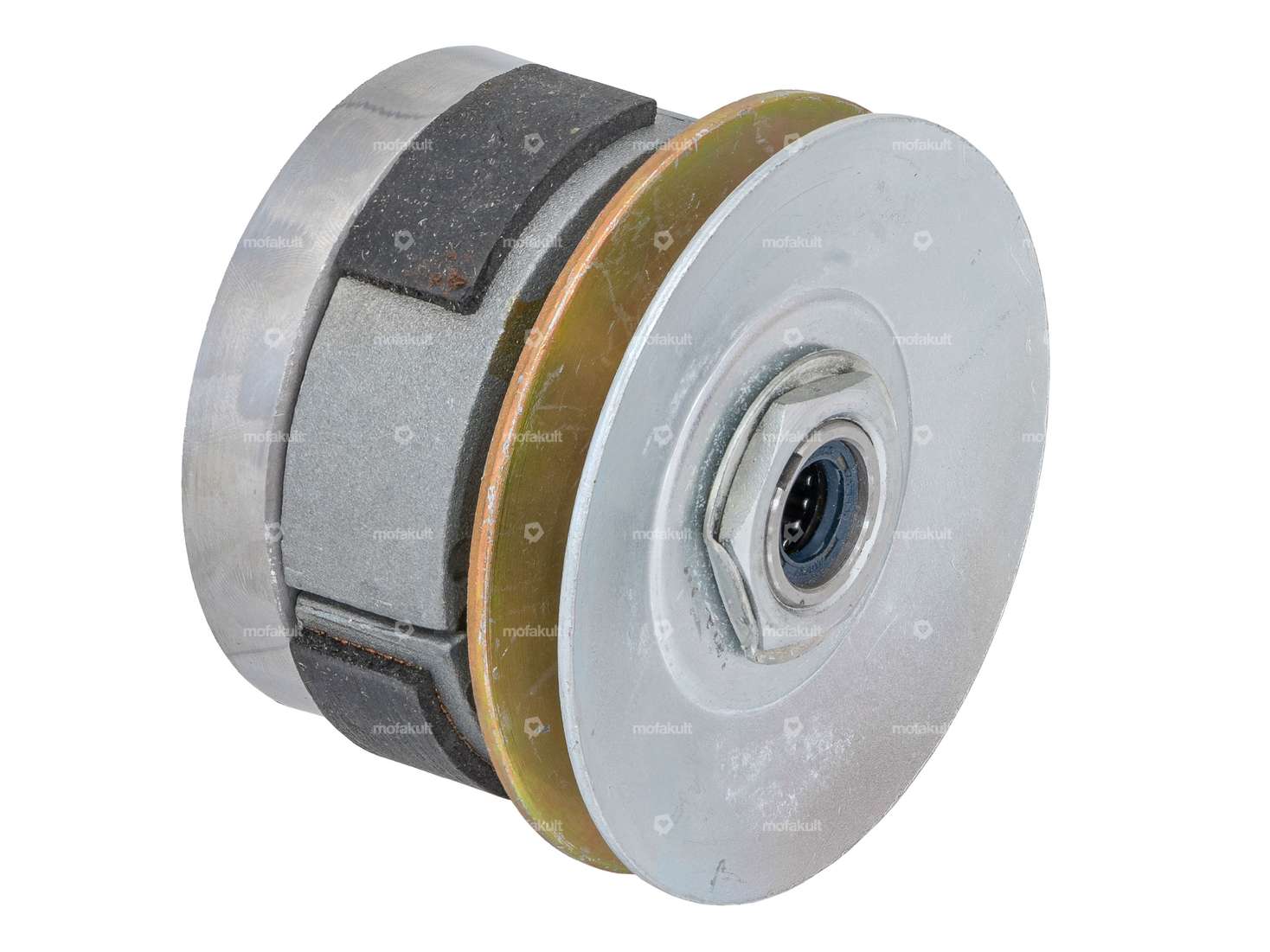

Complete torque converter for your Piaggio Si PTT (Post) moped / moped.

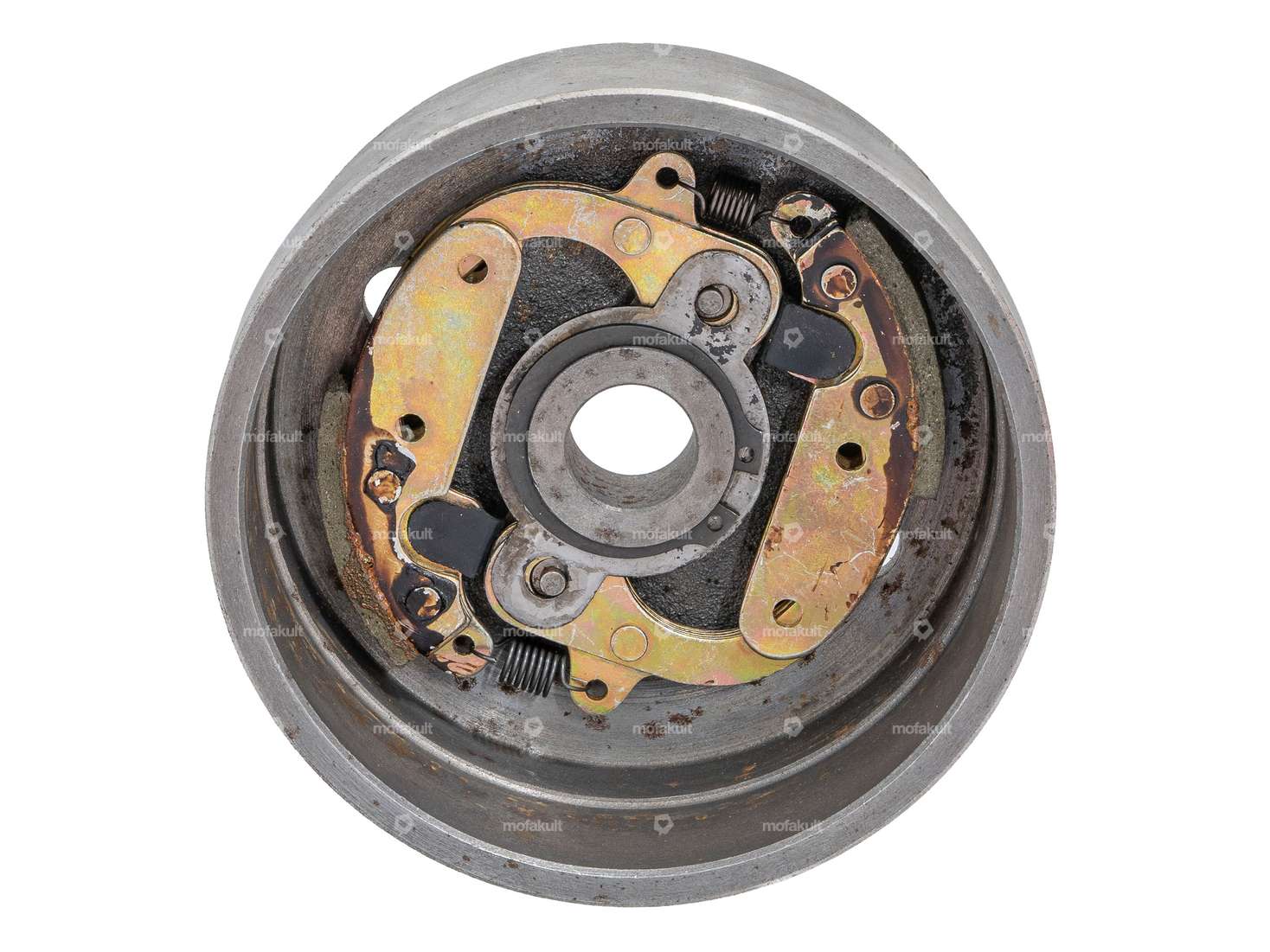

The torque converter unit includes clutch bell, starter linings and clutch shoes.
The spacer axle, friction disk and other attachments can be found in the accessories section.
Ø Pulleys: 100 mm
Attention: Not mountable on normal torque converter systems, as the shaft mount on Piaggio PTT models has a larger nut for fastening and other parts for reinforcement.
Original Piaggio spare part. NOS – New from old stock.
Original Piaggio spare part number: 178446 / 1784466
Details
| Manufacturer | Piaggio |
| Material | Steel |
| Surface | blank |
| Gearbox type | Vario |
| Number of springs | 3 pcs |
| Ø outside | 100 mm, 103 mm |
| Number of jaws | 3 pcs |
| Ø inside | 10.5 mm, 12 mm, 16 mm |
| Thickness | 70 mm |
Suitable for the following models
| Piaggio | Si Bravo/Superbravo Boxer |
