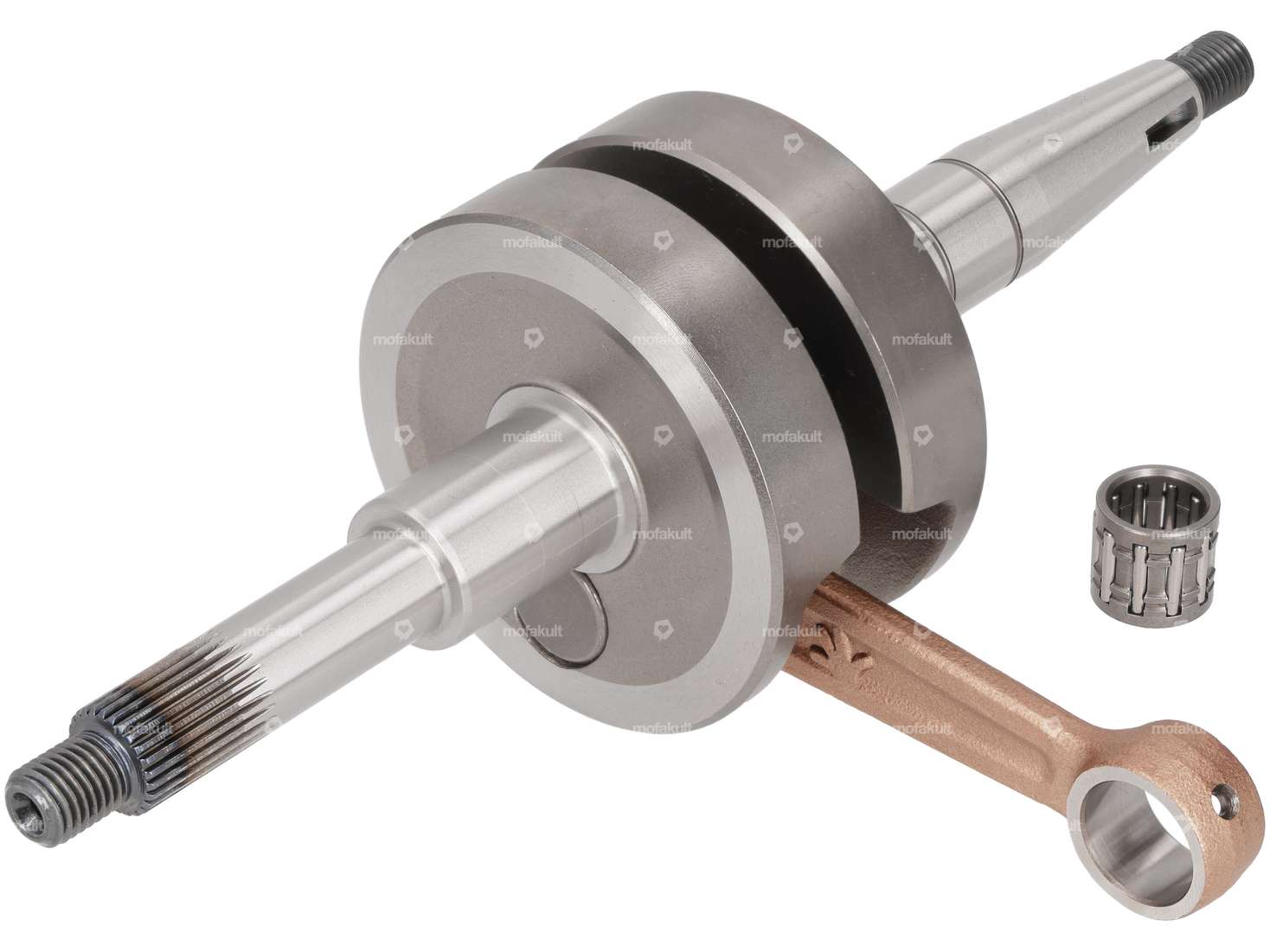

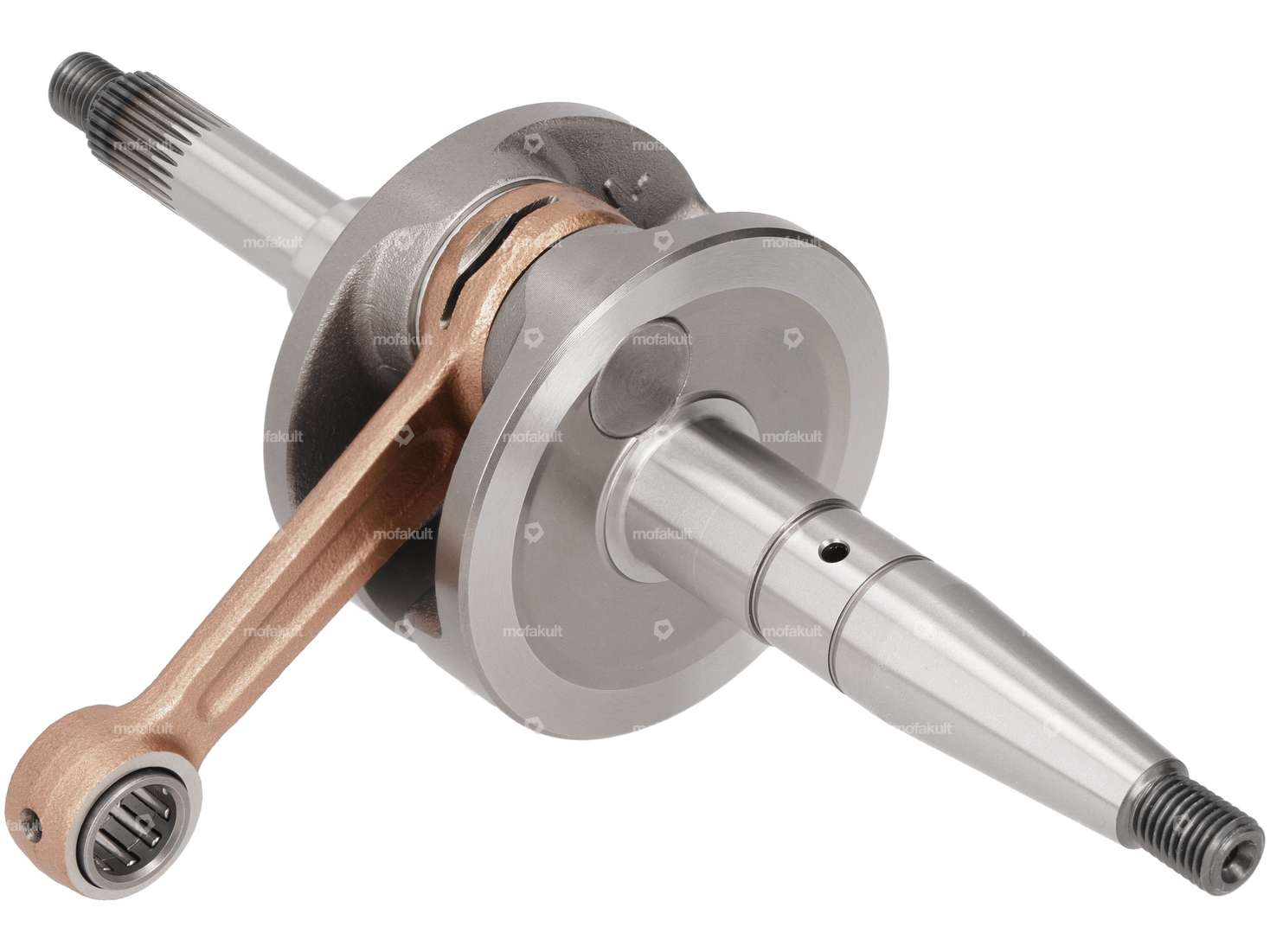

Original full cheek crankshaft suitable for your ByeBike One and retro moped, moped and small motorcycle in the 30 and 45 km/h version.
The needle bearing is already included in the scope of delivery
Original BYE BIKE spare part number: BB01-11110-00-810
Details
| Manufacturer | BYE BIKE |
| Cheek type | Full cheeks |
| Material | Steel |
| Thread type | M10x1.5 (standard thread) |
| Crankshaft stroke | 40 mm |
| Connecting rod length center-center | 80 mm |
| Total length of crankpin on clutch side | 87 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 94 mm |
| Thread length | 12 mm |
| Ø crank webs | 70 mm |
| Ø Connecting rod eye | 16 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 20 mm |
| Area of application | Standard, Original |
| Dimension needle bearing | 12 / 16 x 14.7 mm (axe 12) |
| Wide crank webs | 40 mm |
| Length 1st paragraph | 50.5 mm |
| Length 2nd paragraph | 21 mm |
| Length 3rd paragraph | 22.5 mm |
| Ø 1st step (on the coupling side) | 48 mm |
| Ø 2nd shoulder (on the clutch side) | 27 mm |
| BYE BIKE OEM number | BB01-11110-00-810 |
Suitable for the following models
| Bye Bike |
