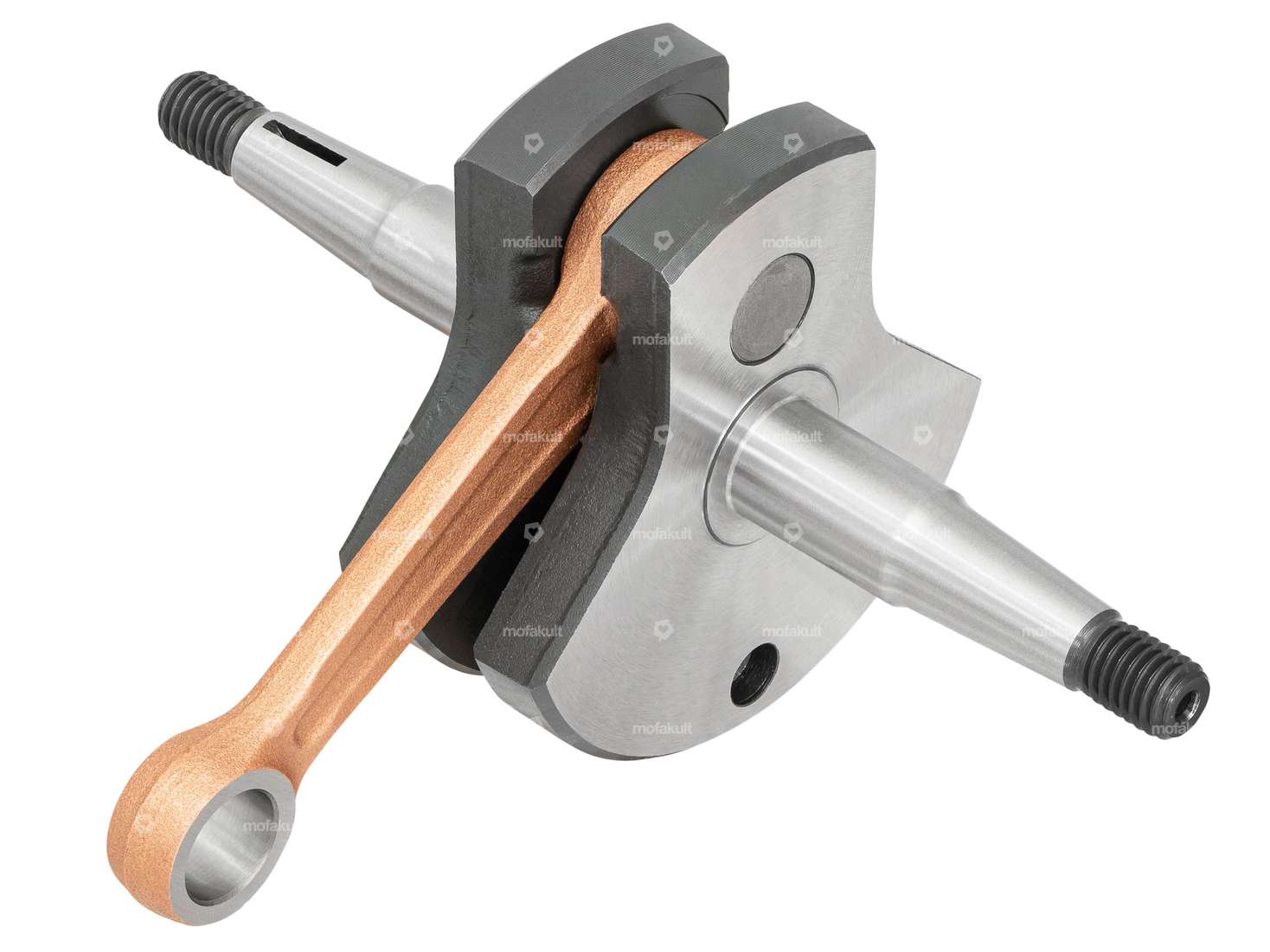

Crankshaft suitable for the JLO / ILO G50 & V50 engine on your ILO G 50 Piano moped & moped.
The crankshaft has the following dimensions:
Total length of clutch-side journals: 62 mm
Total length of clutch-side journals: 62 mm
Ø shoulder (clutch-side): 15 mm
Thread on coupling side: M10x1.5 mm
Ø shoulder (coupling side): 15 mm
Thread on coupling side: M10x1.5 mm
Ø Crank webs: 80 mm
Width of crank webs: 33 mm
Width of crank webs (bearing seat): 34 mm
Ø Connecting rod eye top: 14 mm
Piston pin: 10 mm
Ø connecting rod eye bottom: 14 mm
Conrod length: 85 mm
Stroke: 43 mm
Keyway: 2 mm

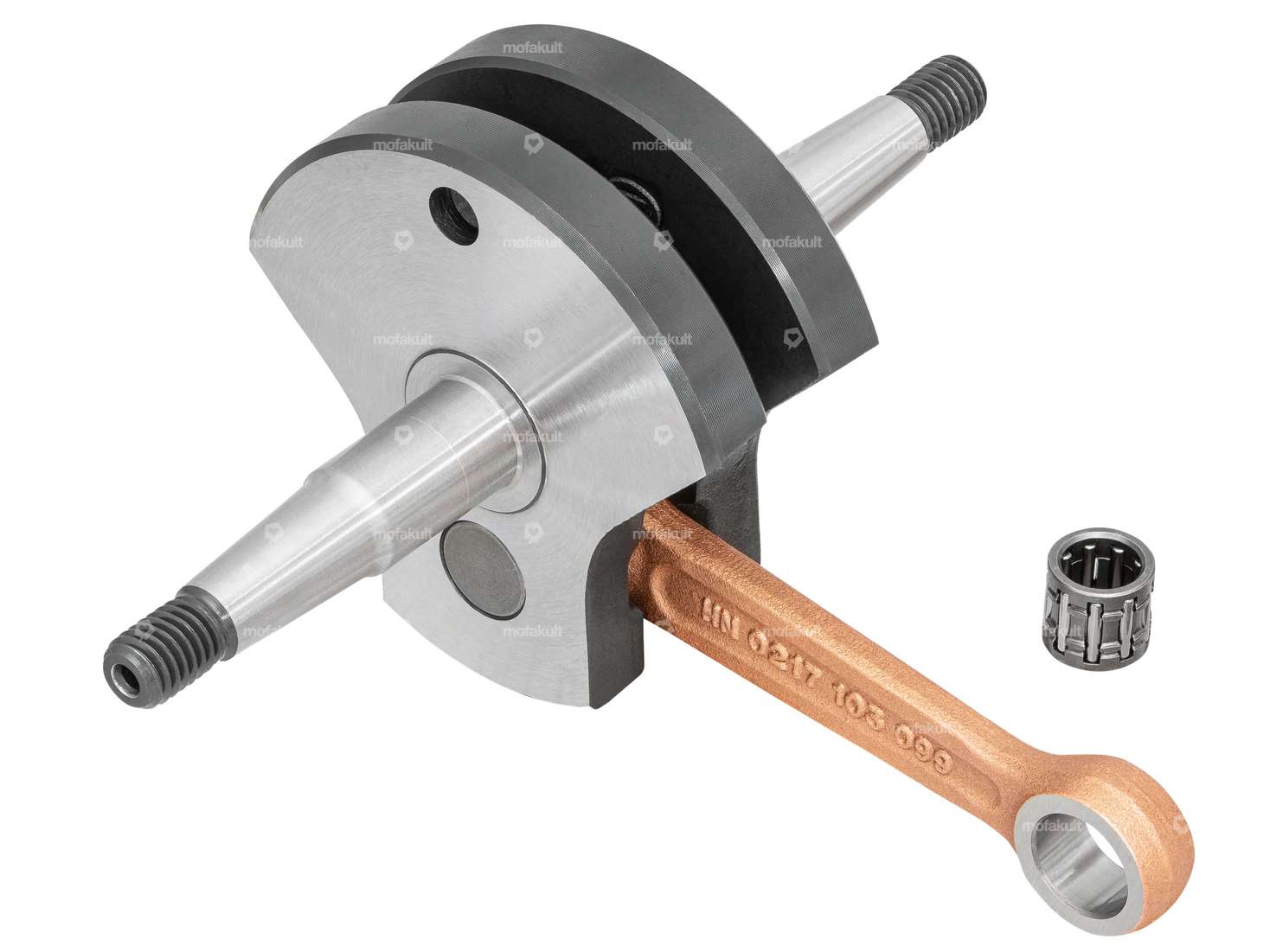

The needle bearing (10/14 x12.7 mm) is included in the scope of delivery
.Details
| Thread type | MF10x1.25 (fine pitch thread) |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Area of application | Standard |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 62 mm |
| Total length crankpin ignition side | 62 mm |
| Ø crank webs | 80 mm |
| Ø piston pin (B) | 10 mm |
| Ø Connecting rod eye | 14 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 10 / 14 x 12.7 mm (axe 10) |
| Wide crank webs | 34 mm |
