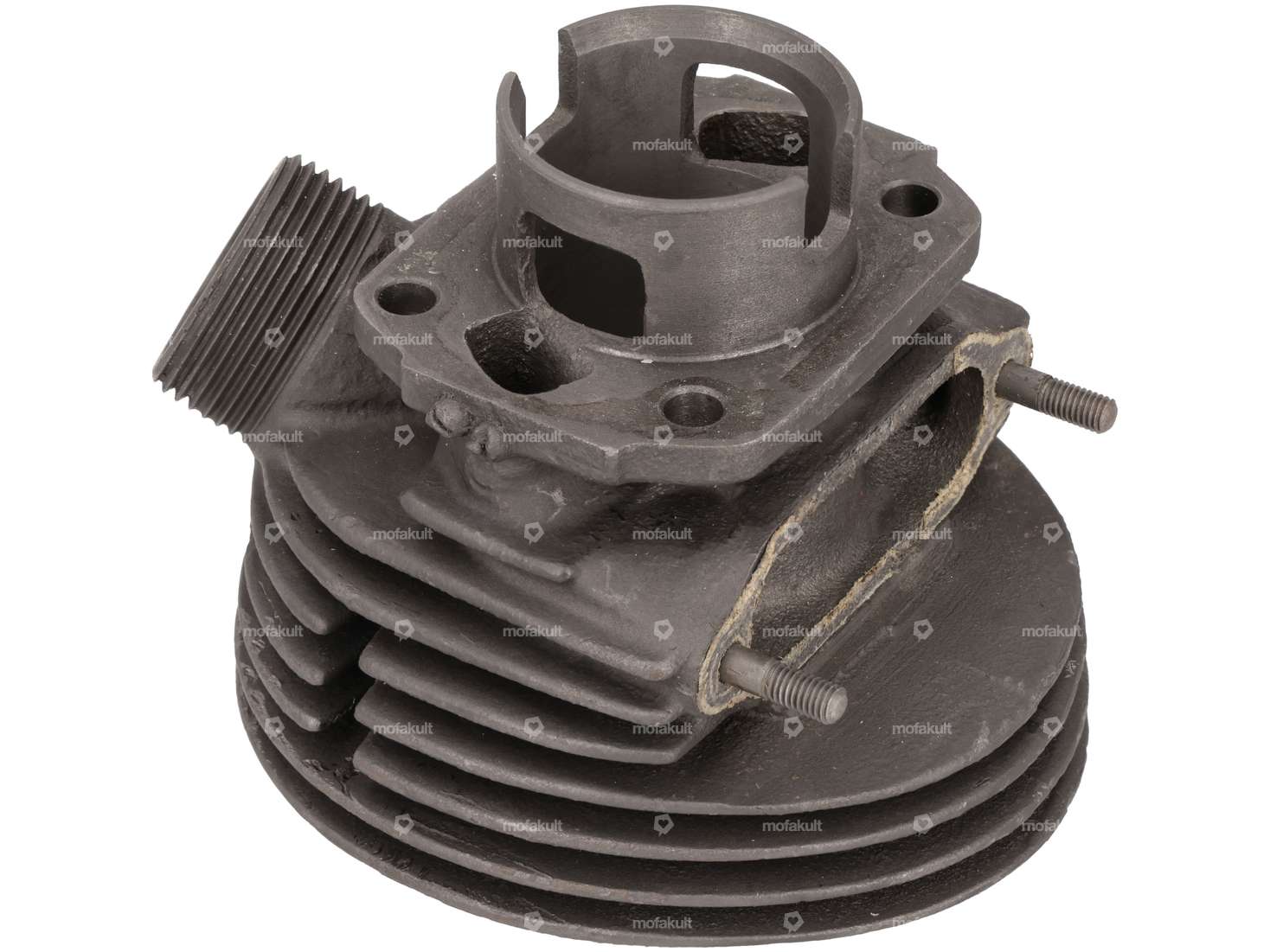

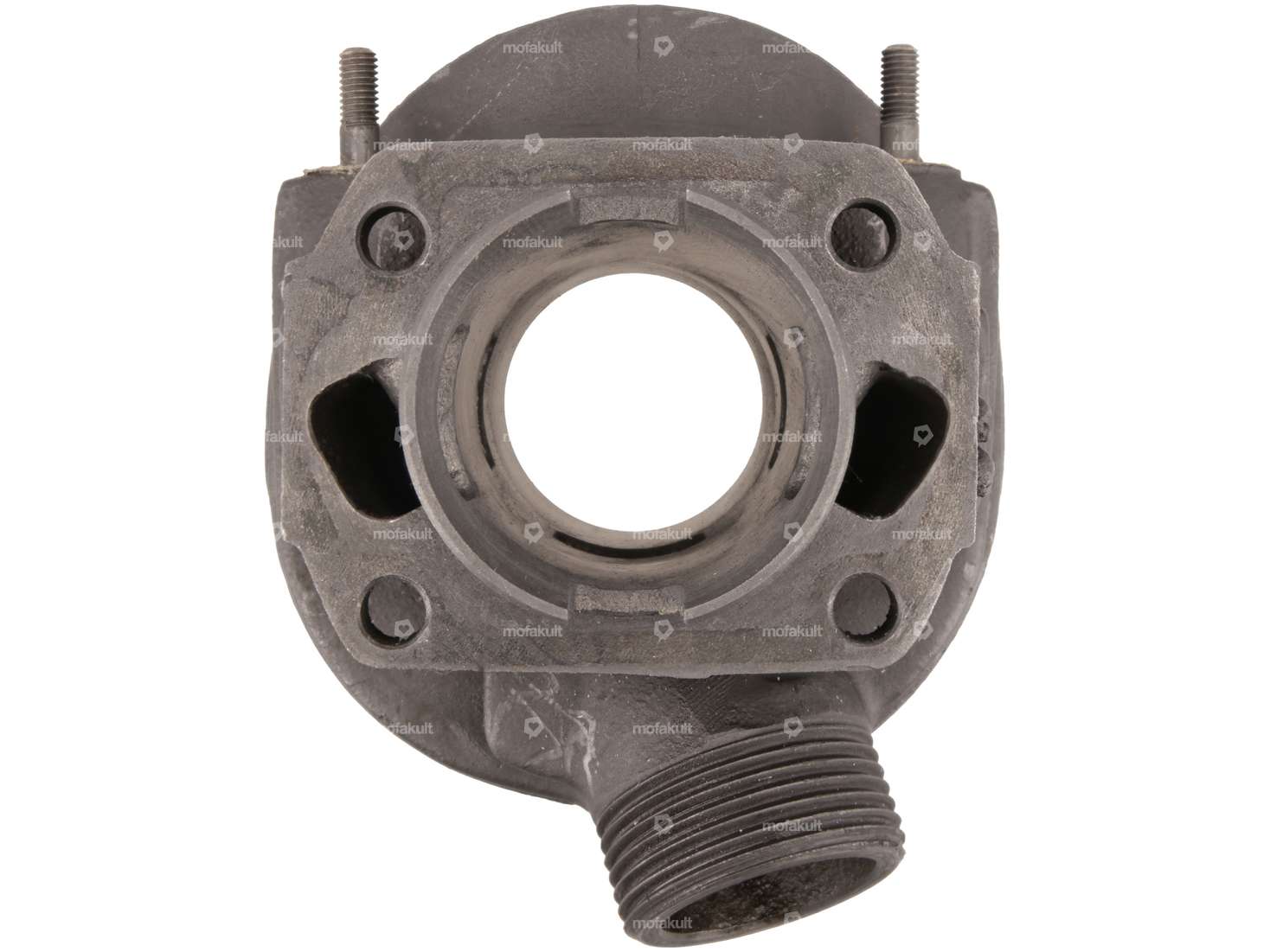

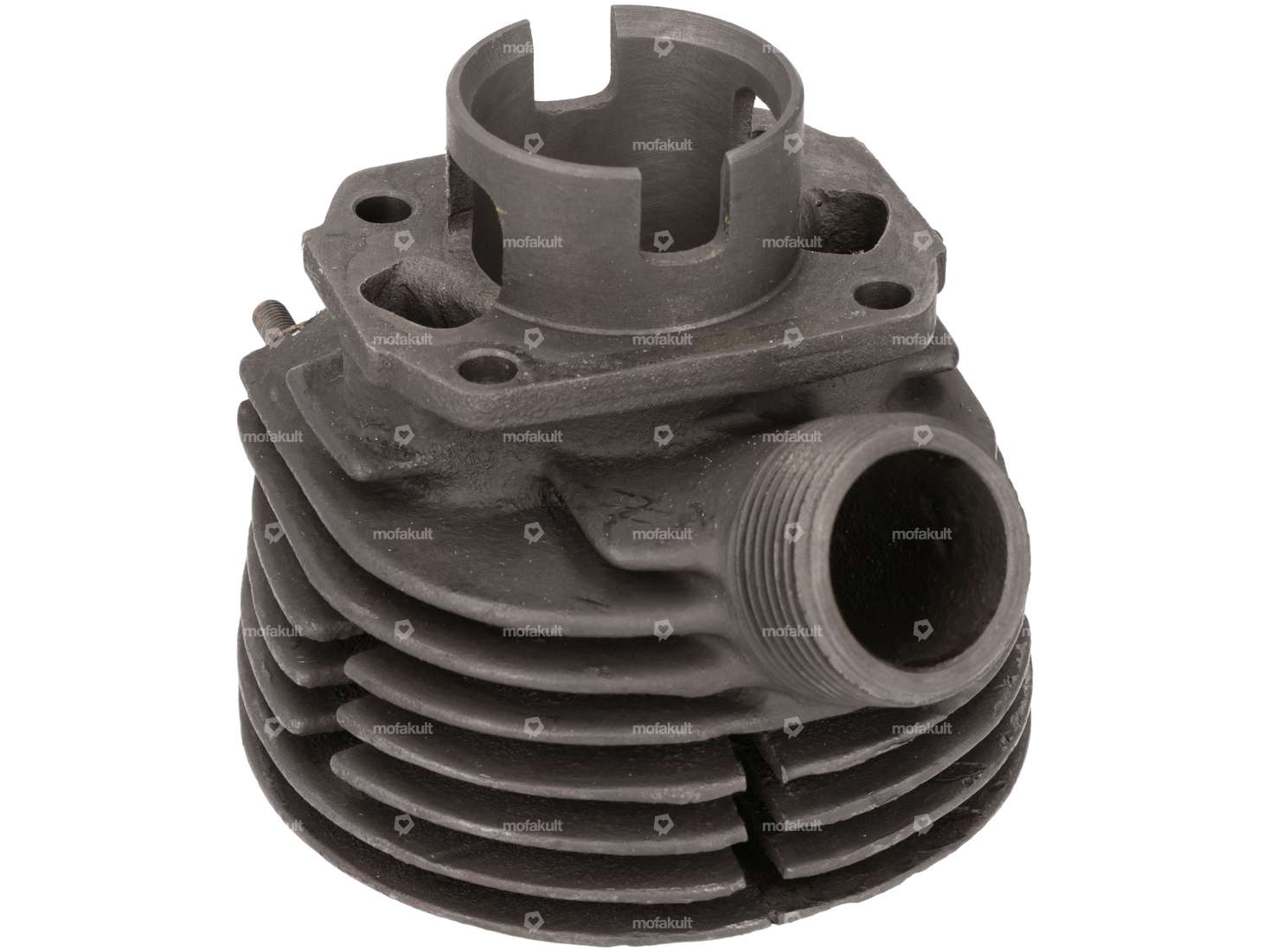

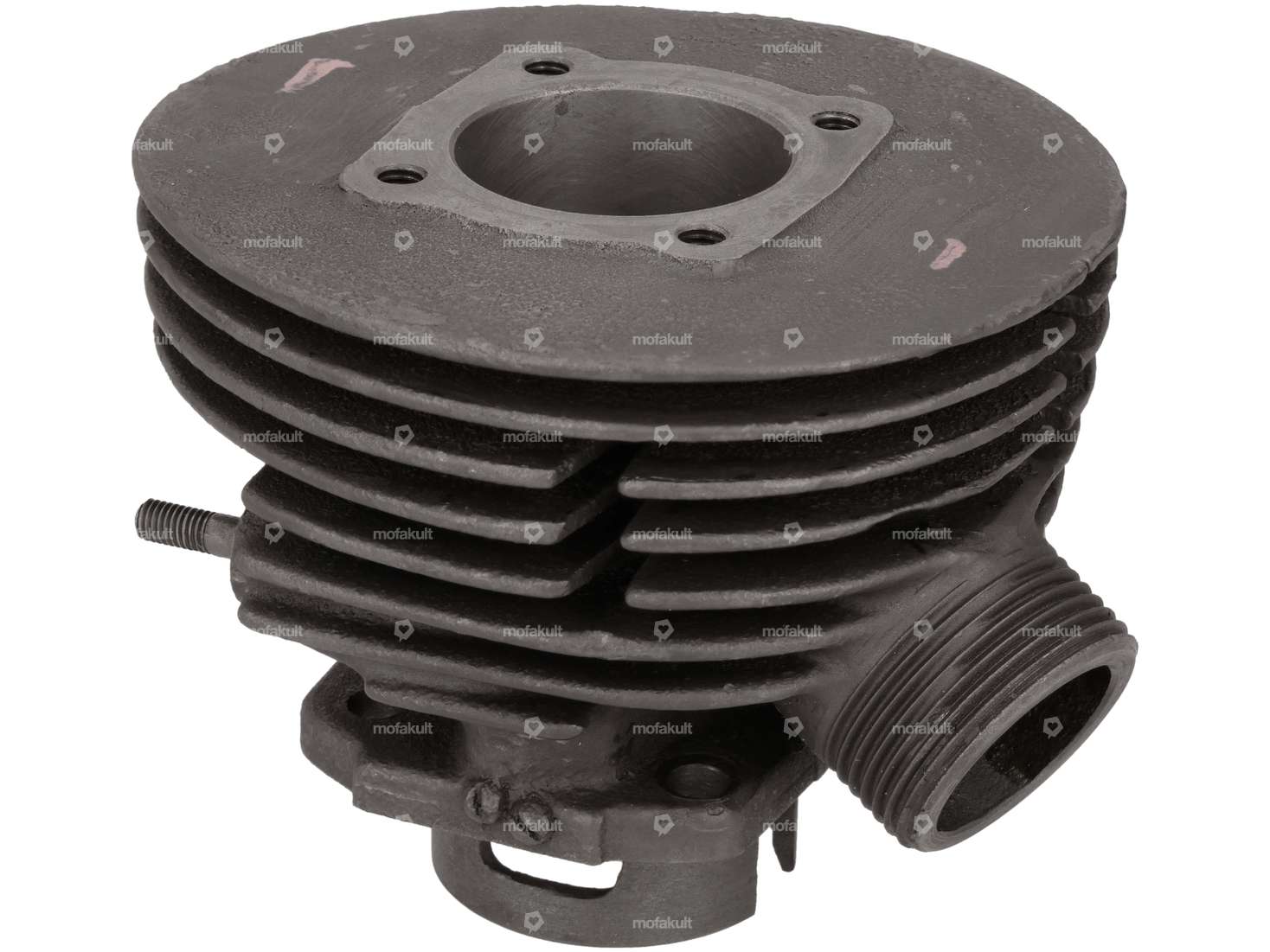

Draft-proof cylinder with diaphragm intake suitable for Sachs 50-AML automatic mopeds (Saxonette).
New from 40-year-old stock. May therefore show slight signs of storage, but these do not impair functionality in any way.
Execution with two warts.
The cooling ribs have a larger outer diameter than the conventional Swiss cylinders.
(Outer diameter of fins: 110 mm)
For 28 mm flame tubes with an M35x2 mounting nut.
In order to be able to mount the cylinder on a Sachs 50/2 CH engine with blower cooling, adaptation work must be carried out.
Original Sachs spare part number: A2781 / 0287 100 015 / 0286 238 100
Details
| Manufacturer | Sachs |
| Material | Gray cast iron |
| Surface | raw |
| Displacement | 50 ccm |
| Crankshaft stroke | 42 mm |
| Nominal diameter | 41 mm |
| Ø cylinder neck | 43.8 mm |
| Ø outlet inside | 26.3 mm |
| Inlet window | 56 x 18 |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Area of application | Original |
| Outlet type | Union nut |
| Thread outlet | M35x2 (standard thread) |
| Hole pattern [mm] | 51 x 40 mm / 37 x 37 mm |
| Decompressor | No |
| Hole spacing inlet | 67 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/3 50/4 - MLFB (2.6 PS) |
