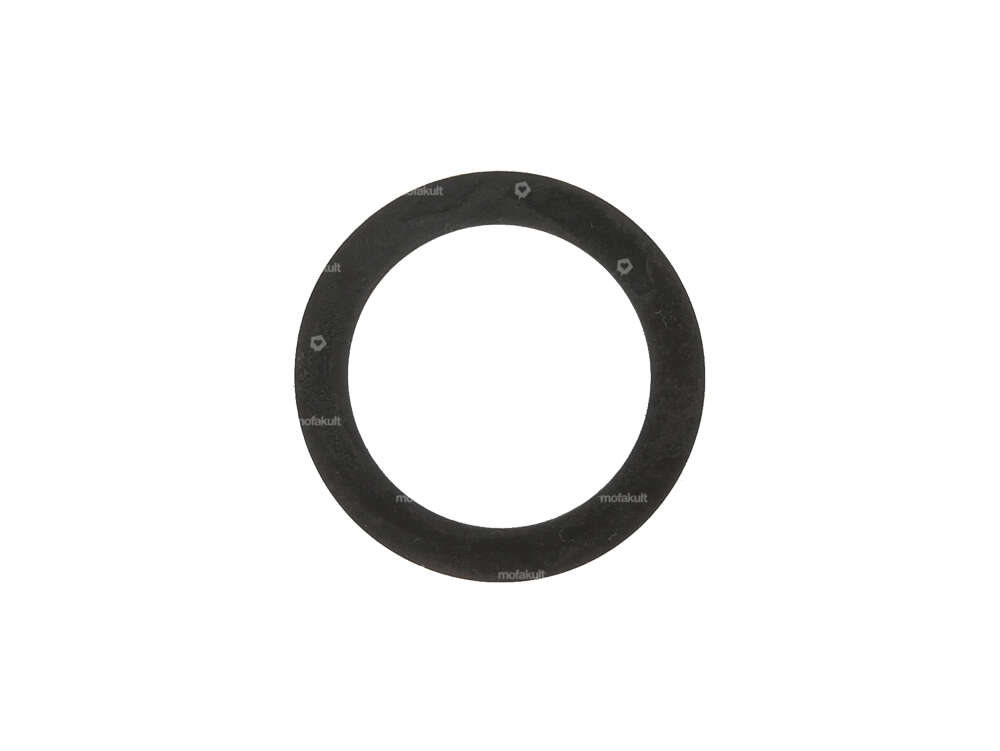

Spacer washer 19.1x26x0.3 mm for the countershaft on Sachs mopeds / mopeds with 503 ABL and AB engines.
The shim is made of hardened spring steel.
Ø inner: 19.1 mm
Ø outer: 26 mm
Thickness: 0.3 mm
Tolerance: DIN988 (permissible for thickness -0.03 mm)
This component is also called a shim washer, bearing washer or thrust washer, depending on the language used.
Original Sachs spare part number: A5617
The set includes the following fixed parts:
Details
| Nominal diameter | 19 mm |
| Tolerance | DIN 988 (-0.03 mm) |
| Manufacturer | Sachs |
| Ø outside | 26 mm |
| Material | Spring steel |
| Surface | Hardened |
| Thickness | 0.3 mm |
| Ø inside | 19.1 mm |
| Pony spare part no. | A5617 |
| Sachs spare part no. | 0244 171 003 |
Suitable for the following models
| Sachs | 503 - ABL, AB |
