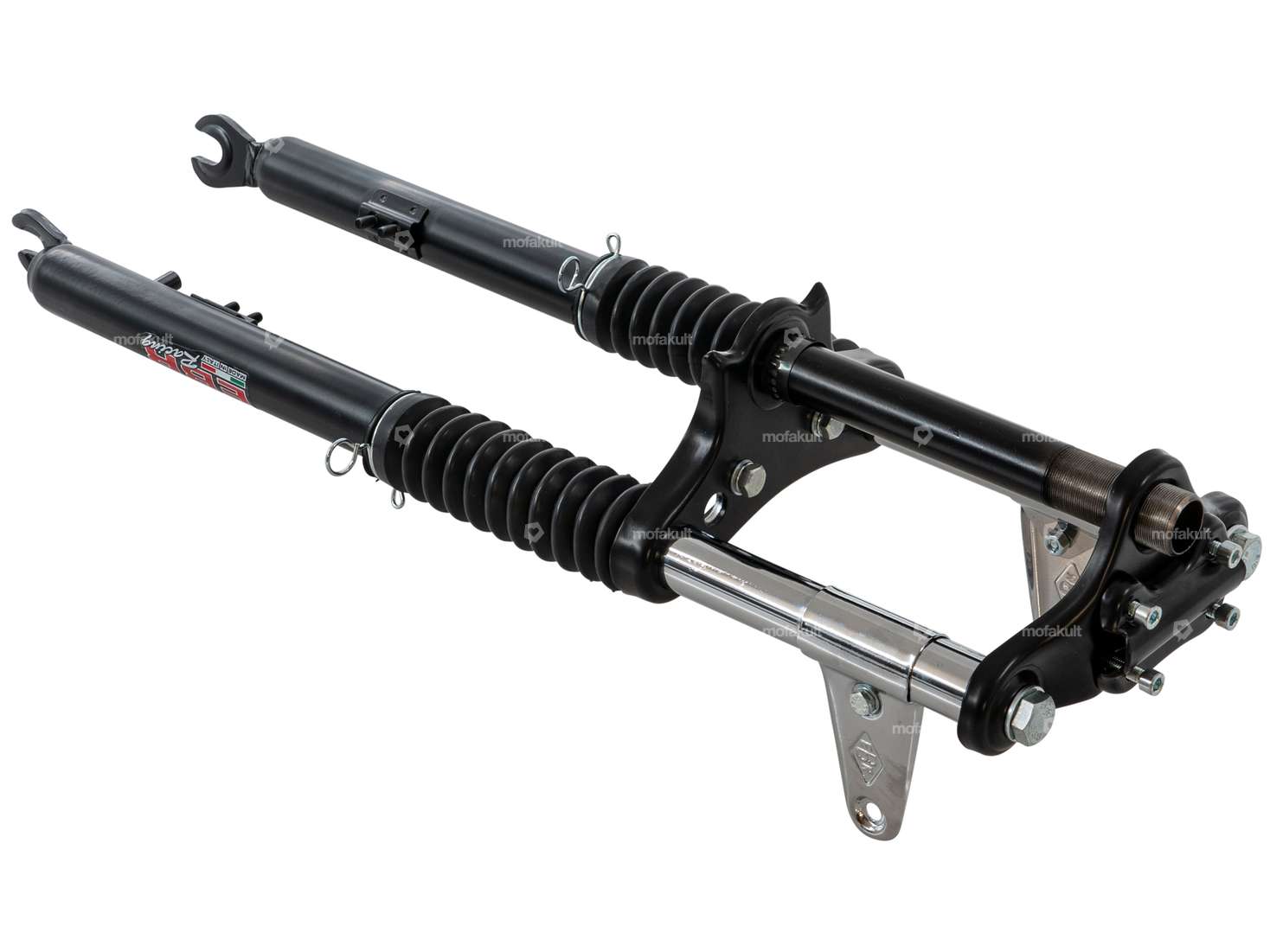

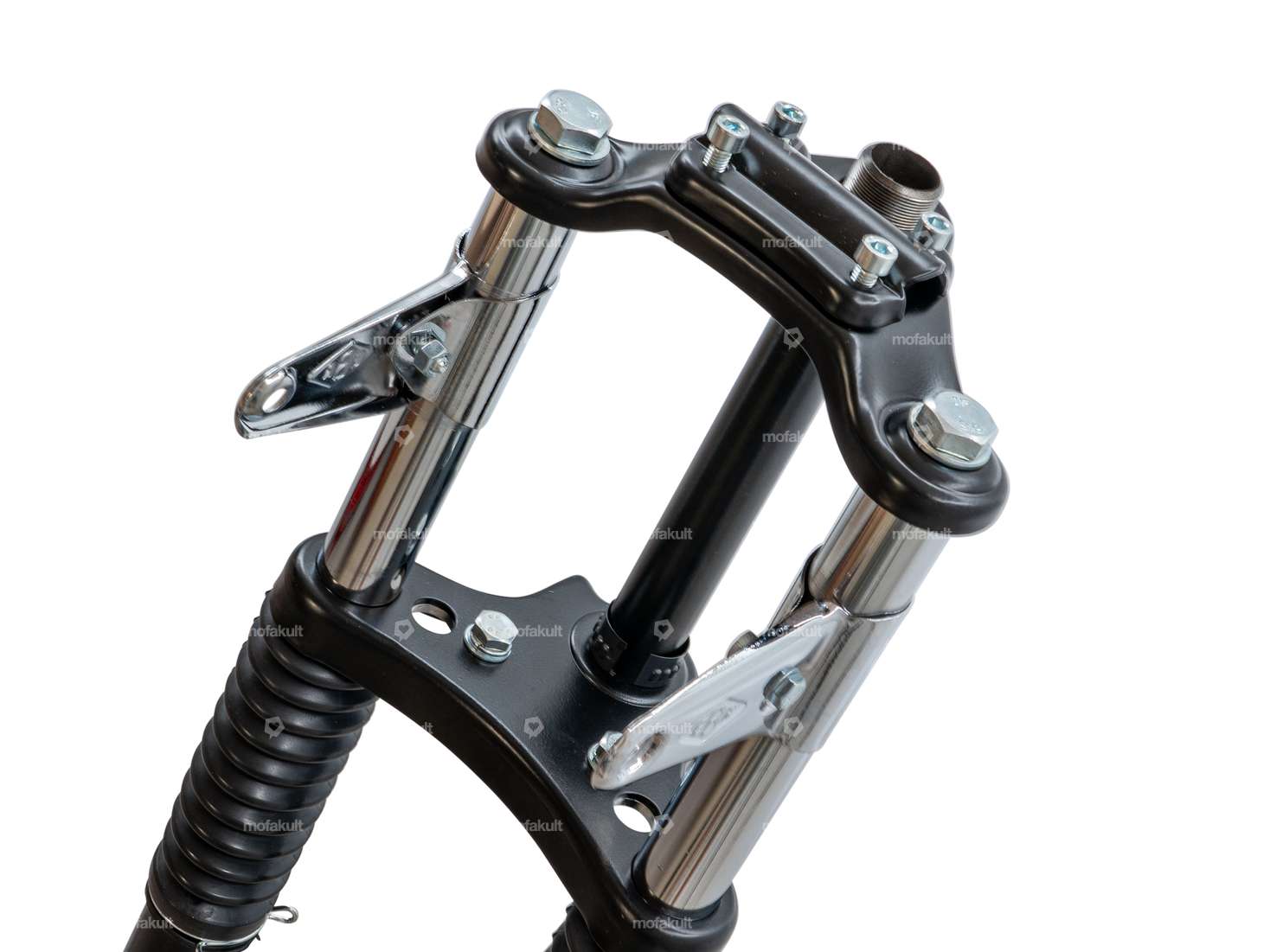

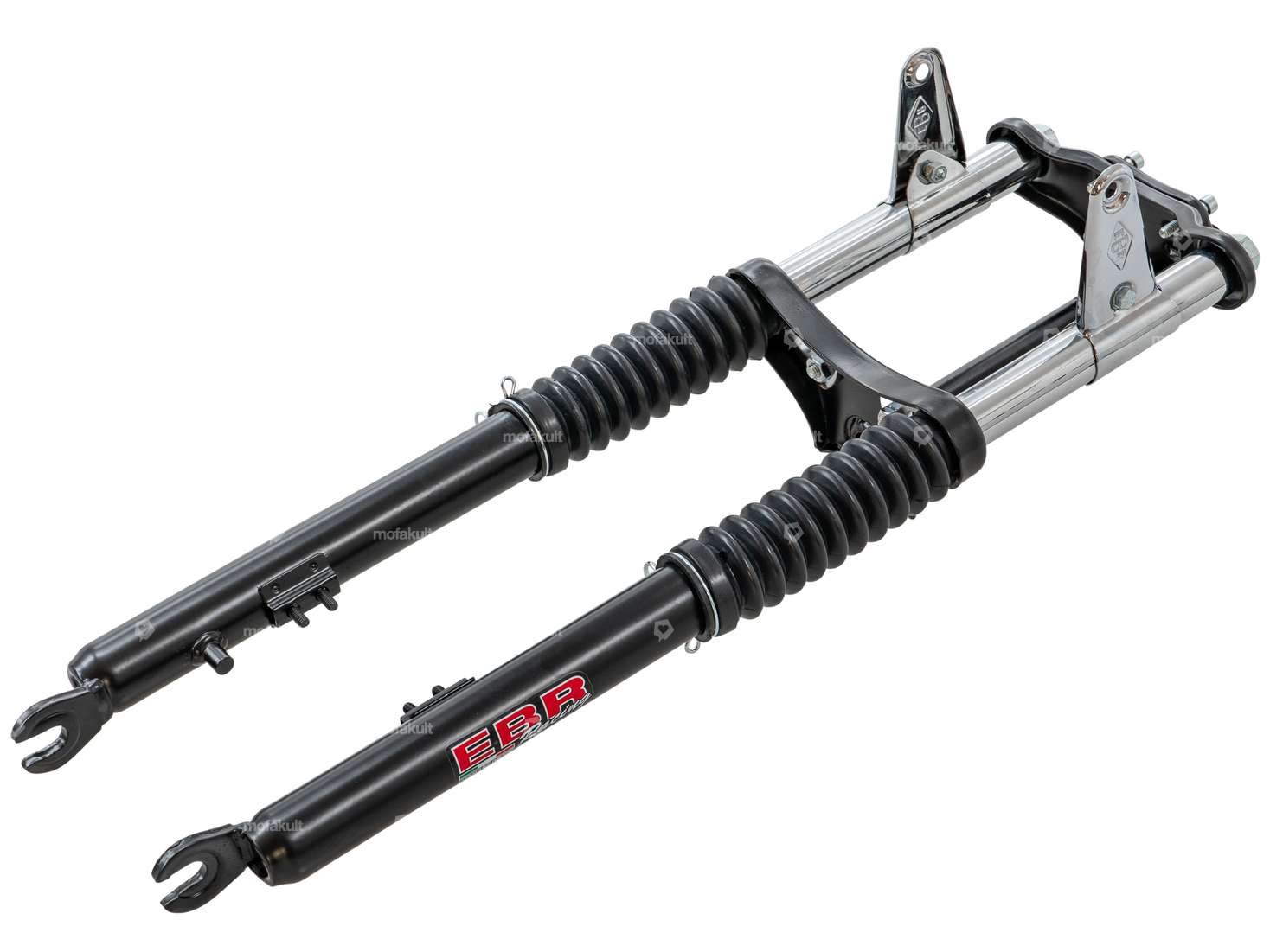

Black telescopic fork suitable for your Hercules Prima M, 2, 3, 4, 5 and Optima moped / moped with clamp for attaching the handlebars to the fork plate.
The bolt for fastening the brake anchor plate is located on the right-hand side, 8 cm above the center of the wheel axle. The bolt has a length of 1.5 cm.

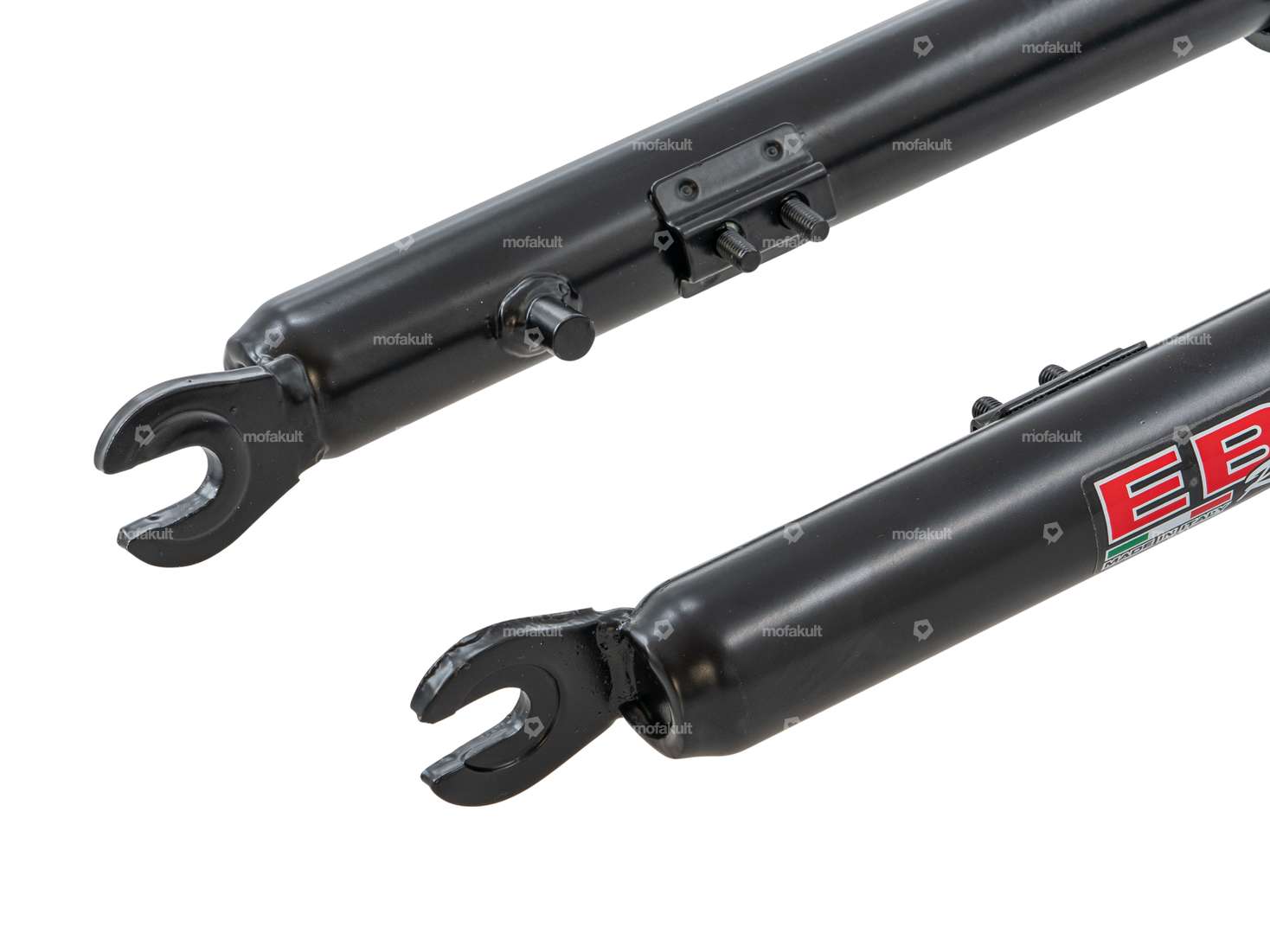

There are two fixed M6 threaded bolts per fork leg to attach the mudguard.
Details
| Manufacturer | EWC |
| Material | Steel |
| Color | black, Chrome |
| Adjustable | No |
| Thread type | MF26x1 (fine pitch thread) |
| Spar end distance (center-center) | 140 mm |
| Surface | chrome-plated, varnished |
| Ø outer head tube | 26 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 205 mm |
| Total length | 645 mm |
| Fork bridge - center wheel axle | 405 mm |
| Distance brake cam to wheel axle center-center | 80 mm |
| Thread length | 58 mm |
Suitable for the following models
| Hercules | Great - 2, 3, 4, 5, Optima |
Accessories & related products
GPO steerer tube nut M26x1 closed fork plate chrome
Manufacturer: GPO · Area of application: Standard · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Thread type: MF26x1 (fine pitch thread) · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Drive: External hexagon · Height: 13.8 mm · Thread depth: 12 mm · Width across flats SW: 30 mm
11,50 EUR
GPO steerer tube nut M26x1 open stem chrome
Manufacturer: GPO · Material: Steel · Nut type: Flange nut · Ø inside: 22.1 mm · Thread type: MF26x1 (fine pitch thread) · Ø outside: 36.5 mm · Drive: External hexagon · Surface: chrome-plated · Thread depth: 11.5 mm · Width across flats SW: 30 mm · Height: 14 mm
14,90 EUR
EBR fork reinforced chrome | Hercules
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Spar end distance (center-center): 145 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.4 mm · Ø spars: 28 mm · Head tube length: 195 mm · Total length: 635 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 80 mm · Thread length: 58 mm
277,30 EUR
EBR fork chrome | Hercules Prima, Optima
Manufacturer: EWC · Material: Steel · Color: Chrome · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Spar end distance (center-center): 140 mm · Surface: chrome-plated · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Head tube length: 205 mm · Total length: 645 mm · Fork bridge - center wheel axle: 405 mm · Distance brake cam to wheel axle center-center: 80 mm · Thread length: 58 mm
231,00 EUR
