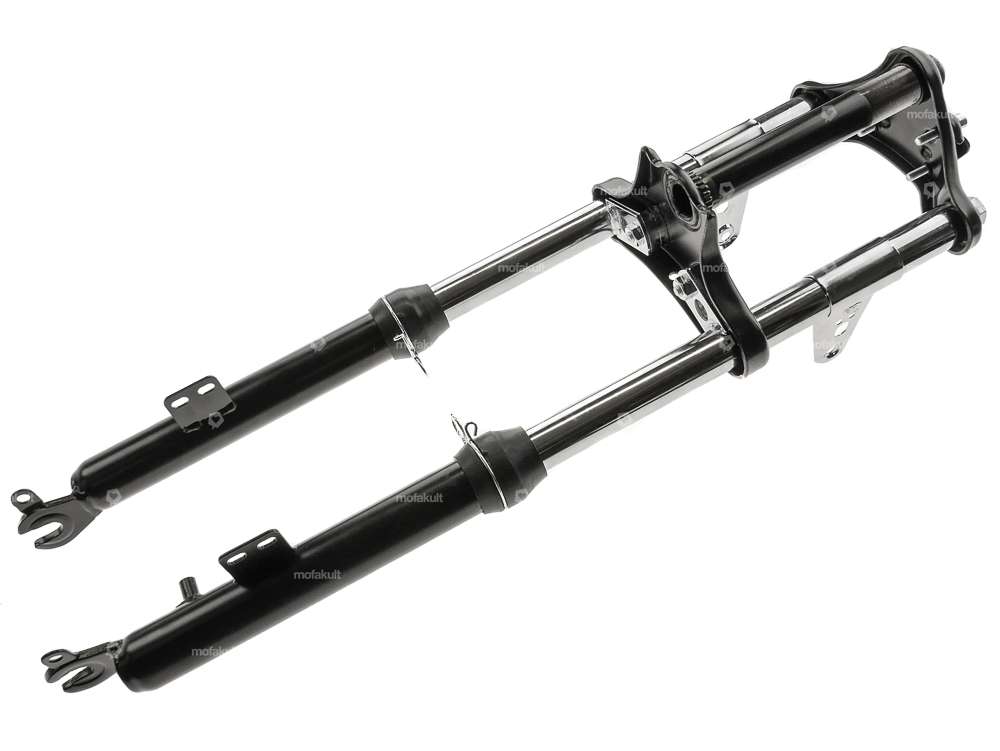

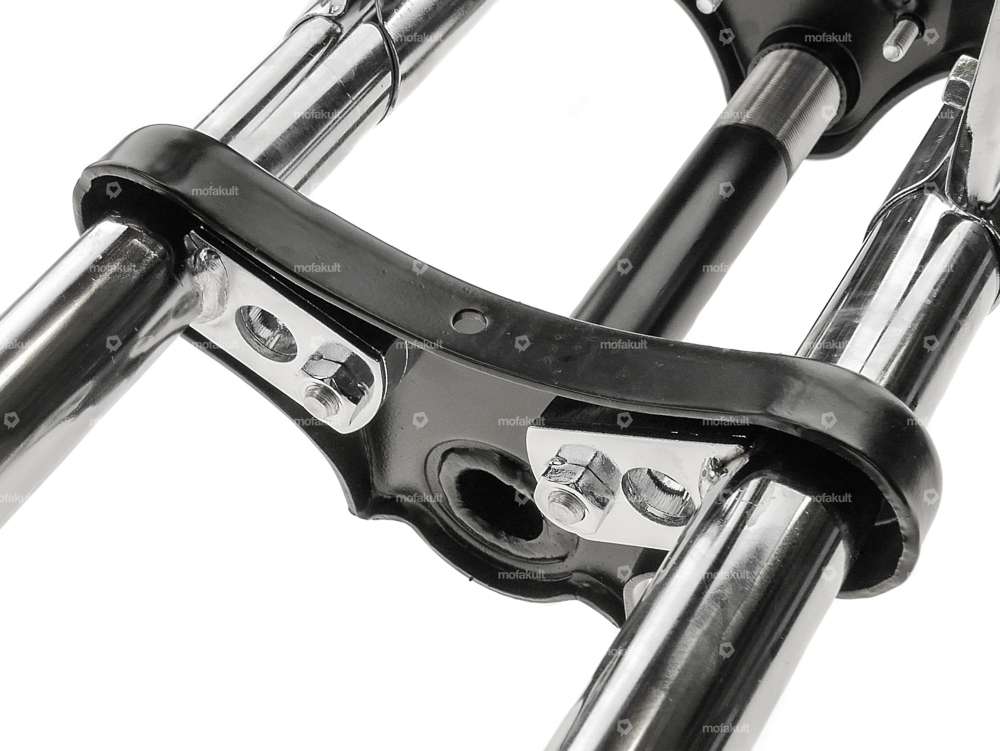

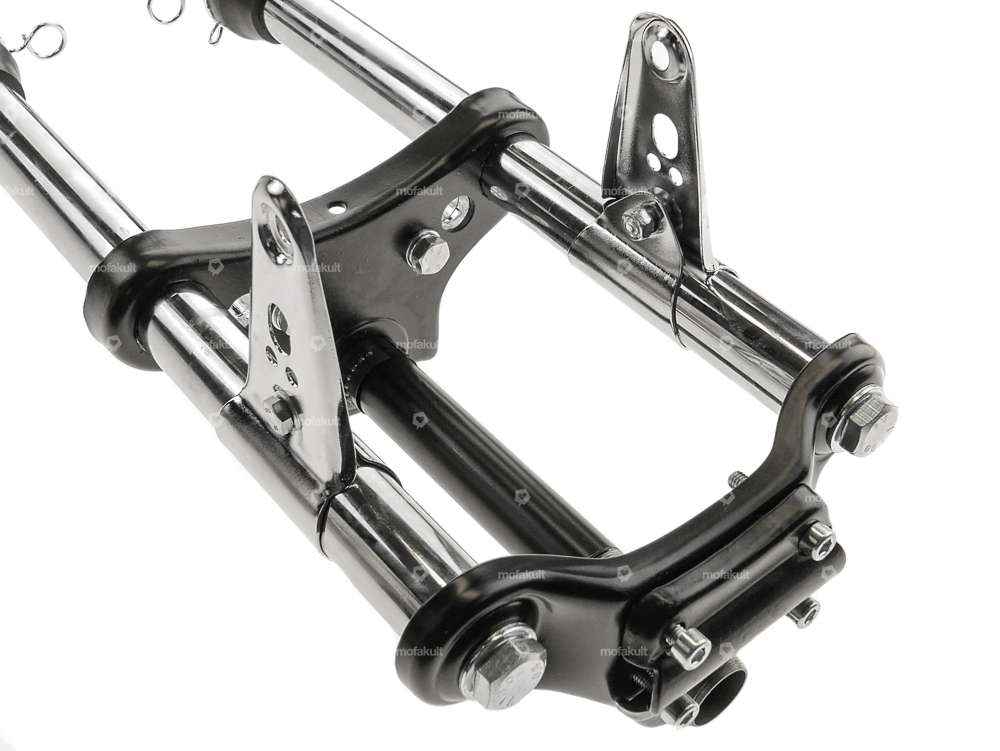

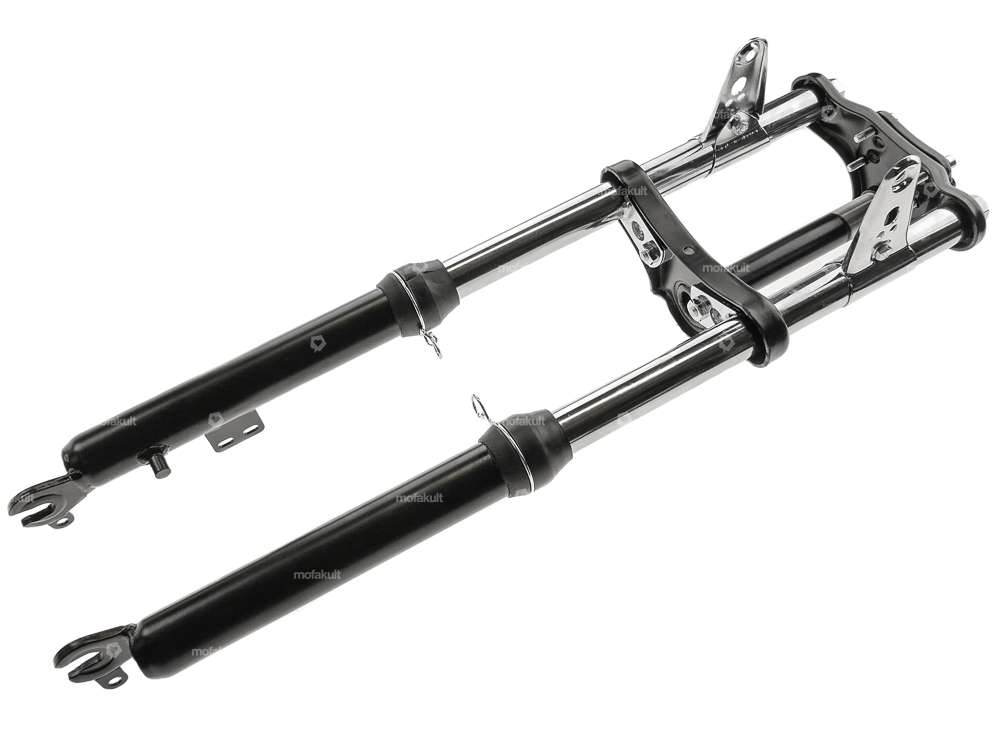

Fork specially made for Zündapp Belmondo mopeds!
The black painted fork fits perfectly and no further adjustments are necessary.

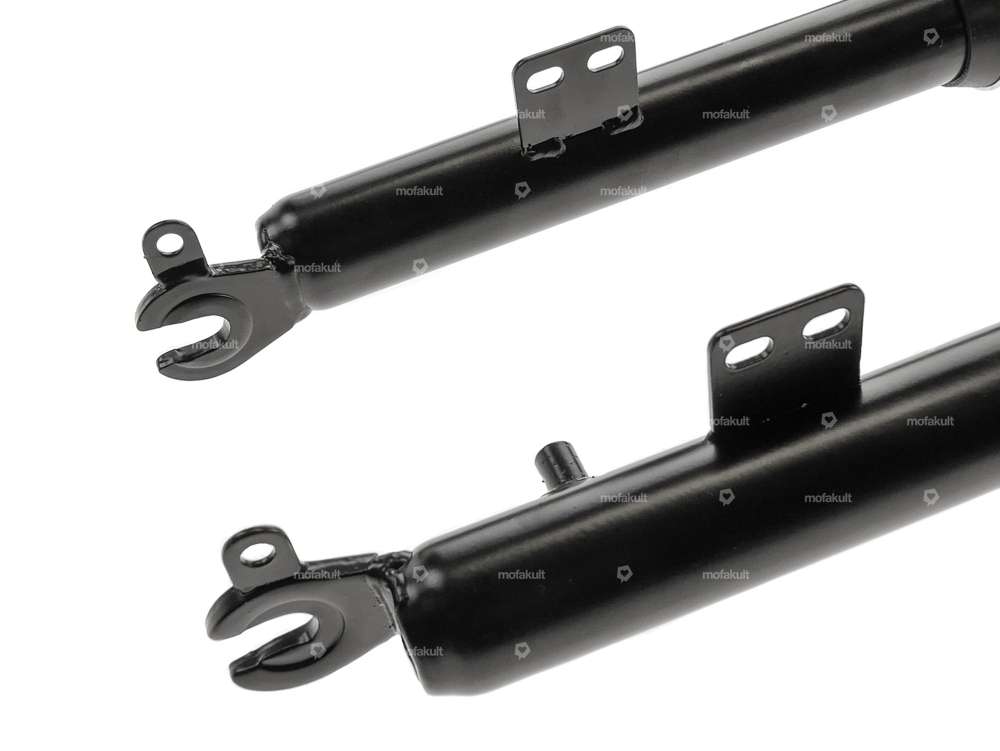

The two tabs for attaching the upper and lower struts are perfectly modeled on the original.
You will find the matching headset set and other add-on parts in the accessories section below.
The snap ring is supplied as shown.
Total fork length: 64 cm
Head tube length: 18.5 cm
Head tube thread: M26x1
Head tube inner diameter (for stem mounting): 22 mm
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Color | black, Chrome |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Adjustable | No |
| Spar end distance (center-center) | 139 mm |
| Ø outer head tube | 26.1 mm |
| Total length | 630 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.2 mm |
| Head tube length | 185 mm |
| Fork bridge - center wheel axle | 415 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Distance brake cam to wheel axle center-center | 72 mm |
| Thread length | 58 mm |
Suitable for the following models
| Zündapp Belmondo |
Accessories & related products

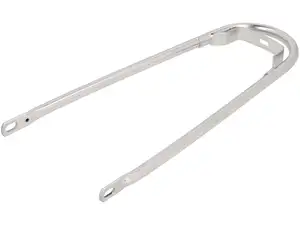

Lower front fender strut Inox | Zündapp Belmondo
