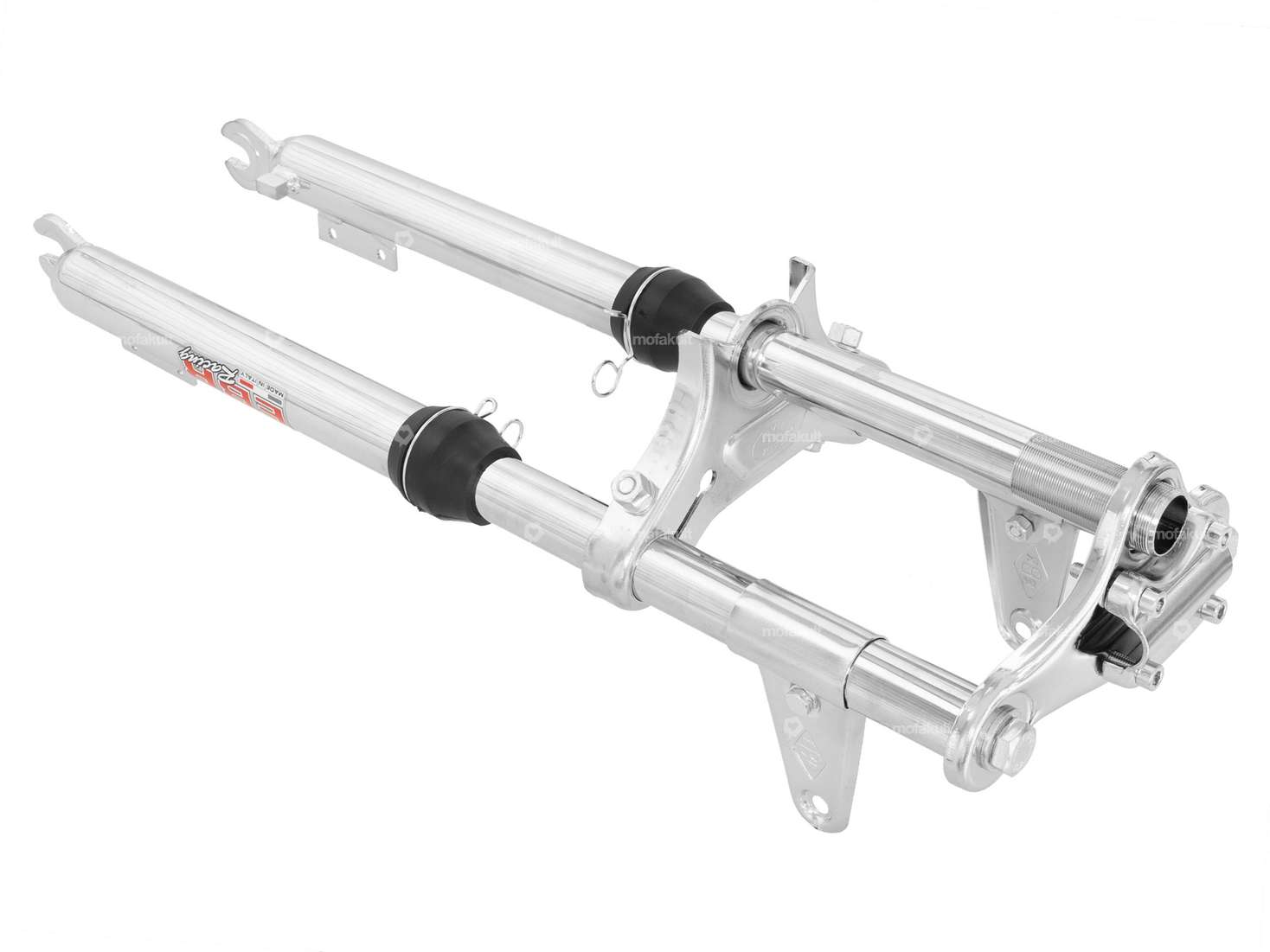

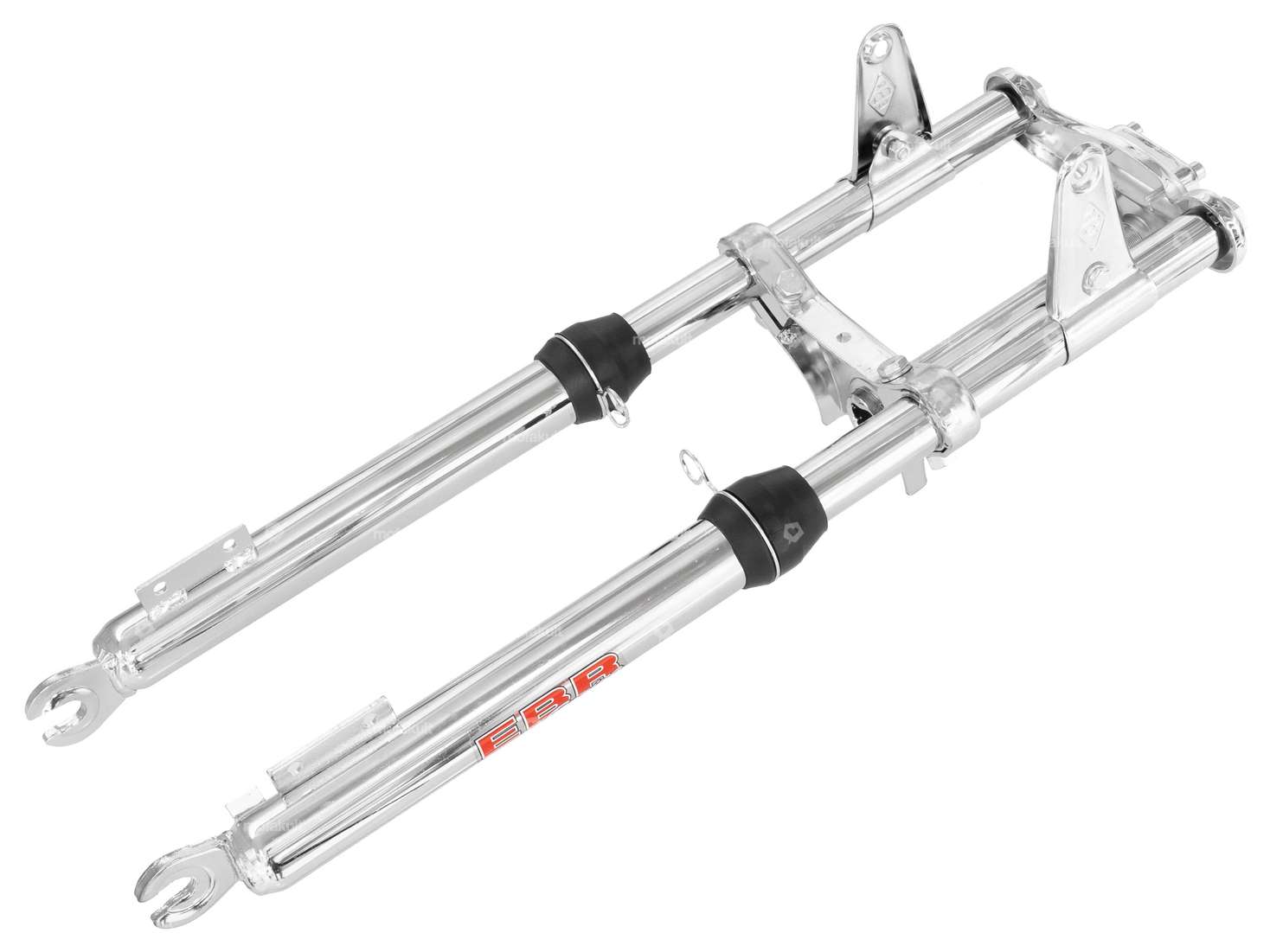

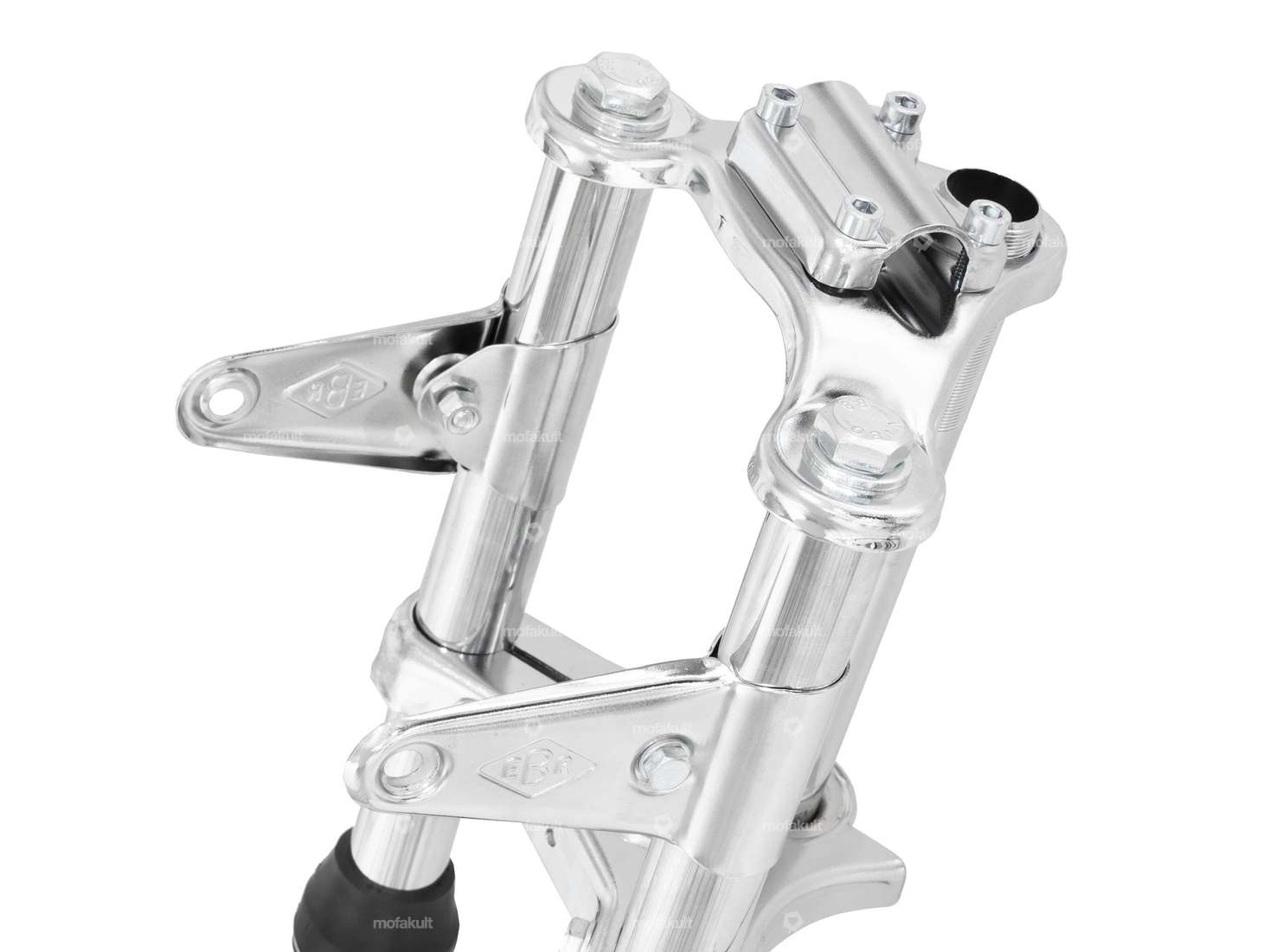

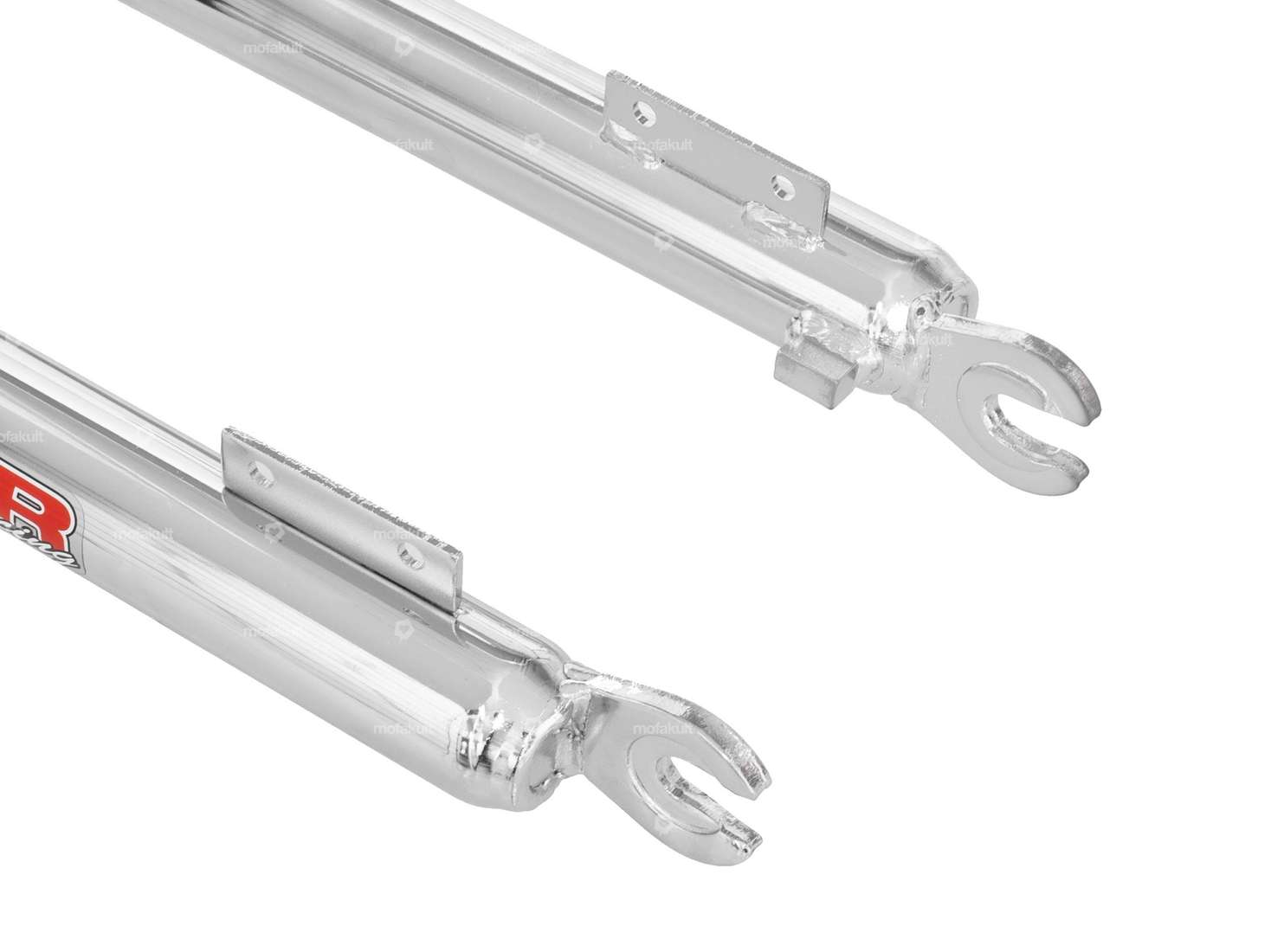

Chromed EBR fork with reinforced bars for your Puch moped / moped.
With clamp for attaching the handlebars to the fork plate.
Ø inner head tube (for stem mounting): 22 mm
Head tube thread: M26 x 1 mm
Head tube length: 180 mm
Total length: 580 mm
Mudguards, stays and matching headset bearings can be found in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
| Total length | 580 mm |
| Manufacturer | EWC |
| Thread length | 57 mm |
| Material | Steel |
| Surface | chrome-plated |
| Adjustable | No |
| Color | Chrome |
| Ø spars | 28 mm |
| Spar end distance (center-center) | 140 mm |
| Ø outer head tube | 26 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 180 mm |
| Fork bridge - center wheel axle | 381 mm |
| Distance brake cam to wheel axle center-center | 40 mm |
| Thread type | MF26x1 (fine pitch thread) |
Suitable for the following models
| Puch |
