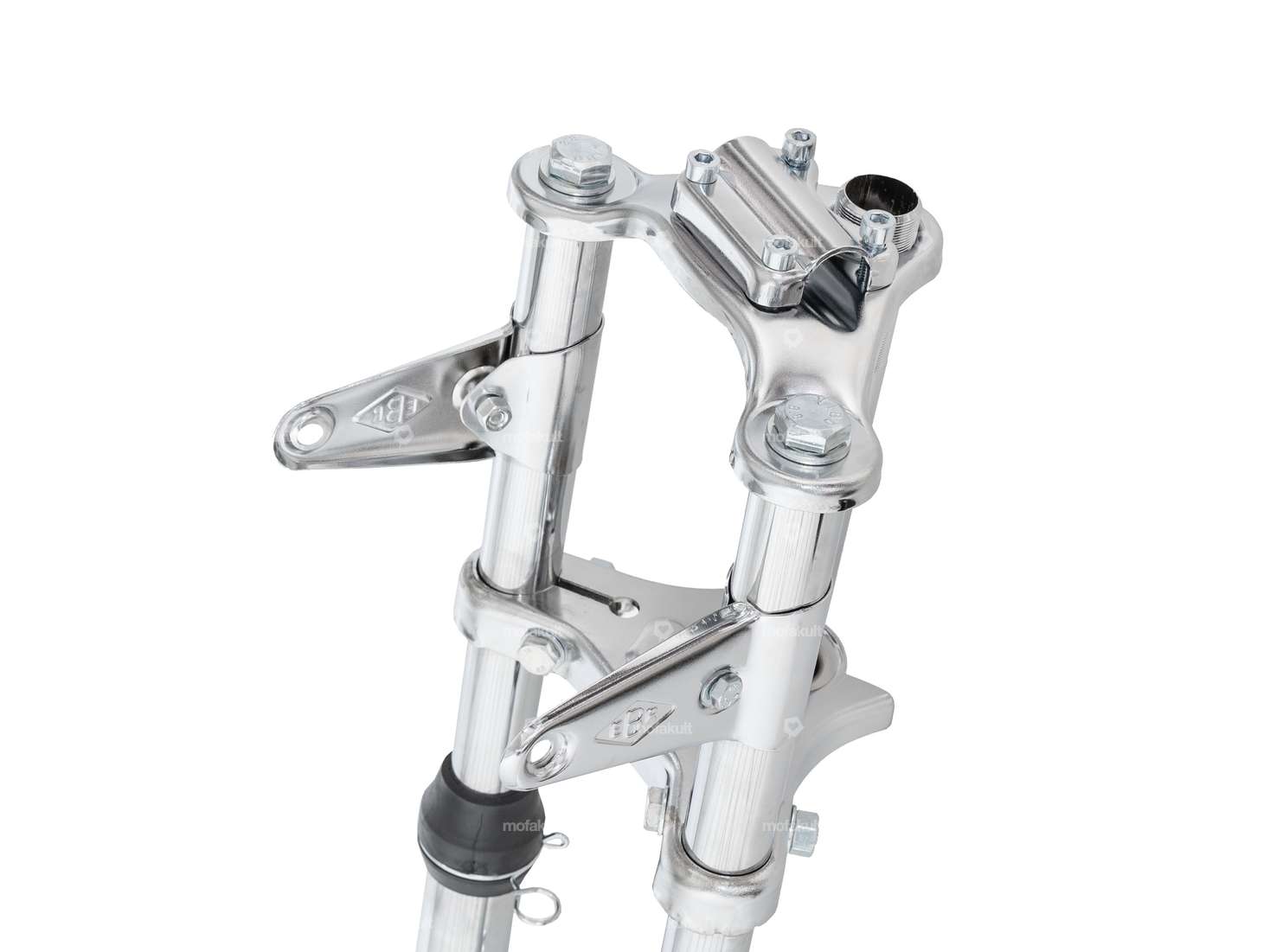

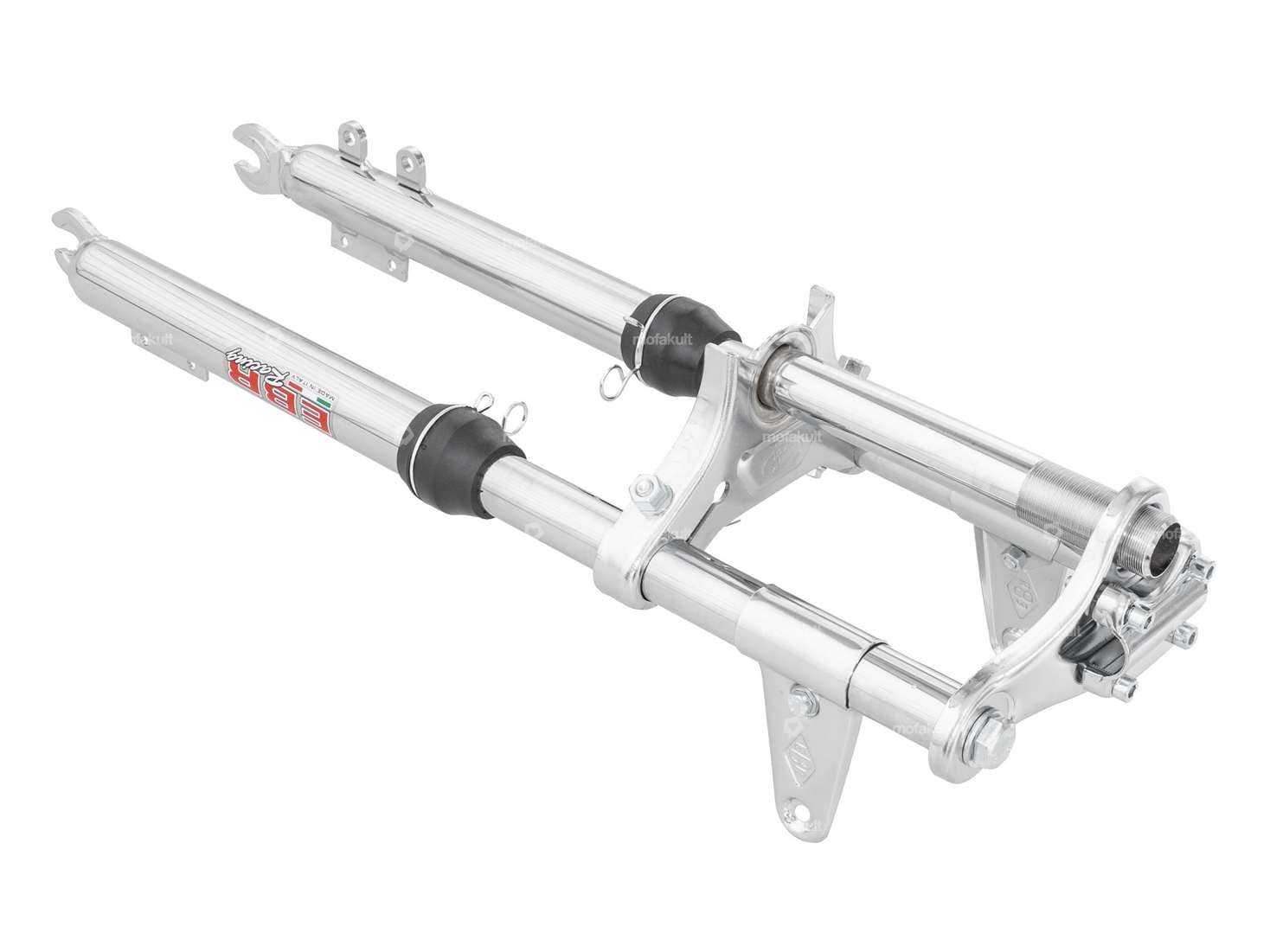

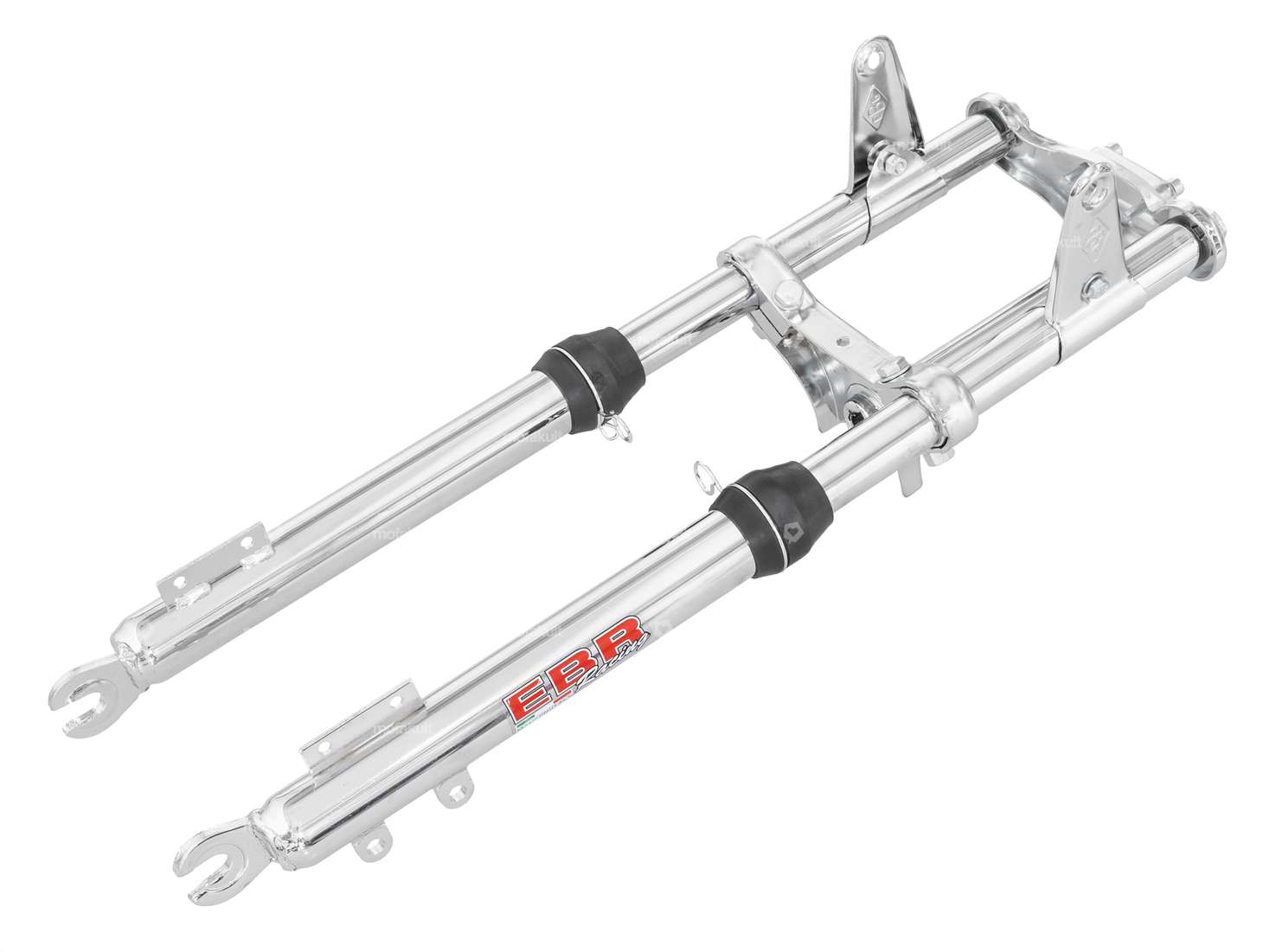

Chromed EBR fork with reinforced bars for various Puch mopeds / mopeds.
With clamp for attaching the handlebars to the fork plate.
Ø inner head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 58 cm
Length center of wheel axle to upper edge of lower fork crown: 40 cm

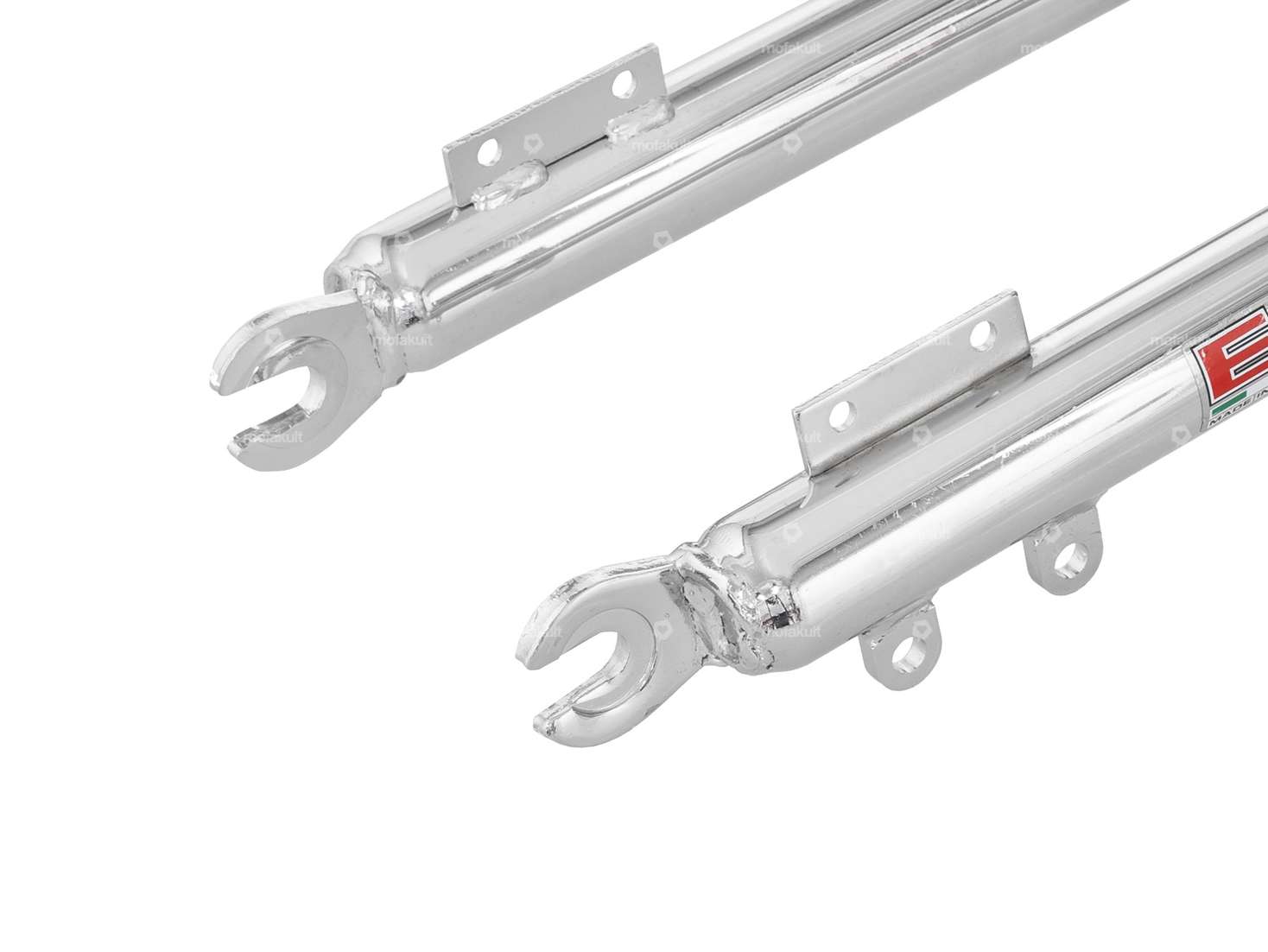

This suspension fork has two lugs for attaching the brake caliper of a disc brake system and is not designed for use with a drum brake (stop pin not available).
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Color | Chrome |
| Surface | chrome-plated |
| Ø head tube inside | 22 mm |
| Total length | 580 mm |
| Head tube length | 180 mm |
Suitable for the following models
| Puch |
