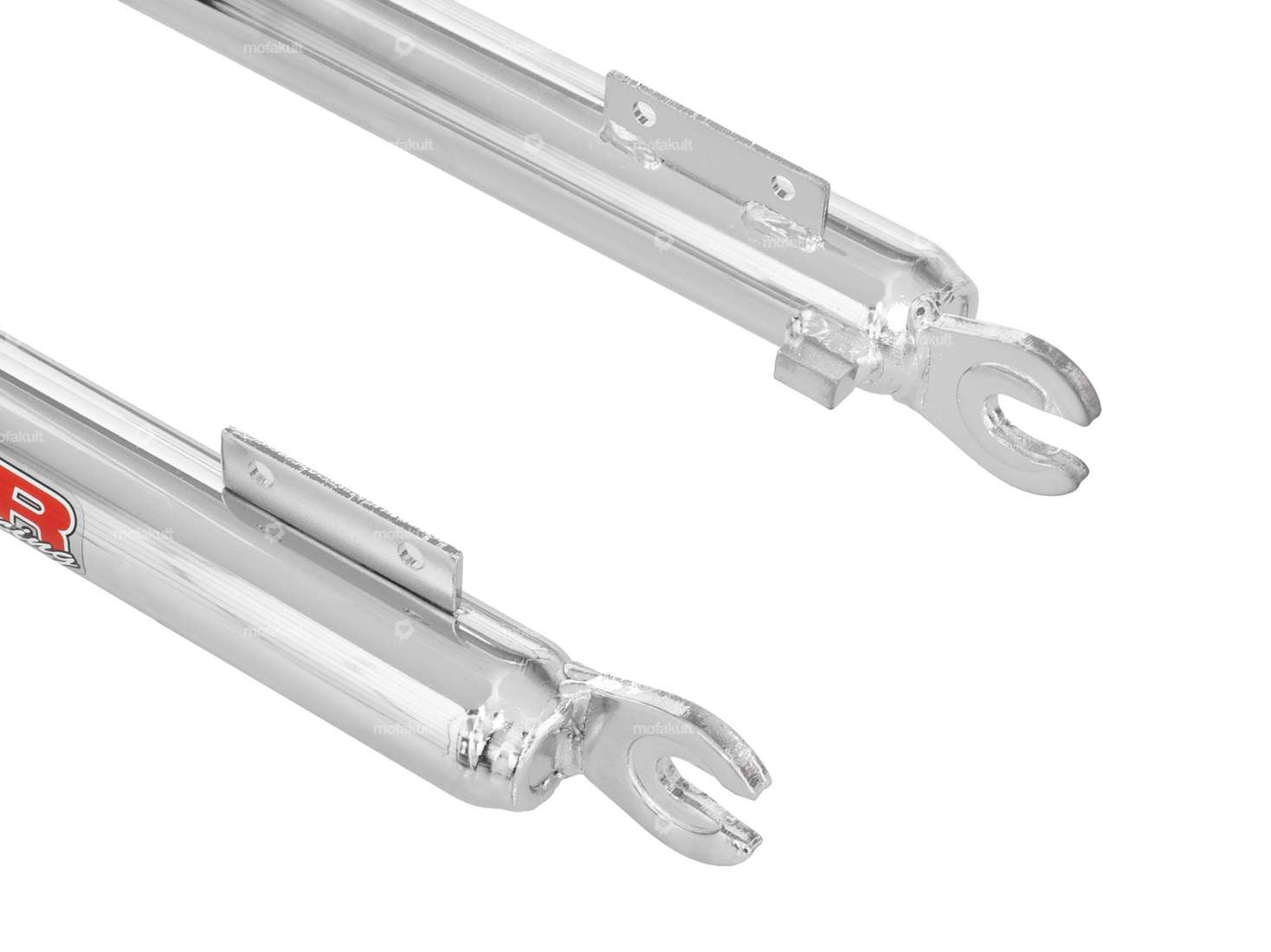

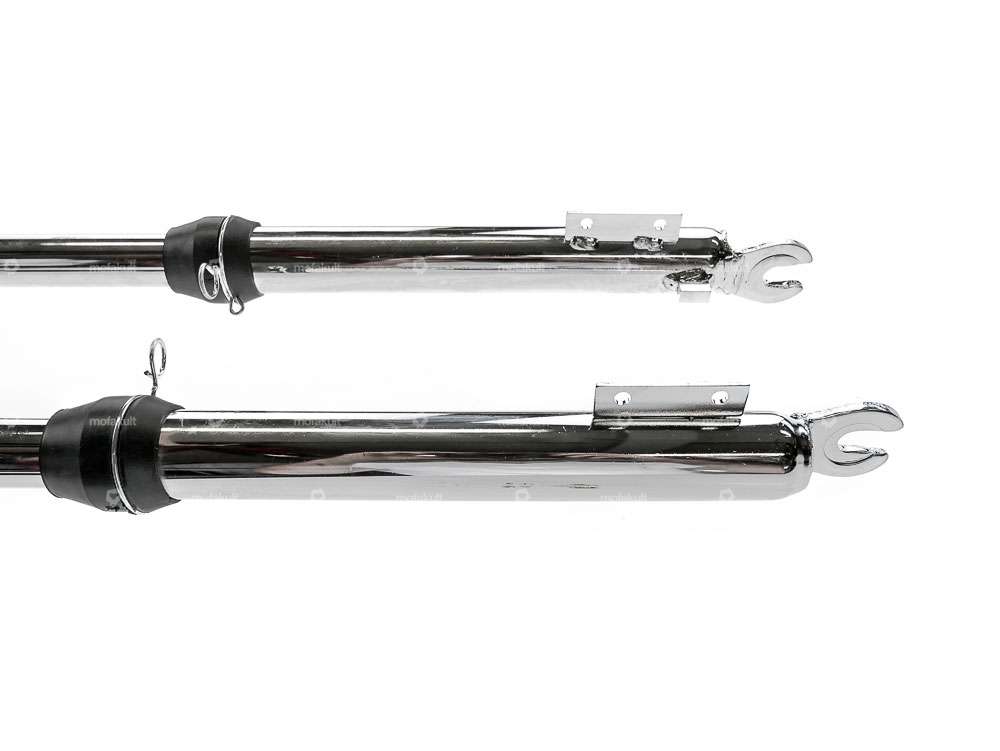

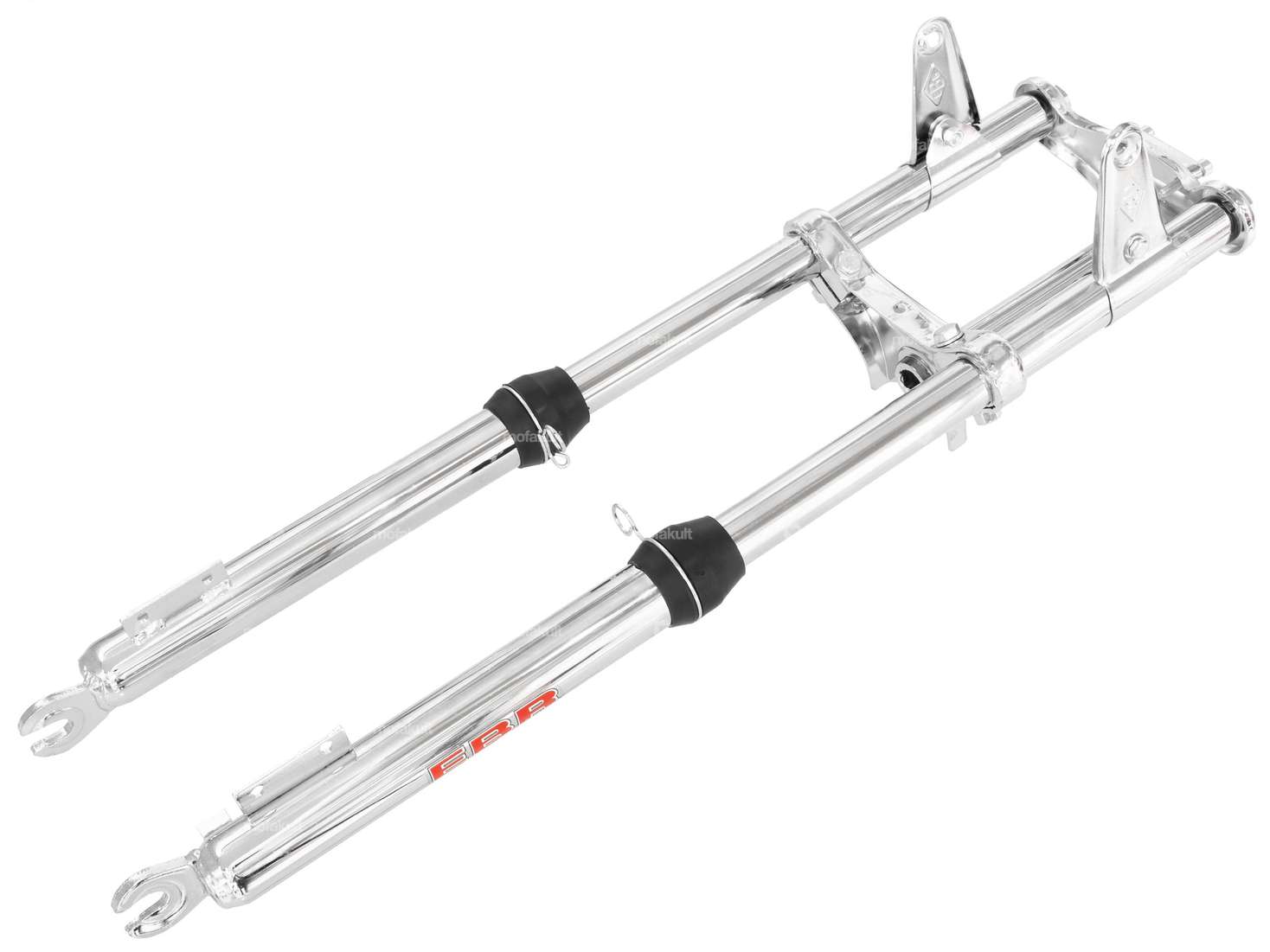

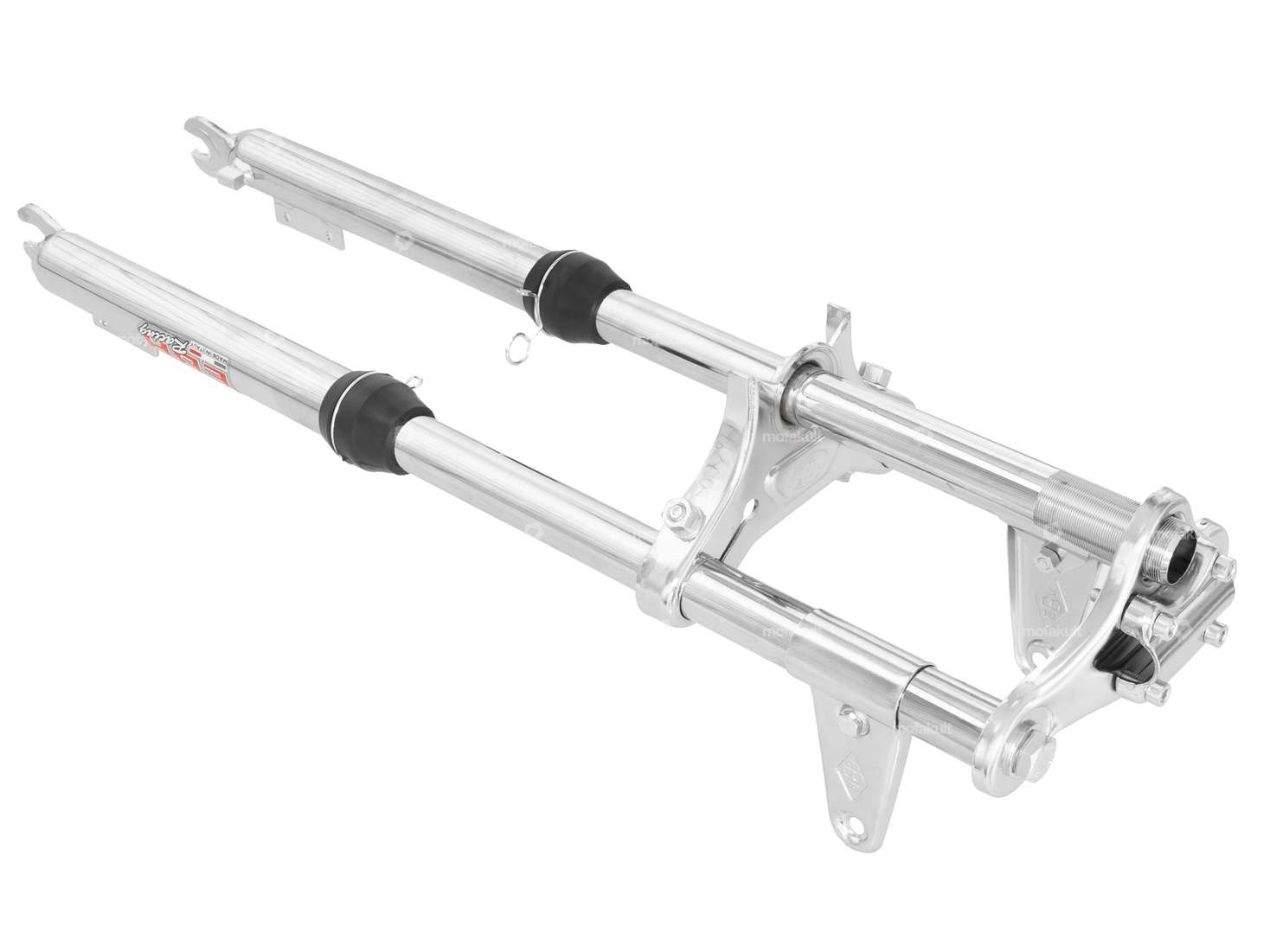

Chrome-plated EBR fork, reinforced and 10 cm longer bars.
For various Puch mopeds.

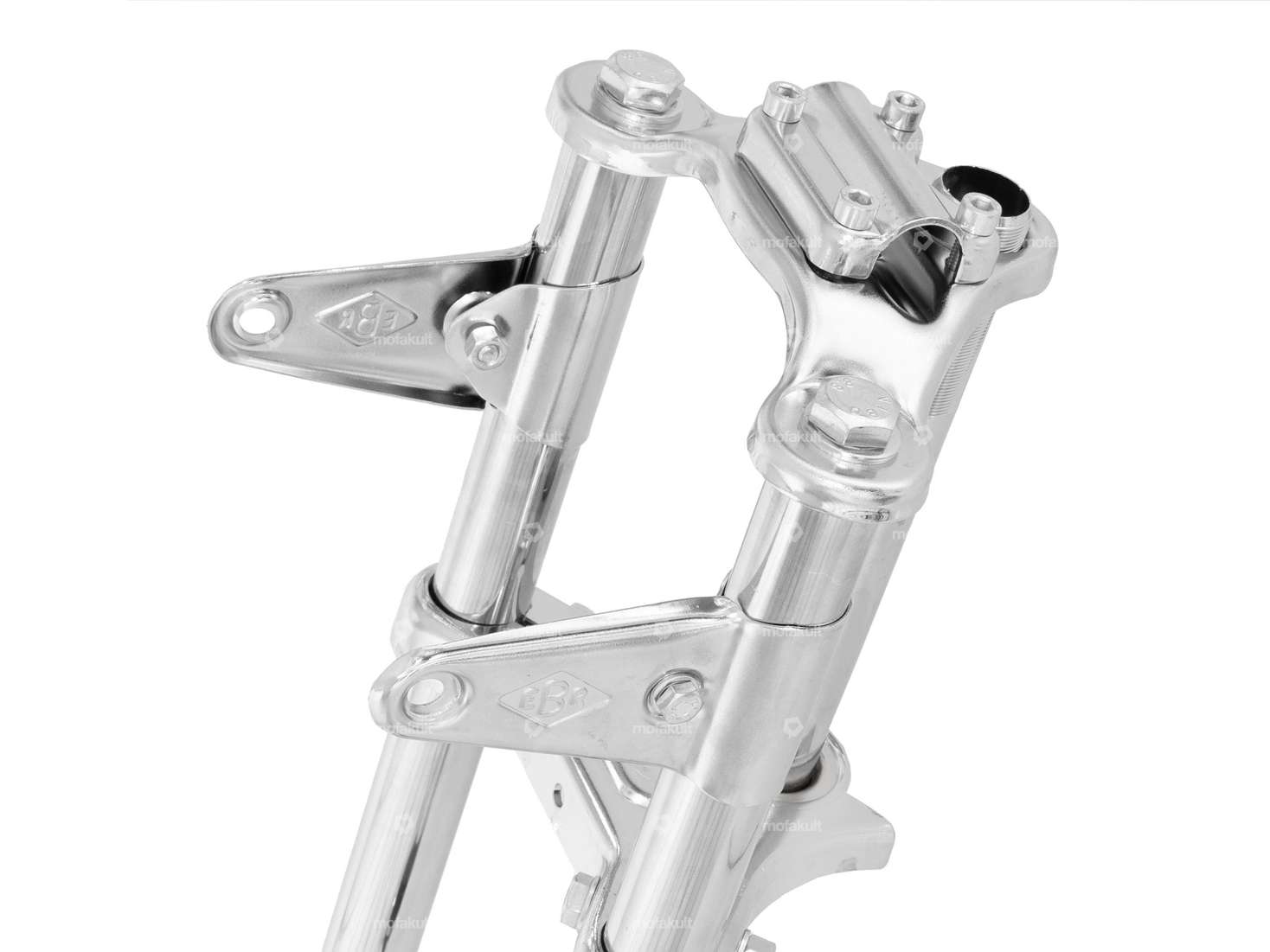

With clamp for attaching the handlebars to the fork plate.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 67 cm
Branded product from the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Steel |
Surface | chrome-plated |
Color | Chrome |
Total length | 670 mm |
Adjustable | No |
Ø spars | 28 mm |
Thread type | MF26x1 (fine pitch thread) |
Spar end distance (center-center) | 140 mm |
Ø outer head tube | 26 mm |
Ø head tube inside | 22 mm |
Head tube length | 180 mm |
Fork bridge - center wheel axle | 381 mm |
Distance brake cam to wheel axle center-center | 40 mm |
Thread length | 57 mm |
