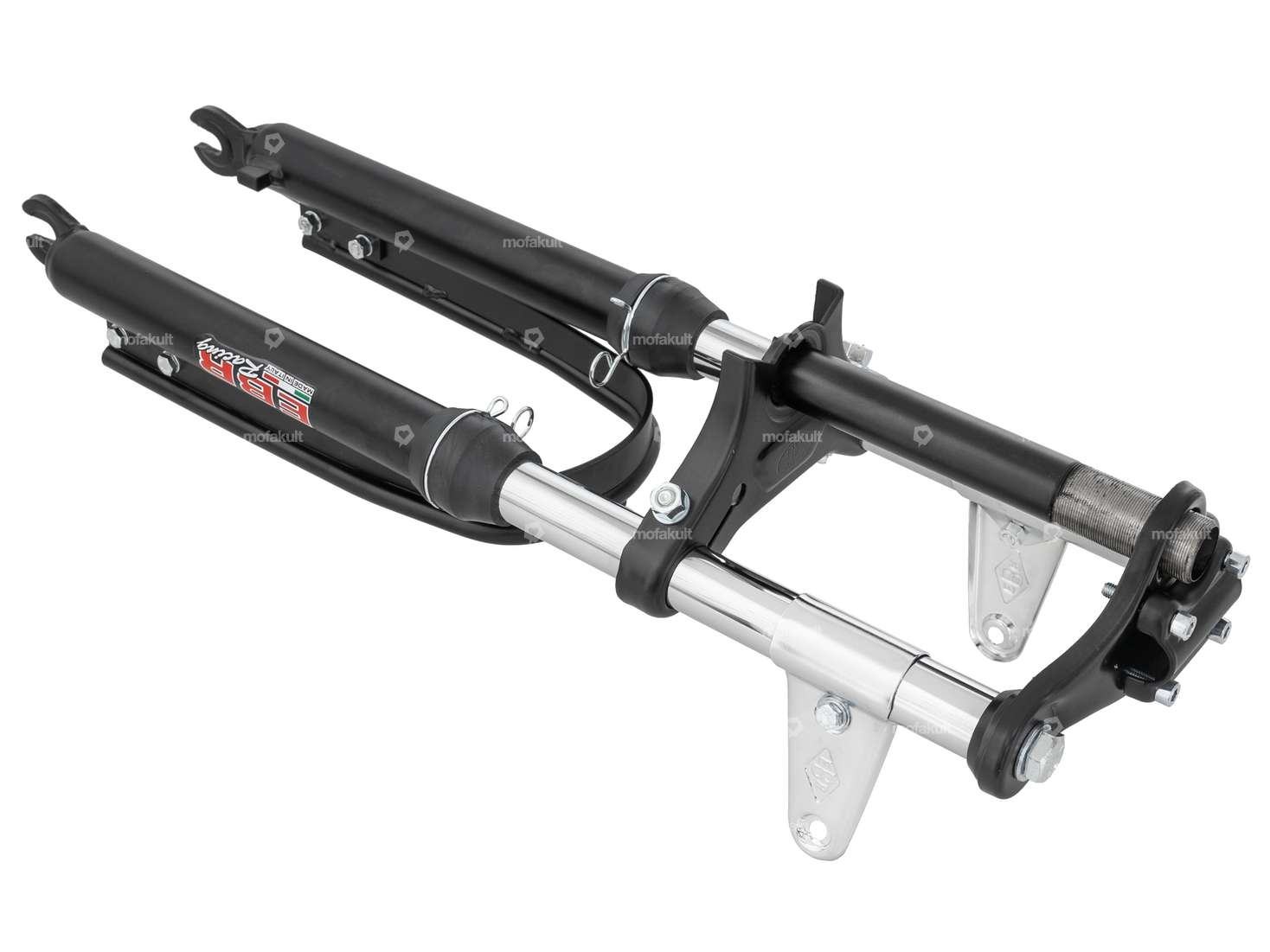

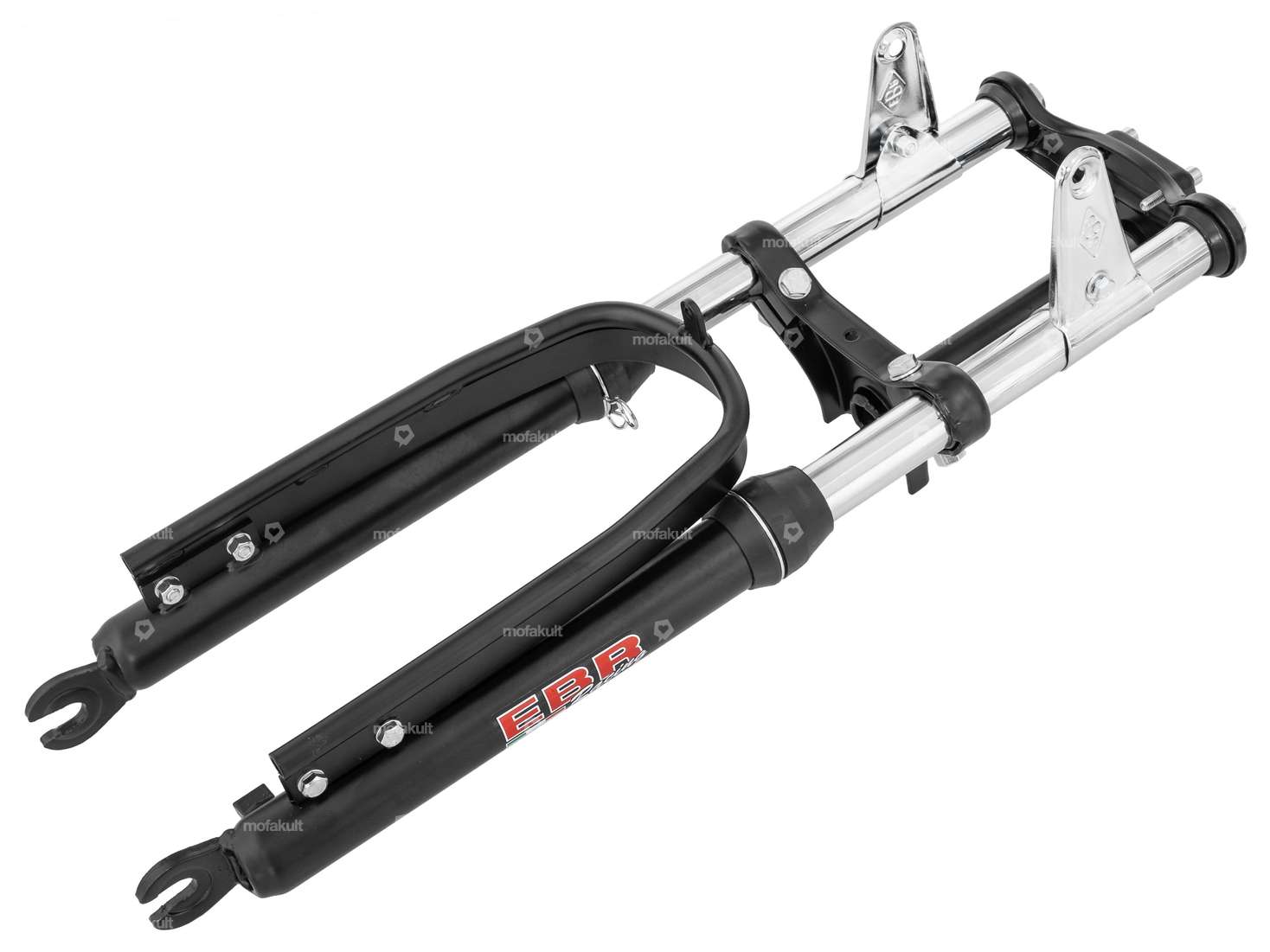

Black EBR fork, reinforced bars.
For various Puch mopeds.
With clamp for attaching the handlebars to the fork plate.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 58 cm

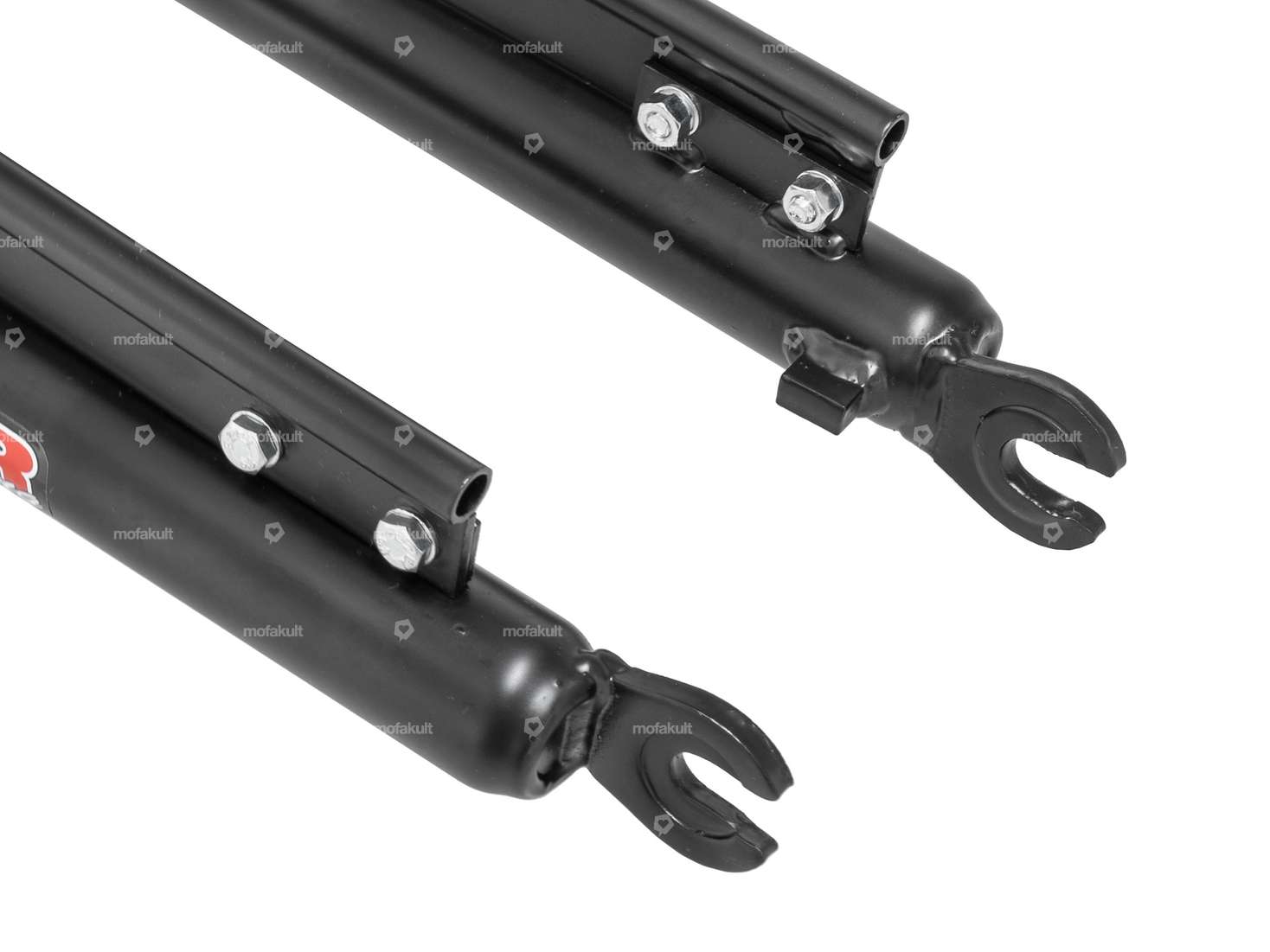

In addition, this fork has been fitted with a strut bracket which is also used for mounting mudguards.

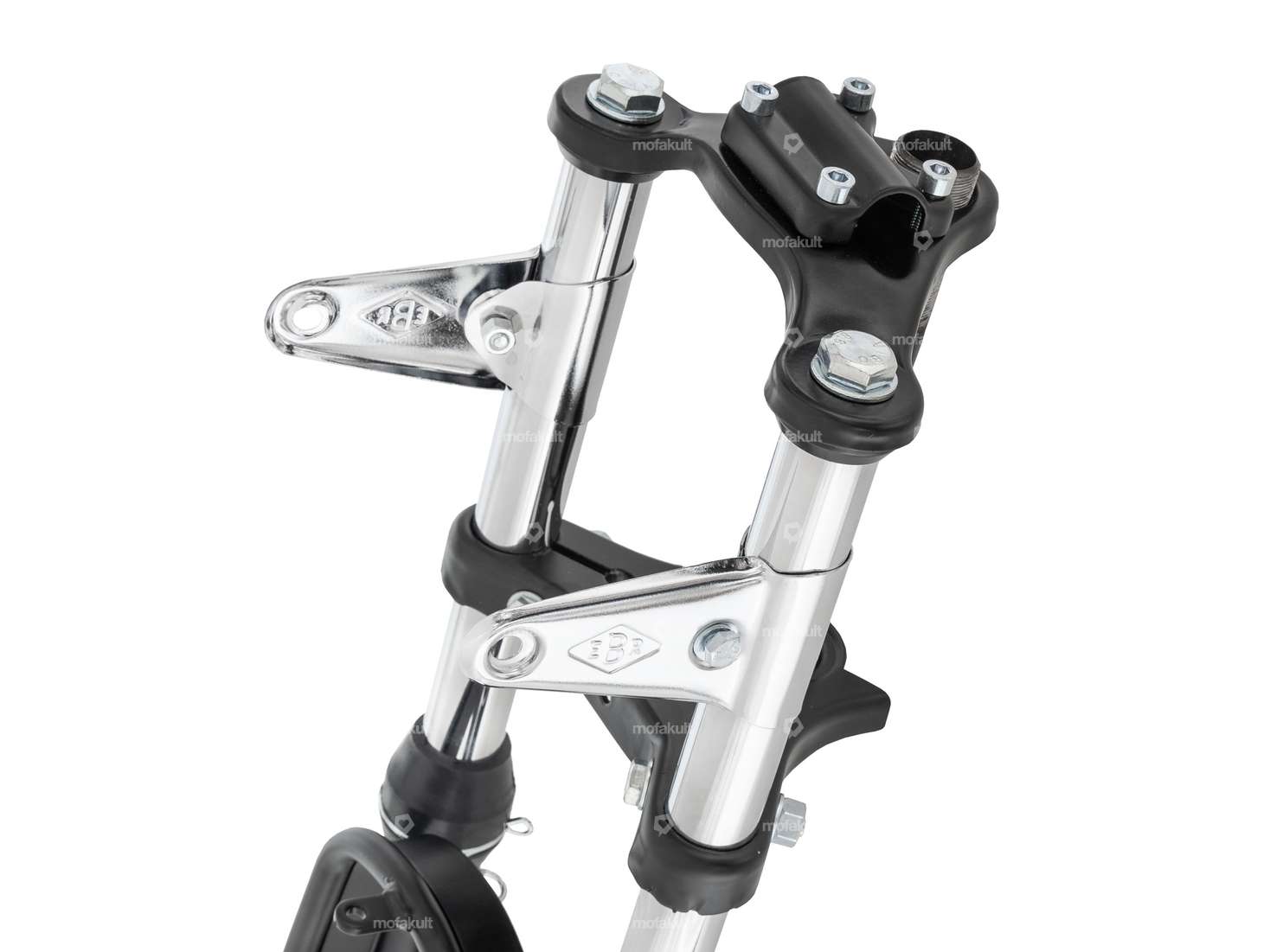

Another special feature is the reinforced upper fork clamp.
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | No |
| Spar end distance (center-center) | 140 mm |
| Ø outer head tube | 26 mm |
| Total length | 580 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 180 mm |
| Fork bridge - center wheel axle | 382 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Distance brake cam to wheel axle center-center | 40 mm |
| Thread length | 57 mm |
Suitable for the following models
| Puch |
