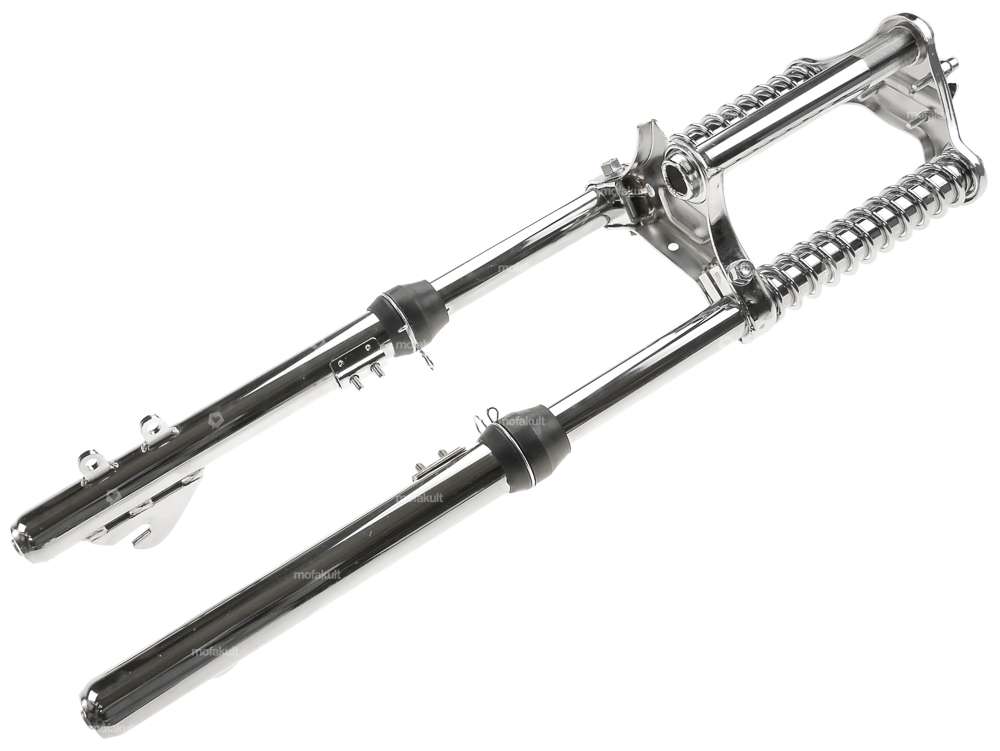

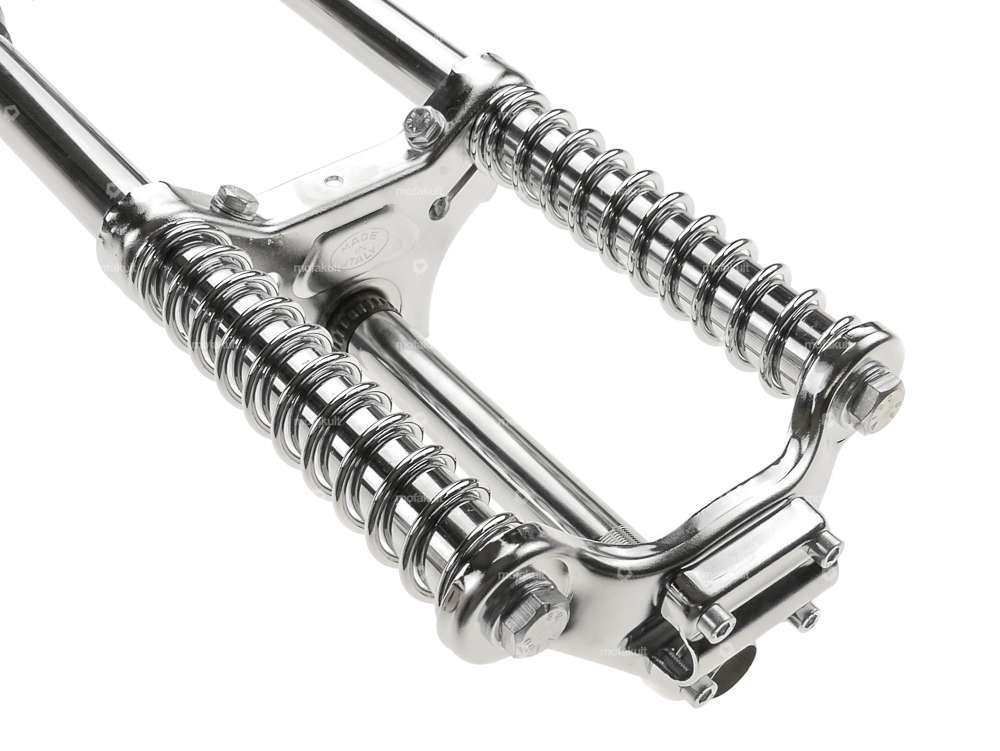

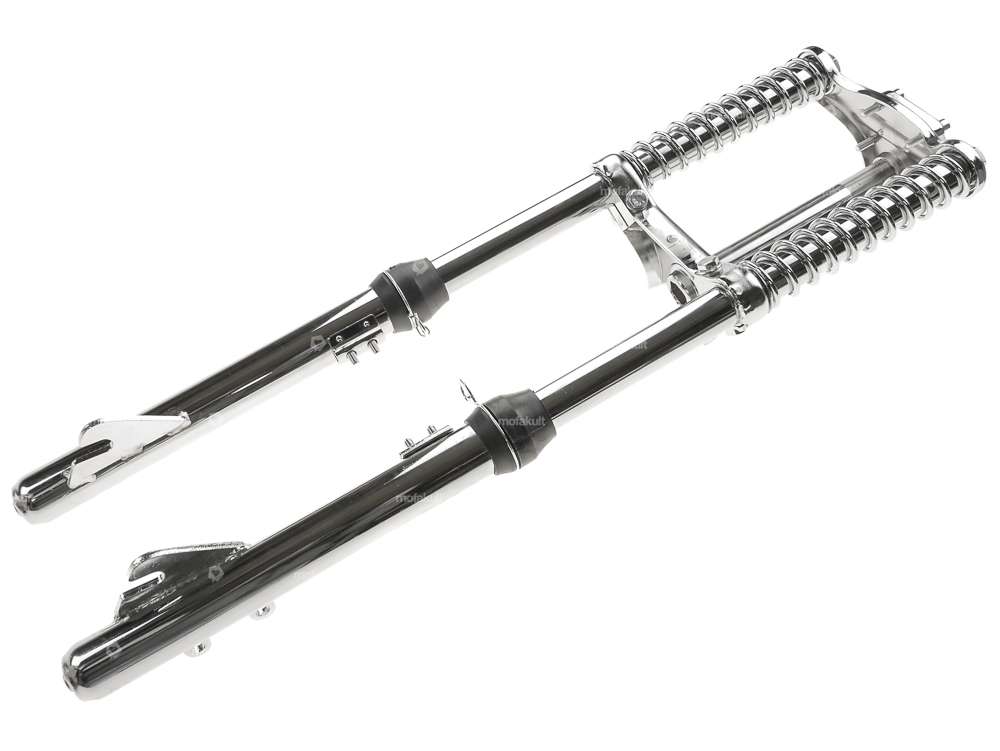

Reinforced EBR telescopic fork suitable for Piaggio Ciao mopeds.
The handlebar is screwed directly onto the fork plate.
Inch thread on the head tube.
You will find the matching headset set in the accessories section below.

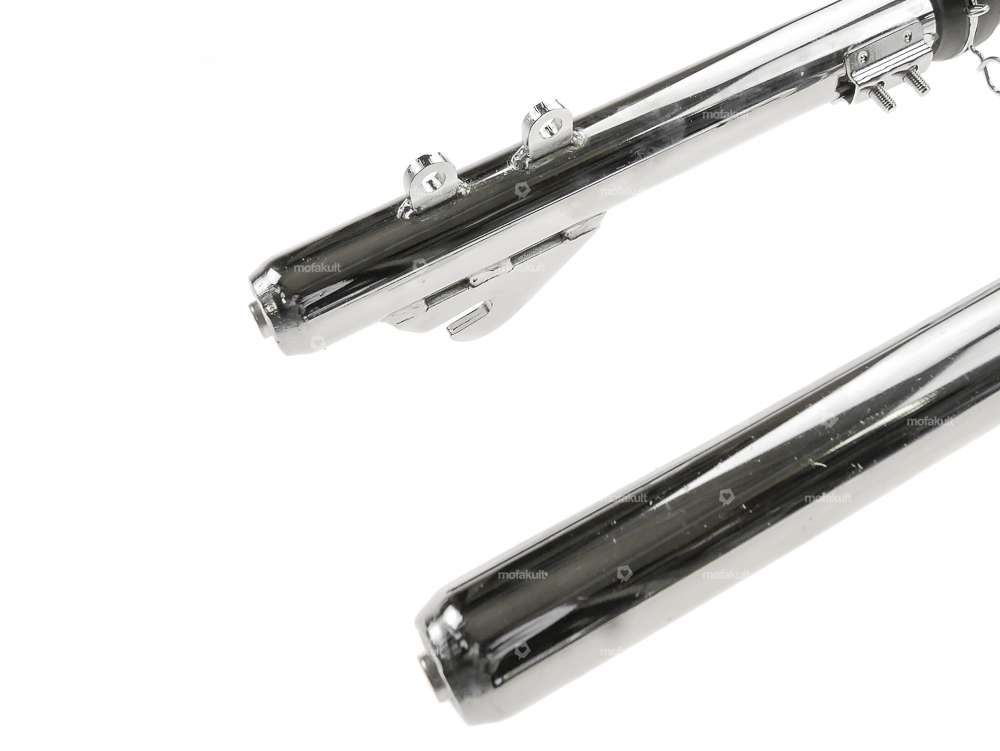

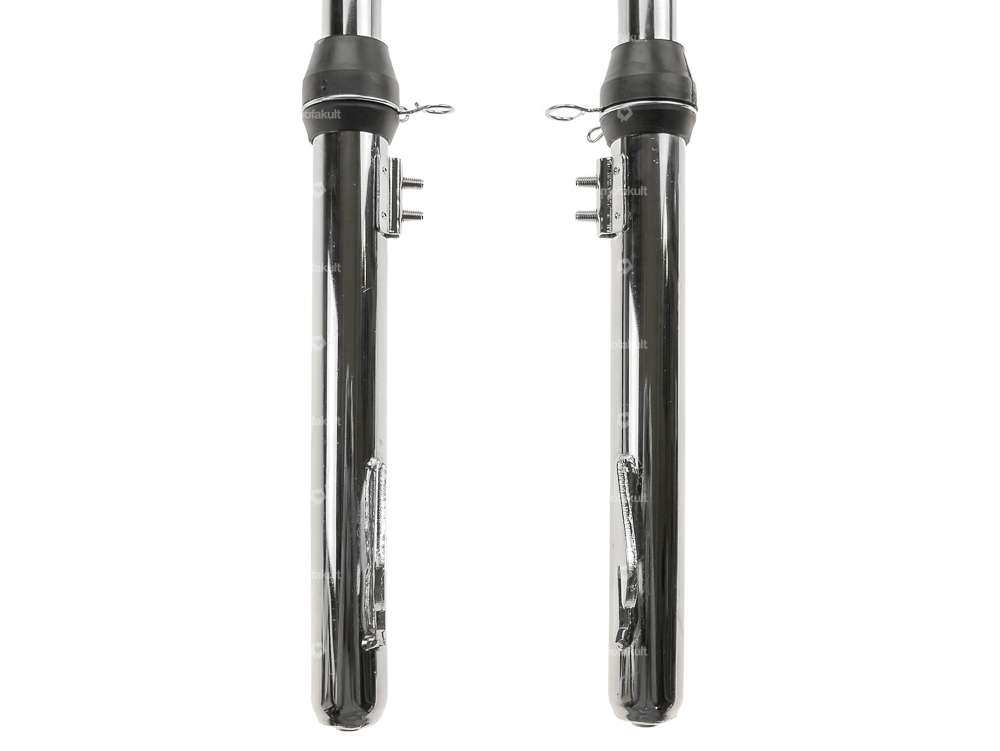

The fork has two tabs for attaching a brake calliper for a disc brake system.
Ø stanchion: 28 mm
Ø head tube: 25 mm
Head tube length: 200 mm
Total length: 680 mm
Fork width - center of wheel axle: 380 mm
Center wheel axle - mount for brake anchor plate: 30 mm
Distance center mounting hole mounting tabs disc brake to each other: 43 mm
Branded product of the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Steel |
Surface | chrome-plated |
Color | Chrome |
Ø outer head tube | 25 mm |
Total length | 680 mm |
Head tube length | 200 mm |
Fork bridge - center wheel axle | 380 mm |
Thread type | FG25.4 (1" 24G) |
Distance brake cam to wheel axle center-center | 30 mm |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
