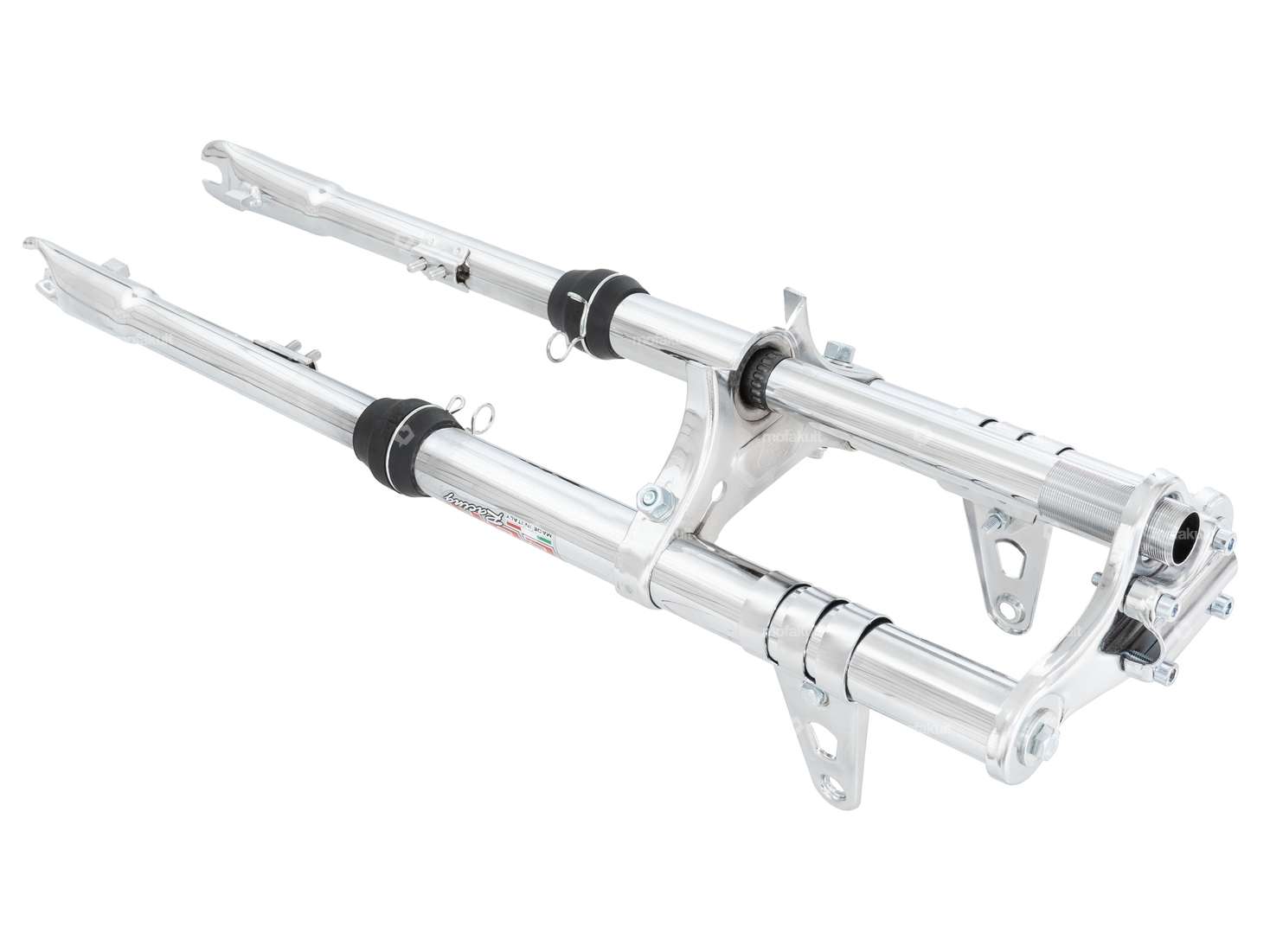

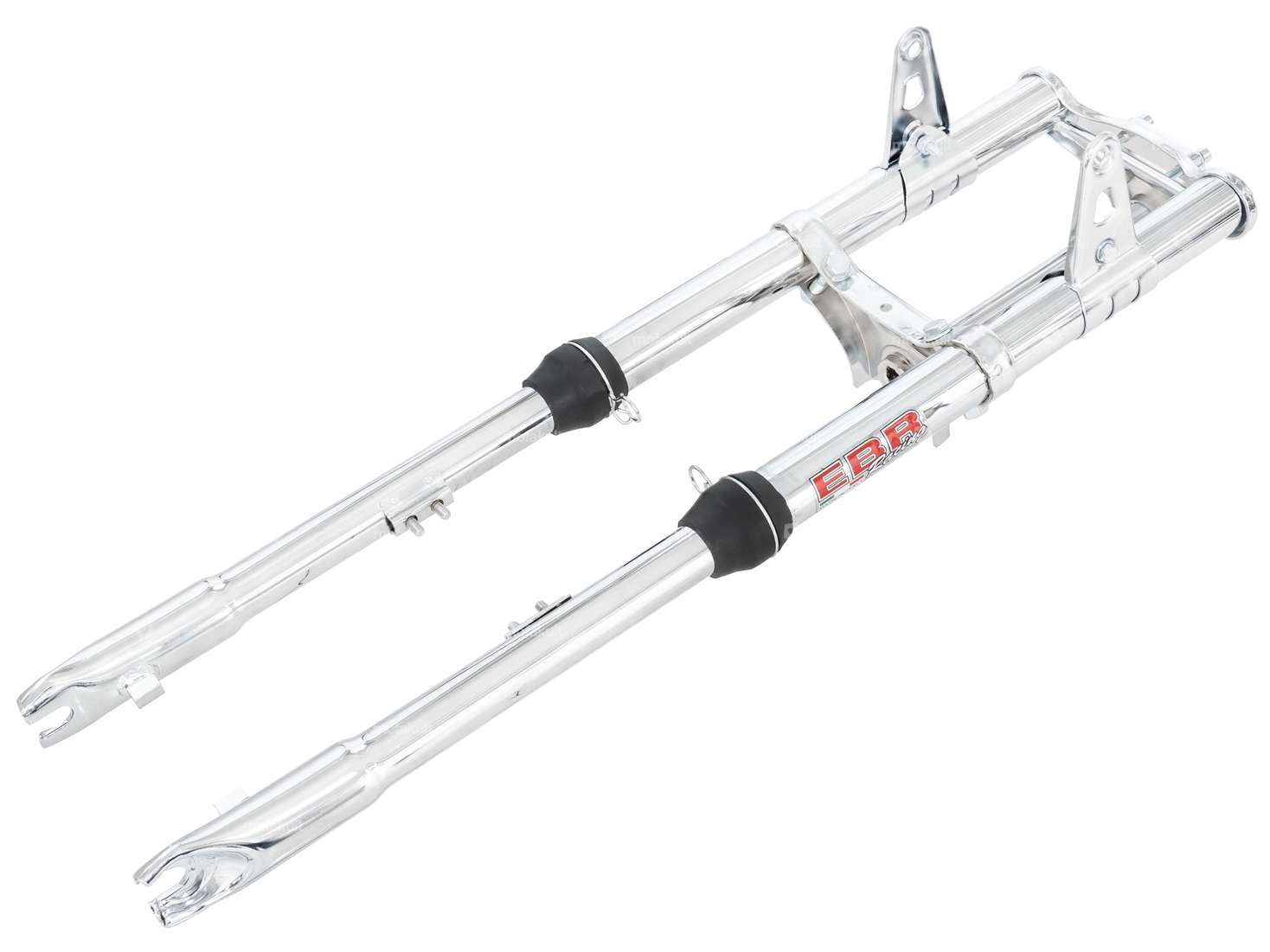

Reinforced upside-down fork from EBR suitable for Peugeot 103 SP / SPX mopeds.

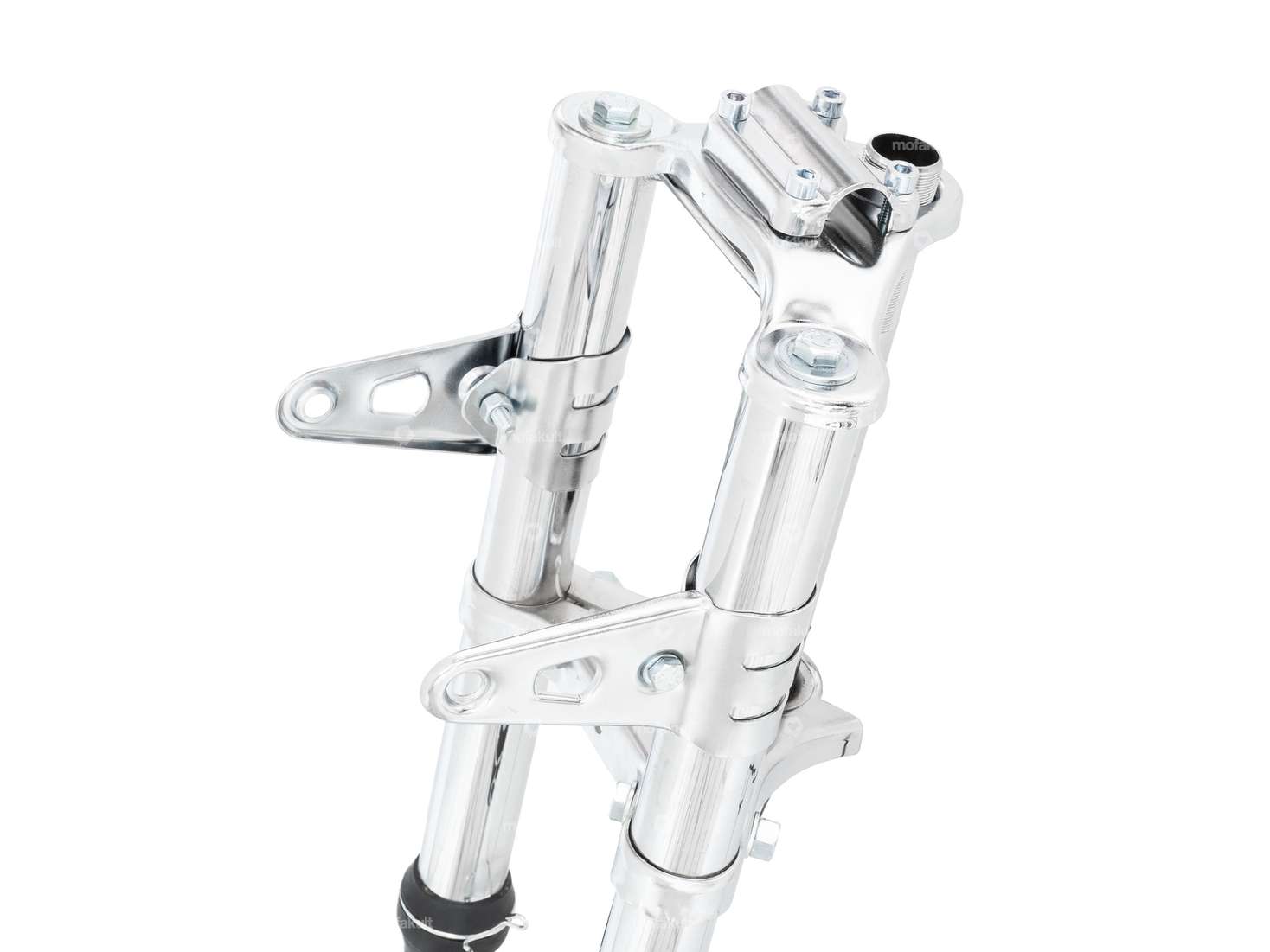

With clamping bracket for attaching the handlebars to the fork plate.
Two M6 threaded bolts are provided per fork leg for mudguard attachment, which are positioned 1.5 cm apart.

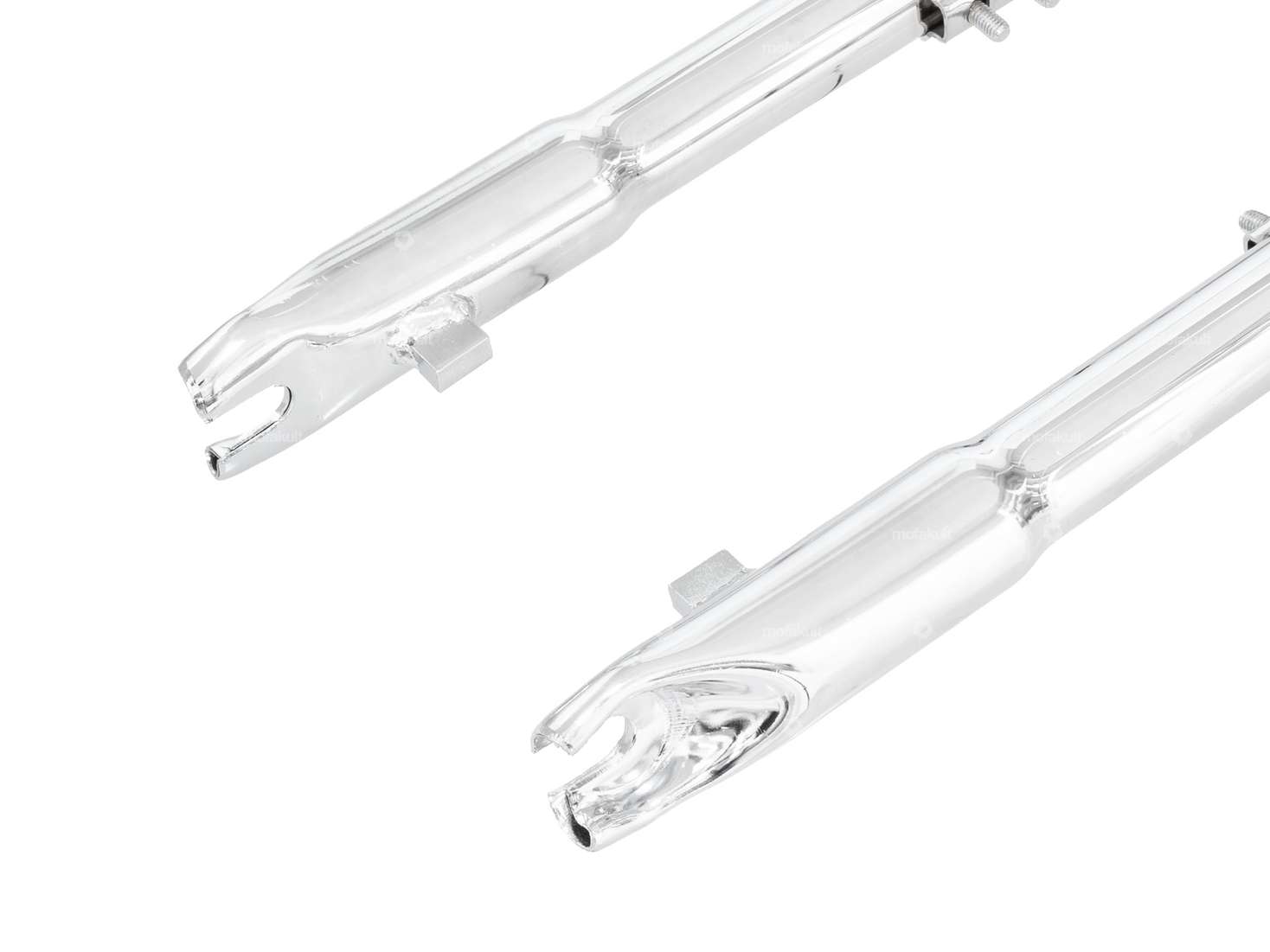

The bolts for attaching the brake anchor plate are positioned 4 cm above the center of the wheel axle on both sides.
Internal diameter of the head tube (for stem mounting): 22 mm
Head tube length: 20.5 cm
Length center of wheel axle to lower edge of lower fork crown: 47 cm
Total length: 69 cm
Thread: M26x1
Thread length on head tube: 6 cm
Branded product from the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Steel |
Surface | chrome-plated |
Color | Chrome |
Total length | 690 mm |
Ø head tube inside | 22 mm |
Head tube length | 205 mm |
Fork bridge - center wheel axle | 470 mm |
Thread type | MF26x1 (fine pitch thread) |
Thread length | 60 mm |
Suitable for the following models
Peugeot |
