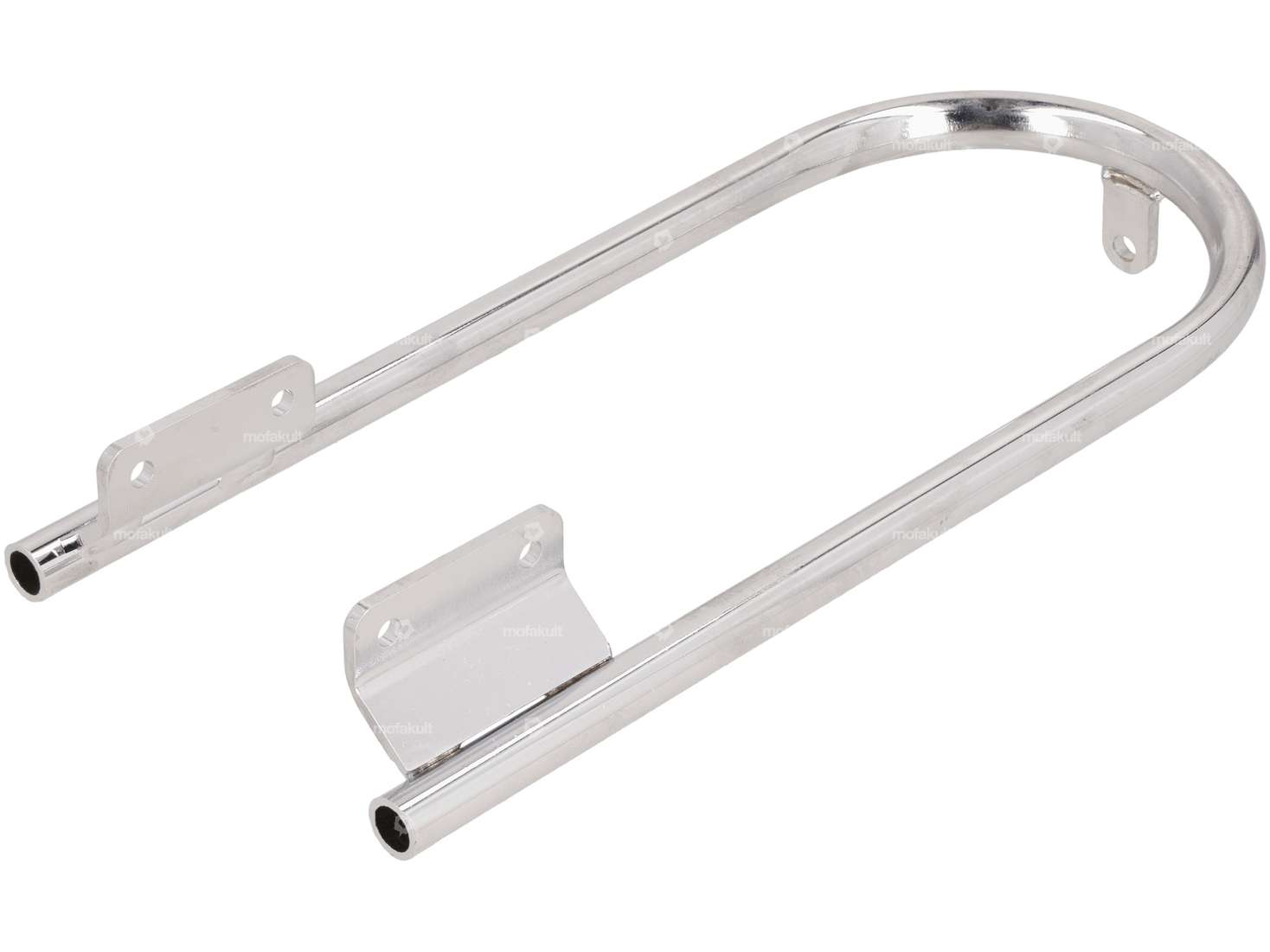

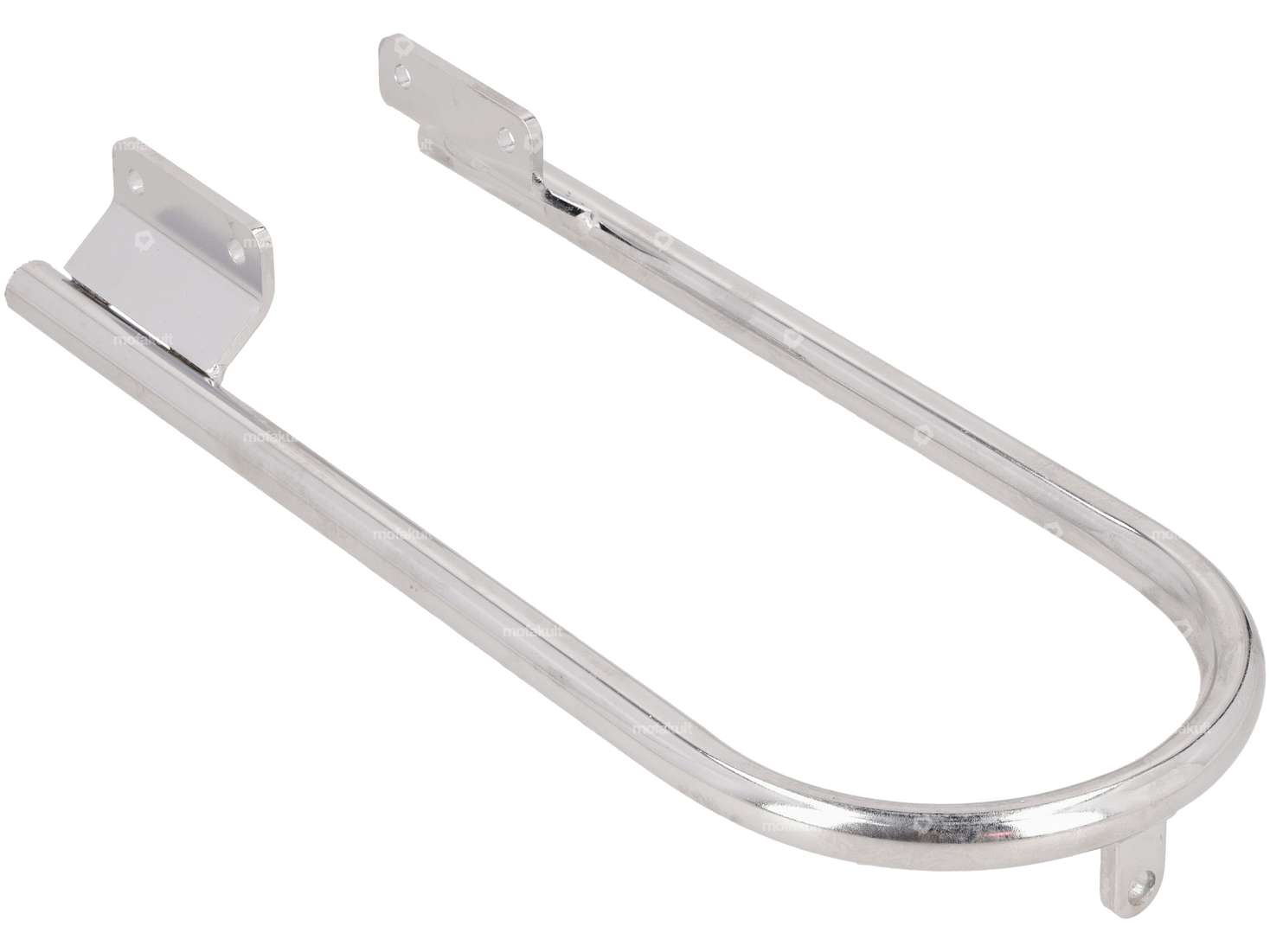

EBR front reinforcement / mudguard arch chrome | Puch Maxi

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

GPO sprocket 13 teeth (wide) | Puch

Manufacturer: GPO · Material: Steel · Surface: Hardened · Chain type: 415H · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Number of teeth: 13 pcs · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Total thickness: 4.6 mm

swiing® revival snap ring low control bearing set (version 2.0)

Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blank · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Thickness: 0.6 mm · Height: 7 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM number: P0521

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Mounting type: Nuts & bolts

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Thread type: M5x0.8 (standard thread) · Thread length: 35 mm · Thread length: 50 mm · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Drive: Slot · Drive: Triangular head · Total length: 47 mm · Total length: 60 mm

Polini brake shoes Ø 80 x 18 | Puch Maxi

Manufacturer: Polini · Ø drum: 80 mm · Number of springs: 2 pcs · Springs included: Yes · Color: silver · Ø locating bolt: 10 mm · Width: 18 mm · Slotted: No · Area of application: Tuning

swiing® revival front mudguard strut 17" chrome

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Total length: 310 mm · Distance mudguard - center hole: 300 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø mounting hole: 7 mm · Ø mounting hole: 13 mm

swiing® revival wiring harness MERIT light switch (version 2.0) + 20 cm

Manufacturer: swiing® revival parts · Number of cables: 5 pcs · Cable cross-section [mm²]: 1.5 mm² · Switch included: Yes · Cable bifurcation to motor: 950 mm · Cable bifurcation to lamp: 240 mm · Cable bifurcation to switch: 600 mm · Tail light cable length: 1000 mm · Luster terminal: Yes · Ø Receptacle: 22 mm · Area of application: Standard

Side stand chrome (solid) | Puch Maxi S, N, P1 / Supermaxi LG1, LG2 / X30 NS, NL, NG, N-2AH

Material: Steel · Surface: chrome-plated · Surface: varnished · Adjustable: No · Length pivot point - floor: 220 mm · Color: Chrome · Color: black · Mounting type: Screwed clamp · Number of fixing points: 2 pcs
