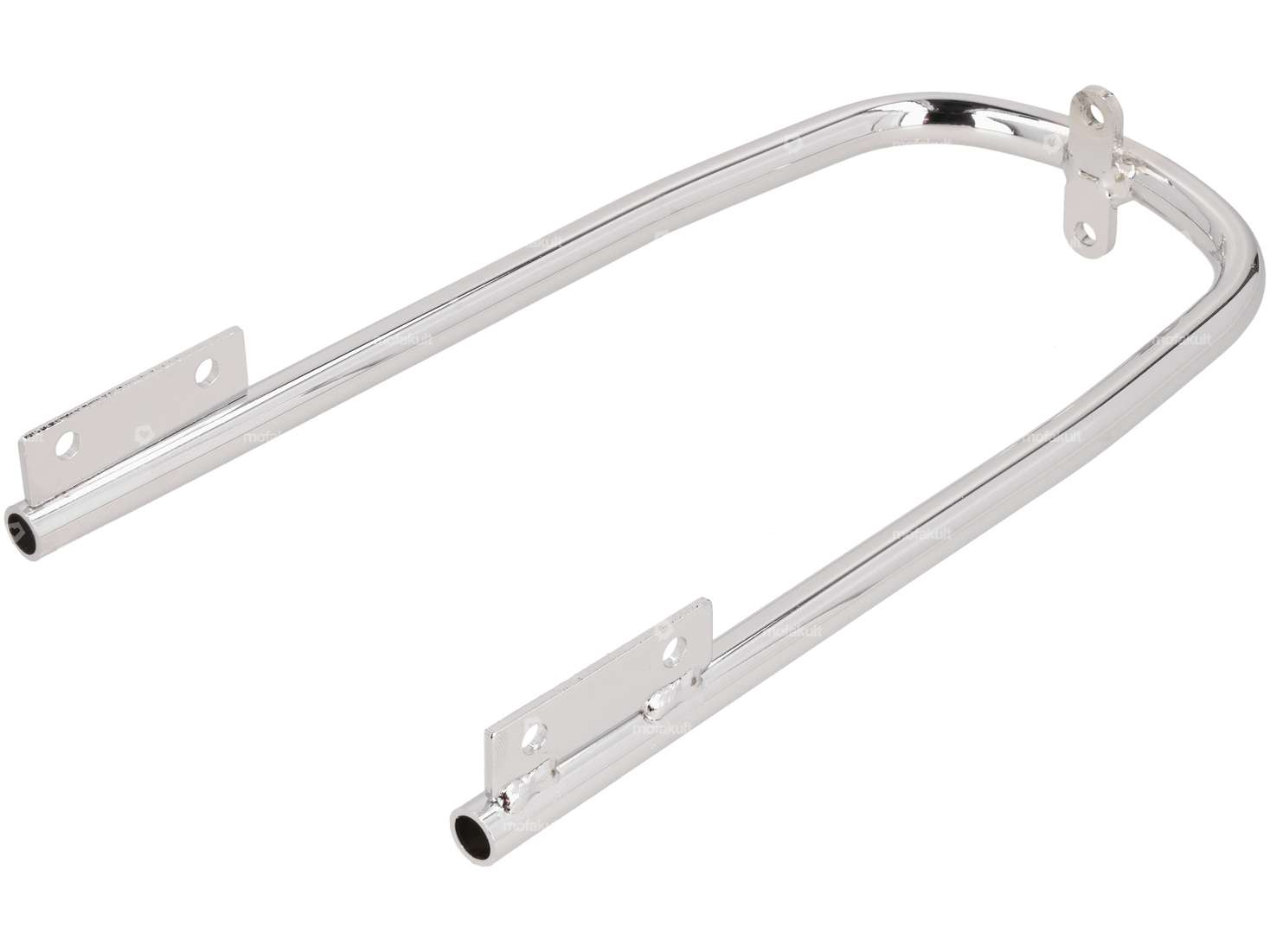

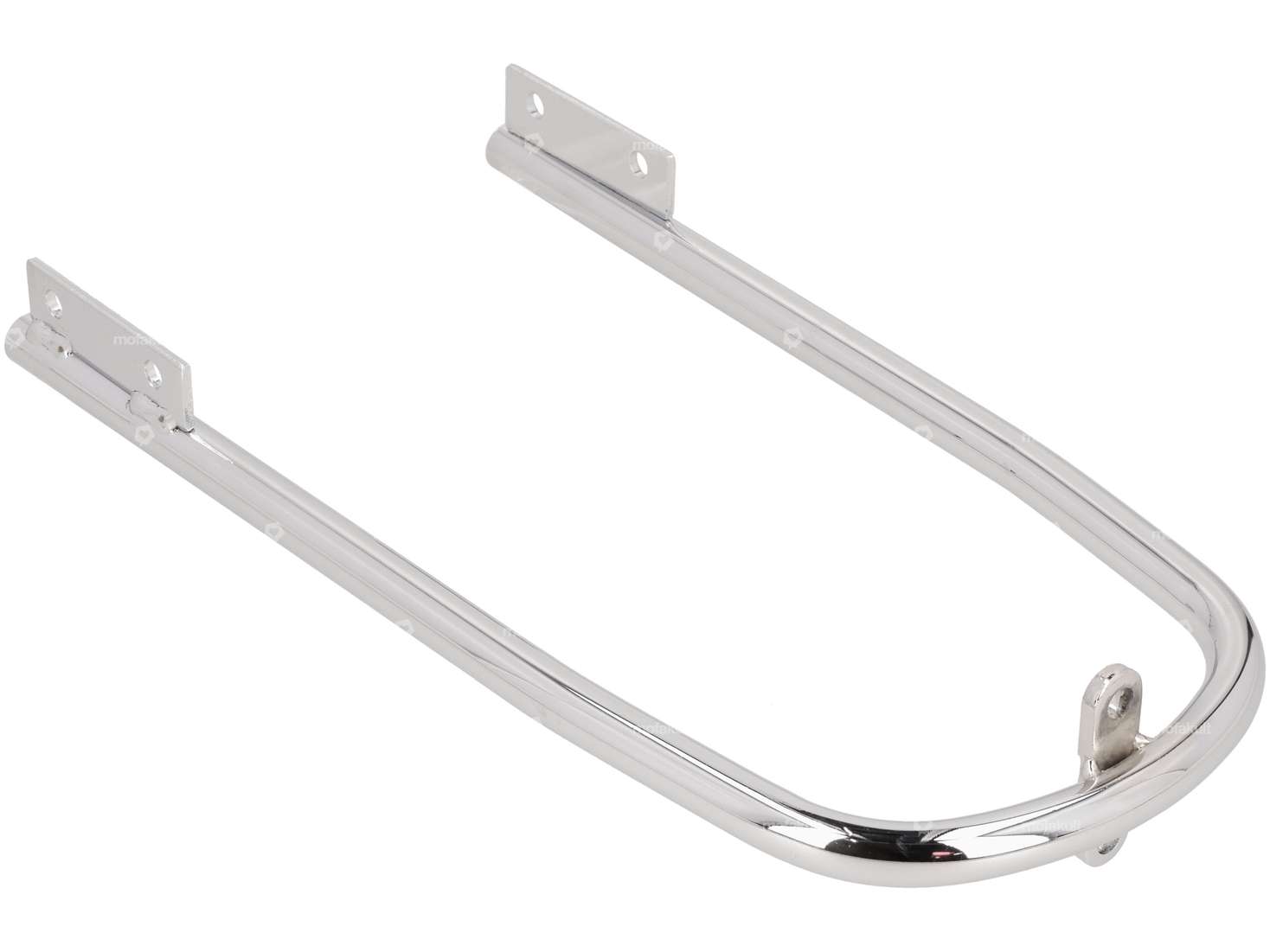

Chrome-plated tube bend for mudguard attachment and increased stability.
Fits various forks with tabs for the mudguard mount. (for 17" wheels).
Total height of arch: 267 mm
Width (outer edges of flat bar): 127 mm
Hole spacing of side holes: 36 mm
Drilling diameter: 6.2 mm
Distance from upper hole of flat bar to lower edge of mudguard mount: 203 mm
Branded product of the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Outer width | 145 mm |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Wheel size [inch] | 17 " |
| Distance mudguard - center hole | 202 mm, 238 mm |
| Total length | 267 mm |
| Ø mounting hole | 6.2 mm |
| Mounting type | Nuts & bolts |
| Hole spacing | 36 mm |
| Wide intake | 127 mm |
| Number of fixing points | 6 pcs |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo |
