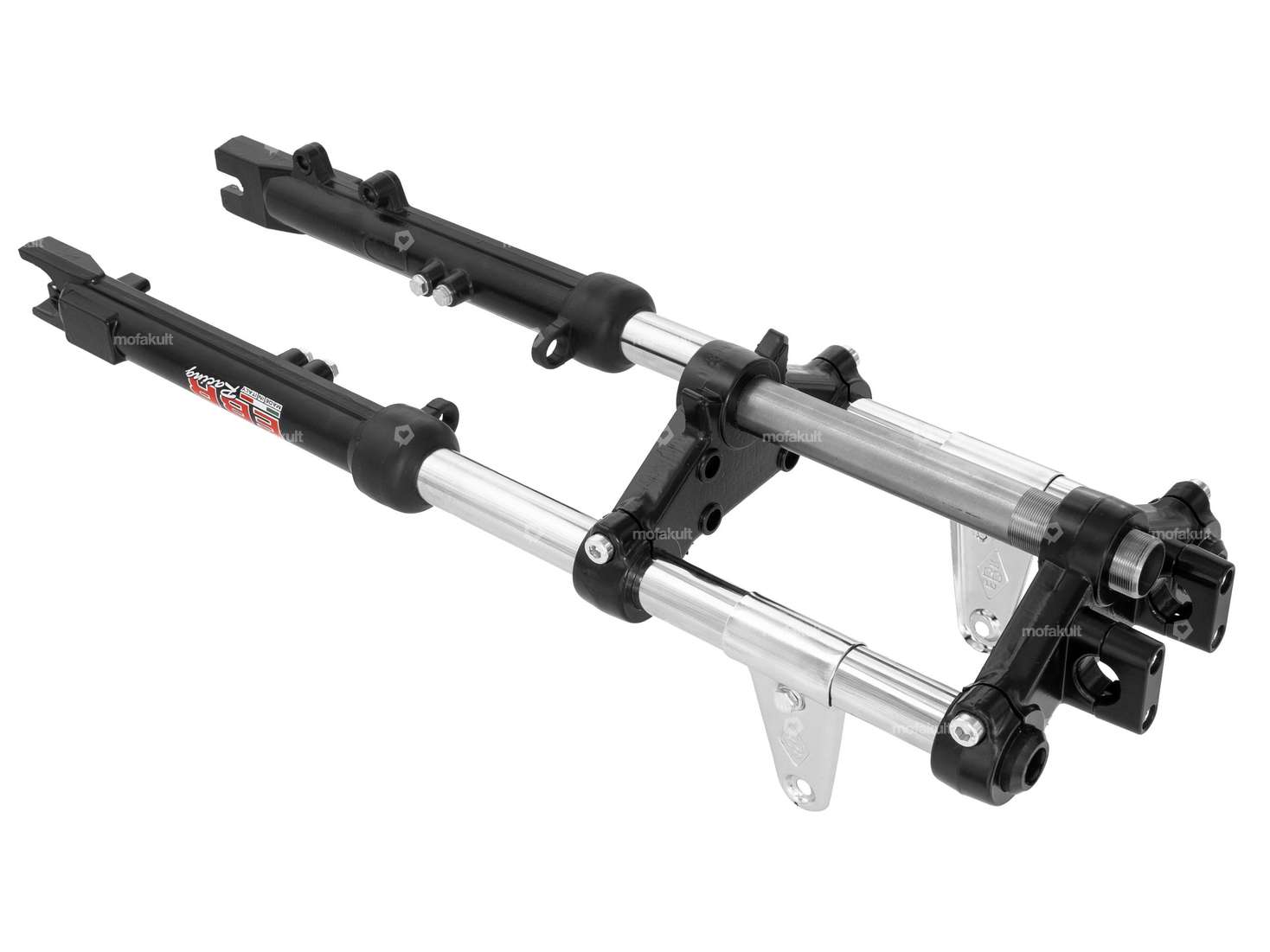

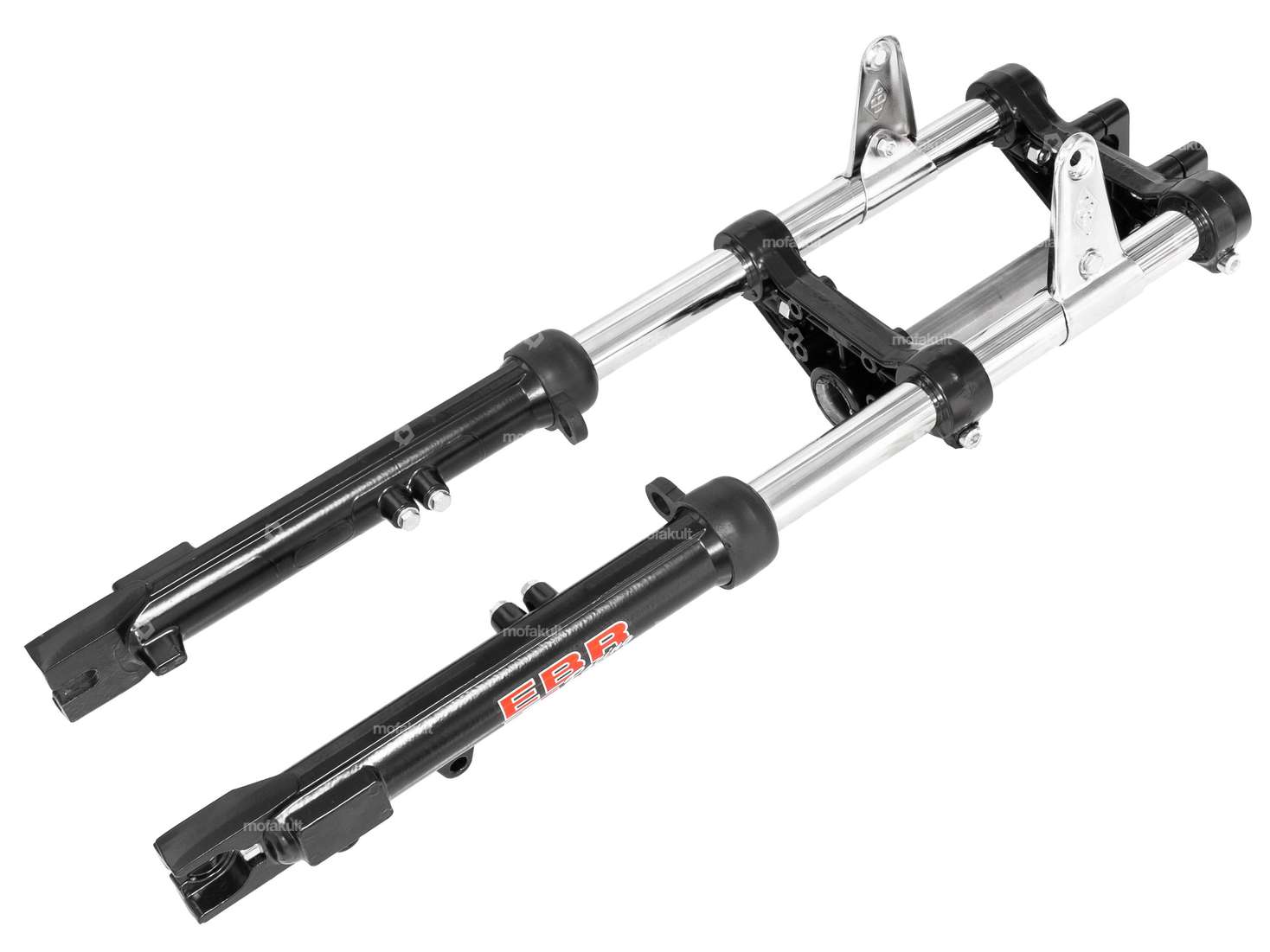

This hydraulic telescopic fork is currently the best fork available on the Puch market.

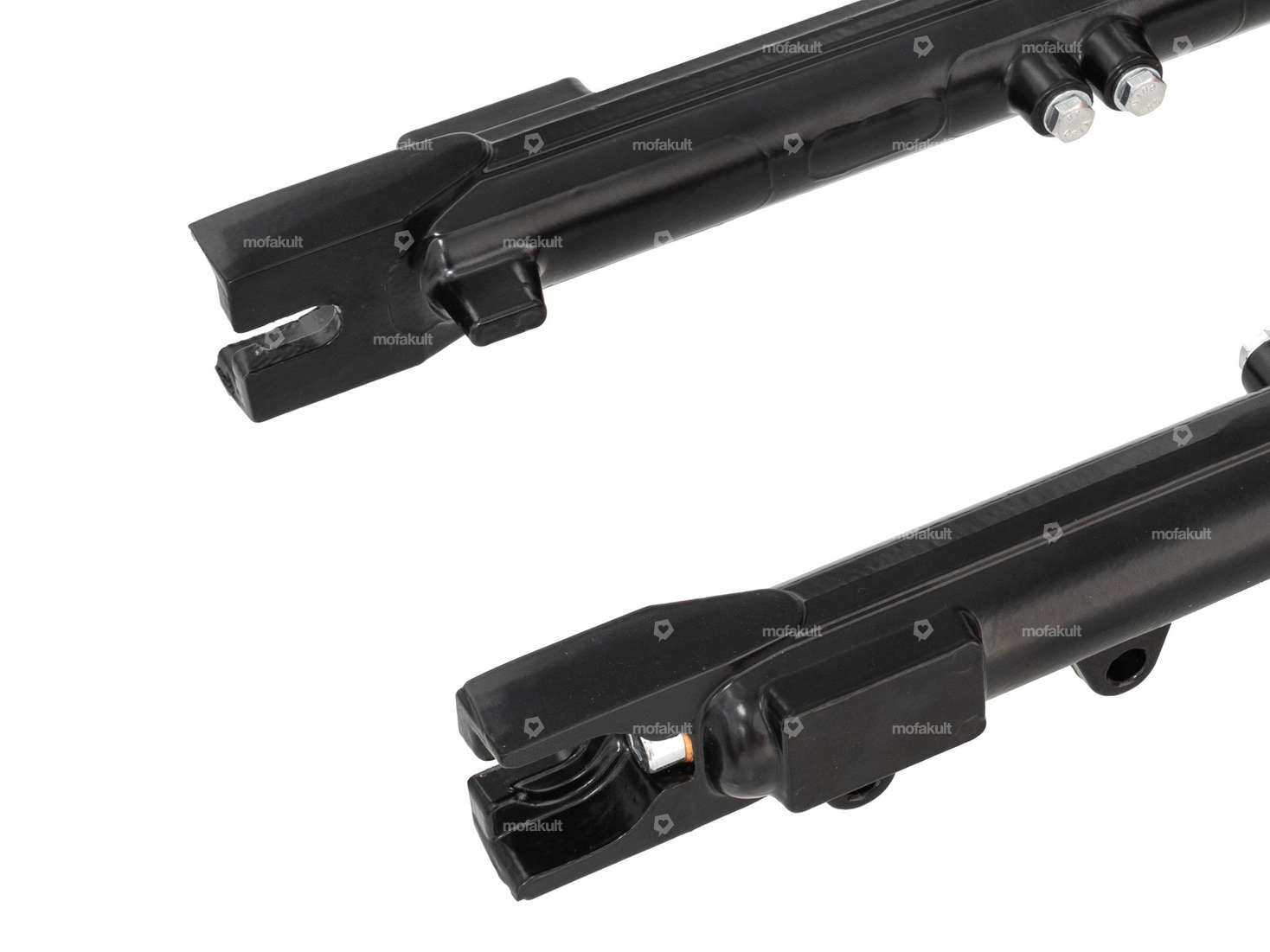

The fork has various threads and holes for mounting a brake caliper.
Mostly made of aluminum.

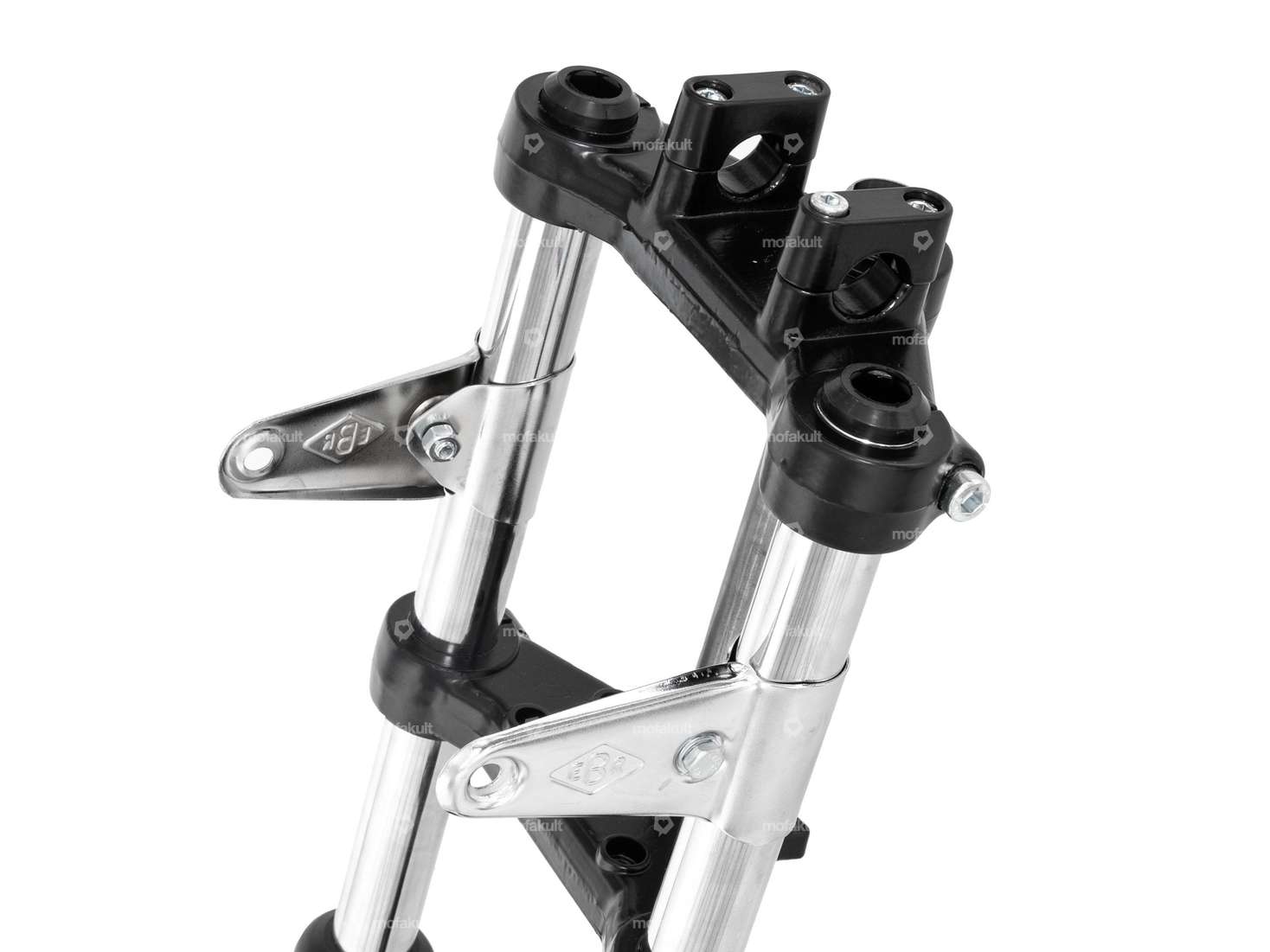

Including the handlebar clamps on the upper fork bridge.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 20 cm
Total length: 62 cm
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Aluminum, Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | Yes |
| Spar end distance (center-center) | 150 mm |
| Thread length | 58 mm |
| Ø outer head tube | 25.9 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22 mm |
| Head tube length | 200 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Fork bridge - center wheel axle | 410 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
| Total length | 635 mm |
Suitable for the following models
| Puch |
