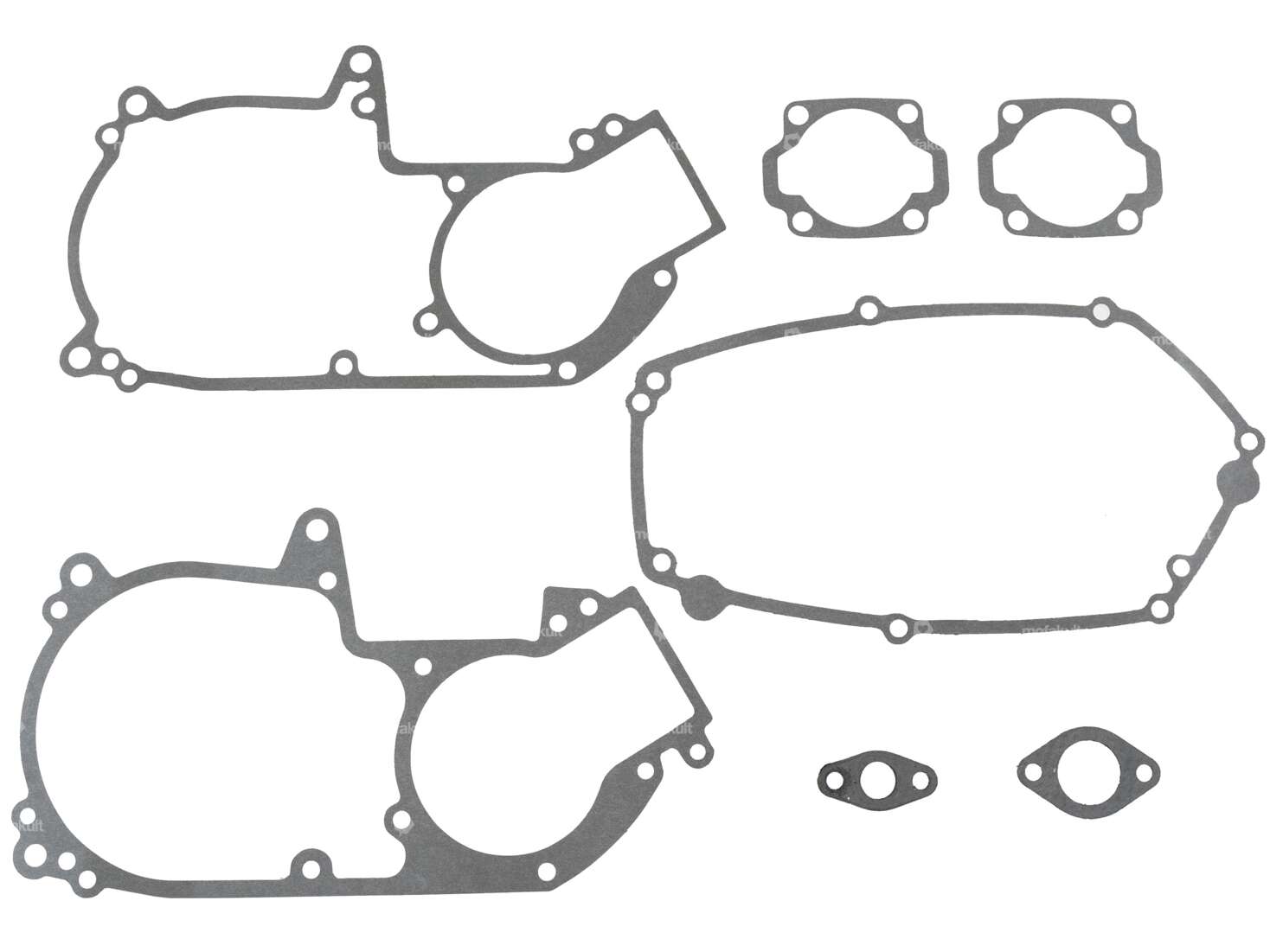

Engine gasket set | Tomos A3 (1975 - 1991)

DMP gasket set cylinder 50 ccm | Tomos A3, A35

Manufacturer: DMP · Material: Aluminum · Material: Bakelite · Material: Sealing paper · Number of components: 3 pcs · Thickness: 0.6 mm · Thickness: 1.3 mm · Thickness: 1.9 mm · Ø cylinder: 38 mm · Ø outlet inside: 25.2 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Standard

GPO gasket set 45 mm cylinder & diaphragm | Tomos A3, A35

Manufacturer: GPO · Material: Aluminum · Material: Composite materials · Material: Oiled paper · Number of components: 5 pcs · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Decompressor: Yes · Area of application: Tuning

Airsal gasket set 38 / 44 mm Tomos A35 mm Tomos

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 38 mm · Ø cylinder: 44 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Area of application: Tuning

Engine gasket set | Tomos A35

Number of components: 6 pcs · Area of application: Standard

Engine gasket set | Tomos A3

Manufacturer: Made in Netherlands · Number of components: 6 pcs · Area of application: Standard

GPO gasket set 45 mm | Tomos A3 / A35

Manufacturer: GPO · Number of components: 3 pcs · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

Airsal gasket set cylinder 44 mm Tomos (large cooling fins)

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 44 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Number of components: 1 pcs · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Area of application: Standard

Oil seal NBR 17/35/7 A DUO

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm

Magura stop sleeve special Ø 5.5 mm

Manufacturer: Magura · Ø inside: 2.5 mm · Ø inside: 5.5 mm · Nominal diameter inside: 2.5 mm · Ø outside: 4 mm · Total length: 5 mm · Ø outside: 7 mm · Total length: 10 mm

Brass nut M6 3D

Material: Brass · Surface: blank · Area of application: Standard · Nut type: Neck nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Ø outside: 9 mm · Height: 25 mm · Thread depth: 25 mm · Shank length: 20 mm · Width across flats SW: 10 mm

Cable sheath Ø 5 mm black (per meter) Teflon inner sheath

Ø cable: 1.5 mm · Ø inside: 1.8 mm · Ø outside: 5 mm · Color: black · Total length: 1000 mm · Coating: Teflon

Jasil crankshaft | Tomos

Manufacturer: Jasil · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Area of application: Racing · Tomos OEM number: 223421

RMS reinforced lock solid Ø 22 x 1200 mm textile cover blue

Manufacturer: RMS · Thickness: 22 mm · Material: Plastic · Area of application: Security · Material: Steel · Color: black · Color: blue · Closing method: key · Cable length: 1200 mm

Union pedals aluminum black

Manufacturer: Union · Material: Aluminum · Material: Plastic · Color: black · Drive: Outer edge · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Speedometer drive 11 mm axle left with grease nipple holder

Material: Aluminum · Color: gray · Place of use: left · Wheel size [inch]: 16 " · 4-edge speedometer cable: 1.9 mm · Ø outside: 42 mm · Ø mounting hole: 11.2 mm · Ø axle: 11 mm · Thread type: MF10x1 (fine pitch thread) · Overall width outside: 48 mm · Total height: 52 mm
