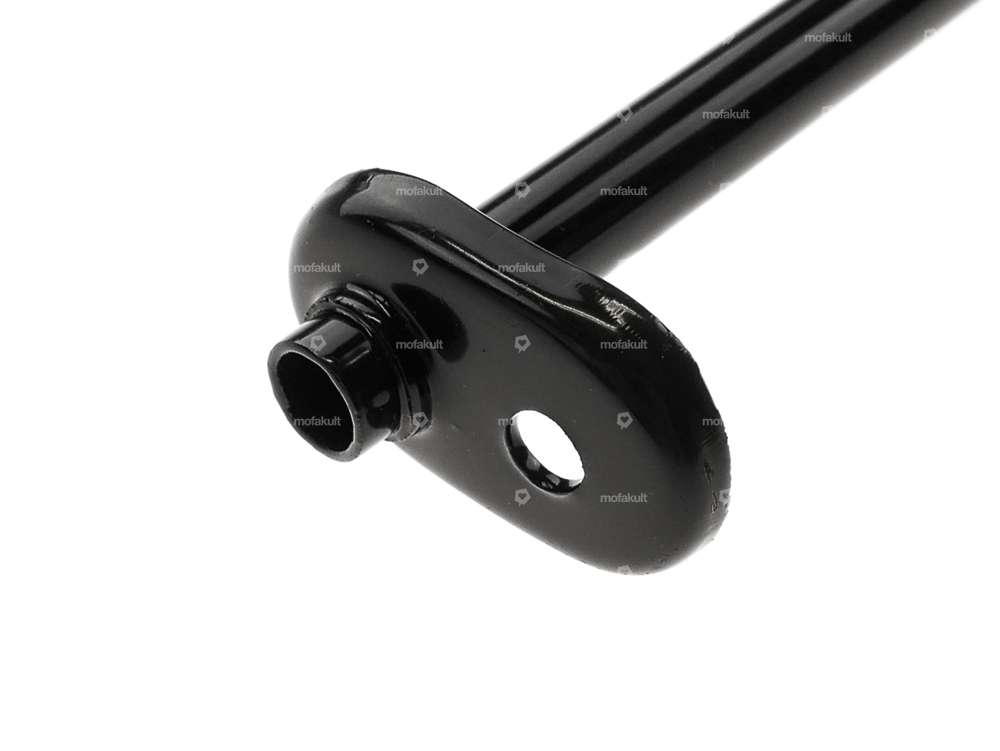

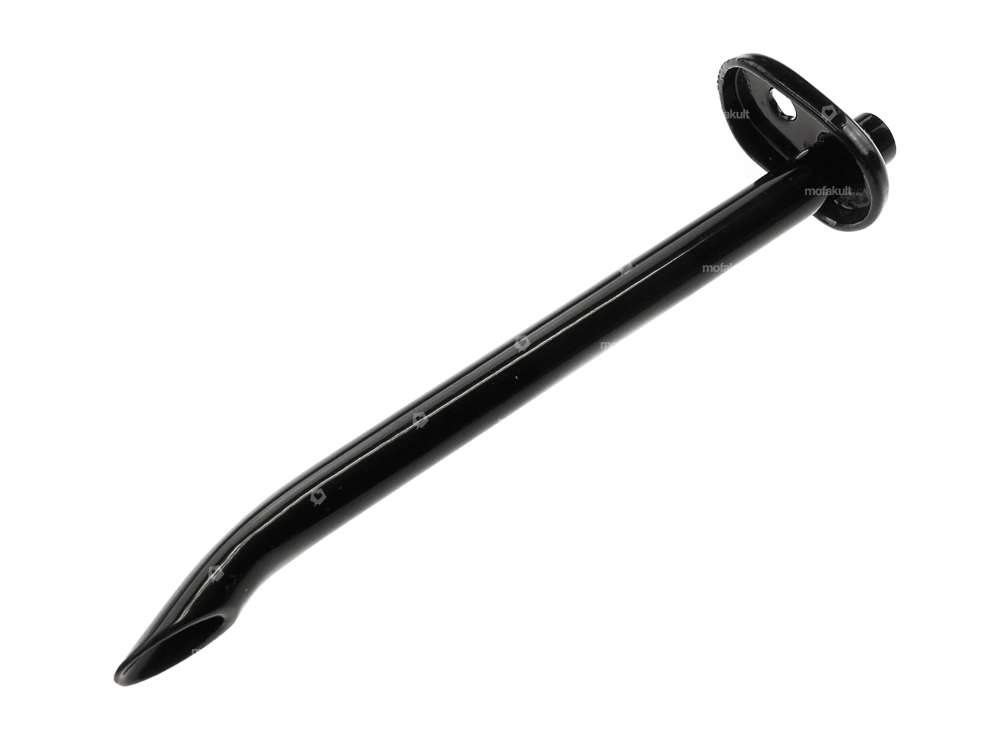

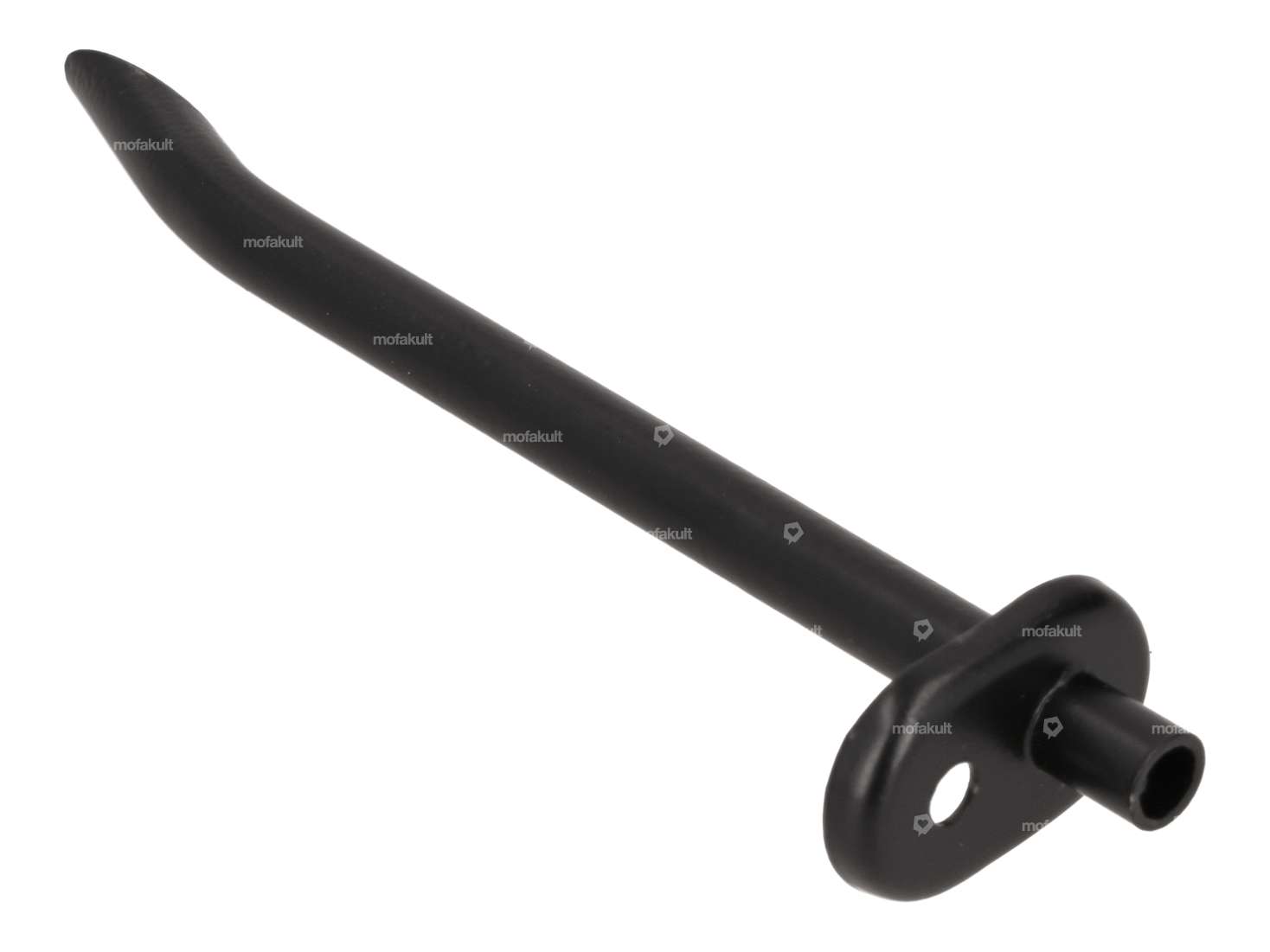

Exhaust tailpipe | Puch X30 Ur-Velux

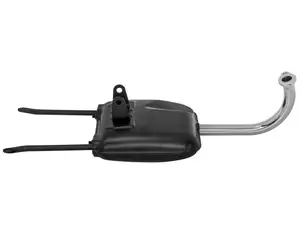

Exhaust Special | Puch X30 Ur-Velux

Color: Chrome · Color: black · Material: Steel · Surface: chrome-plated · Number of fixing points: 2 pcs · Mounting type: Welded lug · Flame tube attachment: Flange

Flame tube 20 mm | Ur-Velux

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 200 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Ø inside: 17.5 mm · Ø outside: 20 mm · Hole spacing outlet: 42 - 41.5 mm · Flame tube attachment: Stud bolts & nuts

GPO fork lock | Puch

Ø Pin: 8 mm · Total length: 40.8 mm · Ø rotating part: 12 mm · Manufacturer: GPO · Wide locking block: 4.1 mm · Length of turned part: 25.6 mm · Locking block length: 15.3 mm · Material: Brass · Material: Spring steel · Material: Steel · Surface: blank · Width: 17 mm · Ø outside: 12 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Reserve level: 70 mm

swiing nozzle set M3.5 (54 - 64) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing · Material: Brass · Quantity: 6 pcs · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Nozzle size: 54 · Nozzle size: 56 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64

swiing® revival bellows Ø 23/30 x 100 mm | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Ø inside: 23 mm · Ø inside 2: 30 mm · Total length: 103 mm · Ø outside: 35 mm · Ø outside: 45 mm · Color: black

EBR standard fork chrome | Puch

Total length: 570 mm · Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Thread type: MF26x1 (fine pitch thread) · Ø spars: 23 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Thread length: 57 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

swiing® revival sliding block (for screwing) Magura throttle twist grip

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Color: black · Thread type: M4x0.7 (standard thread) · Width: 7.7 mm · Drive: Hexagon socket · Total length: 12 mm · Thread length: 8.8 mm · Height: 8.8 mm

Magura adjusting screw brake short

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Thread type: MF6x0.75 (fine pitch thread) · Ø shaft: 6.1 mm · Drive: Knurled screw · Total length: 31 mm · Total length: 40 mm · Ø External head: 9.15 mm · Thread length: 15 mm · Shank length: 6.9 mm

Continental 2.00 - 2.50 x 17" tube

Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Wheel size [inch]: 17 " · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR6 car valve

Silicone seal Ø 45 x 2 silencer | Puch

Manufacturer: Puch · Place of use: Exhaust · Material: Silicone · Nominal diameter: 45 mm · Ø inside: 45 mm · Ø outside: 52 mm · Thickness: 2.9 mm · Area of application: Standard

BING O-ring Bing SRE & 85, Ø 20 mm

Cord thickness: 1.4 mm · Manufacturer: BING · Place of use: Carburetor · Material: Rubber · Surface: raw · Color: black · Ø outside: 20 mm · Ø inside: 17.2 mm · Area of application: Standard · Number of components: 1 pcs · Pony OEM number: A4281 · Sachs OEM number: 0250 160 101
