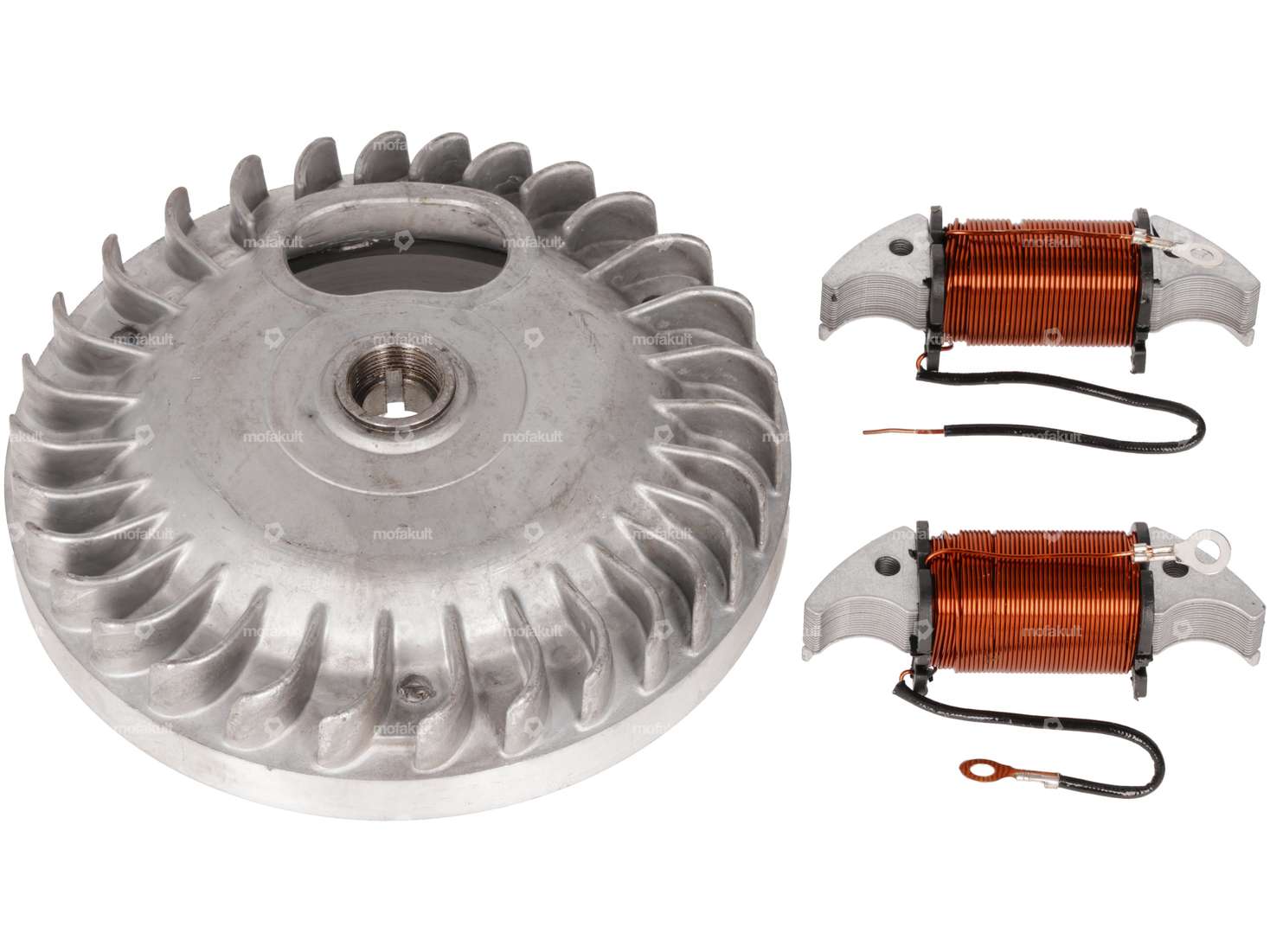

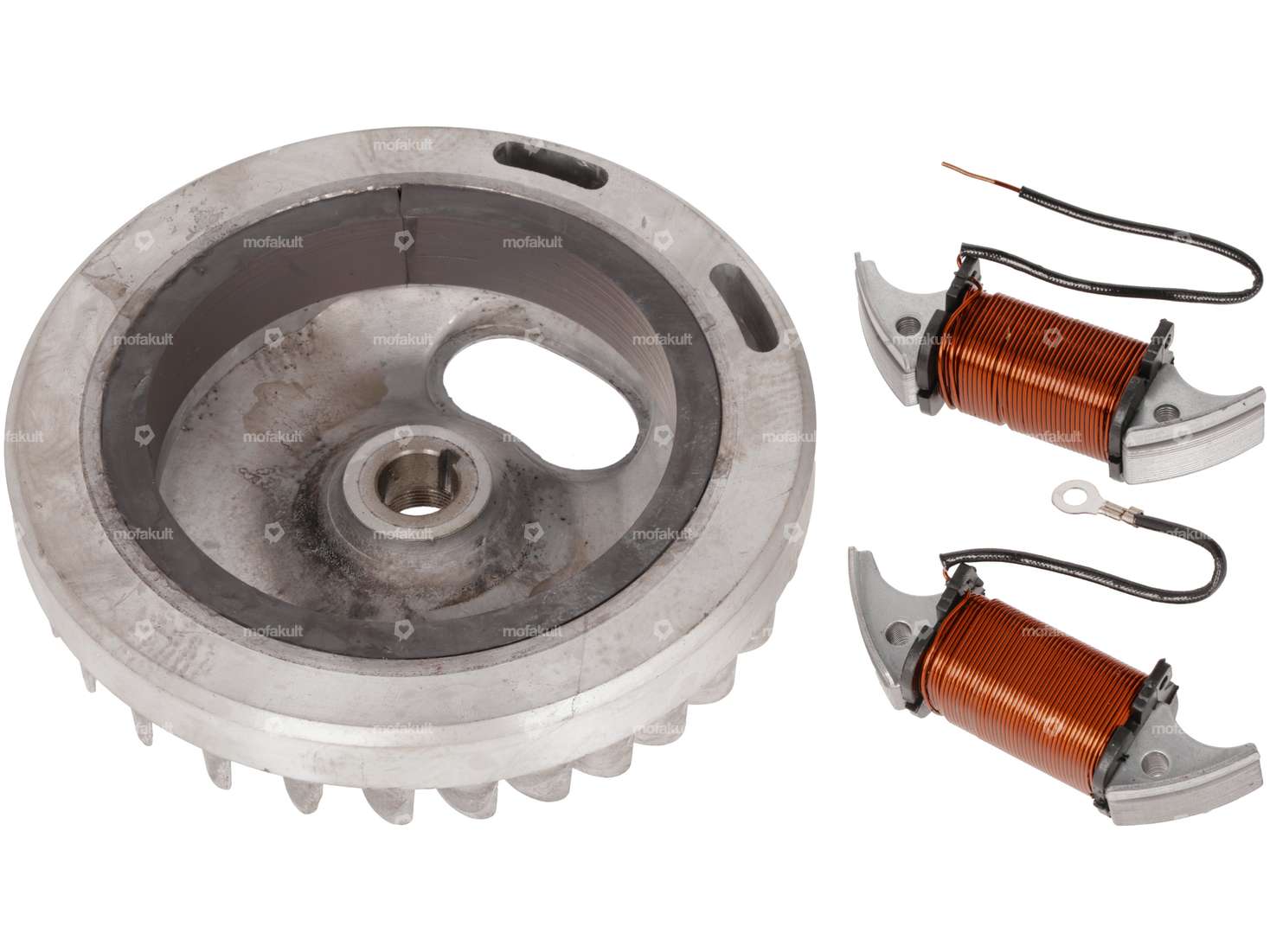

Set consisting of pole wheel, light coil and pulse coil suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
The ignition wheel can only be installed on engine housings that are designed for contact ignition.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The keyway of the pole wheel is in the wrong position depending on the batch, resulting in incorrect ignition timing. The magnets in the pole wheel are also not positioned correctly, which can interrupt the entire electrical circuit within the ignition.
Details
| Manufacturer | Quenching |
| Material | Aluminum, Steel |
| Tension | 6 V |
| Direction of rotation | right |
| Ø Internal flywheel | 92 mm |
| Area of application | Standard |
| Weight | 1300 g |
| Ø Flywheel outside | 141 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
