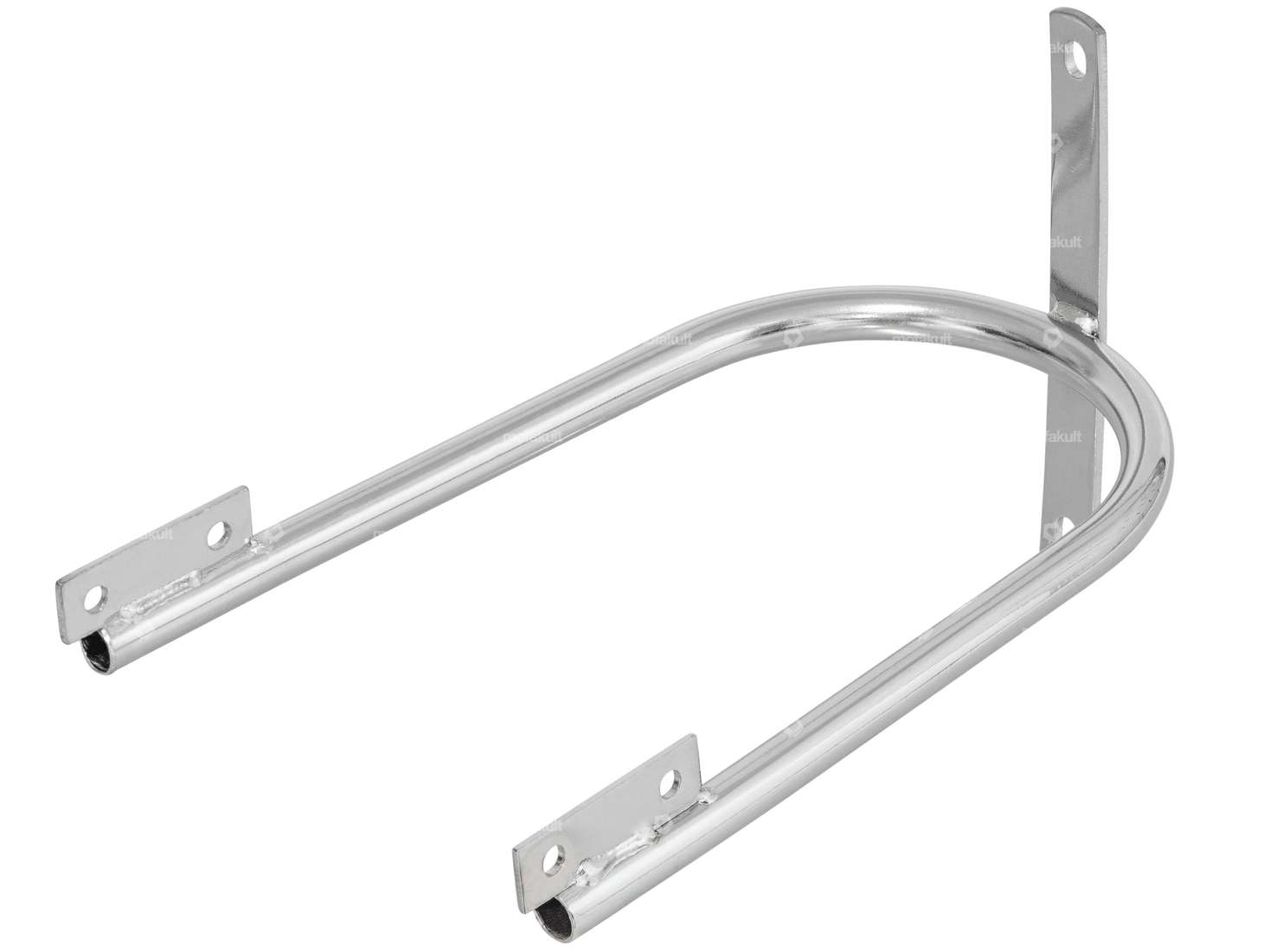

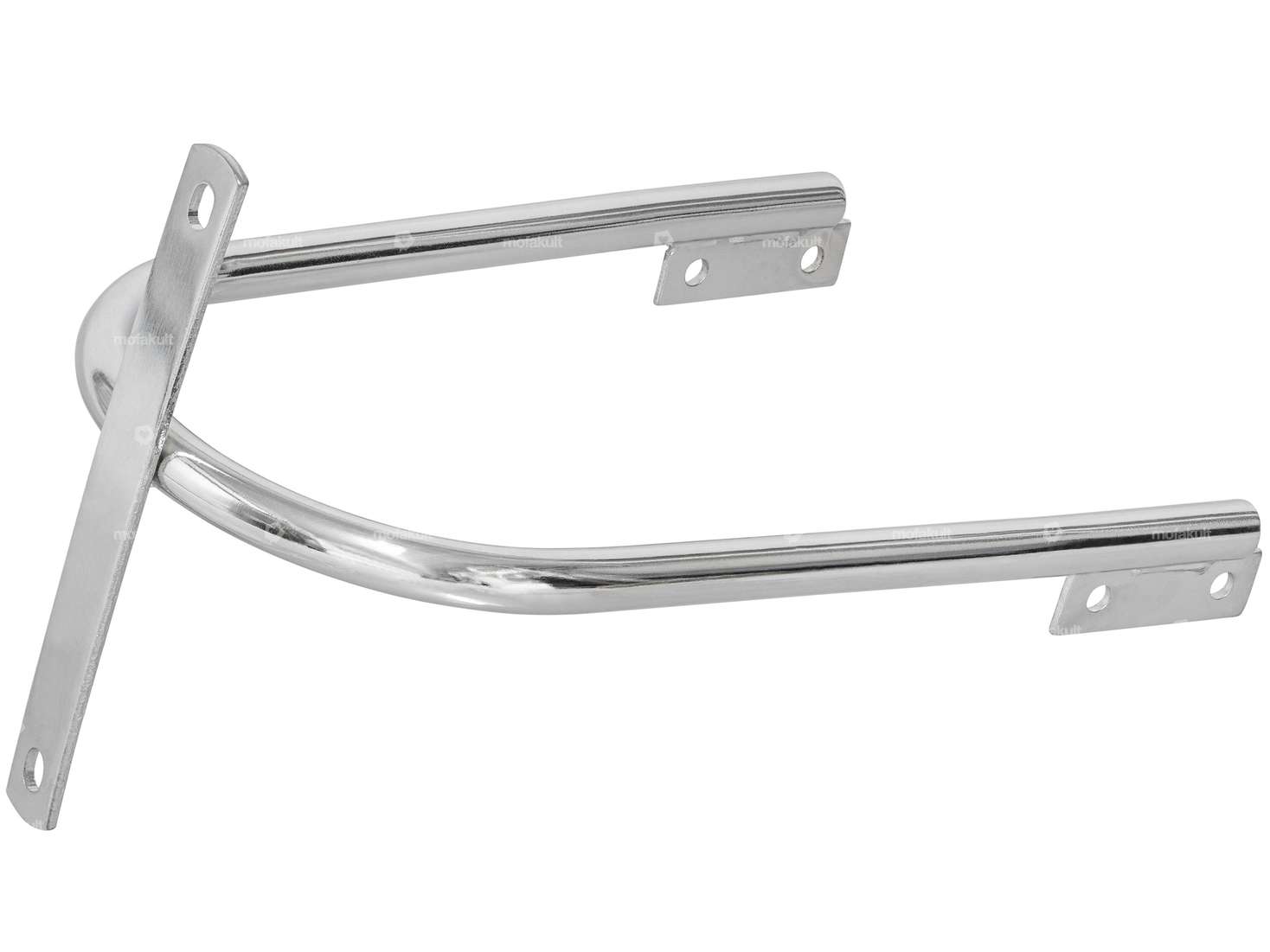

Chrome-plated tube bend for attaching the F1 front mudguard. It also increases the stability of the fork.
Fits various forks with tabs for the mudguard mount. (for 17" wheels).
(See example images 4 & 5).
Total height of arch: 255 mm
Width (outer edges of flat bar): 120 mm
Hole spacing of lateral holes: 35 mm
Drilling diameter: 6.2 mm
(mounting arch)
Details
Material | Steel |
Surface | chrome-plated |
Color | Chrome |
Total length | 255 mm |
Wheel size [inch] | 17 " |
Ø mounting hole | 6.2 mm |
Hole spacing | 35 mm |
Wide intake | 120 mm |
Mounting type | Nuts & bolts |
Number of fixing points | 6 pcs |
