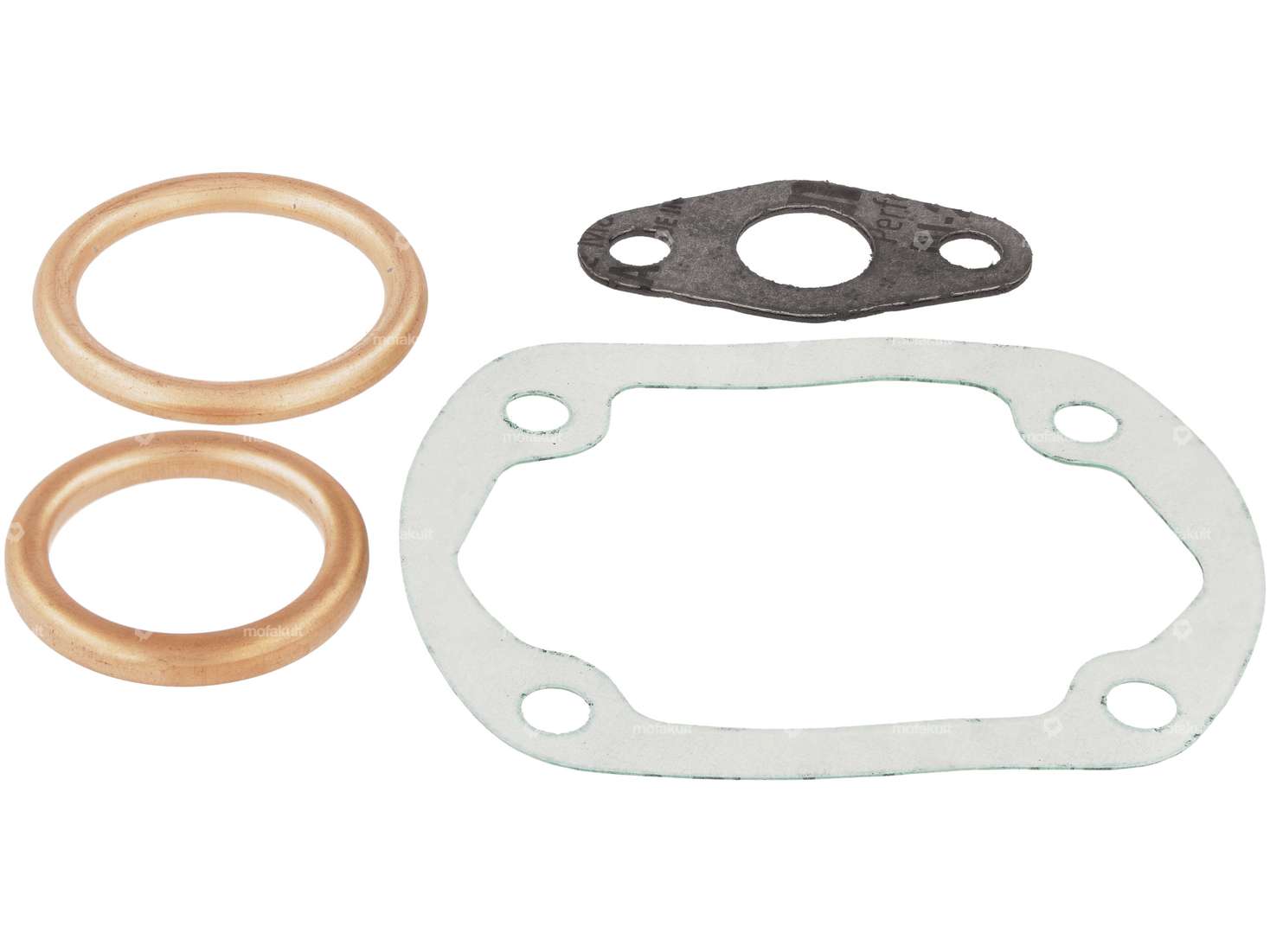

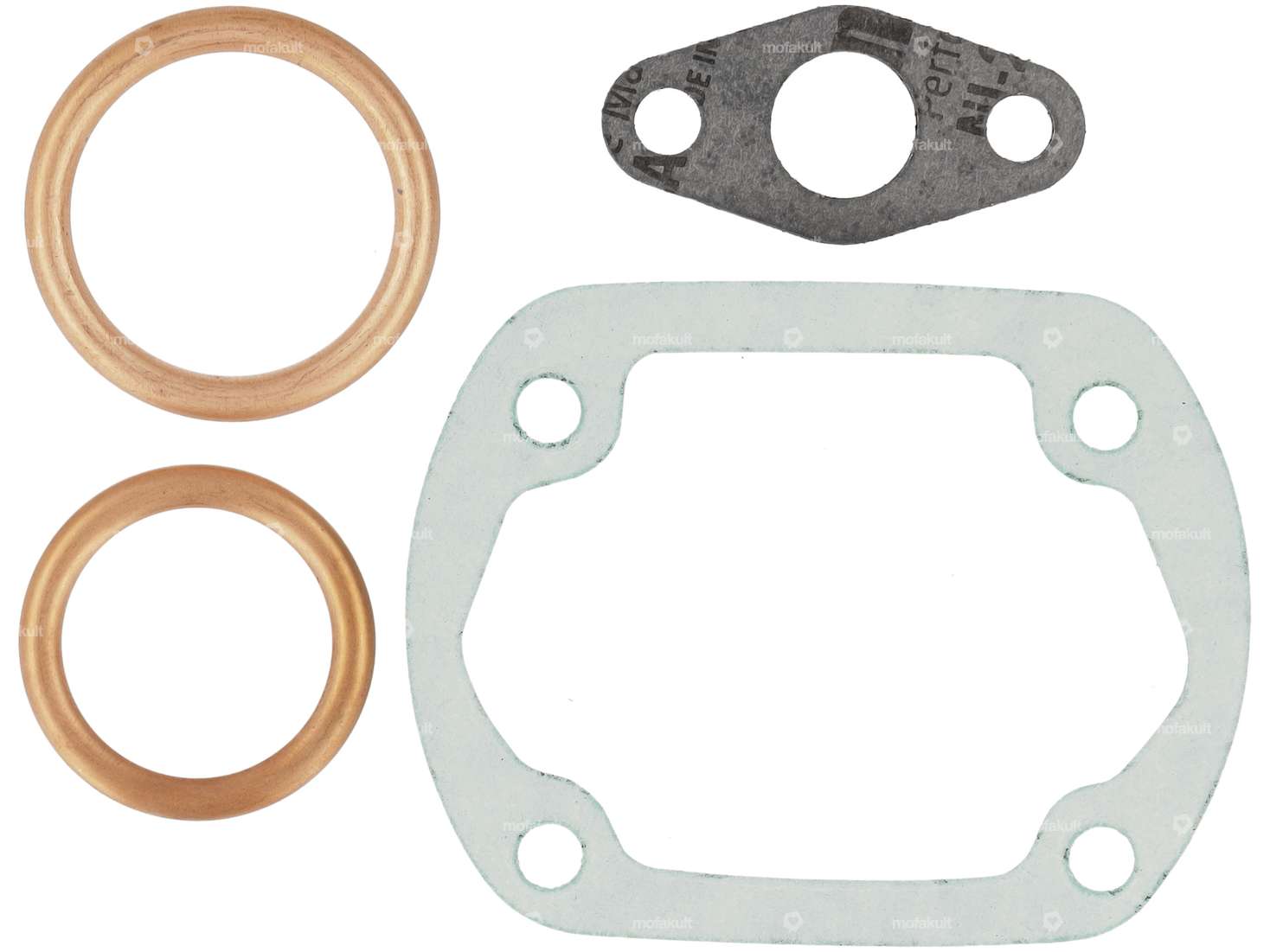

Gasket set Sachs 3-speed 50/3 cylinder

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony spare part no.: A1840 · Sachs spare part no.: 0250 106 00

Flange gasket for Sachs 50/2 connecting piece

Thickness: 5 mm · Place of use: Admission · Ø inside: 11.8 mm · Hole spacing inlet: 31 mm · Pony spare part no.: A1823 · Sachs spare part no.: 0250 085 000

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Surface: blue galvanized · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

GPO piston 38 mm | Sachs 50/3, 50/4 fan-cooled

Manufacturer: GPO · Ø outside piston (A): 37.94 mm · Compression height (C): 27.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 1.7 mm · Thick piston ring: 2 mm · Weight: 78 g · Alternative version of Sachs spare part no.: 0290 058 025

swiing® revival stud bolt inlet M5x26 mm galvanized (strength 10.9) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Thread length: 7 mm · Thread length: 14 mm · Total length: 26 mm · Strength class: 10.9 · Pony spare part no.: A1474 · Sachs spare part no.: 0241 031 101

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Weight: 86 g

GPO 41 mm cylinder kit fan-cooled diaphragm | Sachs 50/2, 50/3, 50/4 (DE)

Manufacturer: GPO · Area of application: Tuning · Material: Gray cast iron · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 55 ccm · Camouflaged: No · Nominal diameter: 41 mm · Number of fixing points: 4 pcs · Hole spacing inlet: 67 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 51 x 40 · Outlet type: Union nut · Thread outlet: M35x2 (standard thread)

GPO 38 mm cylinder kit slotted | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)

Nominal diameter: 38 mm · Manufacturer: GPO · Material: Gray cast iron · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Surface: sandblasted · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning
