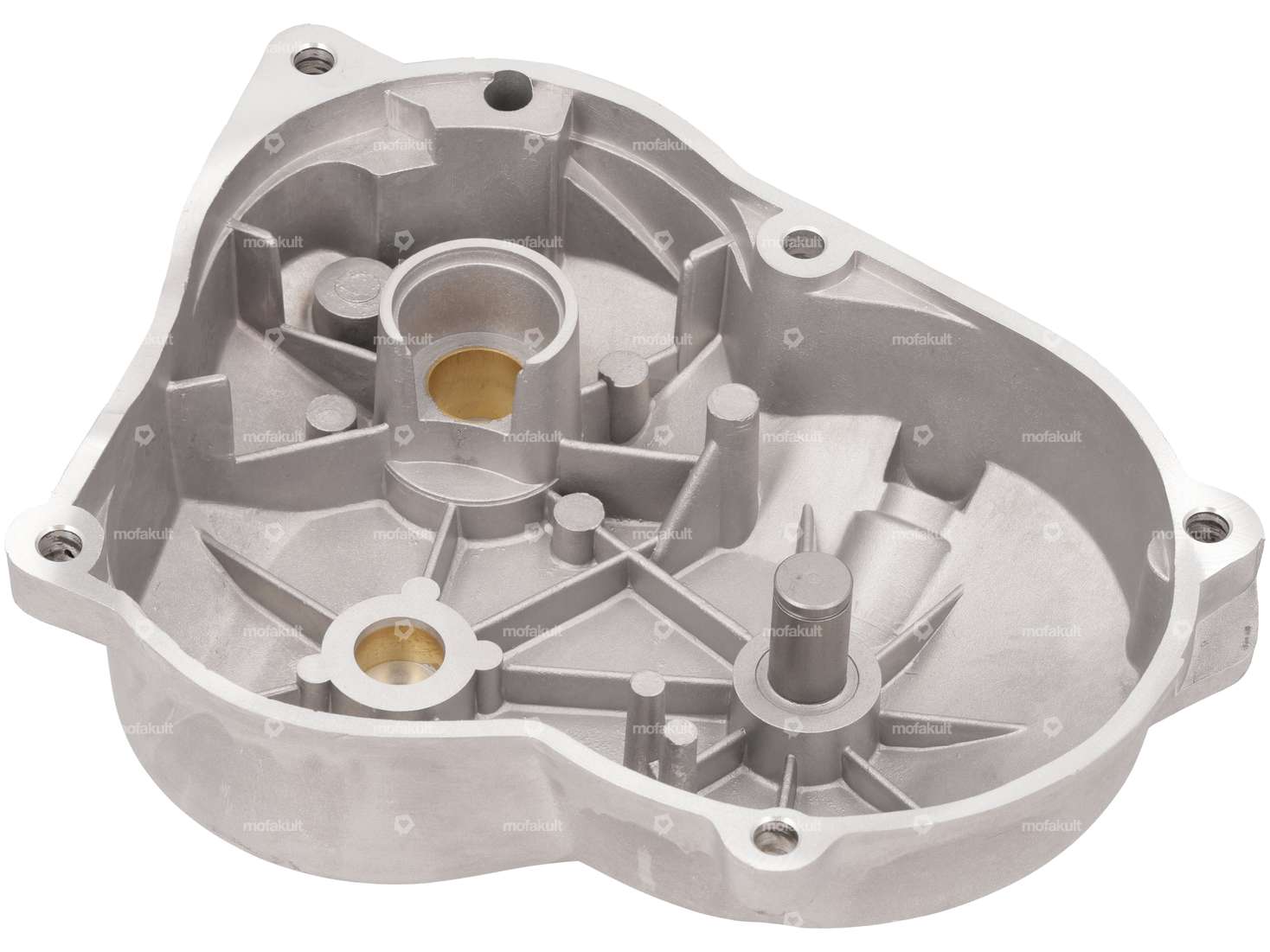

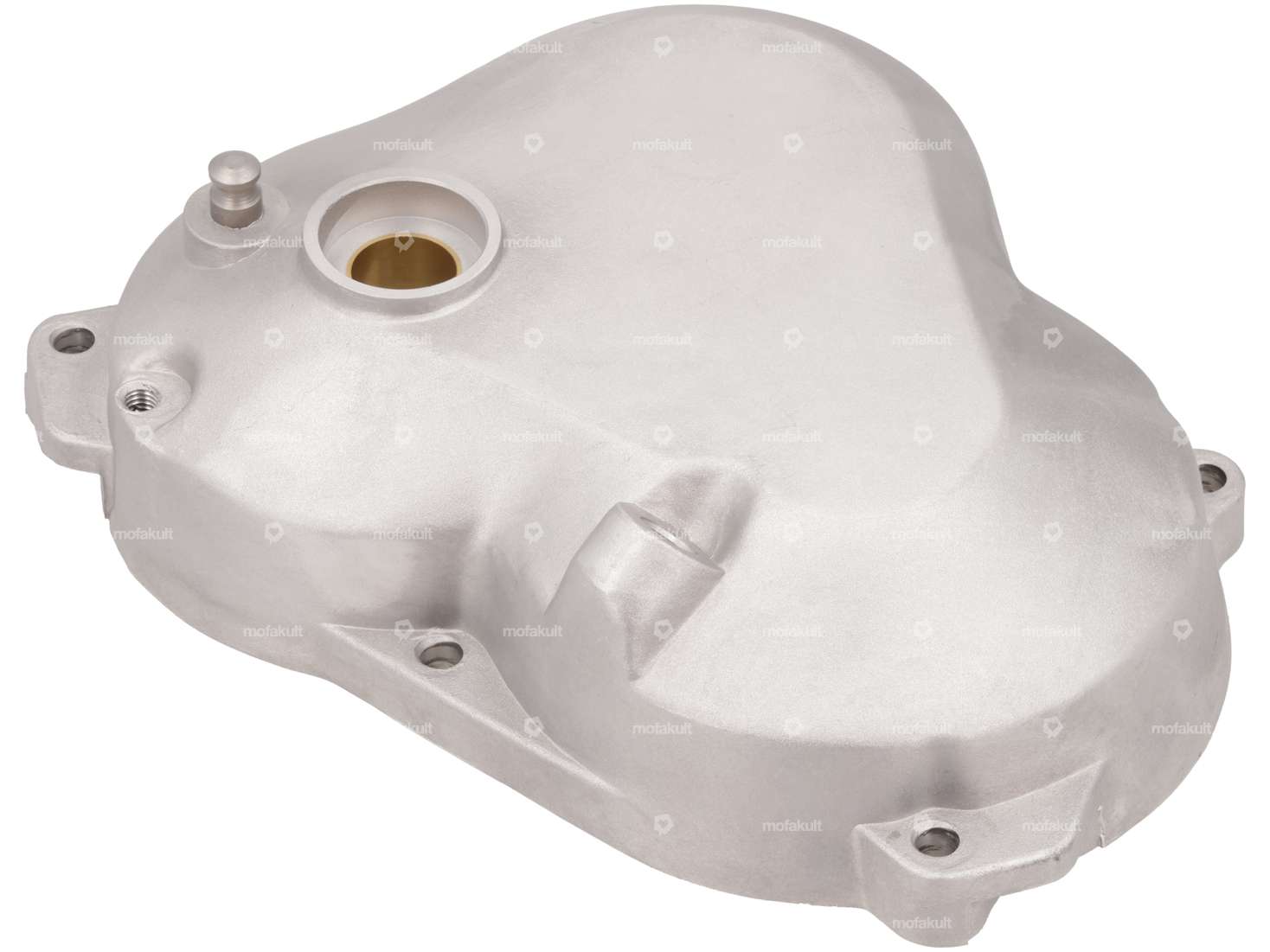

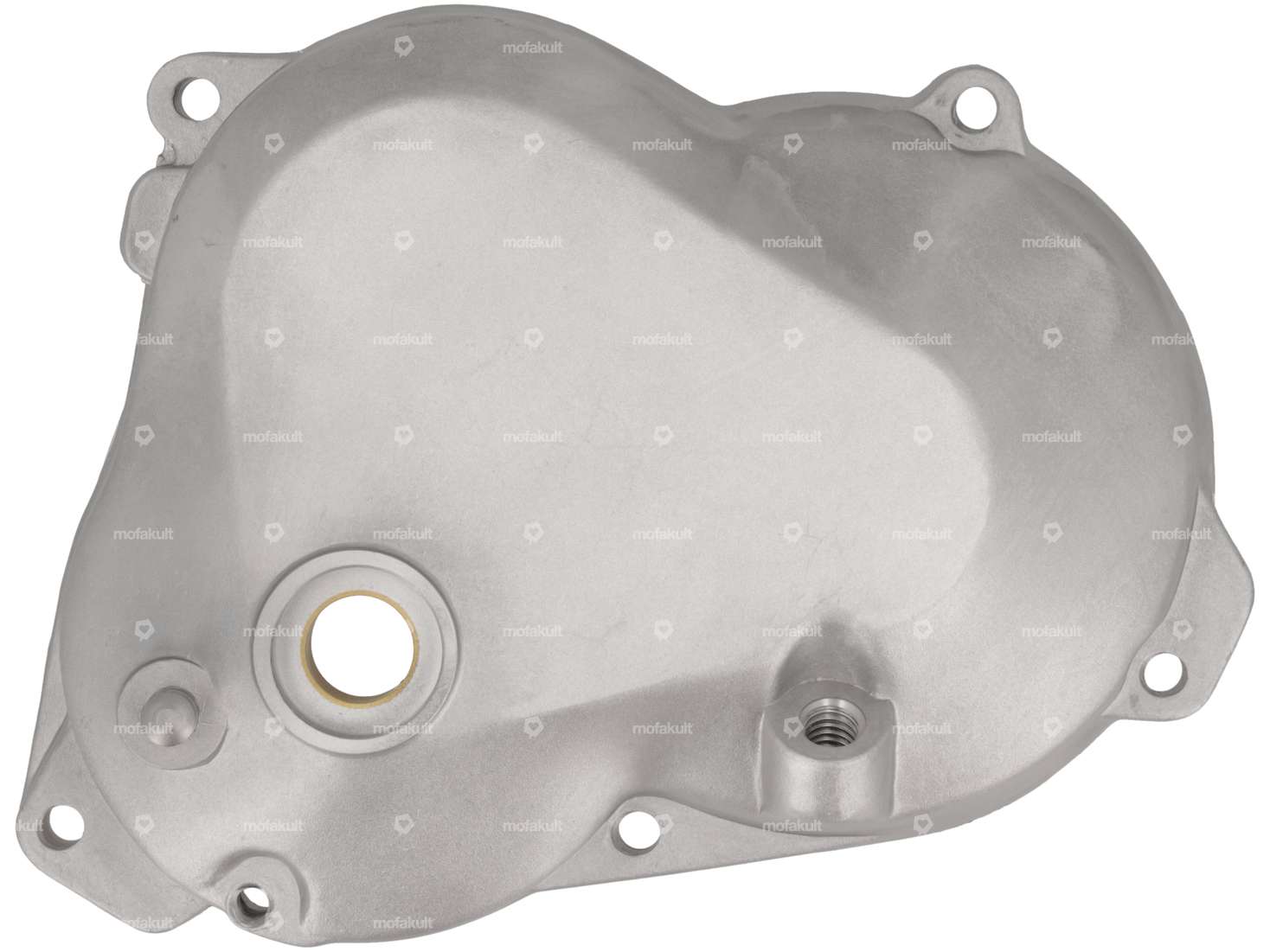

Gearbox cover (kickstarter) | Puch Maxi

Rubber kickstarter original | Puch

Material: Rubber

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM number: 0263 014 002

Gasket gearbox cover Puch Maxi Kickstarter

Number of components: 1 pcs · Material: Sealing paper · Number of fixing points: 5 pcs

Rubber kickstarter replica | Puch

Ø inside: 8.5 mm · Ø outside: 17.2 mm · Material: Rubber · Total length: 64 mm

Kickstart lever sideways | Puch

Material: Metal · Surface: chrome-plated · Puch OEM number: 364.1.13.340.0

Starting shaft kickstarter 15° (bottom) | Puch

Manufacturer: Puch · Material: Steel

Kickstart lever NOS | Puch

Manufacturer: Puch · Material: Metal

Gasket gearbox cover kickstarter (1A quality) | Puch Maxi

Number of components: 1 pcs · Material: Sealing paper · Number of fixing points: 5 pcs

Kickstarter conversion kit | Puch E50

Material: Aluminum

Rito Crankshaft Racing | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Area of application: Racing · Area of application: Tuning · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Weight: 970 g · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

Gasket gearbox cover Puch Maxi Kickstarter

Number of components: 1 pcs · Material: Sealing paper · Number of fixing points: 5 pcs

Oil seal NBR 16/25/7 A Kickstarter | Puch E50

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 25 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Width: 7 mm

Washer M7 galvanized

Material: Steel · Thread size: M7 · Surface: galvanized (blue) · Nominal diameter (thread): 7 mm

Inlet gasket 3 mm square | Puch

Material: Sealing carton · Area of application: Standard · Reinforced: No · Place of use: Admission · Ø screw holder: 7.1 mm · Thickness: 3 mm · Hole spacing inlet: 38 mm

HK Clutch "Racing" Kickstarter | Puch E50

Ø inside: 13.6 mm · Ø inside: 14.6 mm · Ø outside: 93 mm · Manufacturer: HK Clutches · Material: Steel · Material addition: Aluminum · Area of application: Racing · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Thickness: 20.3 mm

Wedge for kickstart lever | Puch E50, Z50

Ø outside: 9 mm · Material: Steel · Surface: galvanized (blue) · Total length: 48 mm · Puch OEM number: 364.2.13.342.1

swiing® revival spring basket | Puch Z50

Ø inside: 24.3 mm · Ø outside: 62 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: Standard · Surface: anodized · Color: red · Height: 26 mm · Puch OEM number: 050.1205

Inlet gasket angular | Puch

Material: Sealing paper · Reinforced: No · Place of use: Admission · Ø screw holder: 6.8 mm · Thickness: 0.3 mm · Hole spacing inlet: 38 mm
