For: Piaggio

33451

GOL piston 41 mm (10 mm KoBo) | Piaggio Ciao, SI, Boxer, Bravo

Home
| Motor
| Cylinder
| Piston
69,40 EUR

Incl. 19% VAT.

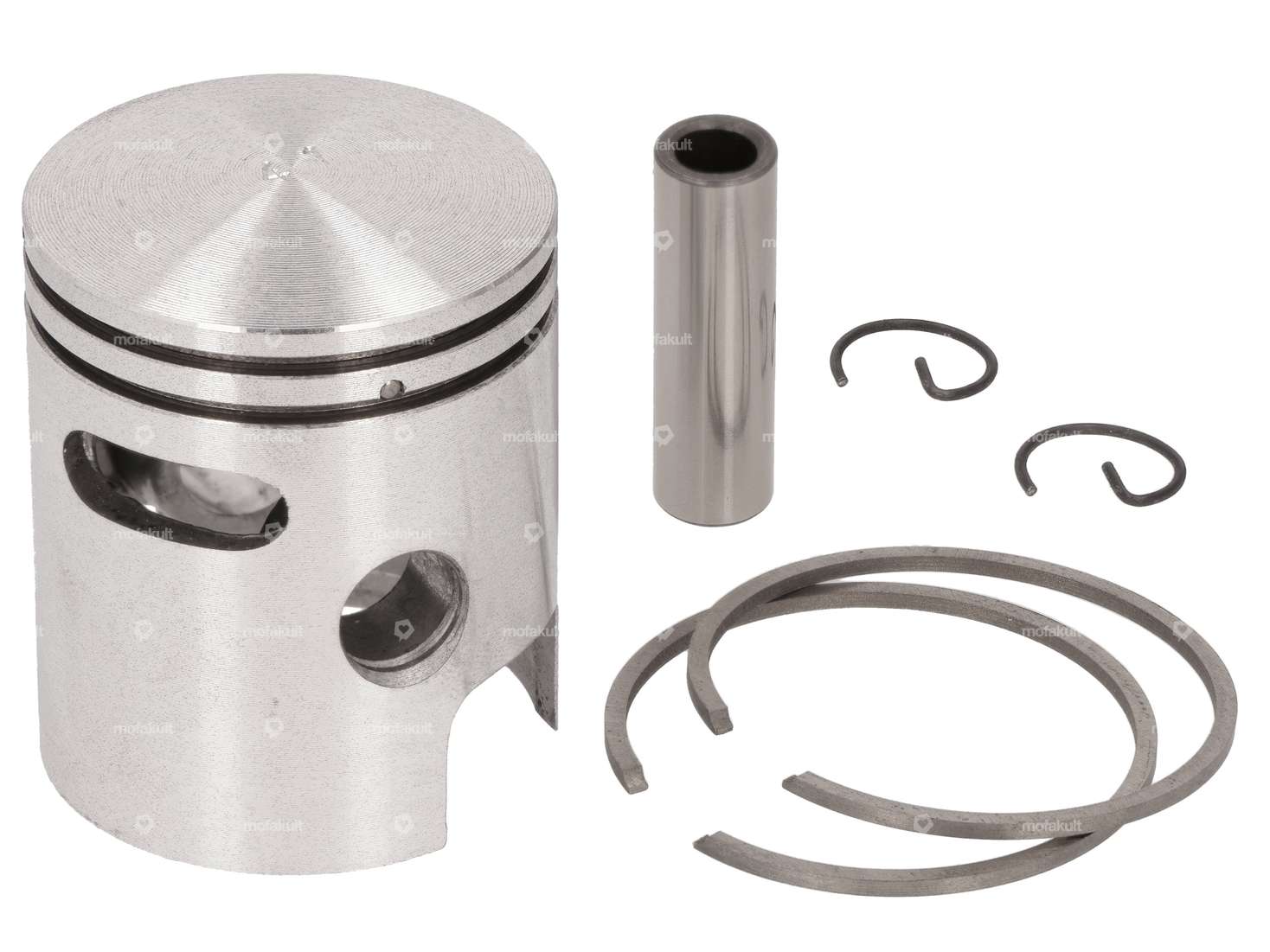

41 mm piston kit with two 1.5 mm rectangular piston rings with side protection (FS) for your Piaggio Ciao, Si, Bravo, Boxer and Grillo moped / moped.

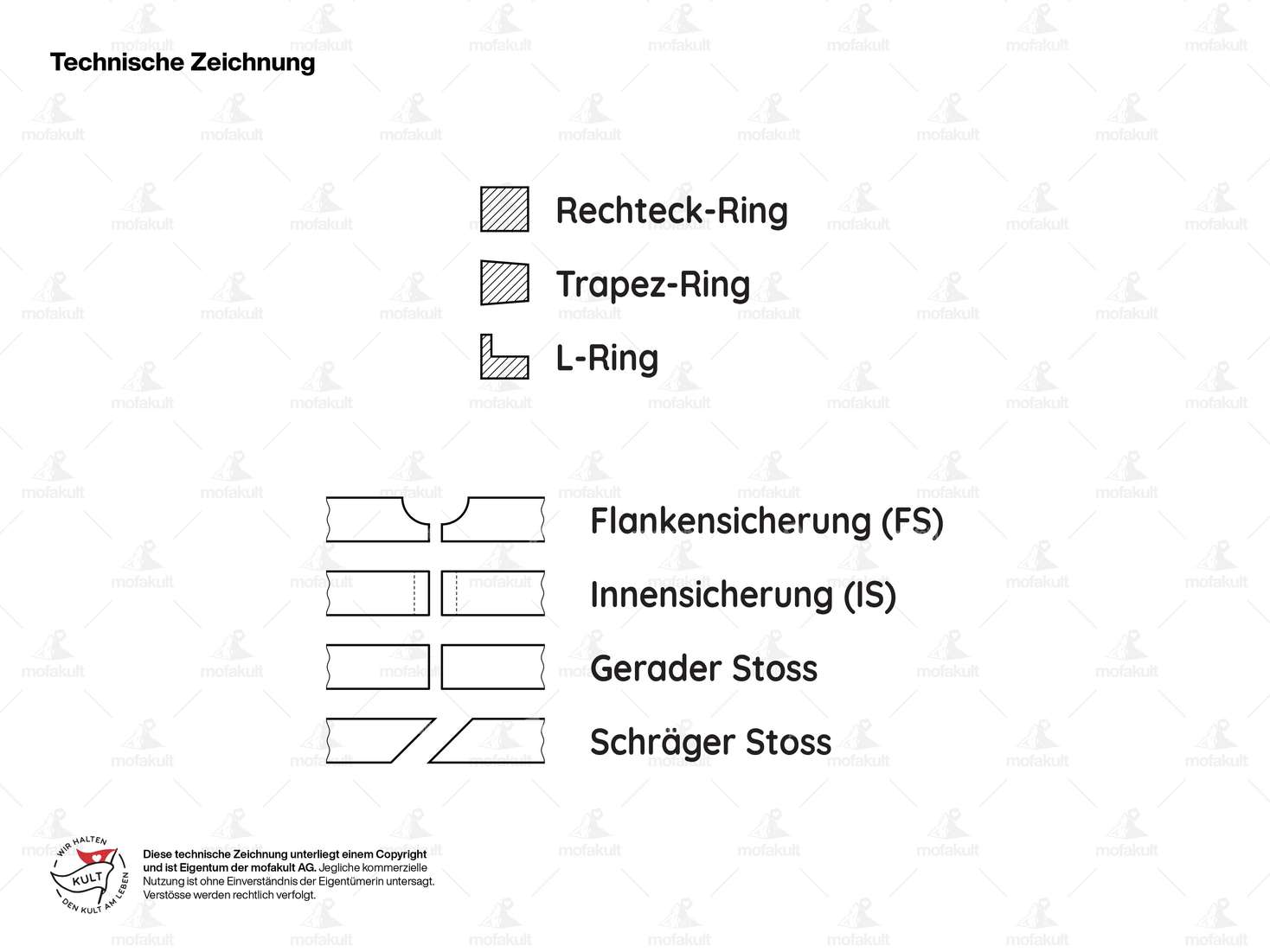

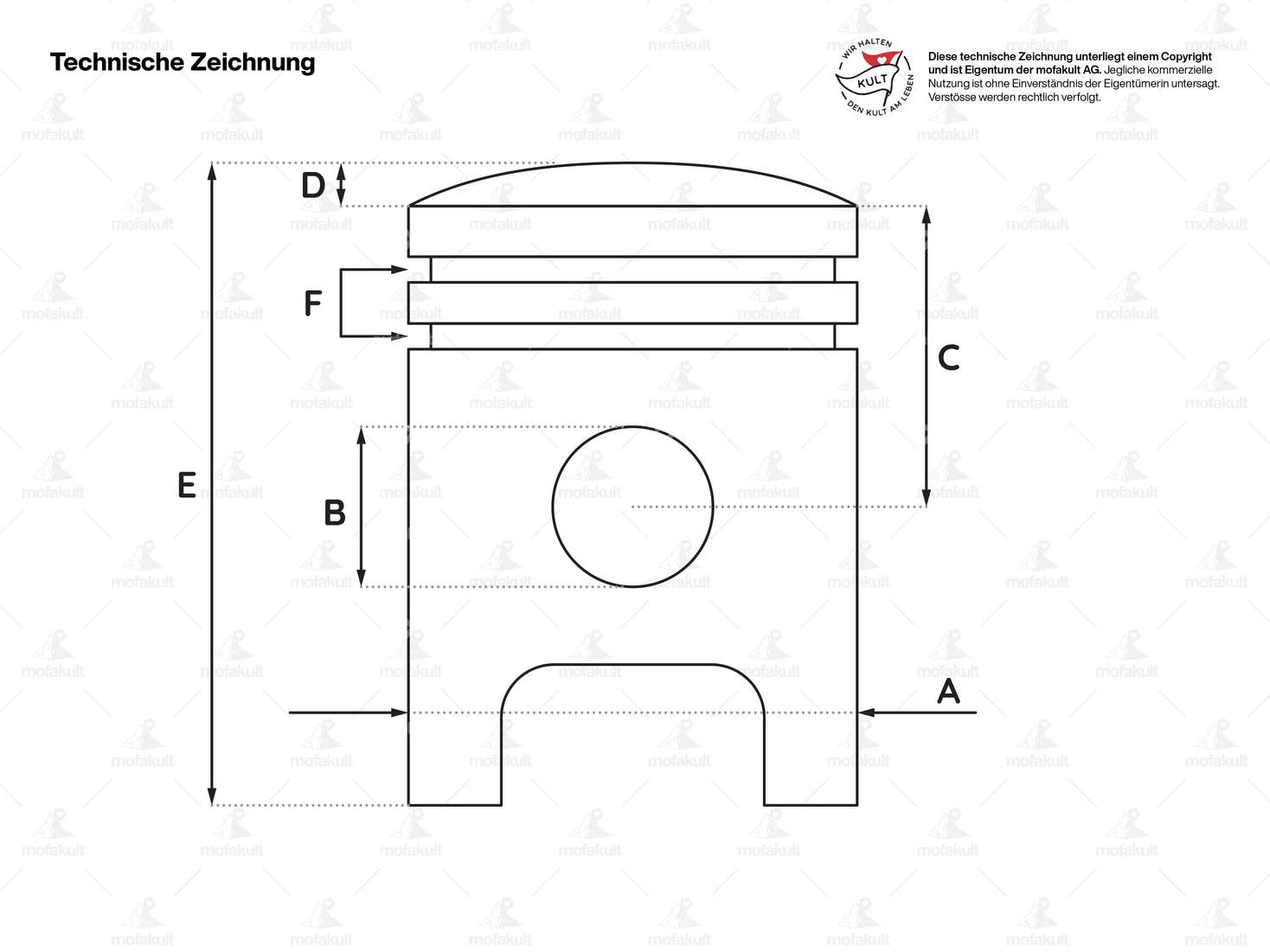

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Details

ManufacturerGOL
Ø outside piston (A)40.94 mm
Ø piston pin (B)10 mm
Compression height (C)25 mm
Curvature (D)2.4 mm
Total piston height (E)50 mm
Number of piston rings (F)2 pcs
Nominal diameter41 mm
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Piston weight78 g

Suitable for the following models

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao

Si

Bravo/Superbravo

Grillo

Gilera CBA

Gilera Citta
