45.0 mm piston with two 1.5 mm rectangular piston rings with internal circlips (IS) for your moped / moped with blown BAD ASS Lucifer 45.00 mm cylinder on Puch X30 Velux and Puch X30 NG-2AH engines. The piston kit is used for the 45 mm cylinder variant.

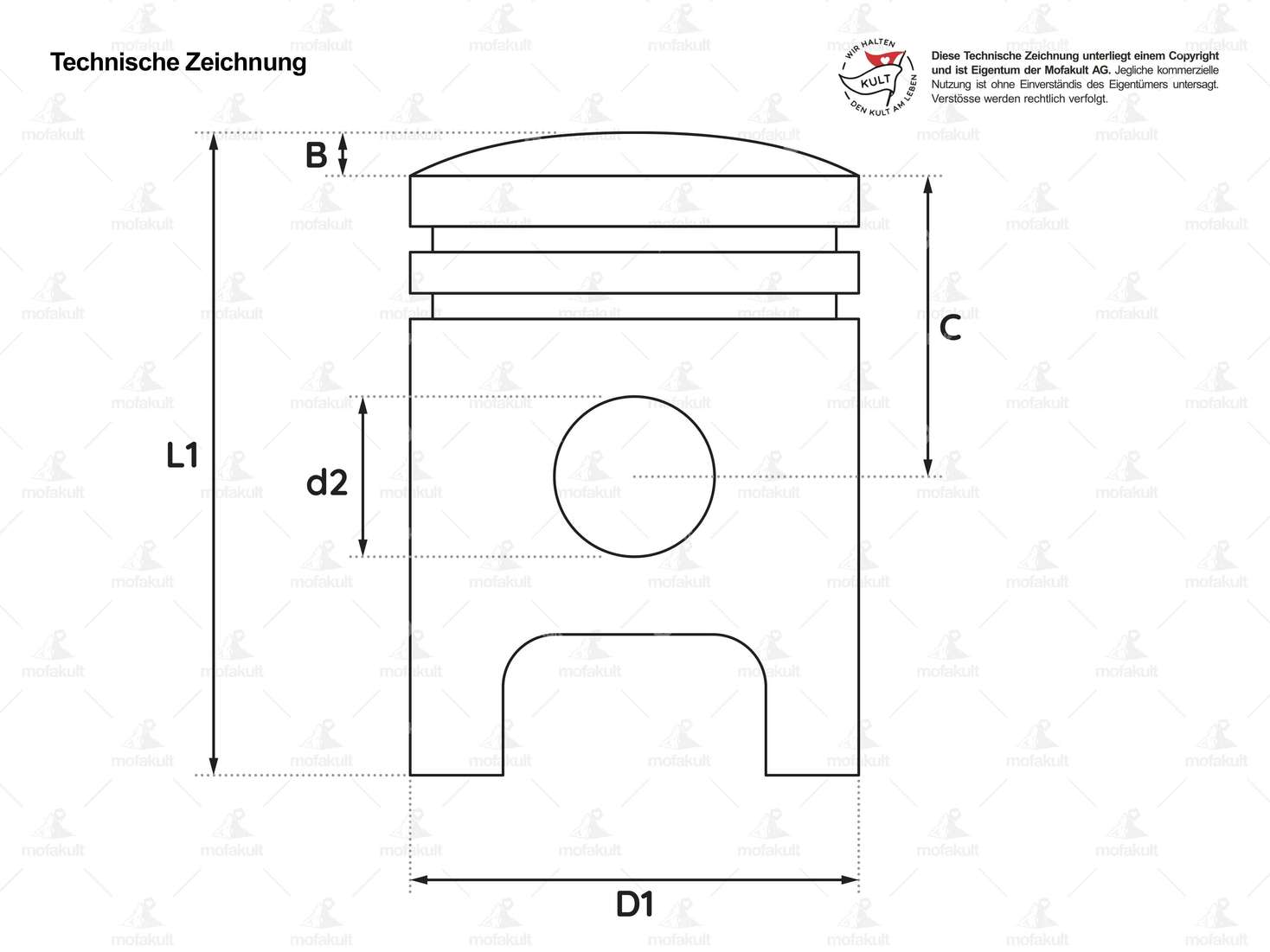

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

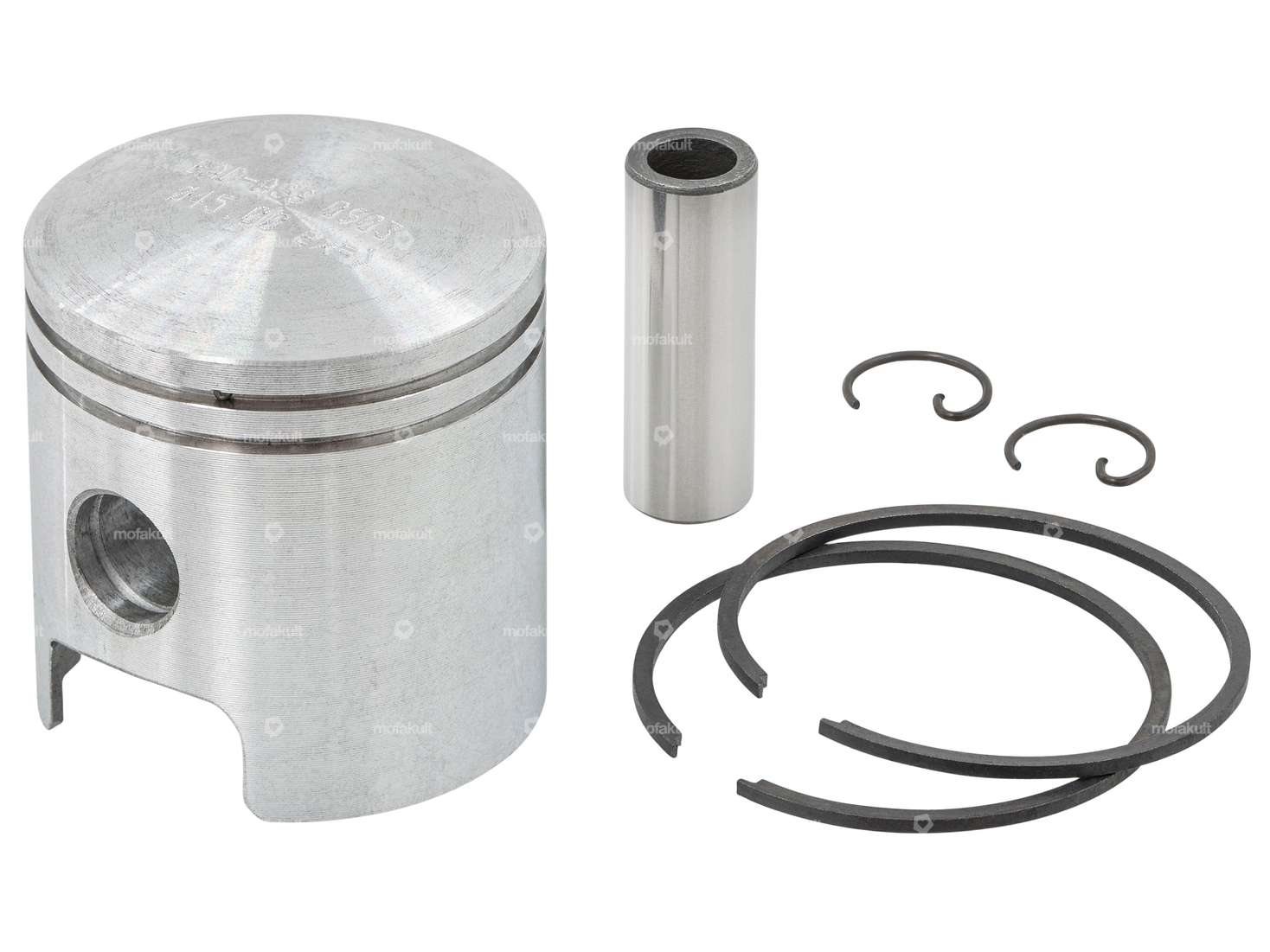

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer GOL.
Details
Nominal diameter | 45 mm |
Manufacturer | BAD ASS |
Ø outside piston (A) | 44.94 mm |
Compression height (C) | 22.4 mm |
Curvature (D) | 2.4 mm |
Total piston height (E) | 48.3 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | Rectangular ring |
Piston ring impact | Internal fuse (IS) |
Ø piston pin (B) | 12 mm |
Suitable for the following models
Puch | ZA50 (Gebläsegekühlt) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Accessories & related products
swiing® ingenious 15 mm intake manifold (CNC) | Puch X30 Velux
Ø inside: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Mounting type: Screws · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Ø External connection: 20 mm
49,10 EUR
55,80 EUR
swiing® ingenious 15 mm carburetor set camouflaged | Puch X30 Velux
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Air filter connection: 23 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5 · Nozzle size: 62 · Hole spacing inlet: 32 mm
137,30 EUR
swiing set exhaust resonance Ø 28 / 70 mm | Puch X30 Velux
Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange
167,60 EUR
swiing® revival Set stud bolts M6x30 (strength 10.9) galvanized
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Total length: 30 mm · Drive: External hexagon · Diameter: 6 mm · Strength class: 8 · Strength class: 10.9 · Thread length: 12 mm · Width across flats SW: 10 mm · Thread type: M6x1 (standard thread)
11,90 EUR
BAD ASS Lucifer BigBore cylinder Ø 45 mm | Puch X30 Velux, NG-2AH
Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Ø cylinder neck: 49 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 19 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44
279,30 EUR
Not in stock

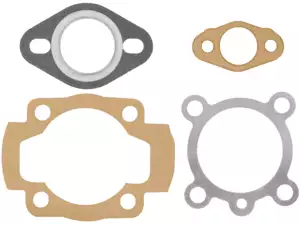

GPO cylinder gasket set BAD ASS Lucifer 45 mm | Puch X30 Velux, NG-2AH
