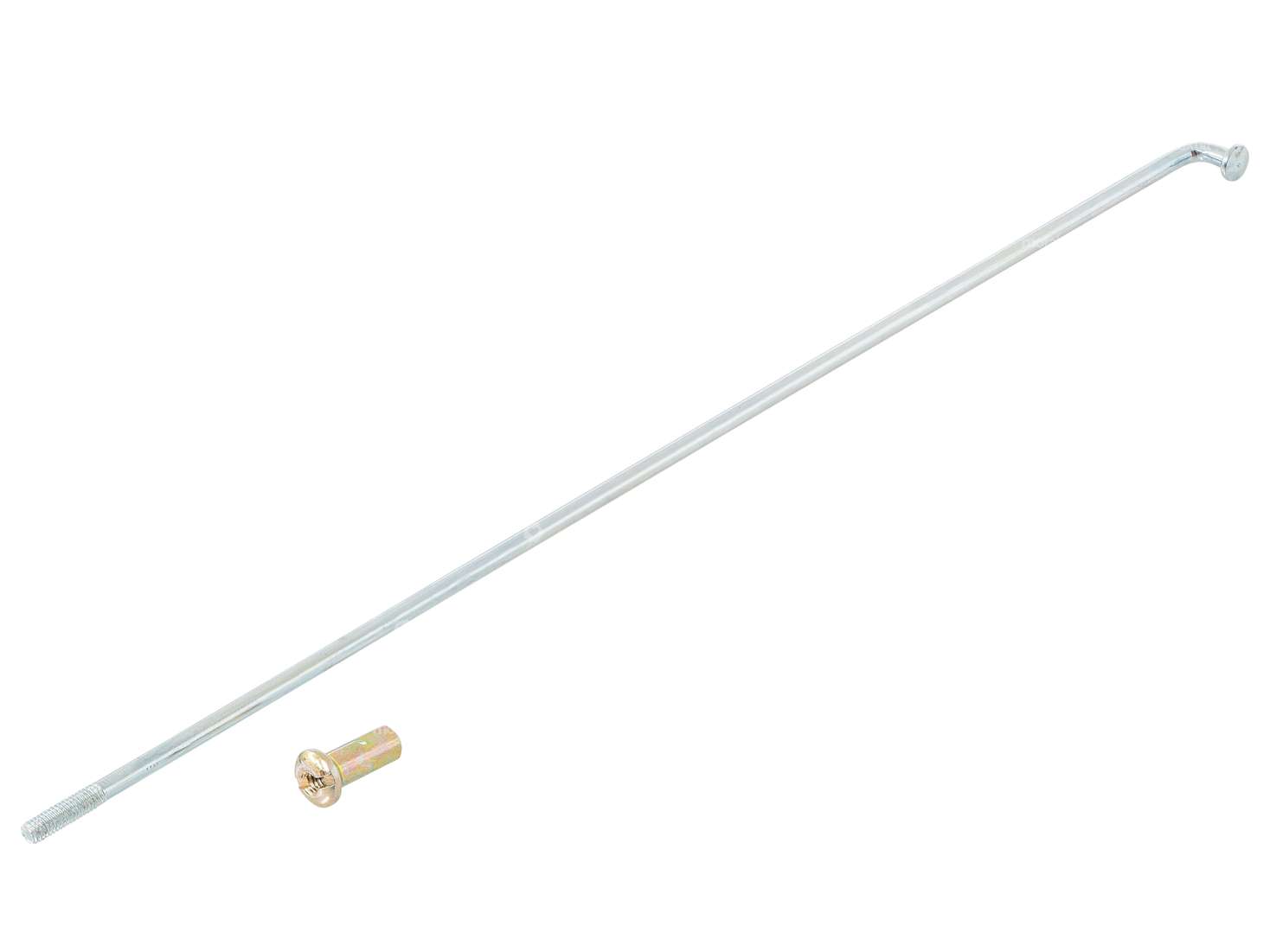

Single, galvanized spoke including nipple.
Suitable for 19" spoke wheels of various mopeds, mopeds and small motorcycles.

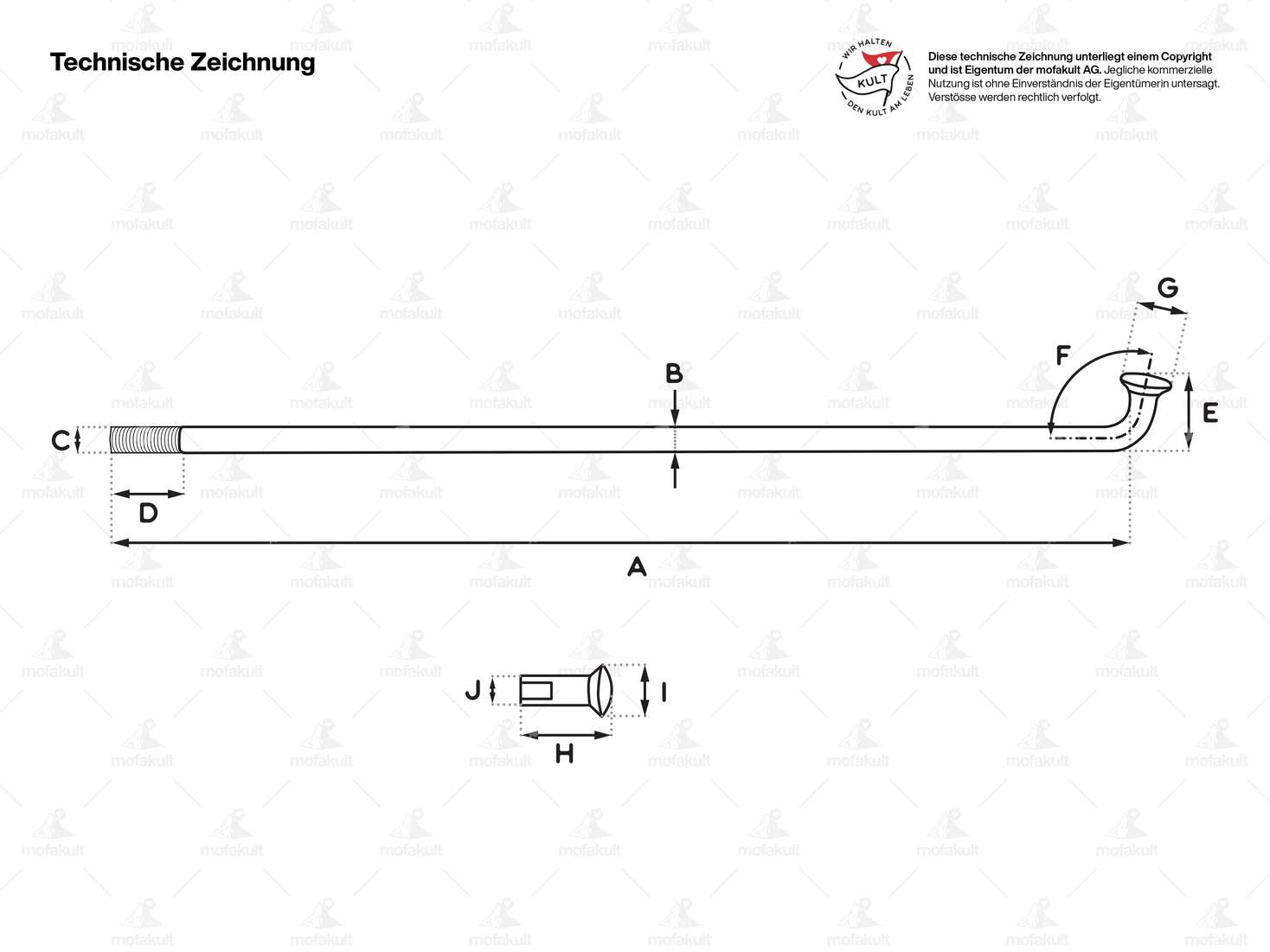

Spoke dimensions:
Length from hook inside (A): 212 mm
Ø spoke (B): 2.9 mm
Ø thread (C): 3.15 mm
Hook length (E): 9.8 mm
Thread length (D): 11 mm
Hook angle (F): 95°
Ø spoke head (G): 5.35 mm
Material: Steel, galvanized
Dimension spoke nipple:
Total length (H): 14 mm
Ø nipple head (I): 8.1 mm
Ø nipple neck (J): 5.0 mm
Material: Steel, galvanized
Matching fitting tools, rim tapes and complete spoke sets can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Nipple length | 14 mm |
| Manufacturer | GPO |
| Material | Steel |
| Surface | galvanized (blue), galvanized (yellow) |
| Length from hook | 212 mm |
| Nominal diameter (thread) | 3.15 mm |
| Ø spoke head | 5.35 mm |
| Ø spoke | 2.9 mm |
| Ø nipple head | 8.1 mm |
| Ø Nipple neck | 5 mm |
| Hook length | 9.8 mm |
| Thread length | 11 mm |
| Hook angle | 95 ° |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs |
