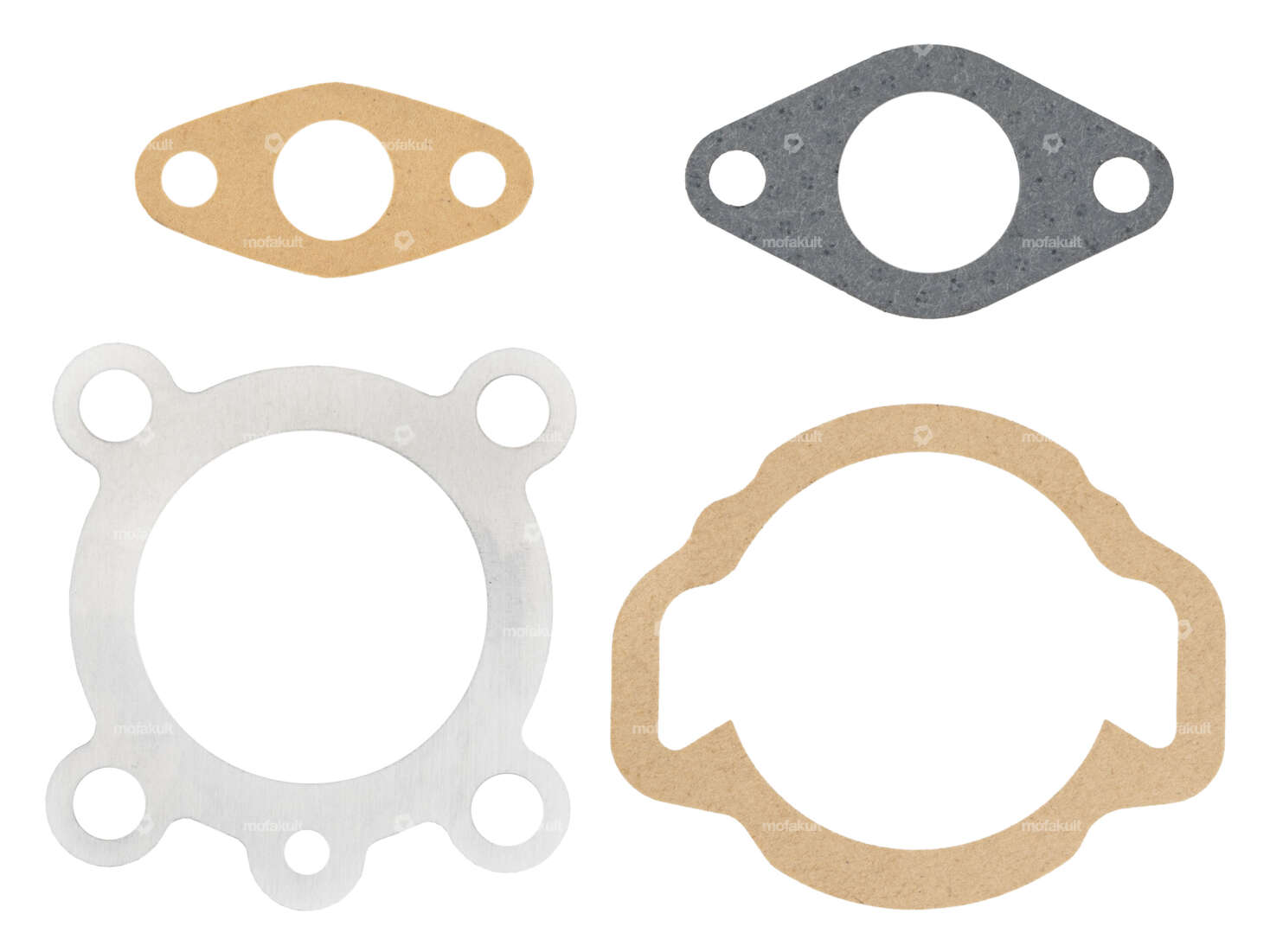

GPO gasket set 38 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Color: silver · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

Magura cable holder

Color: silver · Ø outside: 8 mm · Total length: 14.5 mm · Ø Bundle: 10 mm · Ø Cable bushing: 4 mm · Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Area of application: Standard

Meteor piston 38 mm #1 | Puch

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: 1 · Puch spare part no.: 349.1.10.106.0/21

Piston 38 mm (12 mm KoBo) short shirt | Puch fan-cooled

Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.9 mm · Curvature (D): 3.2 mm · Total piston height (E): 50.1 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm

GPO Piston 38 mm No. 2 | Puch

Nominal diameter: 38 mm · Manufacturer: GPO · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Tolerance group: 2

Cylinder 38 mm fan-cooled 12 mm KoBo | Puch Velux, NG-2AH

Nominal diameter: 38 mm · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Number of fixing points: 4 pcs · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44

swiing® revival Set stud bolts M6x30 (strength 10.9) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Total length: 30 mm · Drive: External hexagon · Diameter: 6 mm · Strength class: 8 · Strength class: 10.9 · Thread length: 12 mm · Width across flats SW: 10 mm · Thread type: M6x1 (standard thread)

swiing 38 mm cylinder kit 12 mm KoBo | Puch X30 Velux, NG-2AH

Nominal diameter: 38 mm · Manufacturer: Meteor · Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning
