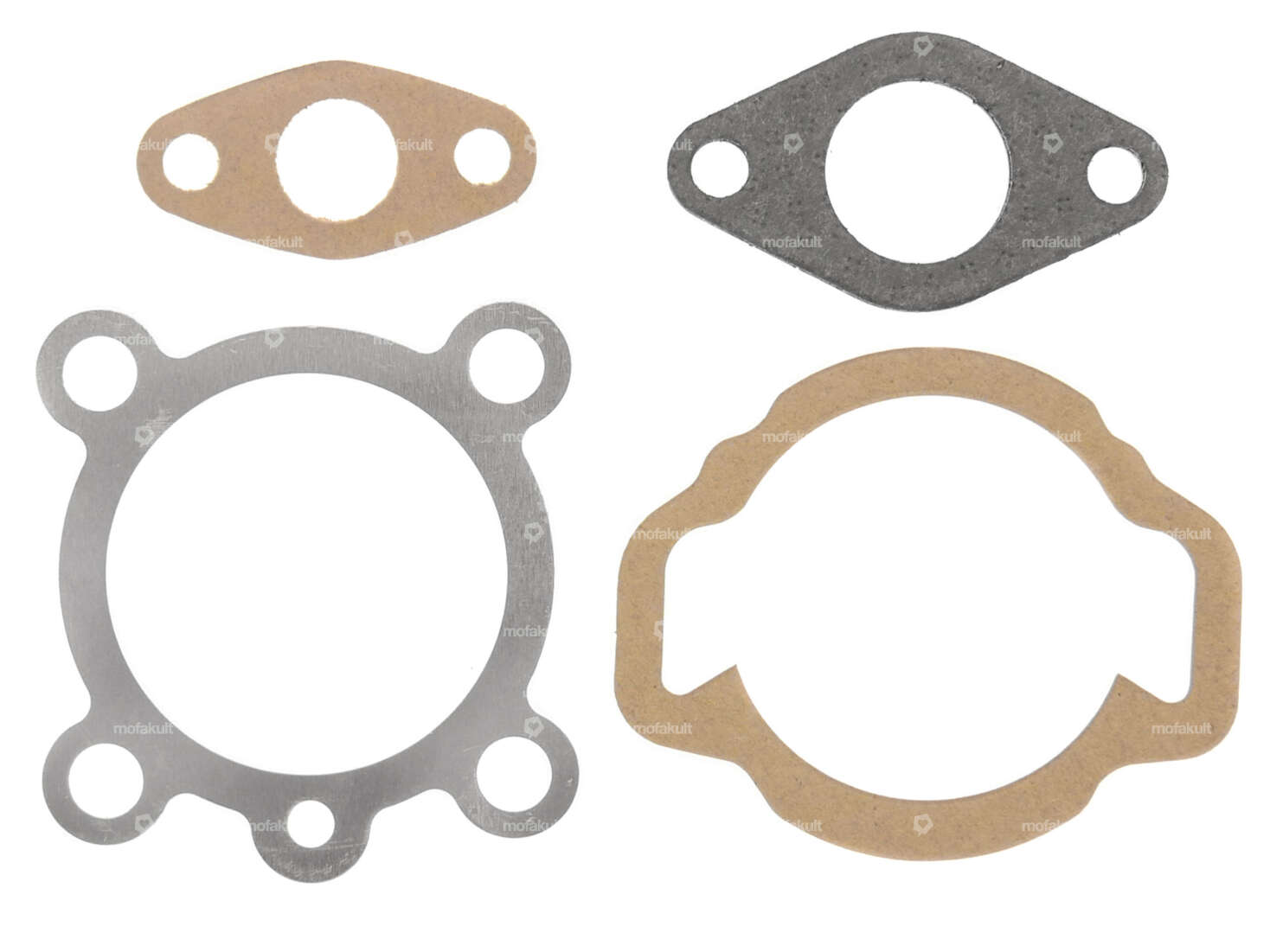

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Total length: 30 mm · Diameter: 5.95 mm · Strength class: 10.9 · Thread length: 12 mm · Thread type: M6x1 (standard thread)

GPO piston 40 mm (12 mm KoBo) | Puch X30 Velux fan-cooled

Nominal diameter: 40 mm · Manufacturer: GPO · Ø outside piston (A): 39.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.4 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux fan-cooled

Nominal diameter: 41 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

swiing piston 41 mm (12 mm KoBo) Racing | Puch X30 Velux fan-cooled

Manufacturer: swiing · Surface: molybdenum-coated · Ø outside piston (A): 40.95 mm · Compression height (C): 22.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm

swiing centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Total length: 17 mm · Nominal diameter: 7 mm · Manufacturer: swiing · Ø inside: 7.1 mm · Ø outside: 8 mm · Material: Aluminum

swiing® revival Set stud bolts M6x30 (strength 10.9) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Total length: 30 mm · Drive: External hexagon · Diameter: 6 mm · Strength class: 8 · Strength class: 10.9 · Thread length: 12 mm · Width across flats SW: 10 mm · Thread type: M6x1 (standard thread)

swiing 40 mm cylinder kit 12 mm KoBo | Puch X30 Velux, NG-2AH

Nominal diameter: 40 mm · Manufacturer: swiing · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 55 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Number of fixing points: 4 pcs · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44

GPO cylinder 41 mm fan-cooled 12 mm KoBo | Puch X30 Velux, N-2AH

Manufacturer: GPO · Manufacturer: Meteor Racing · Manufacturer: swiing · Camouflaged: No · Area of application: Tuning · Material: Gray cast iron · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 41 mm · Ø cylinder neck: 43.2 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.6 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 32 mm
