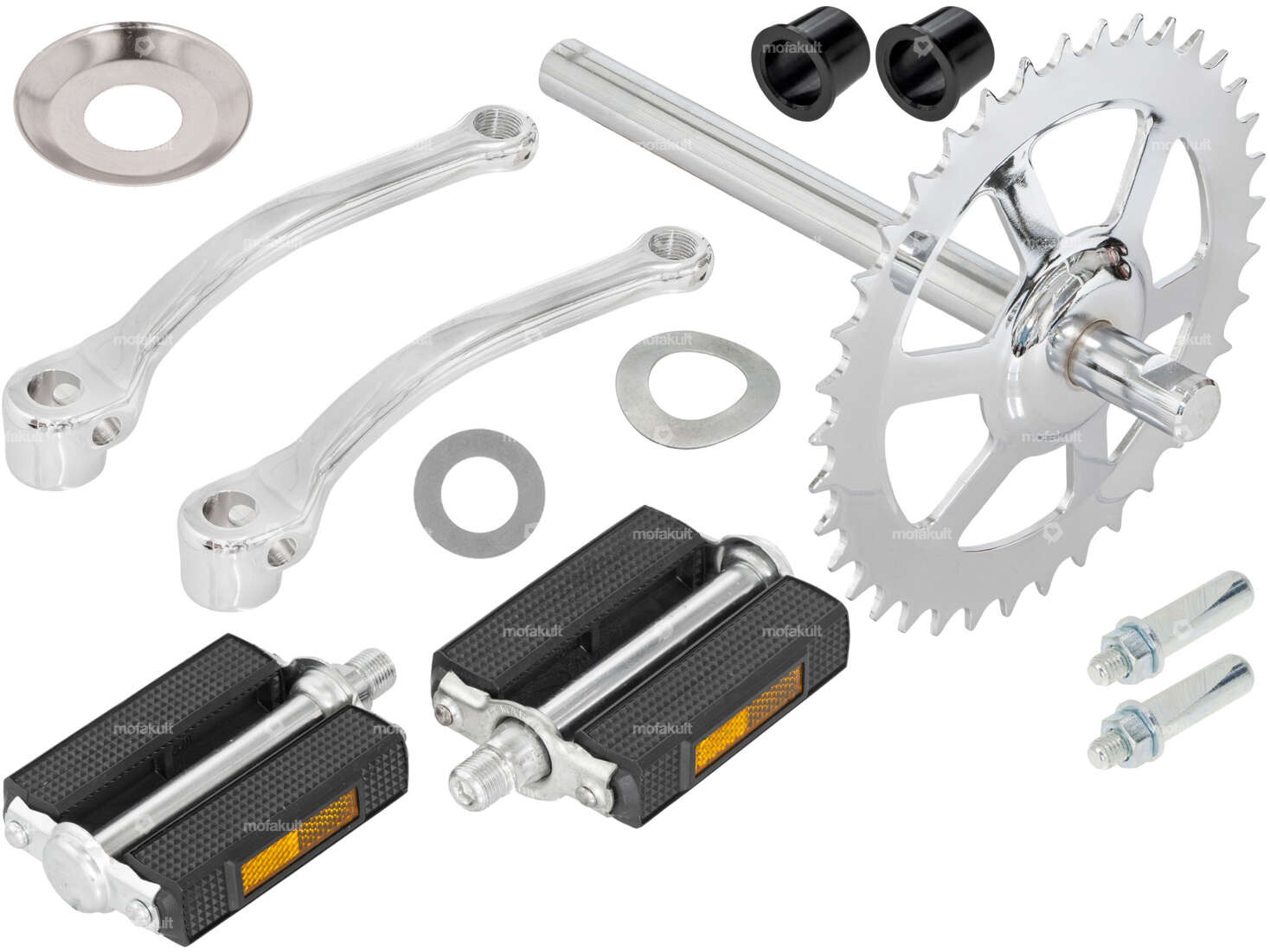

Complete pedal set suitable for Puch X30 Sport NS / NL mopeds.
The set includes pedal axle, cranks, pedals, bottom bracket bushes, crank keys, thrust washer, spring washer and spacer - in short: all the individual parts that are installed on the crankset.
Outer diameter of spider: 155 mm
Ø bottom bracket shaft: 16 mm
Shaft length from spider: 33 or 172 mm
Total length: 208 mm
Number of teeth: 37
All material is of the best quality and fits perfectly
The set includes the following fixed parts:
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: blank · Color: Chrome · Ø inside: 16.3 mm · Ø outside: 39.6 mm · Ø Bundle: 27 mm · Total length: 4.3 mm
Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blue galvanized · Spring design: Special spring · Material thickness: 0.6 mm · Ø inside: 17 mm · Ø outside: 29 mm · Total length: 1.7 mm
Ø inside: 16.1 mm · Ø outside: 28 mm · Thickness: 0.5 mm · Nominal diameter (thread): 16 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 37 pcs · Wavelength from wreath: 33 mm, 170 mm · Ø outside: 16 mm · Ø Outer sprocket: 155 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 180 mm · Crank length (center-center): 156 mm · Wide intake: 28 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 49 mm, 37 mm · Thread type: FG14.3 (9/16" 20G)
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Color: silver · Thread type: M7x1 (standard thread) · Ø outside: 9.5 mm · Total length: 43 mm · Angle crank wedge: 4.5°
Details
| Manufacturer | GPO |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
Suitable for the following models
| Puch | Z50 (X30 Sport) |
