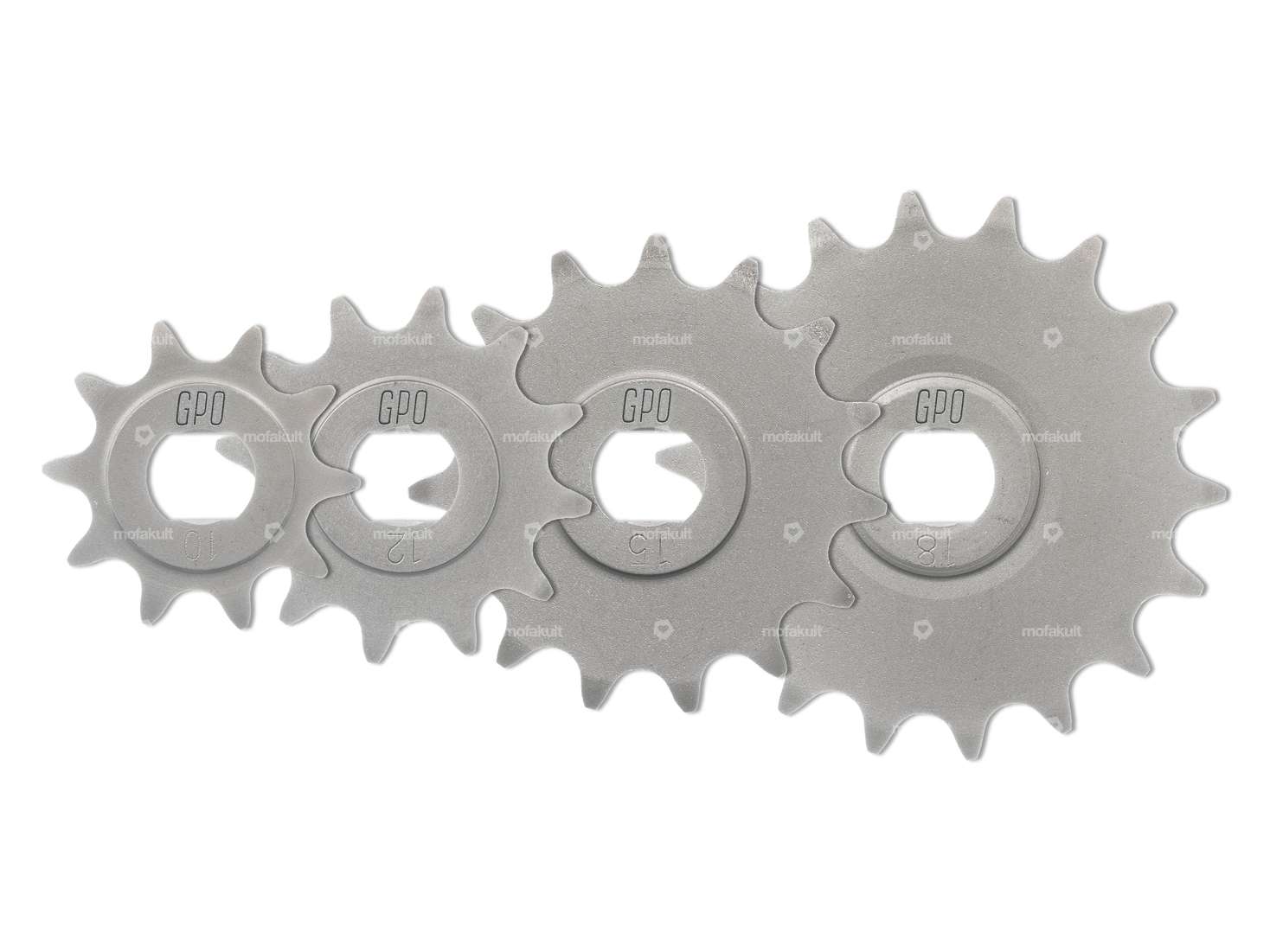

Drive sprocket (chain wheel) with shoulder on both sides for your Sachs moped / moped with 503 2AL / 2BL / ABL / AB / AC / AAL / ADV, 502 AML, ML, 504, 505, 535 engine.
This drive sprocket was installed on the following models, among others: Alpa, Caravelle, Comet, DKW, Eiger, Göricke, Hercules, Prior, Pony Junior, Rico, Rixe, Walco etc.

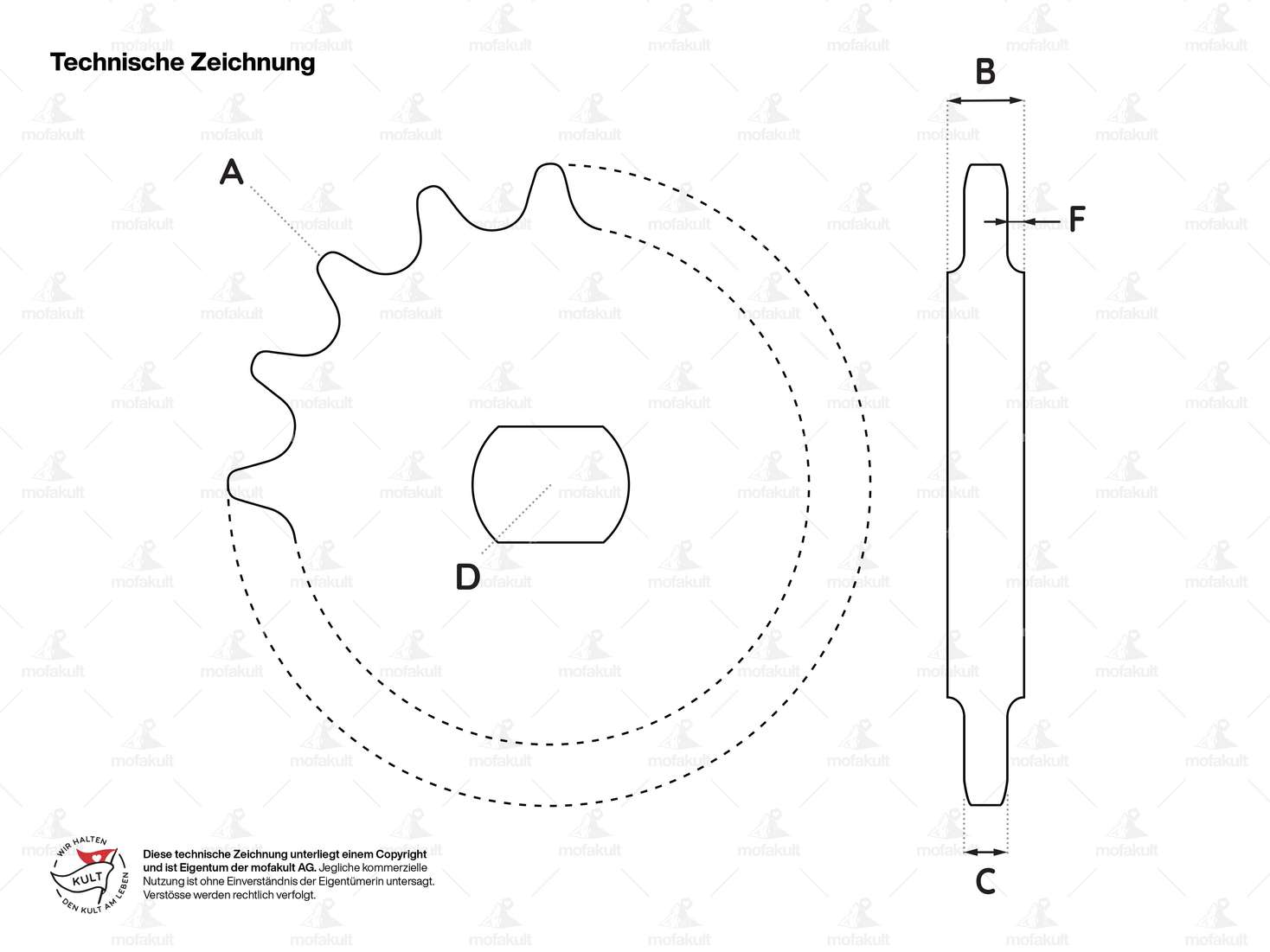

Number of teeth (A): 10, 11, 12, 13, 14, 15, 16, 17, 18 of your choice
Total thickness (B): 5.8 mm
Thickness without shoulder (C): 4.3 mm
Mounting (D): Ø 15 x SW12
Suitable chain standard: 415
Pitch: 1/2" x 3/16"
If drive sprockets with 17 or 18 teeth are used, an adjustment in the motor gearbox is necessary!
You will find the appropriate fitting tool as well as chain whip, nut for sprocket attachment, chain spray etc. in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Sachs spare part number:
13 Zähne: A1280 - 0236 103 000
15 Zähne: A1285 - 0236 109 001
16 Zähne: A5606 - 0236 109 203
Details
| Chain type | 415H |
| Chain pitch | 1/2" x 3/16" |
| Manufacturer | GPO |
| Material | Steel |
| Surface | sandblasted |
| Number of teeth | 10 pcs, 11 pcs, 12 pcs, 13 pcs, 14 pcs, 15 pcs, 16 pcs, 17 pcs, 18 pcs |
| Recording type | Ø15 x SW12 |
| Thickness | 4.3 mm |
| Total thickness | 5.8 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
