Name: Handlebar bolt with cone | Piaggio Ciao
Brand: Made in Italy
SKU: 37187
Price: 16.60 EUR
Availability: InStock

New

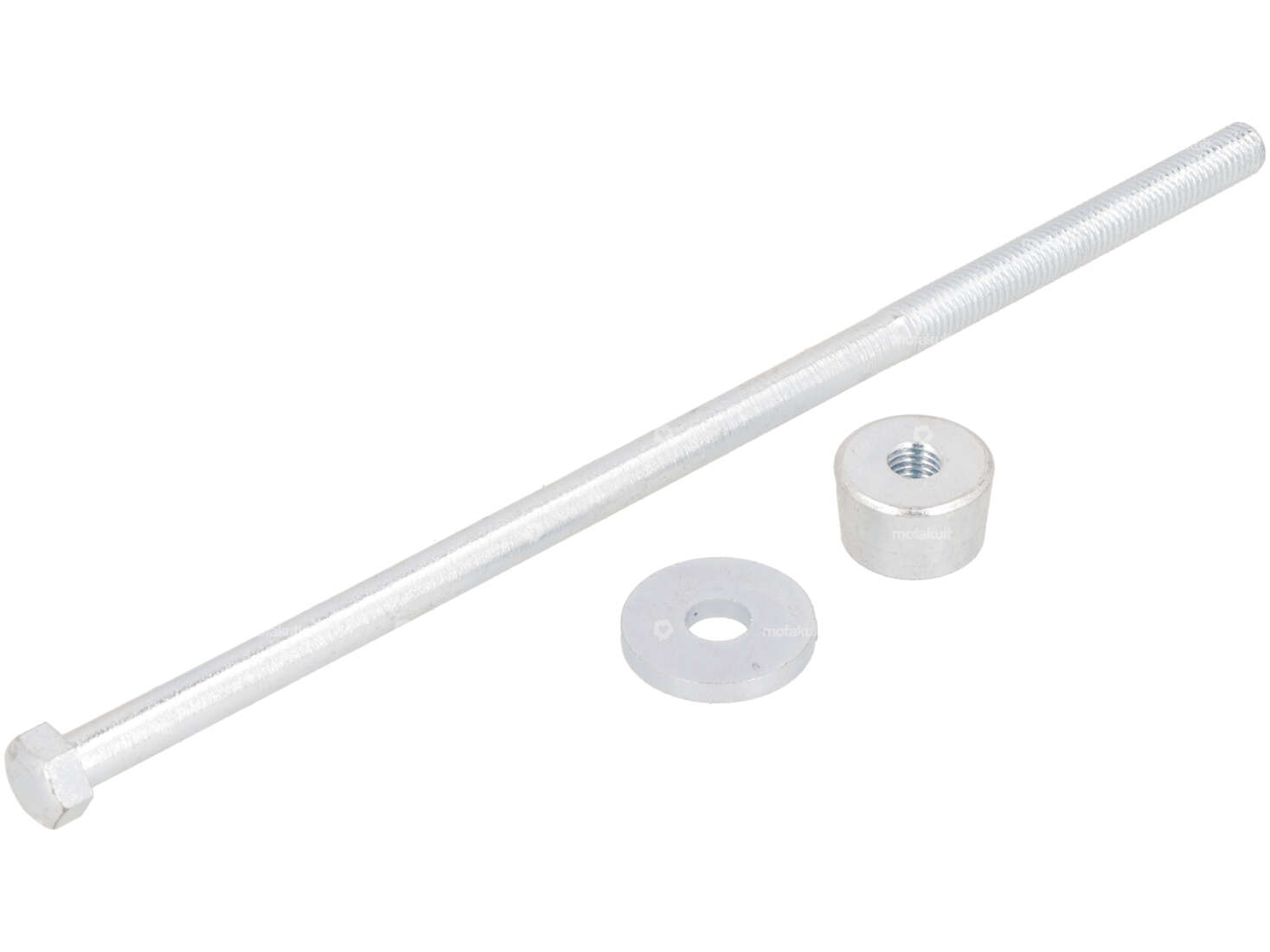

Zinc-plated hexagon head bolt M7 x 180 mm incl. cone and washer for the handlebar of your Piaggio Ciao P, SC, PX and C24 moped / moped.

The steering head screw is a little longer than the original, but this is not disturbing as the screw is not visible in the head tube.

Note: The thread tolerances are a little tight. It is recommended to retap the threads before the first installation.

Matching handlebars and individual parts can be found in the accessories section.

A quality product manufactured in Italy.

Original Piaggio spare part numbers: 124673, 104969, 141555

Details

Manufacturer	Made in Italy
Material	Steel
Surface	galvanized (blue)
Number of components	3 pcs
Total length	185 mm
Thread type	M7x1 (standard thread)
Screw head	Hexagon
Drive	External hexagon
Shank	Yes
Width across flats SW	10 mm

Ø shaft	6.4 mm
Shank length	130 mm
Thread length	50 mm
Piaggio OEM number	124673, 104969, 141555

Suitable for the following models

Piaggio

Ciao - P, SC, PX, C24

Accessories & related products

For: Piaggio

18500

Handlebar bolt original | Piaggio Ciao

Manufacturer: Piaggio · Thread type: M7x1 (standard thread) · Total length: 170 mm · Piaggio OEM number: 124673

7,90 EUR

Not in stock

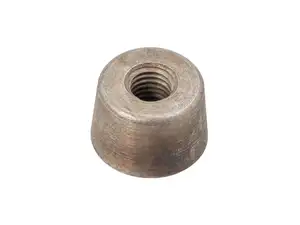

Clamping cone handlebar stem M7x1 original | Piaggio Ciao
