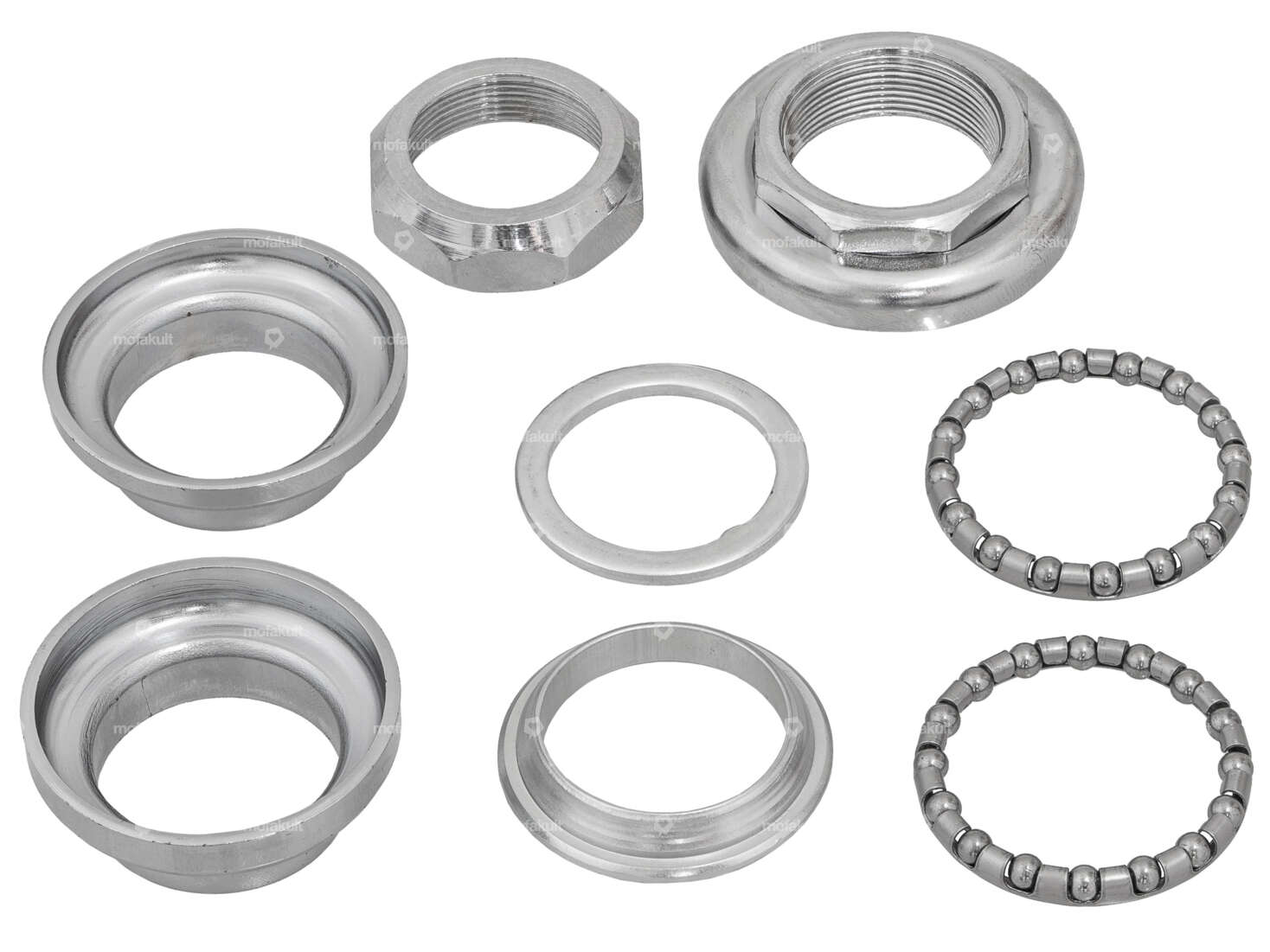

Complete steering head bearing set, as used on many old Sachs and other mopeds
The inner ring of the upper bearing is pressed into the steering tube.
The steering head bearing consists of the open end nut, the washer and the normal headset.
- Thread: 1 inch = 25.4 mm
- Slope: 24 threads per inch = 1.058 mm
- Mounting diameter for head tube in frame: 30.0 mm
- Internal diameter of bearing shells: 26.95 mm
- Internal diameter of lower bearing race: 27.0 mm
Details
| Bearing type | Bearing ring |
| Material | Steel |
| Surface | blue galvanized, chrome-plated |
| Color | silver, Chrome |
| Ø mounting frame | 30 mm |
| Ø inside | 26.95 mm |
| Ø ball [inch] / [mm] | 5/32" (4.00 mm) |
| Thread type | FG25.4 (1" 24G) |
Suitable for the following models
| Sachs | |
| Solex |
