For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, creates an internal thread that can be used on both sides.

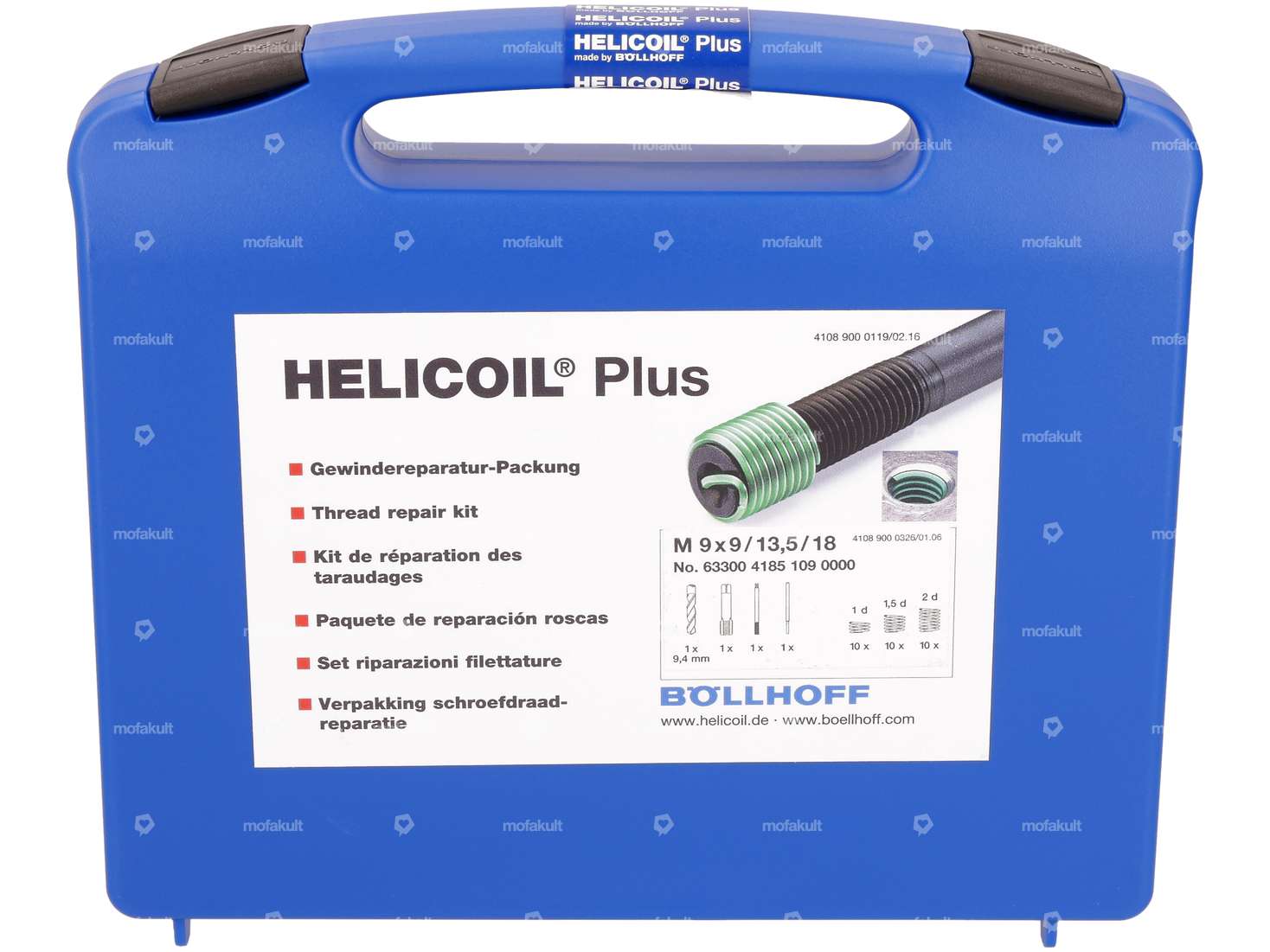

Complete repair kit for M9x1.25 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker.

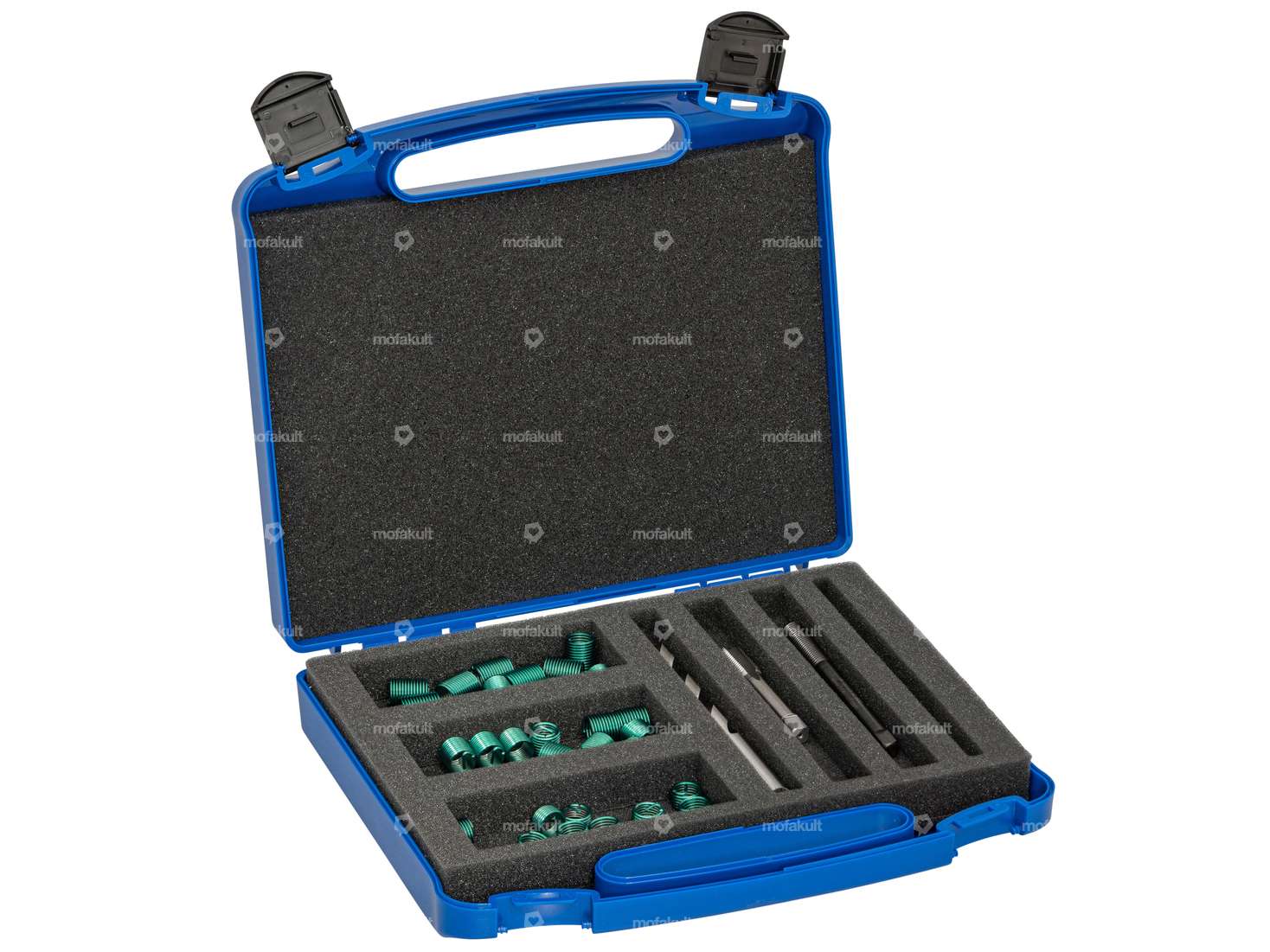

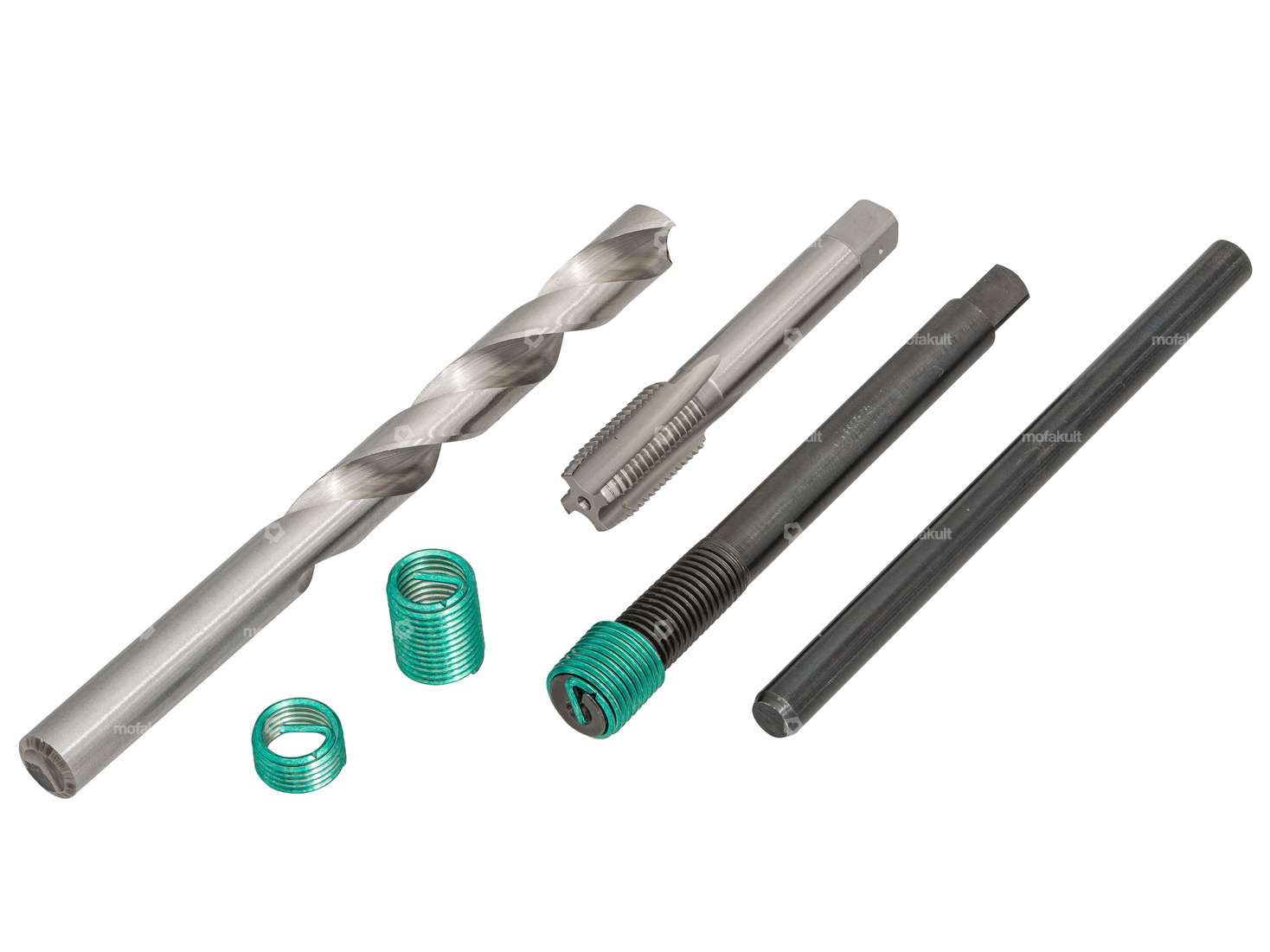

Scope of delivery
- 1 pc. twist drill
- 1 pc. Thread cutter
- 1 pc. Installation tool
- 1 pc. Tang breaker
- 10 pcs. HeliCoil thread insert (1D / 9 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 13.5 mm)
- 10 pcs. HeliCoil thread insert (2D / 18 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
Details
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Number of components | 34 pcs |
| Material | Chrome steel (stainless steel) |
| Area of application | Workshop accessories |
| Nominal diameter (thread) | 9 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Thread type | M9x1.25 (standard thread) |
| Total length | 9 mm, 13.5 mm, 18 mm |
Accessories & related products
HeliCoil thread repair case M5 - M12 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 300 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Dimension storage box: 420 x 345 x 120 mm · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread)
395,10 EUR
HeliCoil thread repair case M2.5 - M6 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 300 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 2.5 mm · Nominal diameter (thread): 3 mm · Nominal diameter (thread): 4 mm · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Dimension storage box: 420 x 345 x 125 mm · Thread type: M2.5x0.45 (standard thread) · Thread type: M3x0.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread)
395,10 EUR
Autosol Brake Cleaner 500 ml
Manufacturer: Autosol · Contents [ml]: 500 ml · Area of application: Chemistry · Area of application: Cleaner · Hazard warning: Causes skin irritation · Hazard warning: Extremely flammable aerosol · Hazard warning: May be fatal if swallowed and enters the respiratory tract · Hazard warning: May cause drowsiness and dizziness · Hazard warning: Pressurized container: may burst when heated · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Signal word: Danger · Hazard pictogram: GHS02 - Highly flammable · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment
16,20 EUR
32,40 EUR/l
HeliCoil thread repair set M8 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 30 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Surface: coated · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.4 mm · Dimension storage box: 180 x 165 x 45 mm · Thread type: M8x1.25 (standard thread) · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm
92,90 EUR
HeliCoil thread repair set M8x1 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 30 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.3 mm · Dimension storage box: 180 x 165 x 45 mm · Thread type: MF8x1 (fine pitch thread) · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm
116,10 EUR
HeliCoil thread repair set M10 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 30 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 10 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 10.5 mm · Dimension storage box: 180 x 165 x 45 mm · Thread type: M10x1.5 (standard thread) · Total length: 10 mm · Total length: 15 mm · Total length: 20 mm
102,20 EUR
HeliCoil thread repair set M10x1 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 30 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 10 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 10.2 mm · Dimension storage box: 180 x 165 x 45 mm · Thread type: MF10x1 (fine pitch thread) · Total length: 10 mm · Total length: 15 mm · Total length: 20 mm
116,10 EUR
HeliCoil thread repair set M10x1.25 (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Number of components: 34 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 10 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Thread type: MF10x1.25 (fine pitch thread) · Total length: 10 mm · Total length: 15 mm · Total length: 20 mm
131,30 EUR
Moped fans like you also bought:
HeliCoil thread repair set M8x1 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 30 pcs · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.3 mm · Dimension storage box: 180 x 165 x 45 mm · Thread type: MF8x1 (fine pitch thread) · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm
116,10 EUR

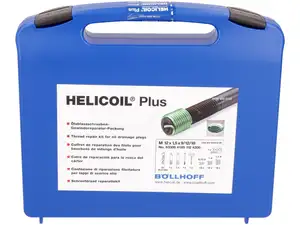

HeliCoil thread repair set M12x1.5 oil spigot hole (fine thread)
